Biodiesel Processor & Filtration System

$9,995.00
(inc GST)
SKU BD150-P

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.

Description

A complete used vegetable oil to biofuel conversion package. This kit builds on our biodiesel processor by adding all the extras required to make high quality biofuel including filter system, filter socks and oil titration kit.

Proudly Australian Made!
Scintex Biodiesel Kits Proudly Australian Made
~~~ NOTE: THIS PRODUCT HAS BEEN DISCONTINUED ~~~



BD150 Biodiesel Processor & Filter System

For answers to questions about our biodiesel kits and processors please see the following link Biodiesel Questions & Answers.

The Scintex BD150 biodiesel processor is simple to use, all in one biodiesel generating unit. Designed with the average user in mind, it makes it easy for small scale production of quality biodiesel to take place in your home garage. The BD150 allows users to load filtered waste vegetable oil directly into the processor using the on skid pump. Simply line up the correct valves and make use of the supplied loading line. Heating your oil is simple with the Scintex BD150 Producer as the thermostatically controlled heating element is located within the reactor. This saves dangerous transfer operations while loading hot oil into your reactor and does away with slow band heaters! The Scintex reaction vessels are specifically design for Biodiesel production and will last many years of operation around hot chemicals. They feature a conical bottom tank design which ensures excellent separation of the glycerol layer. Mixing of methoxide and oil is timer controlled so once you start the process, there''s no need to hang around. Simply start mixing timer and return 24hrs later to find your biodiesel/glycerol already separated. Now that''s simple! The BD150 kit is designed for use with our range of filter housings and bags.

The BD150 Biodiesel Processor includes the following:

  • 200L graduated, polyethylene reaction vessel
  • 60L graduated, polyethylene methanol/KOH mixing vessel
  • 240V 2400W electronically controlled, immersion heater contained within the reaction vessel (low density for use with vegetable oils and biodiesel)
  • 240V Vane Pump with pump timer
  • All plumbing and valves
  • Anti vortex valves
  • Galvanised steel frame (some assembly required)
  • Assembly and operating instructions
  • Filtration system
  • Oil titration kit

Filtration System:

Consisting of an 01- size stainless steel filter housing with seals designed specifically for use with biodiesel, five filter bags matched to the housing in various micron sizes to ensure your biodiesel is filtered and polished before use. In addition, all the hoses, clamps and fittings required to retro fit the filter system to the standard BD150 biodiesel processor is included.

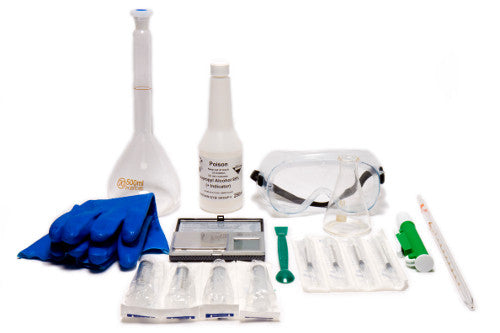

Oil Titration Kit:

You will also get our TK2 high accuracy oil titration kit. An essential item when making biodiesel as it allows you to accurately determine the amount of base catalyst required which directly impacts on the quality of the end fuel.

Note: This product is supplied in kit form. Some assembly is required. The heating element and controls are supplied and final connection and certification done by a licensed electrician.

Shipping & Lead times: Please contact us for a freight quote to your location. The biodiesel processors are made in manufacturing runs and it is best to contact us for lead times.
