NMEA-2000 Cables

$35.00
(inc GST)
SKU SNMEA06

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.

Description

High quality NMEA-2000 compatible cables and connectors that are perfect for marine electronics communications. Compatible with NMEA-2000 enabled chart plotters, fish finders and sounders. The range covers backbone cables, tee's, resistive terminators,elbow connectors, multi-junction connectors and starter kits.

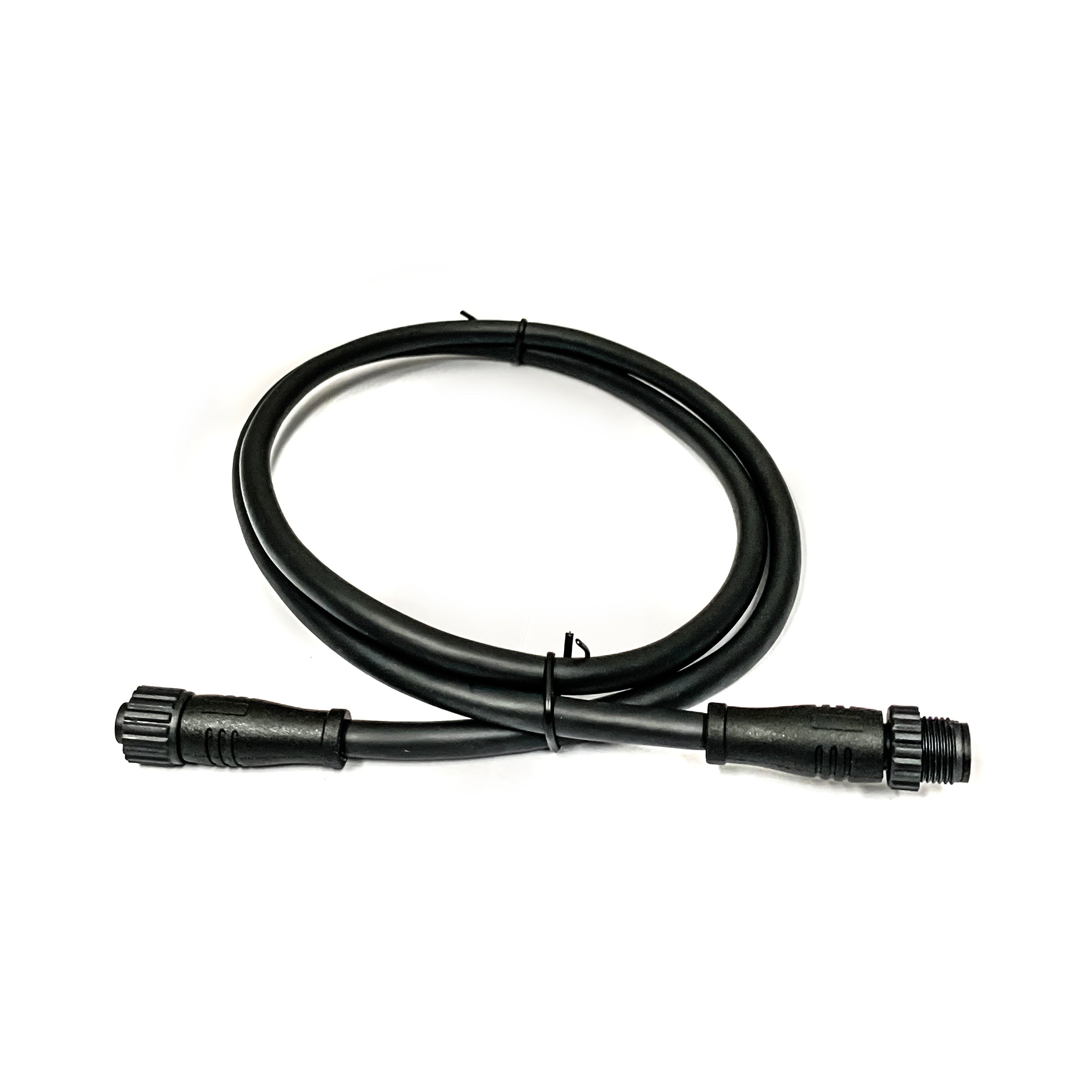

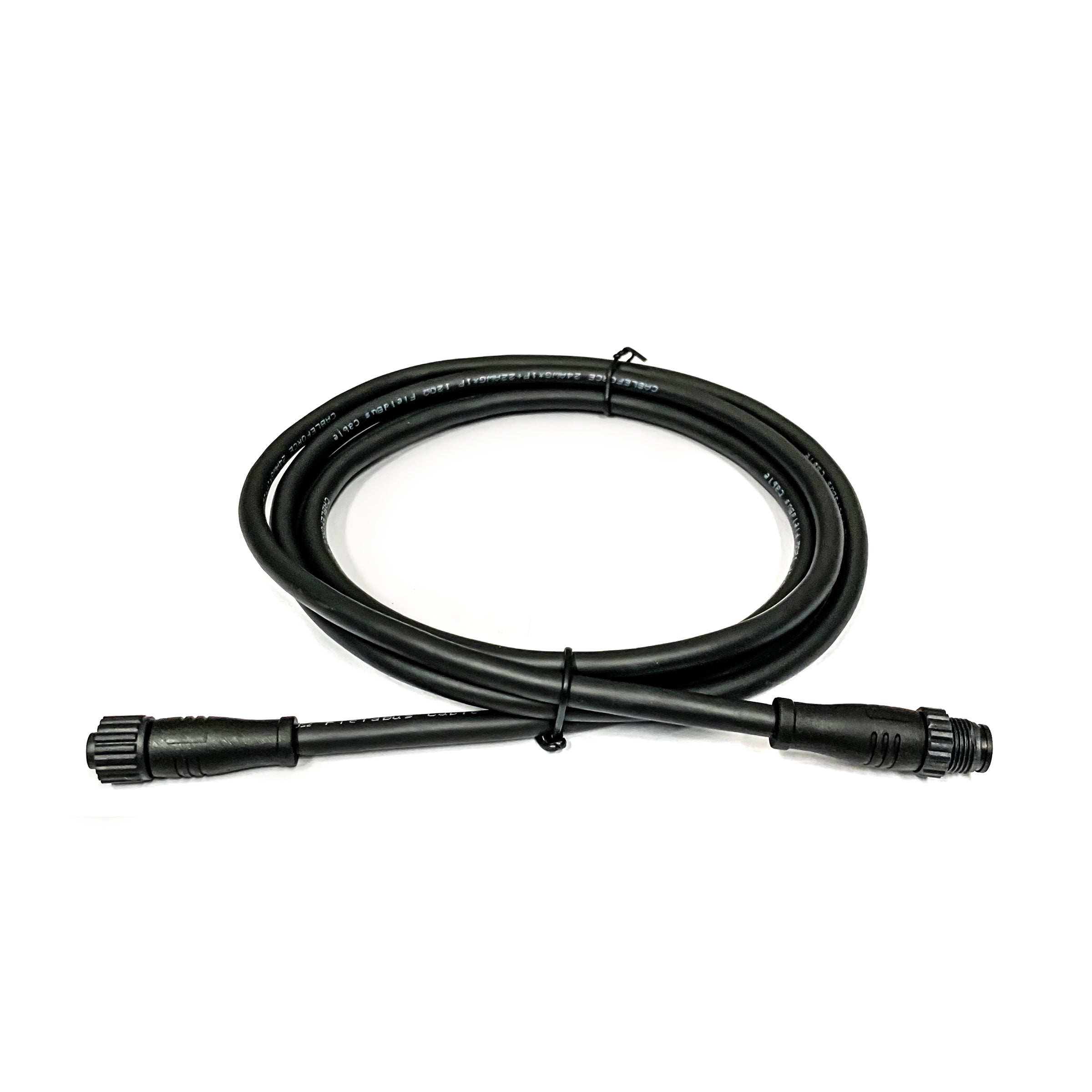

NMEA-2000 - Cables

Cables provide the data transfer path between your NMEA-2000 devices. High quality cables ensure fast and accurate communications. These cables are super flexible and make installation in tight areas such as boat consoles and gunnels possible.

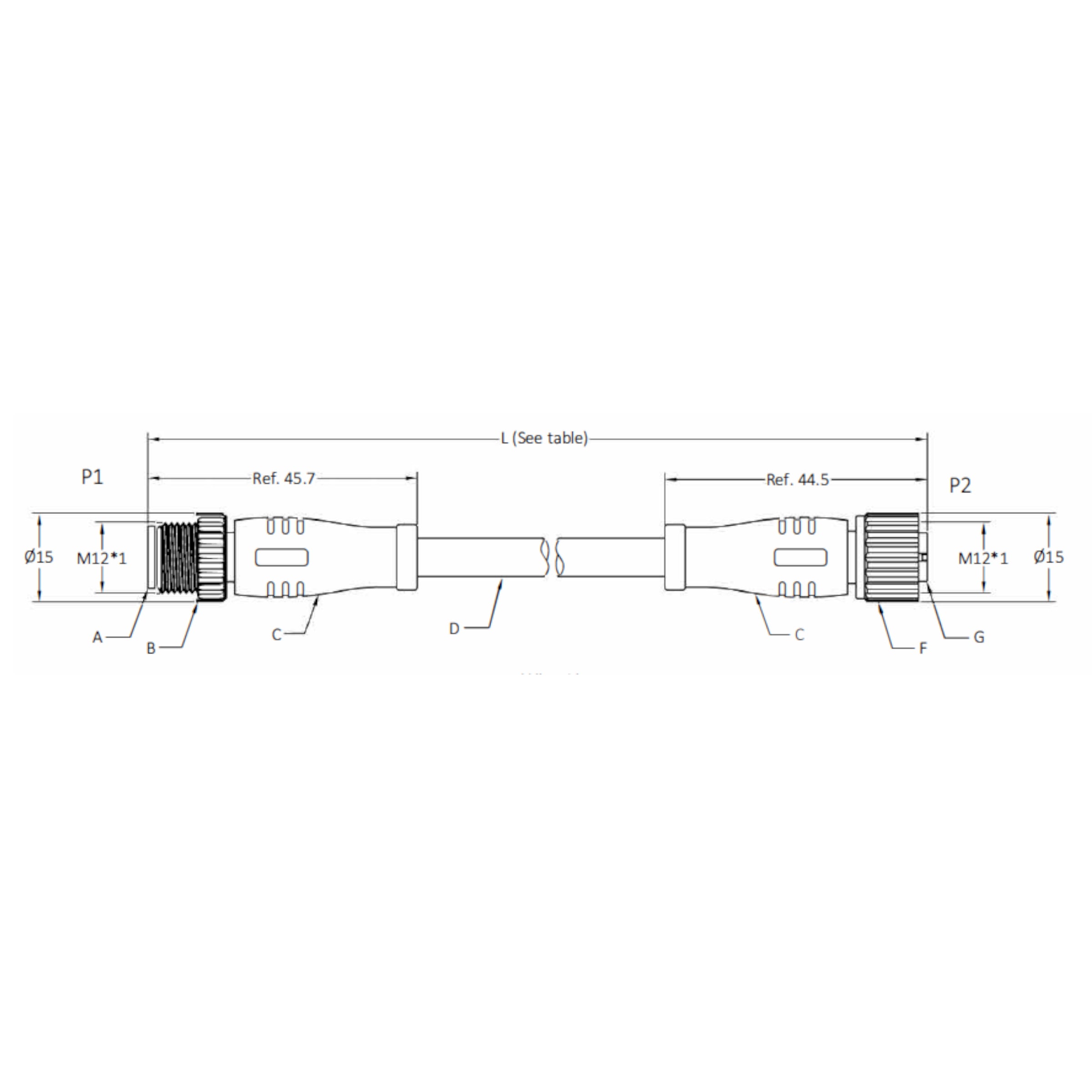

    Technical Data
    Connections Male x Female
    Pins
    5
    Reference Standard
    IEC 61076-2-101
    Rated Current
    4 A
    Rated Voltage
    60 V
    Impulse Voltage
    1500 V
    Locking system M12 x 1.0 screw / M12
    Tightening Torque Recommend:0.4Nm, Max:0.8Nm
    Termination Soldered
    Cable Fieldbus DeviceNet Cable (AWG22*1P FMPE+AI foil)+(AWG24*1P+AI foil)+Drain+Braid, 120ohm Characteristic impedance, Black PVC Cable
    Rated temperature Flexible ‒25 °C ... +80 °C, Static ‒ 40 °C ... +80 °C
    Insulation resistance ≥100MΩ
    Contact resistance ≤5mΩ
    Connector Body
    TPU
    Contact carrier TPU+ GF
    Screw Nut
    PA66 + GF
    Contact Brass ; Phosphor bronze
    Contacts plating Au (Gold)
    O-ring FKM
    Protection degree IP67
    Warranty 2 Year
