NMEA-2000 Power Tap Cable Tee

Current Price $30.00
Original Price $43.00
(inc GST)

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.



High quality NMEA-2000 compatible cables and connectors that are perfect for marine electronics communications. Compatible with NMEA-2000 enabled chart plotters, fish finders and sounders. The range covers backbone cables, tee's, resistive terminators,elbow connectors, multi-junction connectors and starter kits.

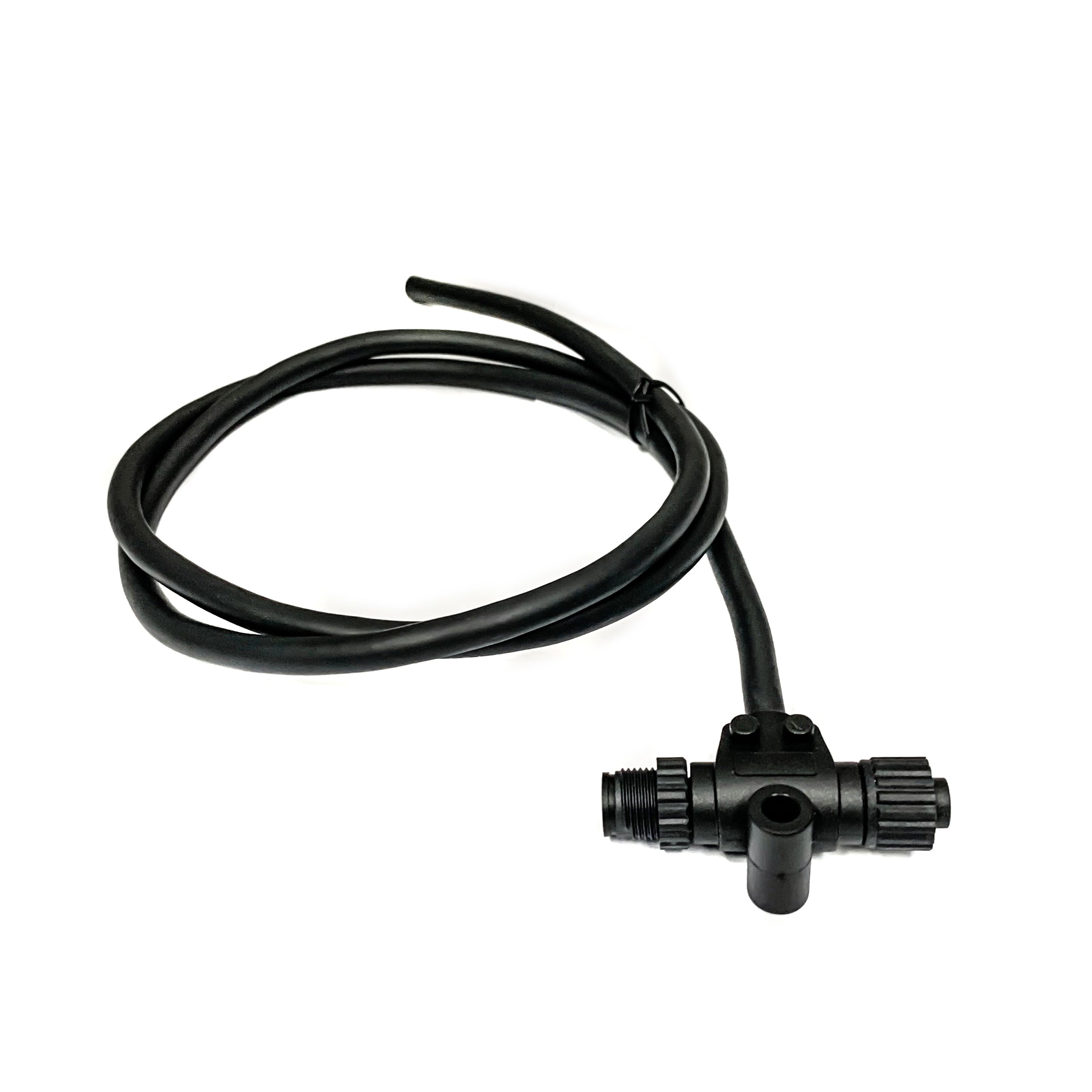

NMEA-2000 - Power Tap

The power tap cable tee allows you to power your NMEA-2000 network from a 12v supply. Simple inline installation keeps your network installation neat and tidy.

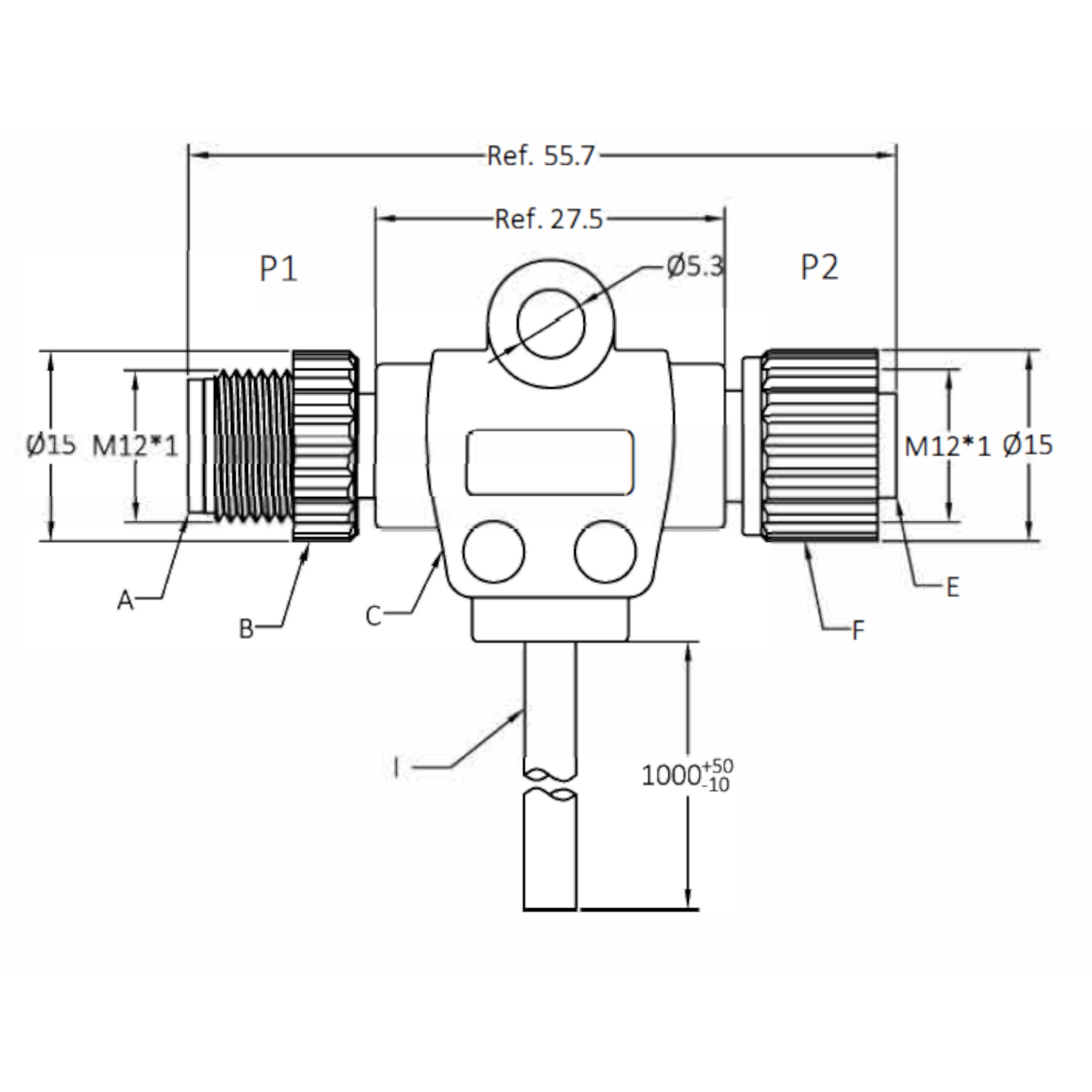

    Connector Technical Data
    Connections Male x Female / 1m cable (positive/negative wires)
    Reference Standard
    IEC 61076-2-101
    Rated Current
    4 A
    Rated Voltage
    60 V
    Impulse Voltage
    1500 V
    Locking system M12 x 1.0 screw / M12
    Tightening Torque Recommend:0.4Nm, Max:0.8Nm
    Termination Soldered
    Cable Fieldbus DeviceNet Cable (AWG24*1P FMPE+AI foil)+(AWG22*1P+AI foil)+Drain+Braid, 120ohm Characteristic impedance, Black PVC Cable
    Rated temperature Flexible ‒25 °C ... +80 °C, Static ‒ 40 °C ... +80 °C
    Insulation resistance ≥100MΩ
    Contact resistance ≤5mΩ
    Connector Body
    Contact carrier TPU+ GF
    Screw Nut
    PA66 + GF
    Contact Brass ; Phosphor bronze
    Contacts plating Au (Gold)
    O-ring FKM
    Protection degree IP67
    Warranty 2 Year
