NMEA-2000 Terminator - Female
$15.00
SKU SNMEA02
FREIGHT ESTIMATE: Add to cart for shipping costs.
Description
High quality NMEA-2000 compatible cables and connectors that are perfect for marine electronics communications. Compatible with NMEA-2000 enabled chart plotters, fish finders and sounders. The range covers backbone cables, tee's, resistive terminators,elbow connectors, multi-junction connectors and starter kits.

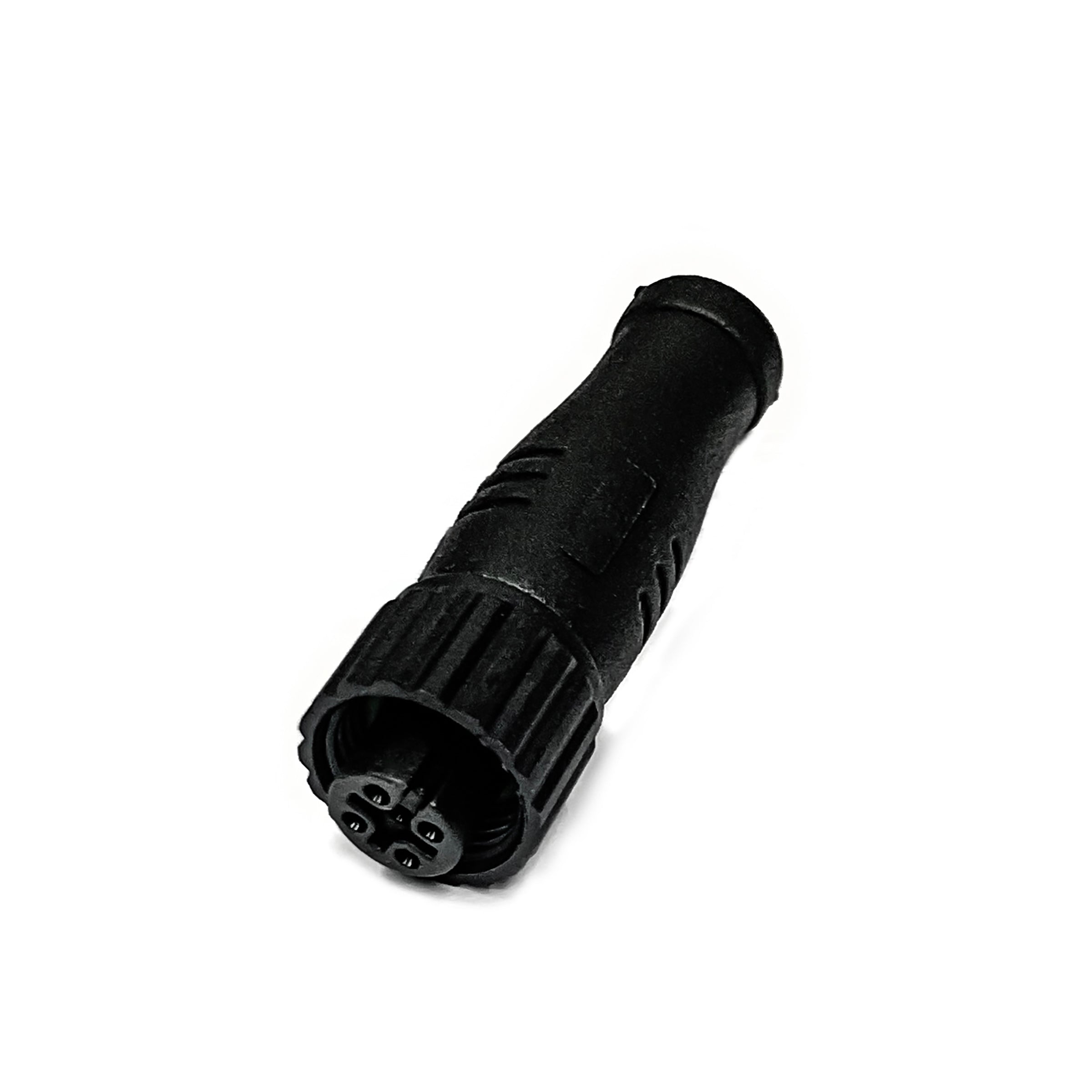

NMEA-2000 Terminator - Female
Terminators are required on each end of the network backbone to ensure signal integrity. Terminators are available with either a male or female coupler to attach to either side of a tee connector at the end of a backbone.
| Connector Technical Data |
|
|---|---|
| Pins |
5 |
| Reference Standard |
IEC 61076-2-101 |
| Rated Current |
4 A |
| Rated Voltage |
60 V |
| Impulse Voltage |
1500 V |
| Locking system | M12 x 1.0 screw / M12 |
| Tightening Torque | Recommend：0.4Nm, Max：0.8Nm |
| Termination | Soldered |
| Rated temperature | Flexible ‒25 °C ... +80 °C, Static ‒ 40 °C ... +80 °C |
| Insulation resistance | ≥100MΩ |
| Contact resistance | ≤5mΩ |
| Resistor | 120Ω±1%, 0.6W |
| Over-molding | TPU |
| Contact carrier | PA66 + GF |
| Screw Nut |
PA66 + GF |
| Contact | Brass ; Phosphor bronze |
| Contacts plating | Au (Gold) |
| O-ring | FKM |
| Protection degree | IP67 |
| Warranty | 2 Year |
