Pressure & Boost Sensor

(inc GST)

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.

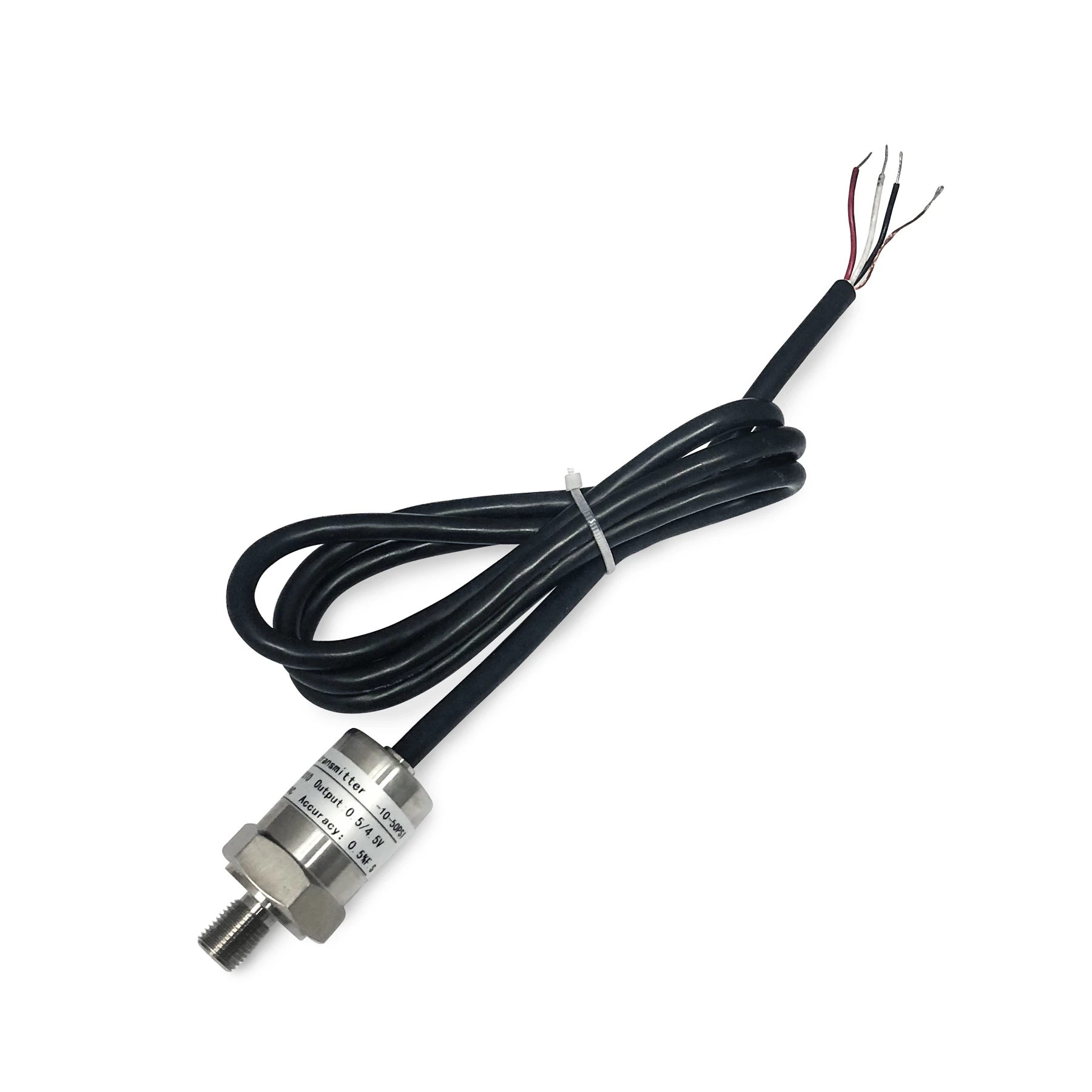

This precision pressure transmitter can be used for a multitude of applications ranging from air or boost pressure to oil or fuel pressure measurement. It is supplied with wiring harness that has a 1 meter sheathed cable, however this can be extended as needed. It is compatible with our digital gauges and process controllers as well as many other devices.

Specifications Value
Sensor Thread 1/8" BSP (NPT may be available on request)
Sensor Material 316 Stainless Steel
Supply Voltage

SAPS1050 12V DC

SPS0250 12V DC

Supply Current  10 mA max.
Maximum Output Current Sink 1 mA
Output Impedance 10 ohms max
Output Type ratio metric
Output Voltage (0.5v at -10 PSI & 4.5v at 50 PSI) or (0.5V at 0 PSI & 4.5V at 250 PSI)
Pressure Range OPTIONS: (-10 to 50 PSI) or (0 to 250 PSI)
Proof Pressure 200%FS
Static Accuracy (%FS) 1.5 typ.
Compensated Temperature Range -40°C to +150°C
Storage Temperature Range -50°C to +165°C
Protection Class IP65
Media Compatibility Media Compatible with Silicone
Notes: Static accuracy is the RSS of non-linearity, hysteresis, and non-repeatability
