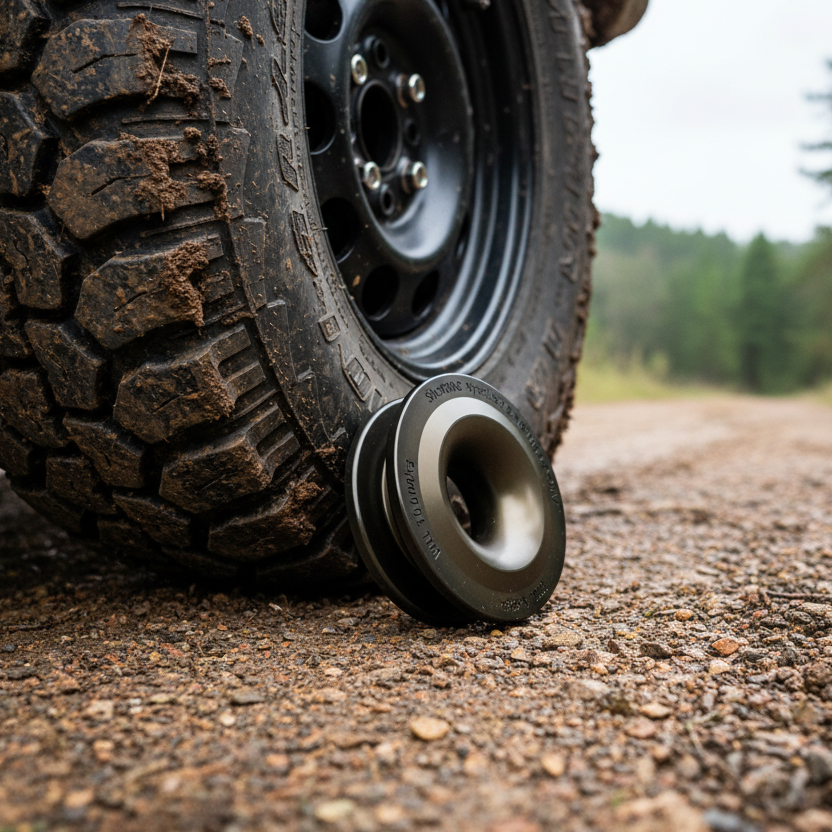

Sherpa 4x4 Winch Recovery Ring 120mm - 10,000kg (22,000lb)
Description
Upgrade your recovery gear with confidence. The Sherpa 4x4 Winch Recovery Ring 10T is one of the largest recovery rings on the market, capable of handling up to 22mm of synthetic winch rope. When performance, strength, and reliability matter, Sherpa 4x4 delivers gear that outclasses cheaper rings and even outperforms many traditional snatch blocks.
- 10,000kg (22,000lb) - 97.9 KN WLL (Working load limit)
- 20,000kg (44,000lb) breaking strength
Sherpa 4x4 10T Winch Recovery Ring – Heavy-Duty, High-Capacity, Winch Pulley
Engineered for serious recoveries, this winch recovery pulley is purpose-built for synthetic winch ropes 8–22mm and offers a massive 120mm outside diameter with a smooth, oversized stepped inner channel for effortless rope flow and compatibility with all major soft shackle brands.
Why Choose the Sherpa 10T Ring Over Competitor Recovery Rings?
- One of the Largest Rings Available – Handles wider diameter synthetic winch ropes (up to 22mm) for better versatility on the trails.
- More Pulling Power, Less Strain – Double-line pulling dramatically increases winch capacity while taking stress off the motor, letting you recover heavier loads safely.
- Cooler, Safer, More Efficient – Reduces heat buildup and motor load, helping extend winch life and boosting performance when you need it most.
- High-End Materials, No Compromises – Precision CNC-machined from 6061 aluminium and finished with mil-spec hard anodizing for extreme wear, heat, and friction resistance.
- Lighter Than a Traditional Snatch Block – Easier to pack, easier to use, and far less to carry around the trails.
Built to Perform When It Counts
Sherpa’s recovery ring has been fully stress-modelled and tested to ensure maximum safety and reliability. With a WLL of 10,000kg (22,000lb) and a huge 20,000kg (44,000lb) breaking strength, it’s built to withstand brutal real-world loads.
Specifications
- Lightweight precision CNC machined 6000 series aluminium
- WLL 10,000kg or 22,000 pounds (97.9 KN)
- Mil-A-8625 F Hard Anodized Surface
- For Synthetic Rope Diameters 5/16" to 7/8" (8-22mm)
- Large 120mm outside diameter with 37mm inner makes use with soft shackles simple
