24V Trolltek™ LiFePO4 Lithium Battery with Bluetooth.
Freight costs for heavy & bulky items includes a tailgate truck cost. If a forklift is available please contact our sales team to discuss.
You can also contact us for a freight quote prior to ordering.
For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.
Description
Trolltek™ Lithium Batteries – Built for Tough Conditions, Engineered to Last
Durability You Can Trust
Trolltek™ batteries are designed for harsh, demanding environments. With heavy-duty internal construction and a fully sealed outer casing, they deliver long-lasting reliability wherever you take them.
Long Cycle Life
Only premium, new UL-certified cells are used in every Trolltek™ battery, ensuring outstanding performance over thousands of cycles. Expect up to 80% capacity retention at 3,000 cycles under recommended conditions. With a battery half-life beyond 6,000 cycles, daily use still delivers strong performance more than 16 years down the track.
Upgraded Internal Structure
Heavy-duty supports reinforce internal cells and wiring for enhanced stability and durability.
Advanced Battery Management System (BMS)

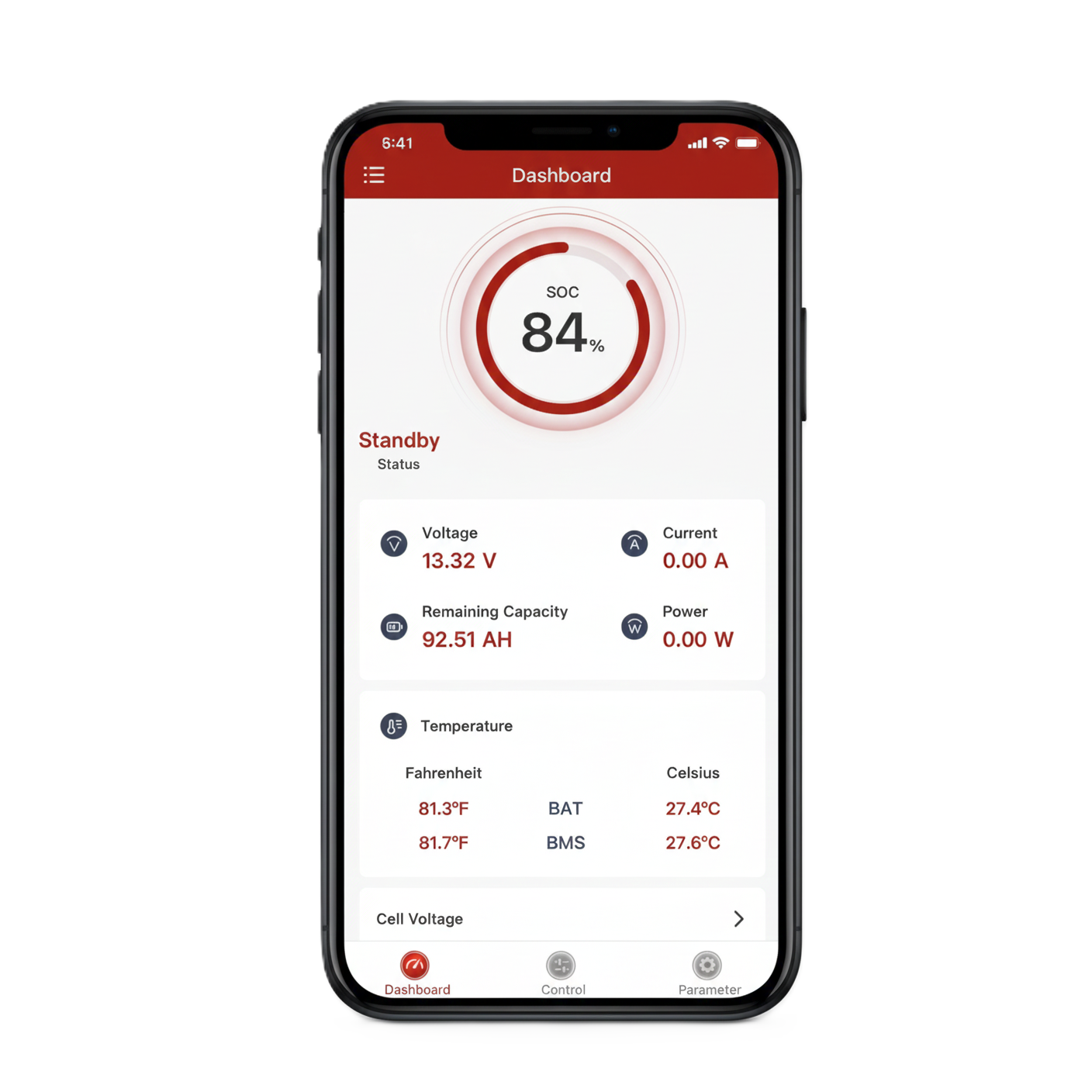

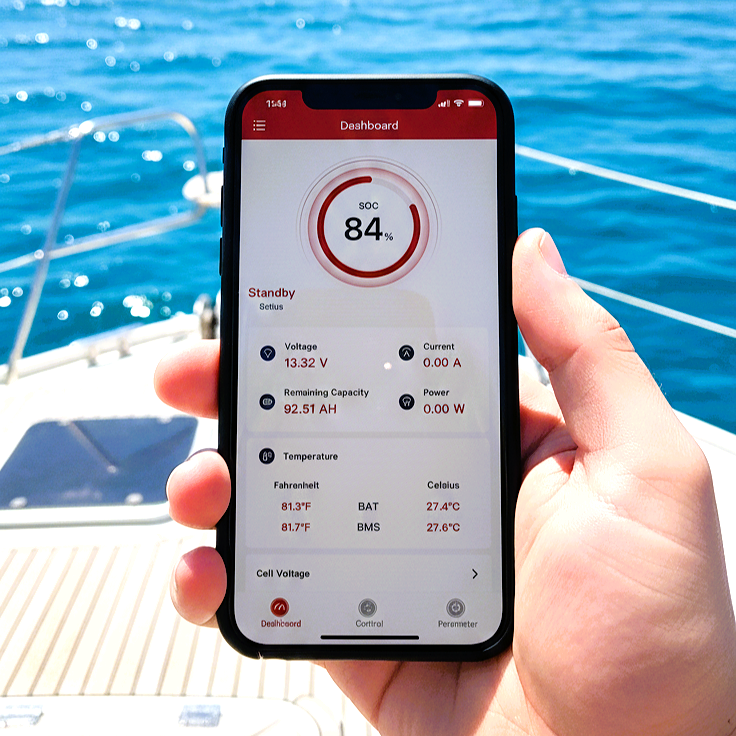

Each battery is equipped with a heavy-duty BMS to maintain safe, reliable operation in demanding applications. Bluetooth connectivity is standard, giving you real-time access to state of charge, usage data, and performance metrics.
Safety & Certifications
An active protection circuit provides cell balancing, low/high voltage cutoff, short-circuit protection, and high-temperature safeguards.
-
All batteries are UN38 certified
-
Cells are UL1642 certified and tested to IEC62133
-
Compliant with US & International transport regulations for air, ground, rail, and marine
High Discharge Capability
Supports 100A continuous discharge with peak loads up to 280A, making Trolltek™ ideal for high-demand setups.
Fast, Efficient Charging
Modern alternators and chargers can rapidly replenish your battery. The BMS supports up to 100A continuous charging, ensuring quick turnaround times when you need power fast.
Wide Operating Temperature Range
Engineered for harsh climates with an operational range of -20°C to 60°C.
Note: Charging is not recommended below 0°C.
Industry-Leading Warranty
Every Trolltek™ lithium battery is backed by a robust 5-year warranty, giving you total peace of mind.
Perfect for off-grid systems, 4x4 setups, marine applications, and any environment where performance and longevity matter.
SPECIFICATIONS
| Specifications | Value |
|---|---|
|
VOLTAGE |
24V 26.8-27.6V (after charging) |
| CAPACITY |
100AH - 2560WH 200AH - 5120WH |
| BMS |
Included with Bluetooth connection Trolltek app available for iPhone and Android monitoring (free download, no advertising or subscription fees) Low voltage protection High voltage protection Over temperature protection |
| COMPATABILITY | Popular choice for use with 24V Minn Kota and MotorGuide trolling motors |
| MAX. CONTINUOUS CHARGING | 100A |
| MAX. CONTINUOUS DISCHARGE | 100A |
| MAX. PULSE CURRENT | 280A |
| MAX. STORAGE TEMP. | 45°C - Not recommended for under bonnet installations |
| CELLS |
New, UL Certified, Pouch cells Capable of 6,500+ cycles based on 50% DOD (Depth of discharge) |
| PARALLEL/SERIES CONNECTIONS |
Parallel - no limit Series - Max. 2 for a 48V system |
| ENCLOSURE | IP68 - Fully sealed, waterproof, submersion tested |
| DIMENSIONS & WEIGHT |
100AH / 522x240x217mm / 21 kg 200AH / 520x269x220mm / 40 kg |
| WARRANTY | 5yrs |
