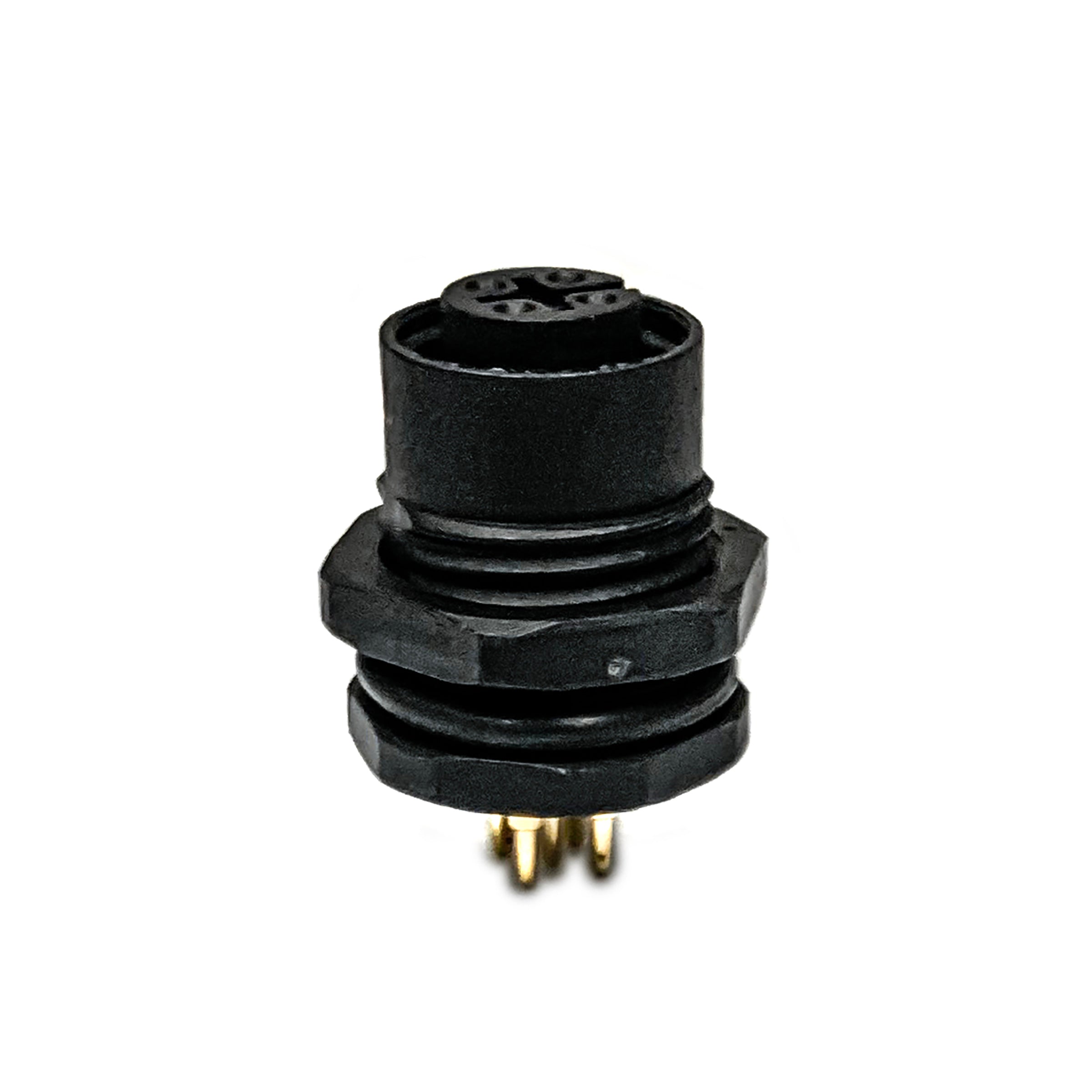

NMEA-2000 Panel Connector - Female

$17.00
(inc GST)
SKU SNMEA13

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.



Description

High quality NMEA-2000 compatible cables and connectors that are perfect for marine electronics communications. Compatible with NMEA-2000 enabled chart plotters, fish finders and sounders. The range covers backbone cables, tee's, resistive terminators,elbow connectors, multi-junction connectors and starter kits.


NMEA-2000 - Panel Connector - Male

Panel or bulkhead connectors are great for neat installations where components may need to be regularly connected or disconnected and removed.

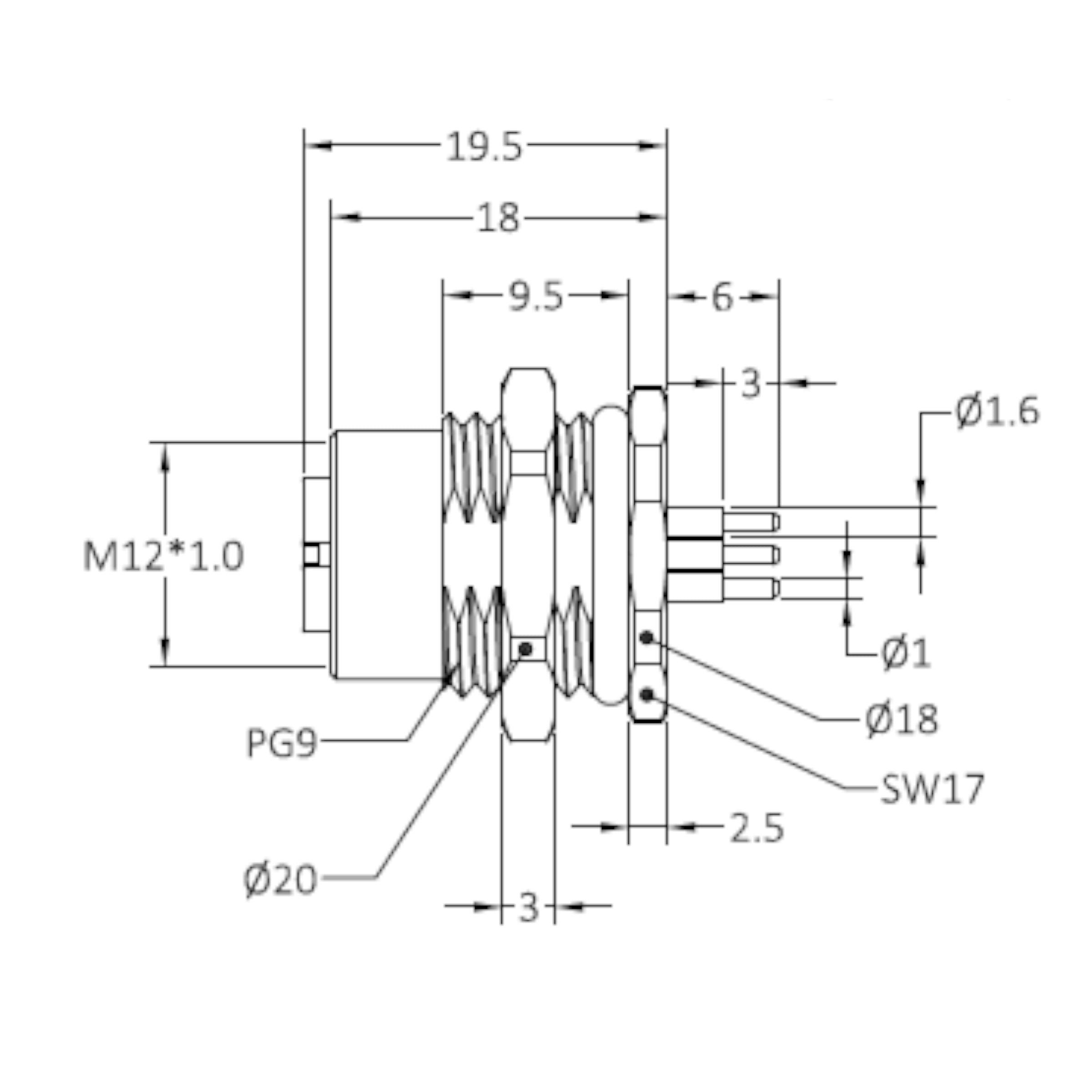

    Technical Data
    Pins
    5
    Reference Standard
    IEC 61076-2-101
    Rated Current
    4 A
    Rated Voltage
    60 V
    Impulse Voltage
    1500 V
    Locking system M12 x 1.0 screw
    Tightening Torque Recommend:0.4Nm, Max:0.8Nm
    Termination Soldered
    Rated temperature Flexible ‒25 °C ... +80 °C, Static ‒ 40 °C ... +80 °C
    Insulation resistance ≥100MΩ
    Contact resistance ≤5mΩ
    Connector Body
    TPU
    Contact carrier TPU+ GF
    Screw Nut
    PA66 + GF
    Contact Brass
    Contacts plating Au (Gold)
    O-ring FKM
    Protection degree IP67
    Warranty 2 Year
