NMEA-2000 Tee Connector Single

(inc GST)

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.



High quality NMEA-2000 compatible cables and connectors that are perfect for marine electronics communications. Compatible with NMEA-2000 enabled chart plotters, fish finders and sounders. The range covers backbone cables, tee's, resistive terminators,elbow connectors, multi-junction connectors and starter kits.

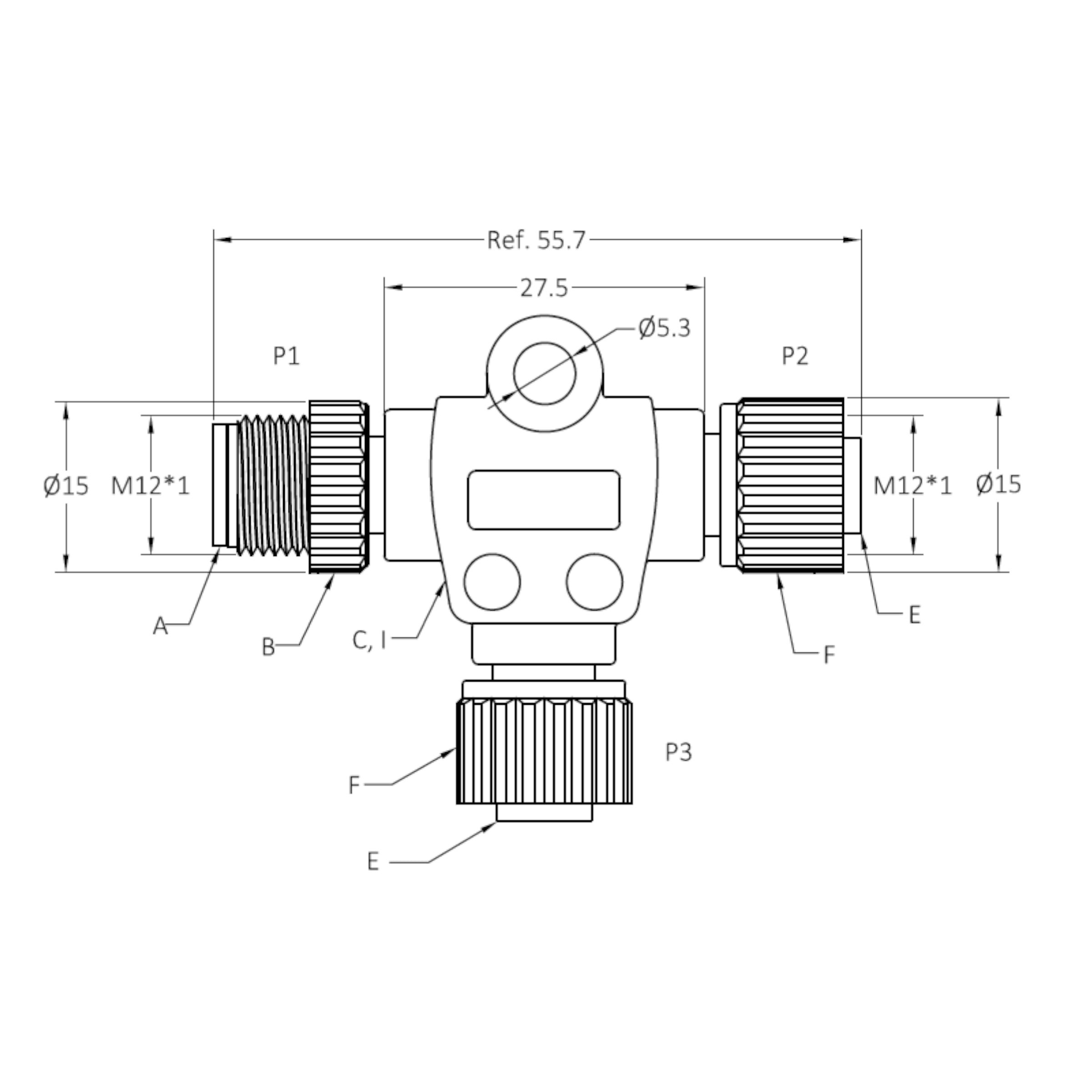

NMEA-2000 - Single Tee Connector

Tee connectors allow for drop cables to be take from backbone cables and general network expansion.

    Connector Technical Data
    Connections Male x Female / Female (Tee)
    Reference Standard
    IEC 61076-2-101
    Rated Current
    4 A
    Rated Voltage
    60 V
    Impulse Voltage
    1500 V
    Locking system M12 x 1.0 screw / M12
    Tightening Torque Recommend:0.4Nm, Max:0.8Nm
    Termination Soldered
    Rated temperature Flexible ‒25 °C ... +80 °C, Static ‒ 40 °C ... +80 °C
    Insulation resistance ≥100MΩ
    Contact resistance ≤5mΩ
    Connector Body
    Contact carrier TPU+ GF
    Screw Nut
    PA66 + GF
    Contact Brass ; Phosphor bronze
    Contacts plating Au (Gold)
    O-ring FKM
    Protection degree IP67
    Warranty 2 Year (Includes engine and machine)
