Paddock Motorised Post Drivers
Freight costs for heavy & bulky items includes a tailgate truck cost. If a forklift is available please contact our sales team to discuss.
You can also contact us for a freight quote prior to ordering.
For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.
Description

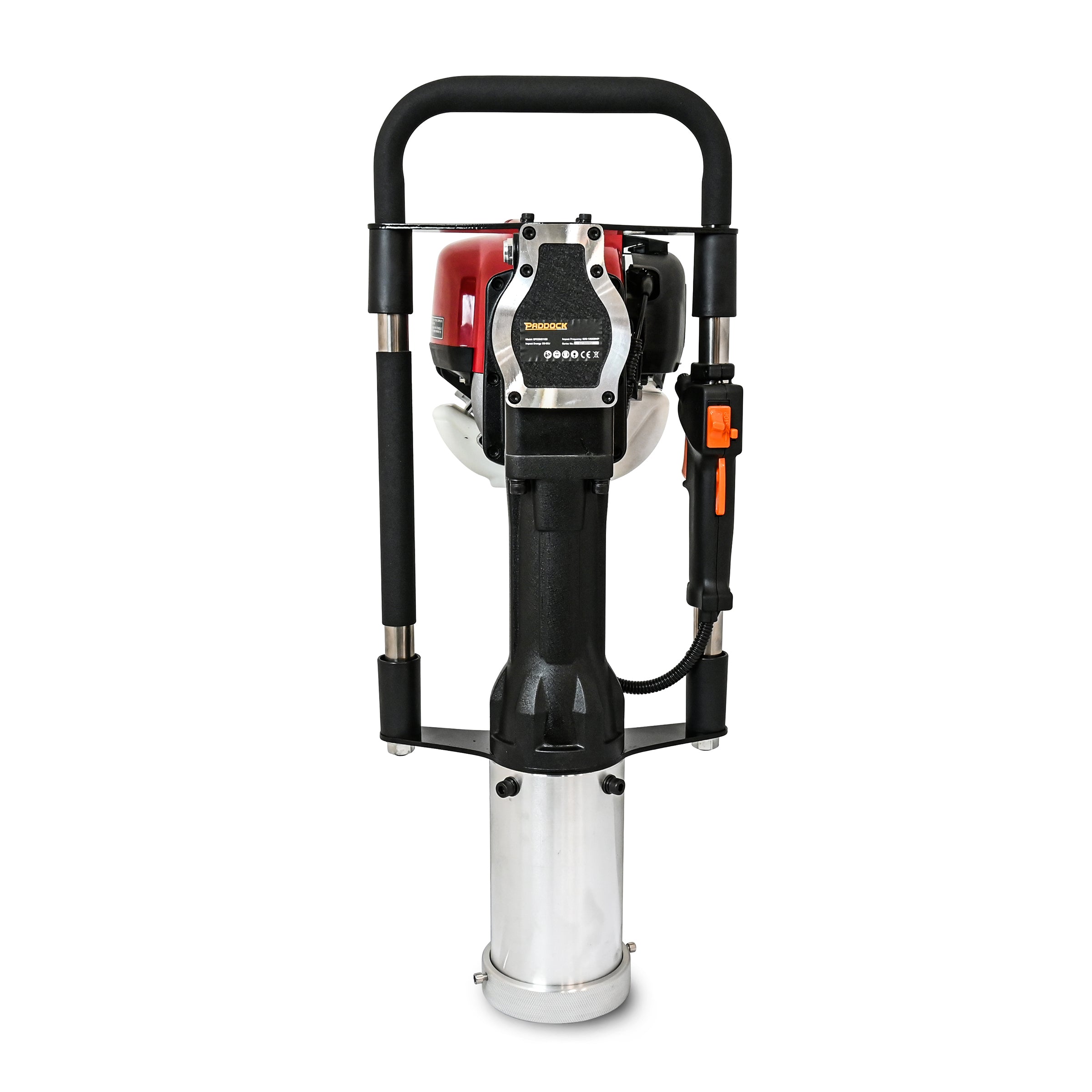

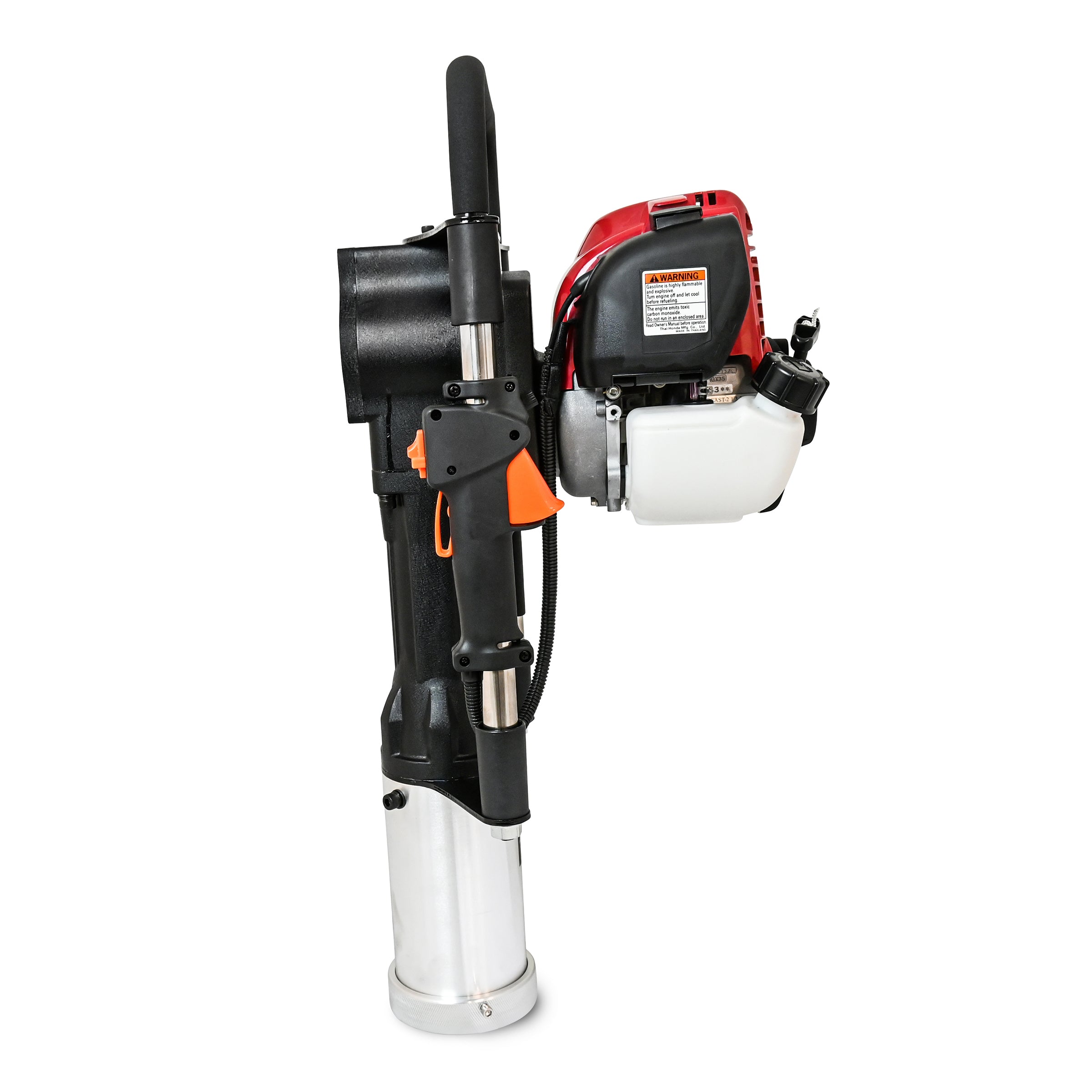

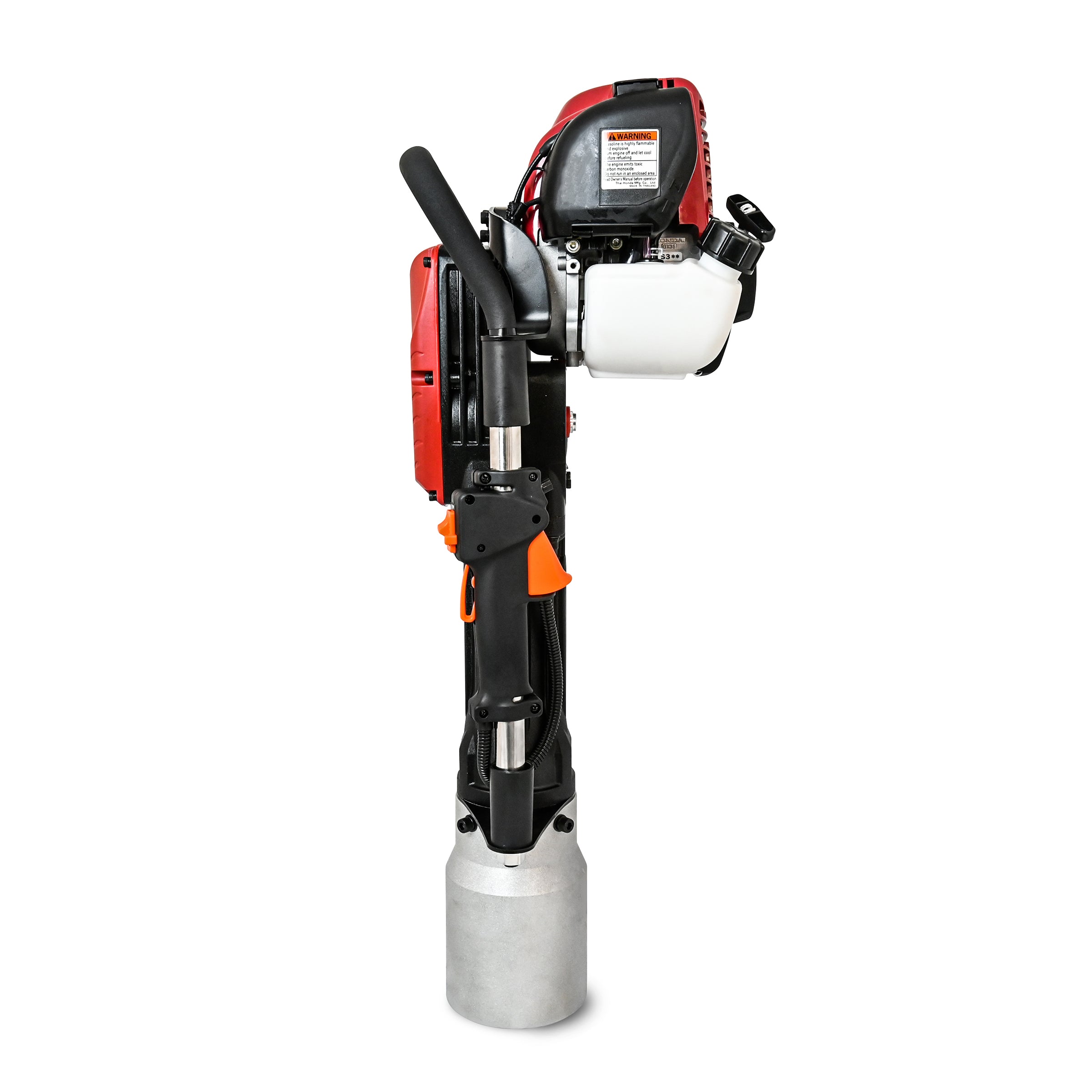

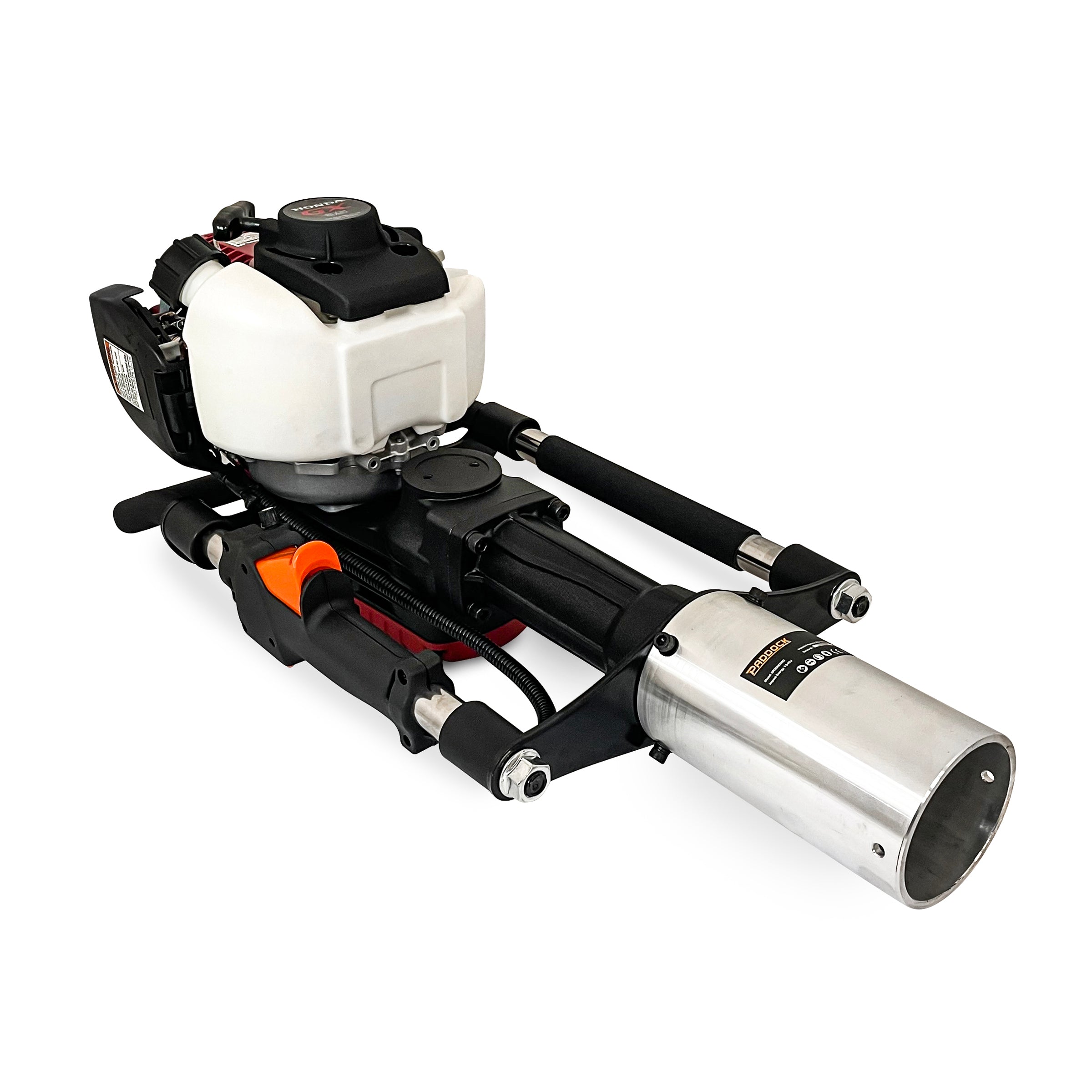

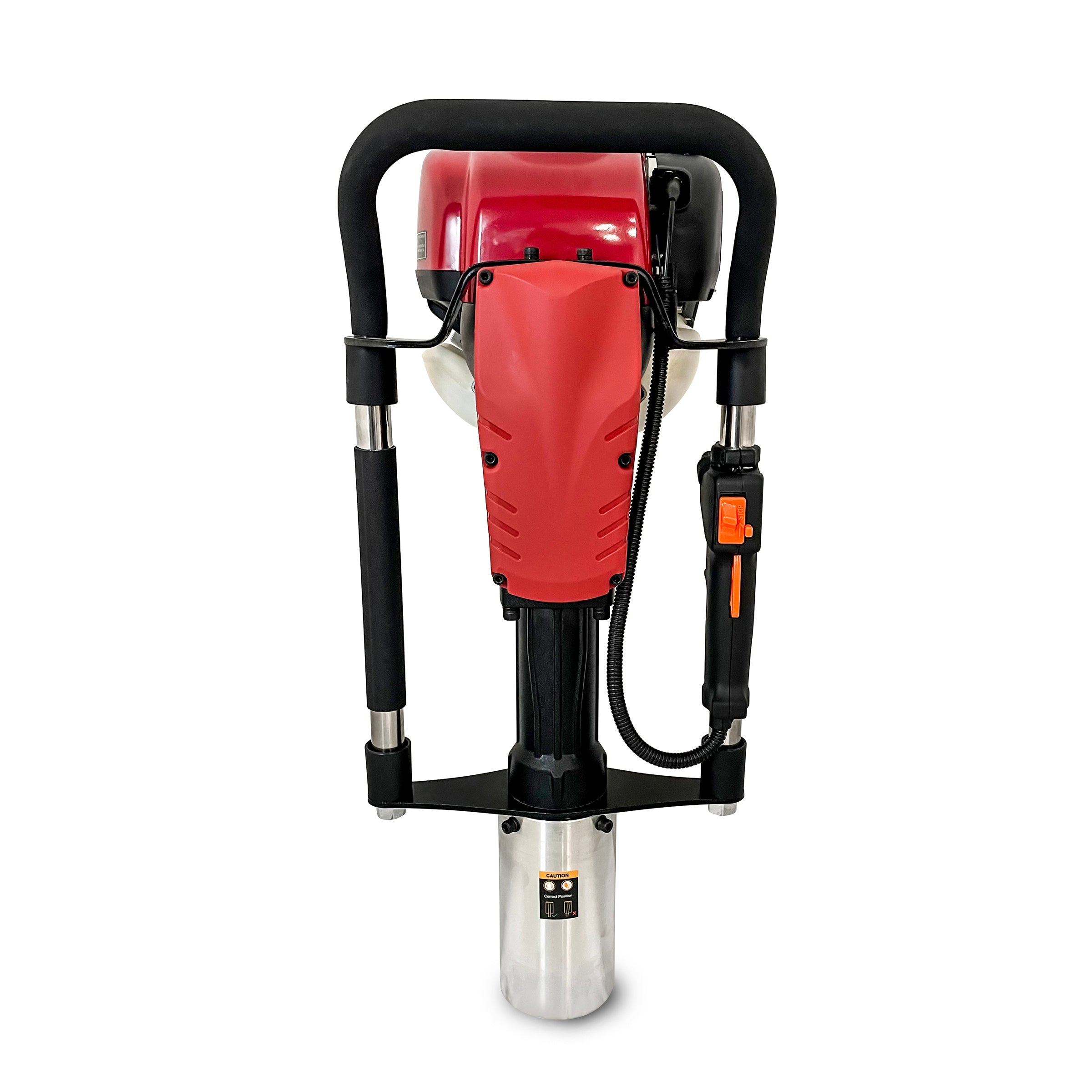

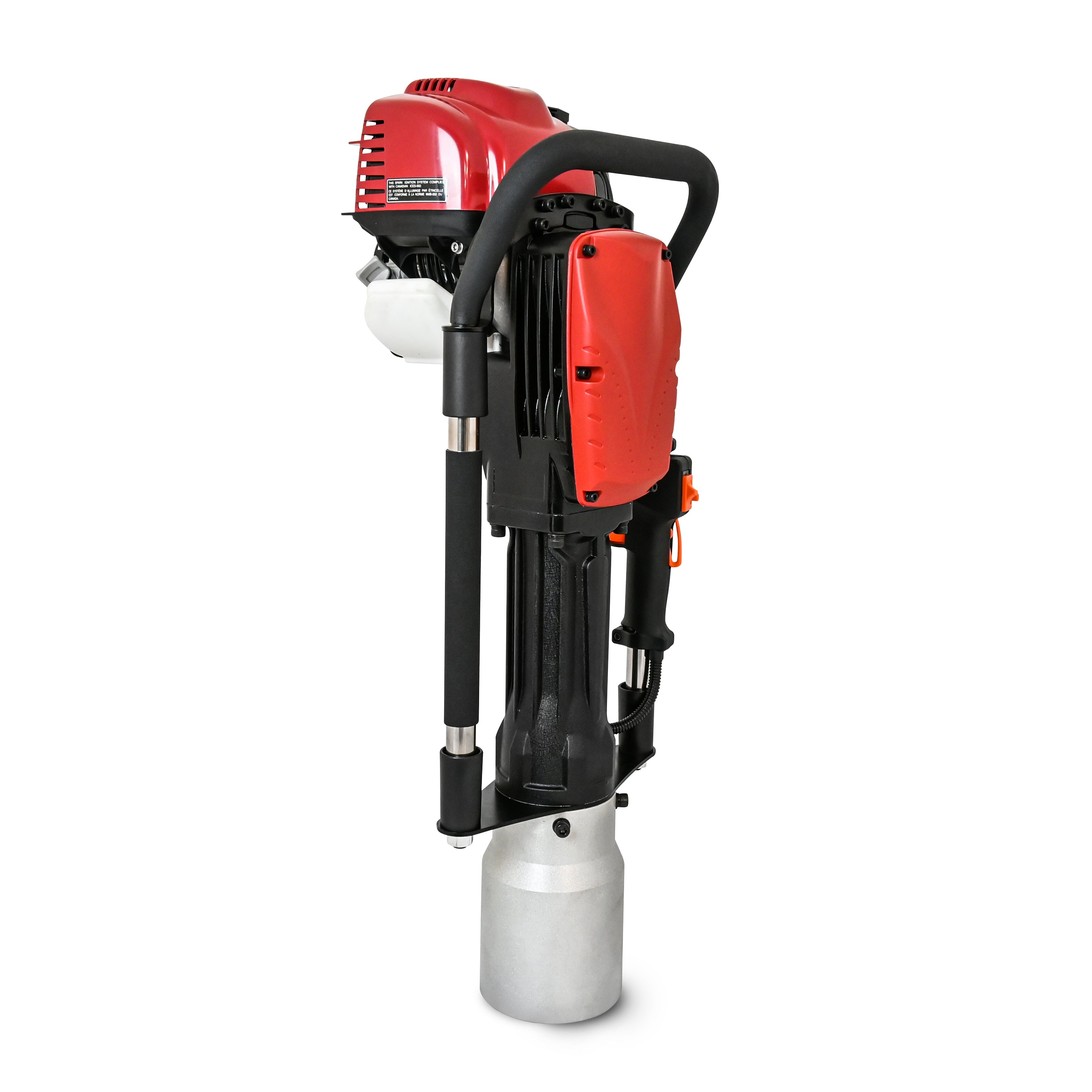

The Paddock™ Motorised Post Driver range is designed to make installing star pickets, steel posts and timber posts faster and easier across farms, fencing projects and rural properties. Powered by a genuine Honda GX35 4-stroke petrol engine, these portable post drivers convert engine power into repeated impact force to drive posts into suitable ground with far less manual effort.
Choose from a 98mm Heavy Duty model or a larger 150mm Extra Heavy Duty model, with multiple post sleeves included to suit different post sizes and applications.
- Powered by genuine Honda GX35 4-stroke engine
- Suitable for star pickets, steel posts and suitable timber posts
- Available in 98mm and 150mm maximum post diameter models
- 25–50J impact energy – 98mm model
- 25–55J impact energy – 150mm model

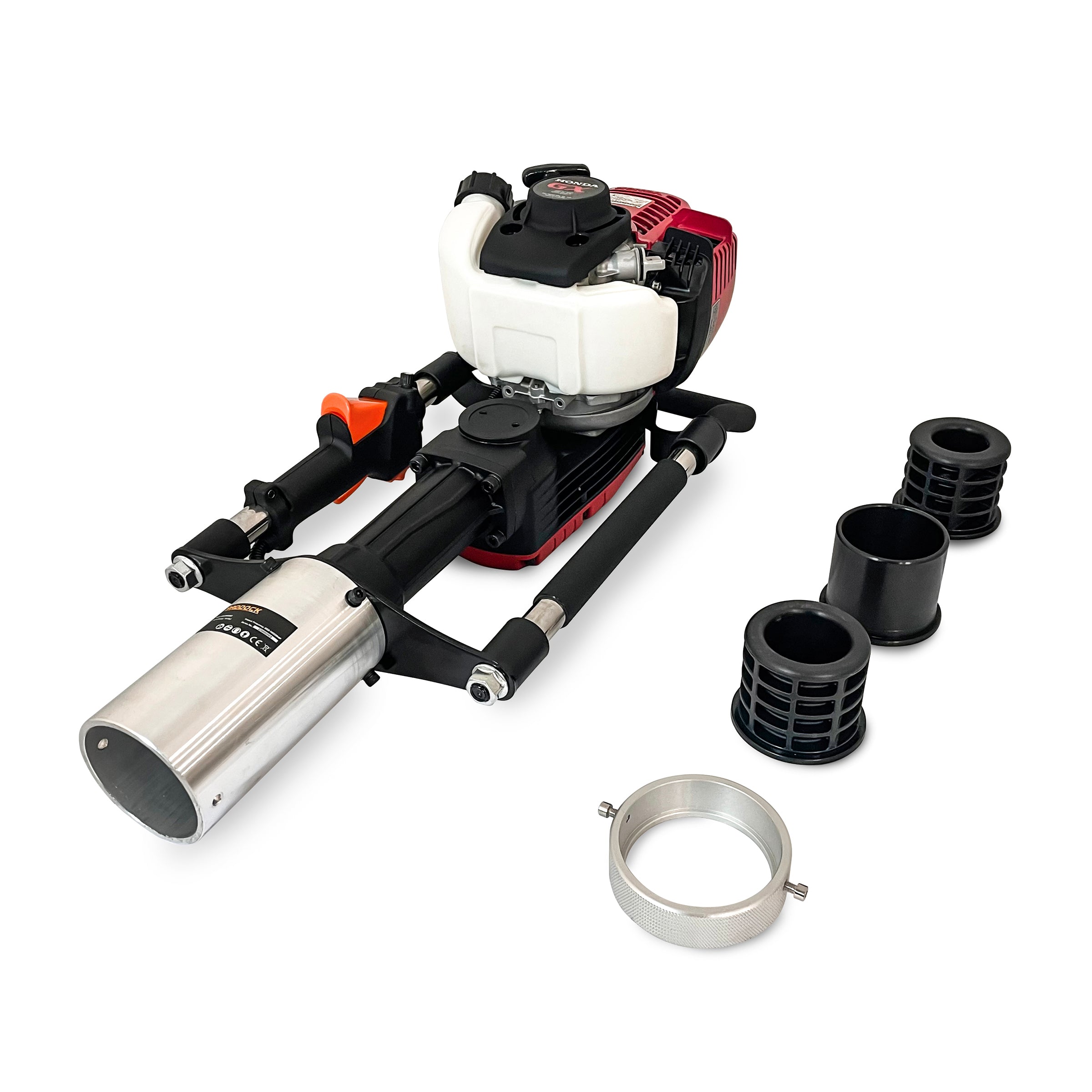

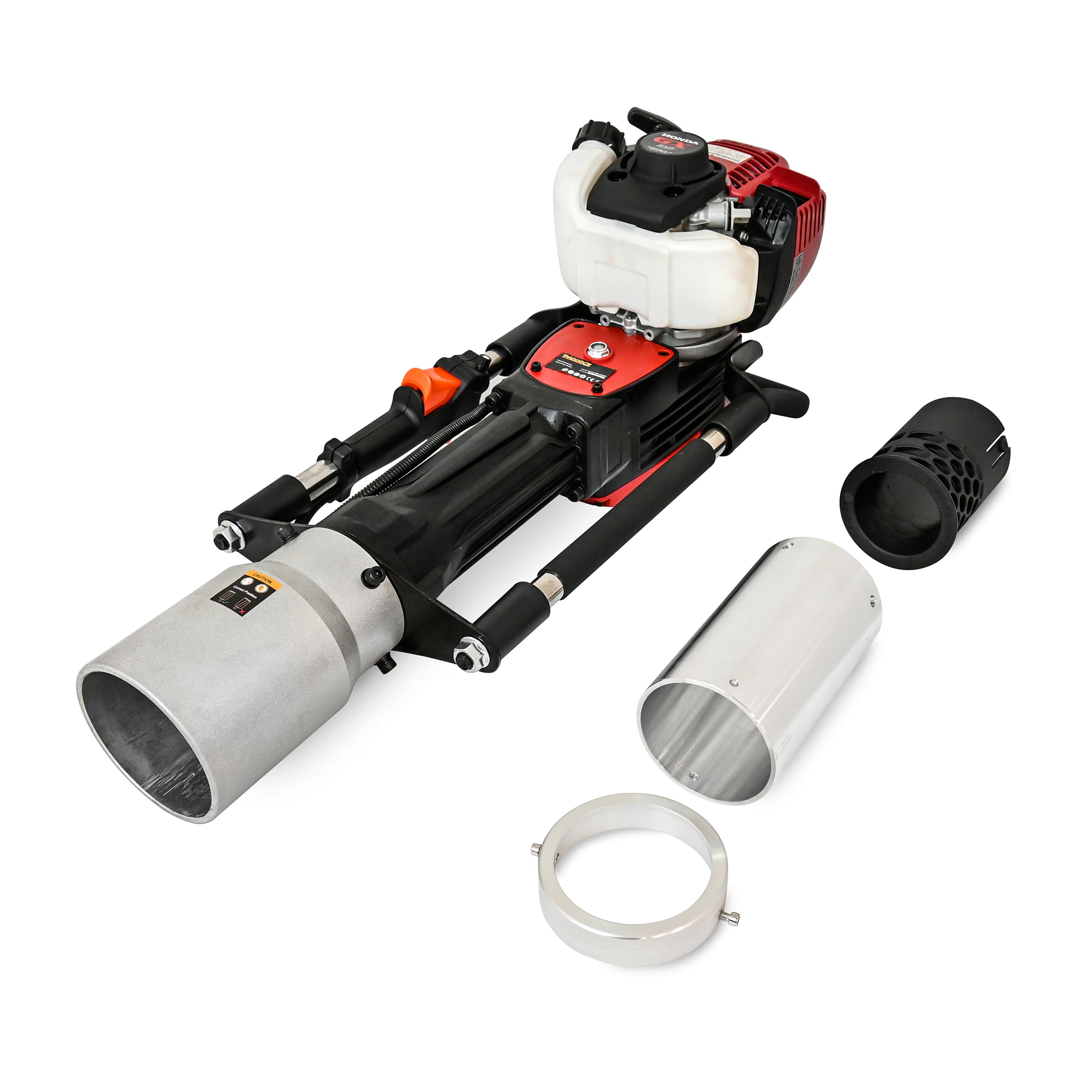

- Multiple post sleeves included
- Portable design for fencing and farm work
- Reduced manual effort compared with hand-driven post installation
- Heavy-duty impact head and gearbox
- 1 year warranty
Paddock™ Motorised Post Drivers – Honda GX35
Powered Post Driving for Fencing & Rural Work
The Paddock™ Motorised Post Driver provides a faster alternative to manually driving star pickets and fence posts with a hand rammer.
The machine uses the power of a Honda GX35 petrol engine to generate repeated impacts through the driver head, helping drive suitable posts into the ground with significantly less physical effort.
98mm & 150mm Models
Two models are available to suit different post sizes and workloads:

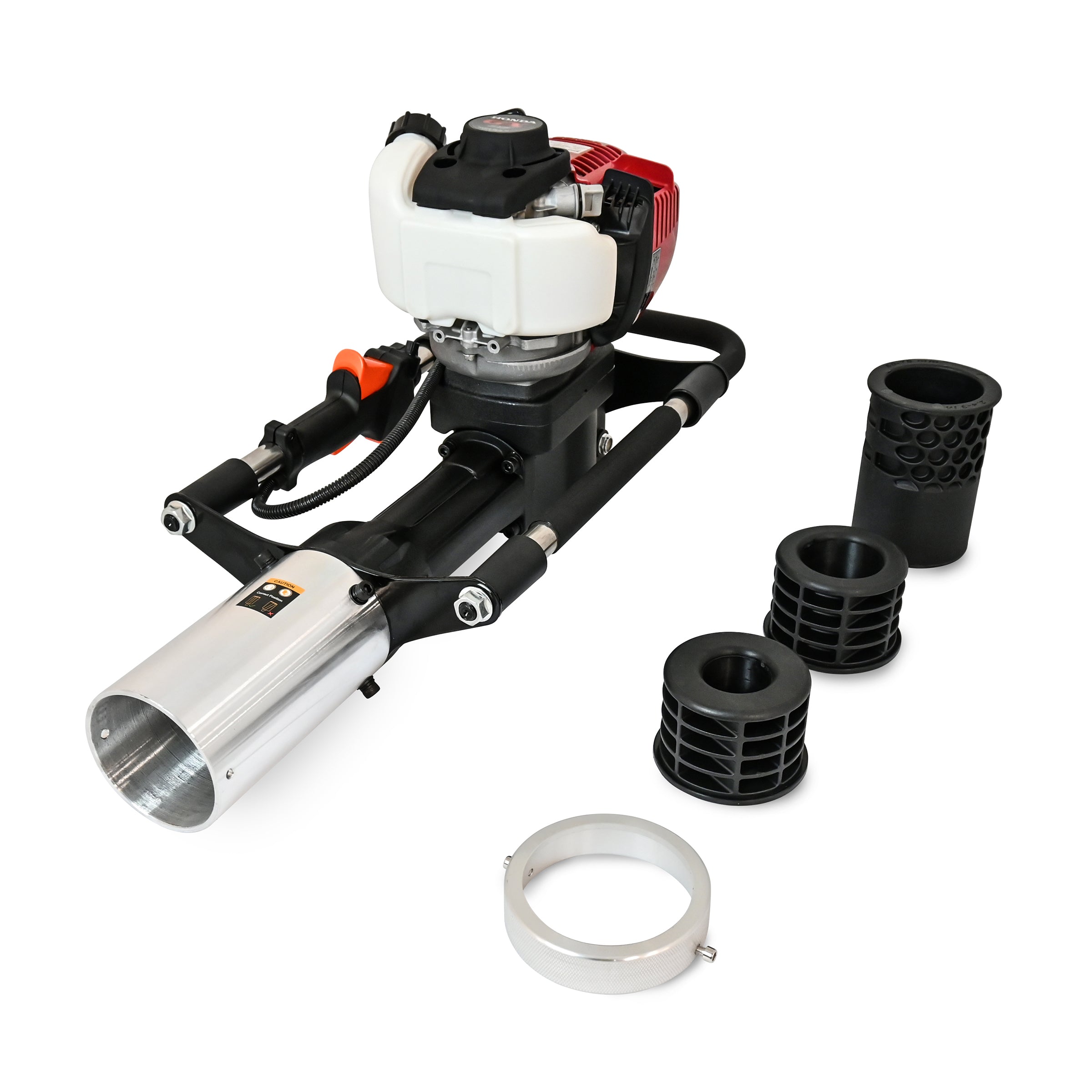

- SPCOND101 – 98mm Heavy Duty: suitable for posts up to 98mm diameter, with 49mm, 69mm and 98mm sleeves included.
- SPCOND150 – 150mm Extra Heavy Duty: suitable for posts up to 150mm diameter, with 49mm, 69mm, 98mm and 150mm sleeves included.
The larger model uses a heavier-duty impact head and gearbox to suit larger posts and more demanding use.

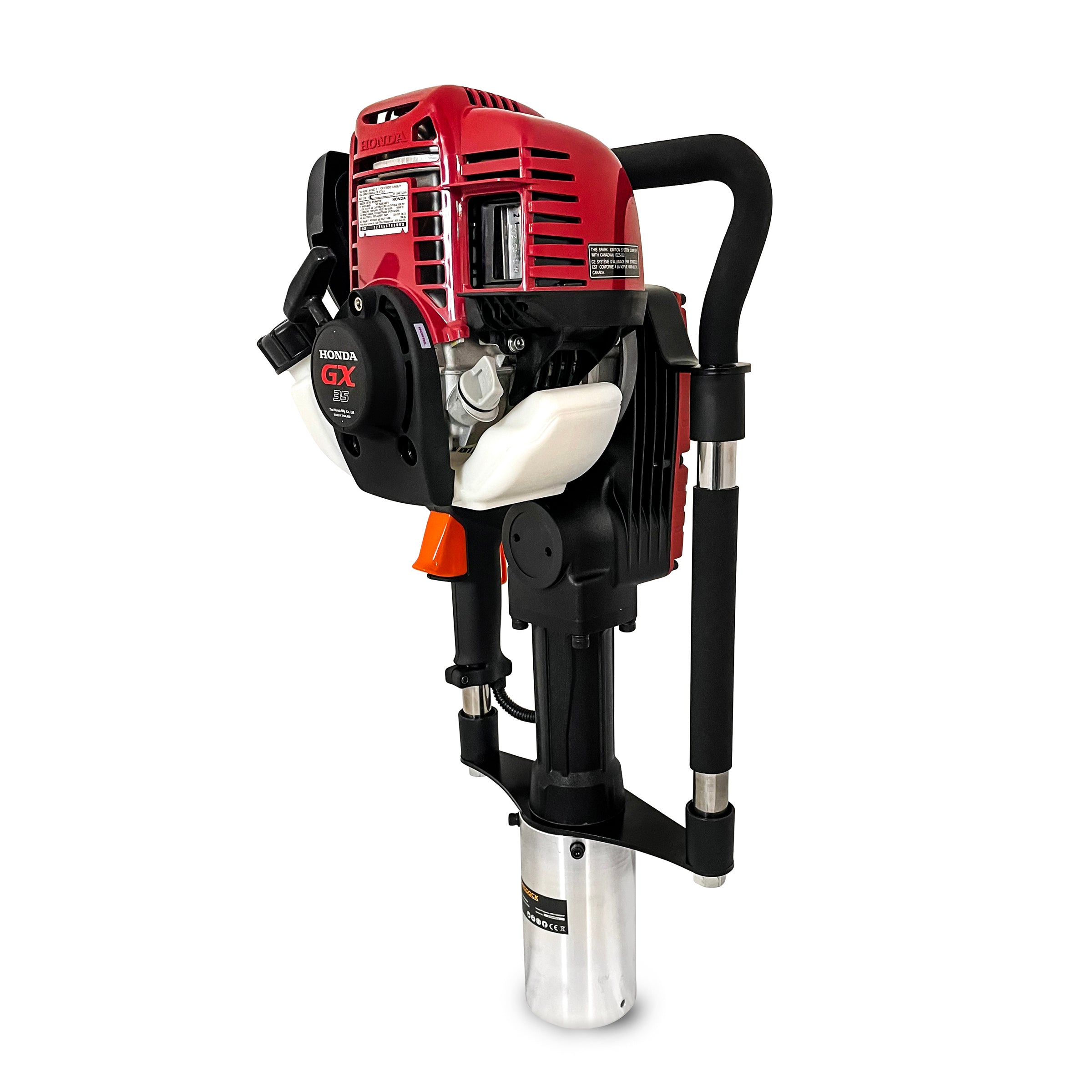

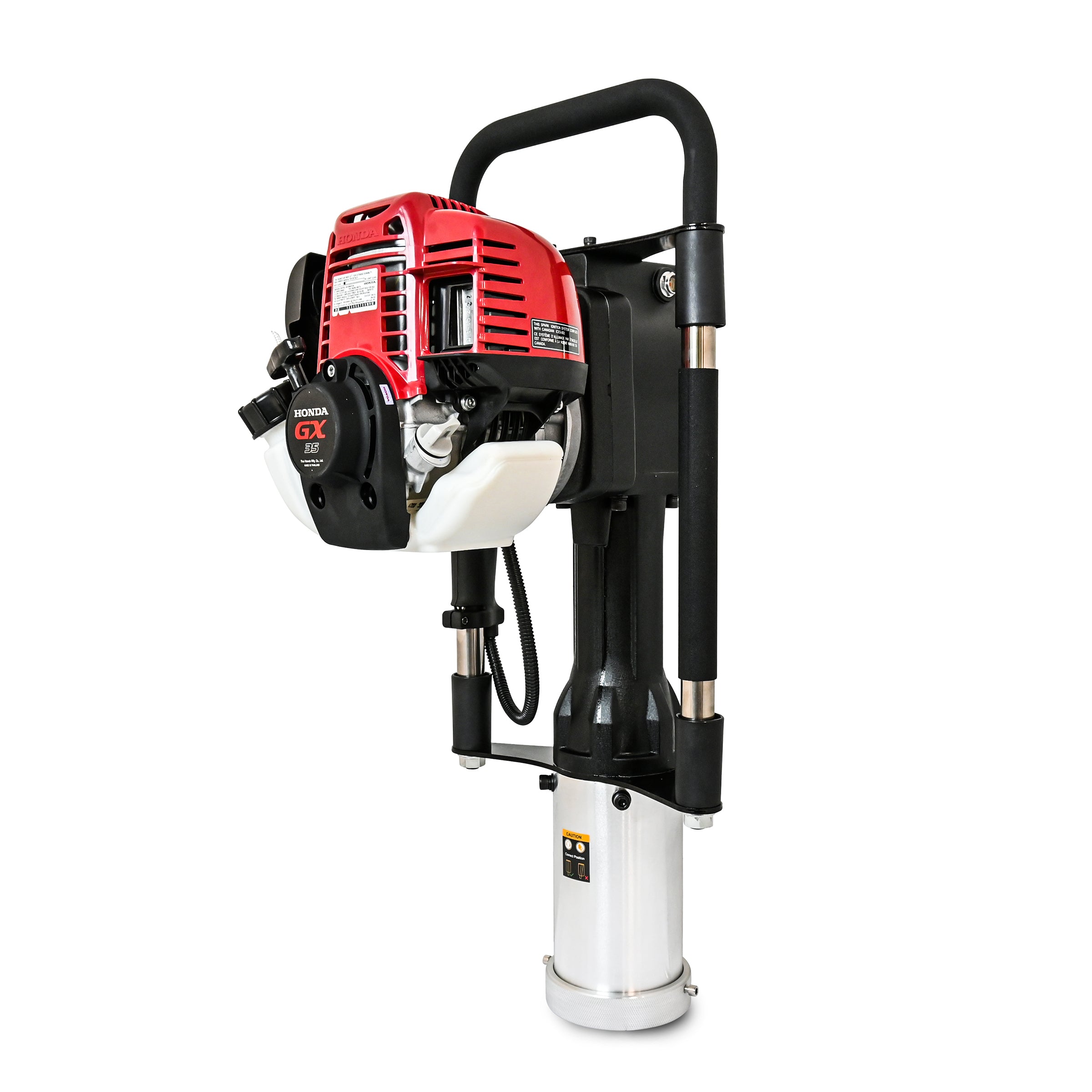

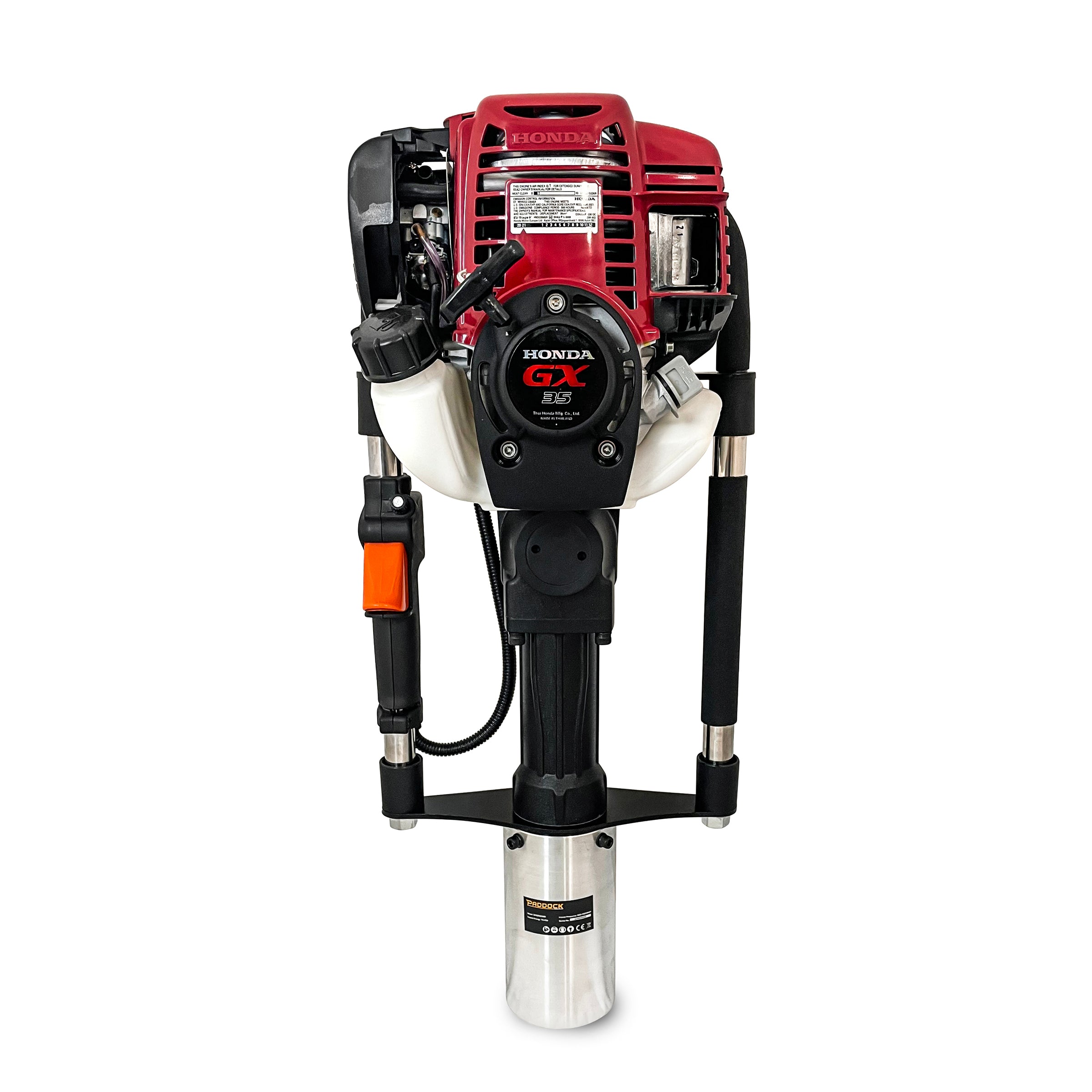

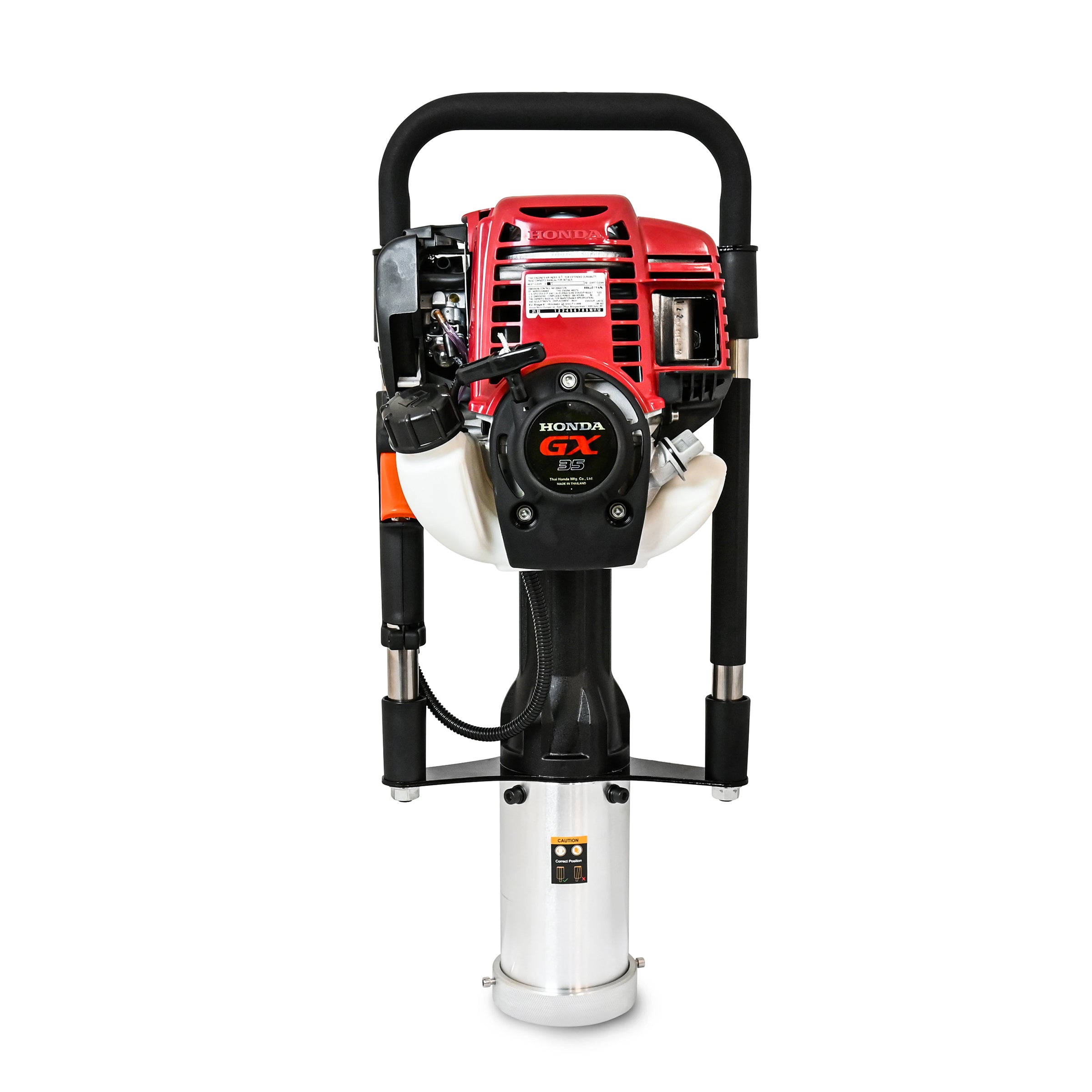

Genuine Honda GX35 Engine
Both models are powered by the Honda GX35 commercial 4-stroke petrol engine.
The compact GX35 is well suited to portable equipment, offering smooth operation, straightforward starting and strong parts and service support.
How the Motorised Post Driver Works
The post driver converts the engine's rotational energy into a series of repeated impacts through the power head.
Rather than relying on a single heavy manual strike, the machine delivers frequent controlled impacts to the top of the post, progressively driving it into suitable ground.
This helps reduce the physical effort associated with traditional hand-operated post rammers.
Suitable Post Types
Depending on the selected model, ground conditions and post preparation, the Paddock™ driver may be used with:

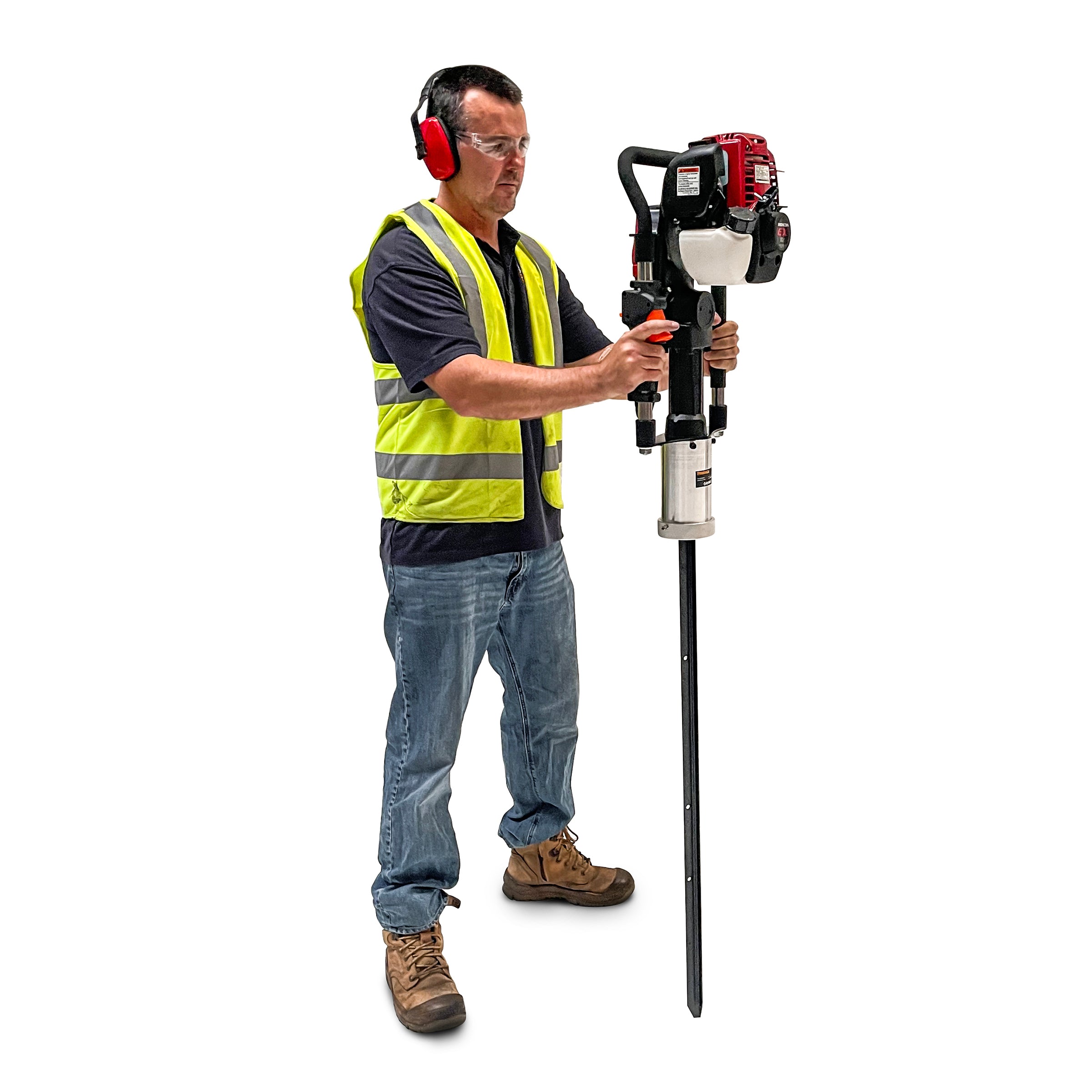

- Star pickets
- Round steel posts
- Suitable timber posts
- Fencing posts
- Temporary and permanent fence installations

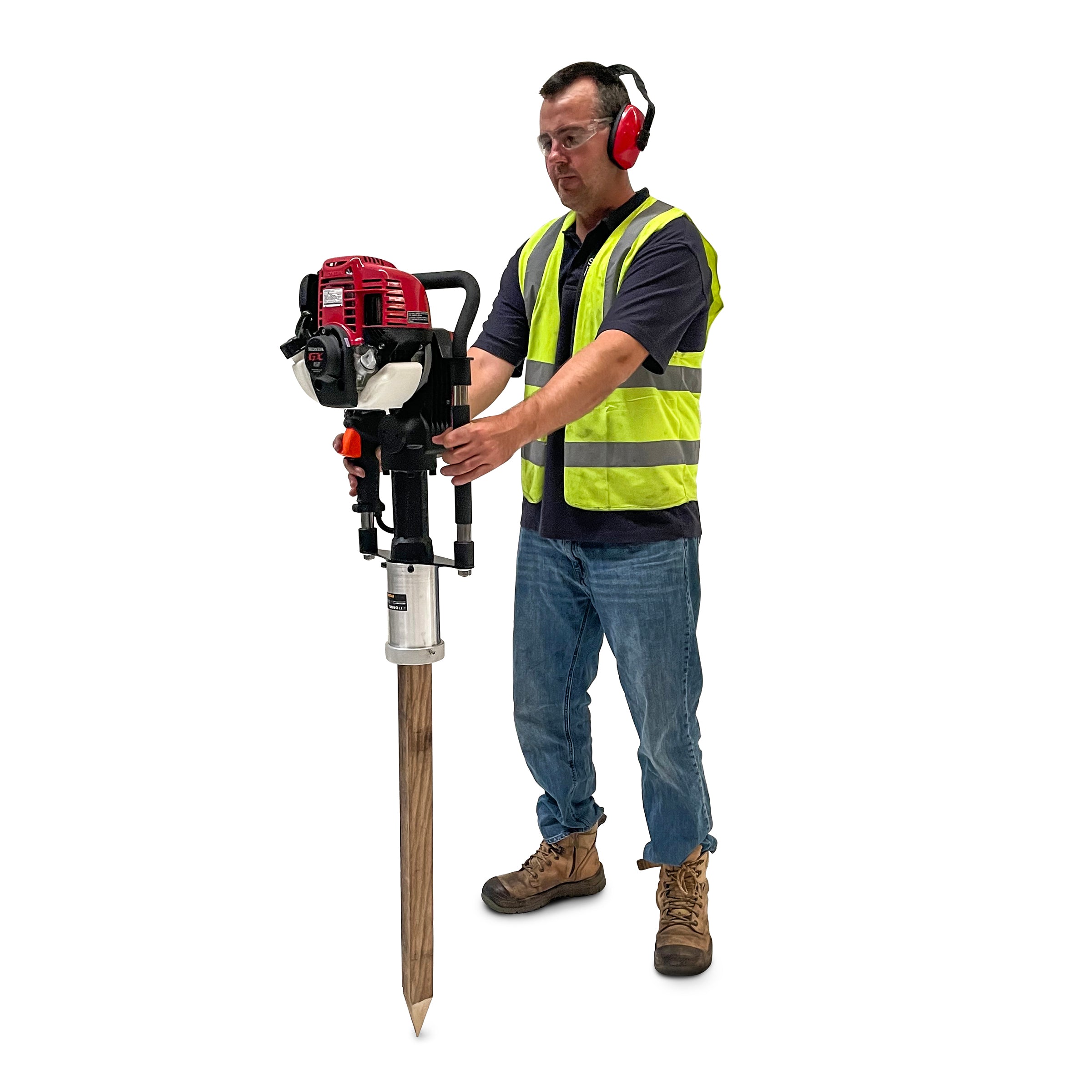

For timber posts, a properly prepared pointed end can help penetration in softer ground conditions.
Ground Conditions Matter
Post-driving performance will vary depending on soil type, moisture, compaction, buried rock and the size and shape of the post.
Soft and moderately compacted soils will generally allow easier driving than hard, rocky or heavily compacted ground.
Portable for Farm & Fencing Work
The self-contained petrol-powered design makes the post driver useful for fencing jobs in areas where mains power, compressors or hydraulic equipment are not available.
Typical applications include:
- Farm fencing
- Star picket installation
- Temporary fencing
- Permanent rural fencing
- Steel post installation
- Timber post installation in suitable ground
- Acreage and property maintenance
Paddock™ Post Driver Specifications
| Specification | 98mm Driver – SPCOND101 | 150mm Driver – SPCOND150 |
|---|---|---|
| Maximum Post Diameter | 98mm | 150mm |
| Duty | Heavy Duty | Extra Heavy Duty |
| Impact Energy | 25–50J | 25–55J |
| Operating Weight | 18kg | 22kg |
| Pack Weight | 26kg | 38kg |
| Engine | Honda GX35 4-stroke petrol | Honda GX35 4-stroke petrol |
| Included Sleeves | 49mm / 69mm / 98mm | 49mm / 69mm / 98mm / 150mm |
| Warranty | 1 year | 1 year |
Which Model Should I Choose?
Choose the 98mm SPCOND101 if you're primarily driving star pickets, smaller steel posts and posts up to 98mm diameter. Its lower operating weight makes it easier to handle while still providing strong impact performance.
Choose the 150mm SPCOND150 if you need to work with larger posts or want the heavier-duty gearbox and impact head for more demanding fencing work.
Pre-Start
Important: The Honda engine is shipped without operating oil. Engine oil must be added to the correct level before starting. Refer to the Honda engine manual and Paddock™ operating instructions before first use.
Always wear appropriate hearing, eye, hand and foot protection during operation. Check for underground services before driving posts and keep hands and other body parts clear of the impact head while the machine is operating.
