Sherpa 4x4 Winch Hawse Fairlead

Description

The Sherpa 4x4 Aluminium Hawse is perfect for winches with Rope. The Hawse allows the rope to feed onto the drum without snagging on any sharp edges. Scintex stocks both a Standard, Premium, Offset & ATV Hawse fairleads.

Use with all types of synthetic or Dyneema rope winches. Polished aluminium and smooth edges guarantee low friction and minimise damage to the rope.

Guide sizes:

SAH002 - Premium black - Heavy Duty Winch Hawse Fairlead

SAH004 - Standard Black Winch Hawse Fairlead

• Ideal for synthetic ropes
• suitable for 0- 25,000lb winches
• Dimensions 300mm long x 77mm
• Center to center of mounting holes - 254mm (10")
• Mounting Hole Size: Back Shank Width: 1/2" or 12mm, Front Bolt Head Recess: 1" or 25mm
• Polished aluminium finish
• Incorporates sunken bolt holes so the bolt heads sit flush with the hawse
• 12 Months Warranty

SOH002 - Black Offset Winch Hawse Fairlead

• 30mm offset
• Required for winch installation with some brands of bullbars including some of the new ARB bull bars.

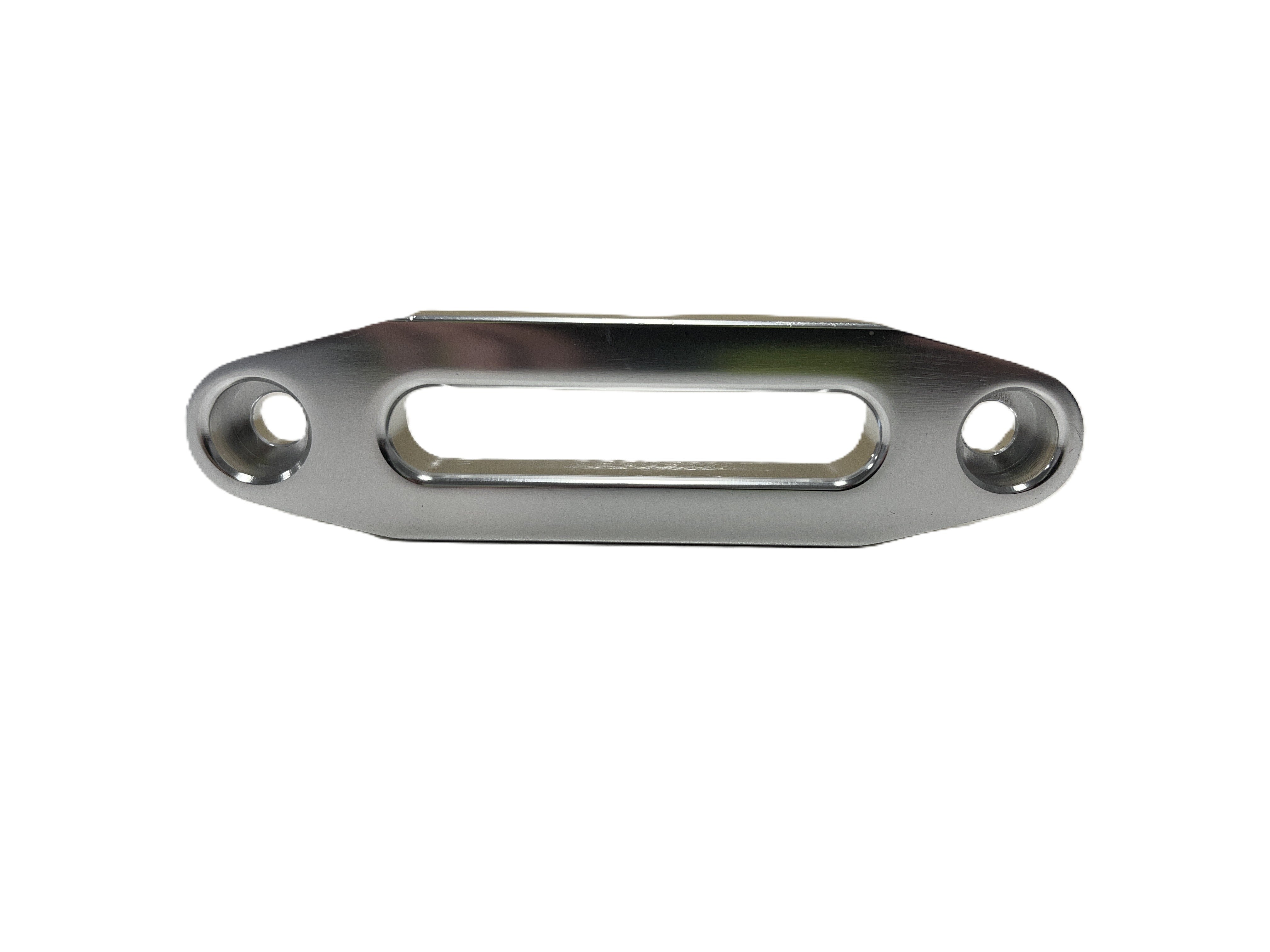

SAH003 - Standard Silver ATV Winch Hawse Fairlead

• 147mm long x 38mm wide
• Center to center of mounting holes - 124mm
