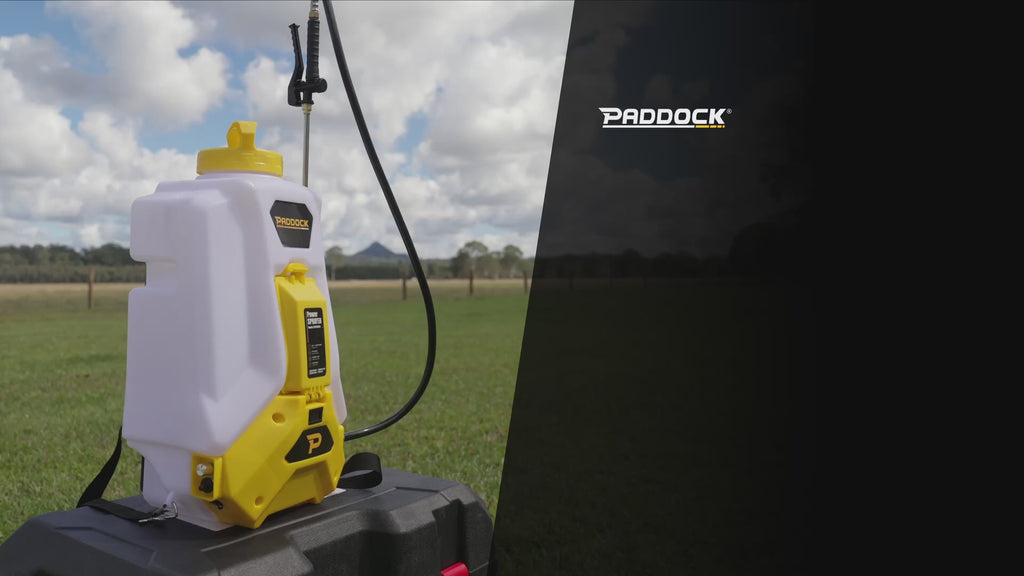

Paddock Power Sprayer

Description

The Paddock™ rechargeable battery powered backpack sprayer is ideal for spraying weeds and pesticides around your home, garden and farm. The integrated pressure pump offers smooth delivery of solutions without the need for manual pumping. Using a powered sprayer makes your job a breeze.

Back Pack Lithium-ion battery powered Sprayer

Paddock™ have designed a compact and efficient weed sprayer that's simple to use and highly efficient. The Paddock™ Power Sprayer incorporates a on-demand pressure pump which delivers variable flows to meet the users application. There is no need for constant manual pumping and with the integrated lithium-ion battery, users will appreciate many hours of uninterrupted spray performance from a single charge.

Backpack Sprayer Uses:

• Spraying weeds and pests with herbicides, pesticides, insecticides and other chemicals.
• Commercial spraying.
• Misting orchards and crops.
• Dispensing chemicals on gardens and prepared soils.
• Sanitising, disinfecting and cleaning.
• Spraying livestock.

Variable Flow Rate or Power Mode

Users have the choice of settings and can operate the sprayer in power mode which delivers maximum pump flow to the spray nozzle, or they can select variable flow mode. In variable mode, a dial and digital gauge allows the user to turn down the pump speed and in-turn the pump flow/pressure. The variable setting is ideal for spraying indoors or around sensitive plants where overspray is a concern.

Choice of Spray Nozzles and Spray Patterns

Included with every sprayer is two different nozzles options.

The single nozzle allows adjustment of the spray pattern by twisting the collar. This nozzle is commonly used for spraying weeds and can be adjusted from a fan to a longer distance jet pattern.

The dual tip misting nozzle is ideal for greenhouses and indoor spraying where a smaller droplet size is required. A higher level of 'drift' can be expected due to the smaller droplet size. Applications involving sanitization and livestock spraying will benefit from this nozzle option.

Powerful On-Demand Pump

The integrated diaphragm pump generates up to 30 psi of pressure and automatically starts and stops the pump as the user activates the trigger assembly. The sprayer is compatible with common herbicides and pesticides.

Powerful Lithium Battery

Battery technology has come a long way in the past 15yrs and lithium-ion battery technology is leading the change with higher storage densities and longer cycle life. The Paddock™ Power Sprayer comes standard with a high performance battery that is fast to charge, yet slow to discharge. For extreme users who like the comfort of carrying a second battery, replacement is quick and simple.

Included with every sprayer is a 240V battery charger.

Rechargeable Spray Pack Features:

• Lightweight and portable.
• Long life Lithium-ion battery included.
• Strainer and filters to reduce the chance of blockages.

• Adjustable pump rate with LCD display

• Dual nozzle options included.
• Comfortable, ergonomic design makes operation a dream.
• Padded lower back support.
• High quality and durable construction.
• Easy to operate design.

The Paddock™ 20L Battery Powered Backpack Sprayer makes spraying weeds, pesticides and other compatible chemicals faster and easier. An integrated on-demand diaphragm pump eliminates constant manual pumping, while the rechargeable lithium-ion battery provides convenient cordless operation around homes, gardens, farms and commercial properties.

With adjustable flow, up to 30 PSI pressure and up to 3L/min output, the Paddock™ Power Sprayer can be configured for everything from targeted weed spraying to misting, pest control, livestock spraying and general cleaning applications.

• 20L chemical tank
• Rechargeable 11.1V 8Ah lithium-ion battery
• Up to 30 PSI spray pressure
• Adjustable flow up to 3L/min
• Power mode and variable flow control
• LCD display for convenient adjustment
• Automatic on-demand diaphragm pump
• Two spray nozzle options included
• Padded straps and lower back support
• 240V battery charger included

Paddock™ 20L Battery Powered Backpack Sprayer

The Paddock™ Power Sprayer combines a large 20L tank with a rechargeable lithium-ion battery and electric diaphragm pump to provide a convenient alternative to manually pumped backpack sprayers.

Simply fill the tank with a compatible spraying solution, select the desired pump setting and operate the spray wand. The on-demand pump automatically operates as required, helping reduce operator effort during larger spraying jobs.

Ideal for acreage owners, farmers, landscapers, gardeners and commercial users, this sprayer provides the portability of a traditional backpack unit without the need for constant manual pumping.

Backpack Sprayer Applications

• Weed spraying and herbicide application
• Pesticide and insecticide application
• Commercial property spraying
• Orchard and crop misting
• Garden and prepared soil treatments
• Livestock spraying
• Compatible sanitising, disinfecting and cleaning applications

Variable Flow & Power Modes

The Paddock™ sprayer gives users greater control over spray output with a choice of operating modes. Power mode delivers maximum pump output to the spray nozzle, making it useful when higher flow and pressure are required.

For applications requiring greater control, variable flow mode allows the pump output to be adjusted using a control dial and LCD display. Reducing pump speed lowers the flow and pressure, helping minimise unnecessary overspray when working around sensitive plants or confined areas.

Two Spray Nozzles Included

Two different nozzle configurations are supplied with each sprayer, allowing the spray pattern to be matched to the application.

Adjustable Spray Nozzle: The spray pattern can be changed by twisting the nozzle collar. Adjust from a wider cone-style spray through to a concentrated jet for greater reach. This is a versatile option for general weed and chemical spraying.

Dual Head Misting Nozzle: Produces a finer spray pattern suitable for misting applications including greenhouses, crops, livestock and compatible sanitising applications. As with any fine mist nozzle, smaller droplets can increase the potential for spray drift, so appropriate operating conditions should be considered.

Automatic On-Demand Diaphragm Pump

The integrated electric diaphragm pump generates up to 30 PSI pressure and delivers flow rates of up to 3L/min.

The on-demand design automatically starts and stops the pump as the spray trigger is operated. This provides convenient pressure at the wand without requiring the operator to manually pump the backpack while working.

Rechargeable Lithium-Ion Battery

The Paddock™ Power Sprayer uses an 11.1V 8Ah rechargeable lithium-ion battery, providing convenient cordless operation without the fuel, fumes or starting requirements associated with petrol-powered sprayers.

Operating time will depend on the selected pump output and spraying conditions. Users can achieve up to 6 hours of intermittent operation, with in excess of 1 hour of continuous operation at high power.

A 240V battery charger is included, with an approximate recharge time of 4 hours. The removable battery design also makes battery replacement straightforward.

Designed for Comfortable Operation

A 20L sprayer can become heavy when filled, so operator comfort is important. The Paddock™ backpack design incorporates padded support to help distribute the load and improve comfort while walking and spraying.

The compact design provides good portability around gardens, paddocks, fence lines, orchards and other areas where larger spraying equipment may be impractical.

Paddock™ Power Sprayer Features

• 20L chemical container
• Rechargeable lithium-ion battery
• Electric diaphragm pump eliminates manual pumping
• Adjustable pump output
• LCD display
• Power and variable flow operating modes
• Up to 3L/min flow rate
• Up to 30 PSI pressure
• Automatic on-demand pump operation
• Adjustable spray nozzle included
• Dual head misting nozzle included
• Integrated strainers and filters help reduce blockages
• Padded lower back support
• Portable backpack design
• 240V battery charger included

Power Sprayer Specifications

Specification	Details
Tank Capacity	20L
Pump Type	Electric on-demand diaphragm pump
Maximum Flow Rate	Up to 3L/min
Flow Adjustment	Adjustable via dial with LCD display
Spray Pressure	Up to 30 PSI
Nozzles	1 x adjustable jet to cone-style spray nozzle 1 x dual head misting nozzle
Battery	11.1V 8Ah rechargeable lithium-ion
Battery Charger	240V charger included
Approx. Charge Time	4 hours
Operating Time	Up to 6 hours depending on use In excess of 1 hour continuous operation at high power
Weight	Approx. 4kg empty
Dimensions	220 x 320 x 600mm (L x W x H)
Warranty	1 year
