Paddock™ Tracked Mini Loader Pro – 40HP Perkins 1.5L 3-Cylinder Turbo Diesel
Freight costs for heavy & bulky items includes a tailgate truck cost. If a forklift is available please contact our sales team to discuss.
You can also contact us for a freight quote prior to ordering.
For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.
Description
The Paddock™ Tracked Mini Loader Pro combines a 40HP Perkins turbo diesel engine with a heavy-duty tracked platform and high-flow hydraulic system for demanding landscaping, construction, agriculture and property maintenance applications.
With a compact 1060mm machine width, joystick drive control and compatibility with a wide range of hydraulic attachments, the STRKL1200 provides substantial capability while remaining suitable for sites where access and manoeuvrability are important.
Please note: The loader is supplied as a bare machine unless otherwise selected. Buckets, augers, trenchers and other attachments are available separately.

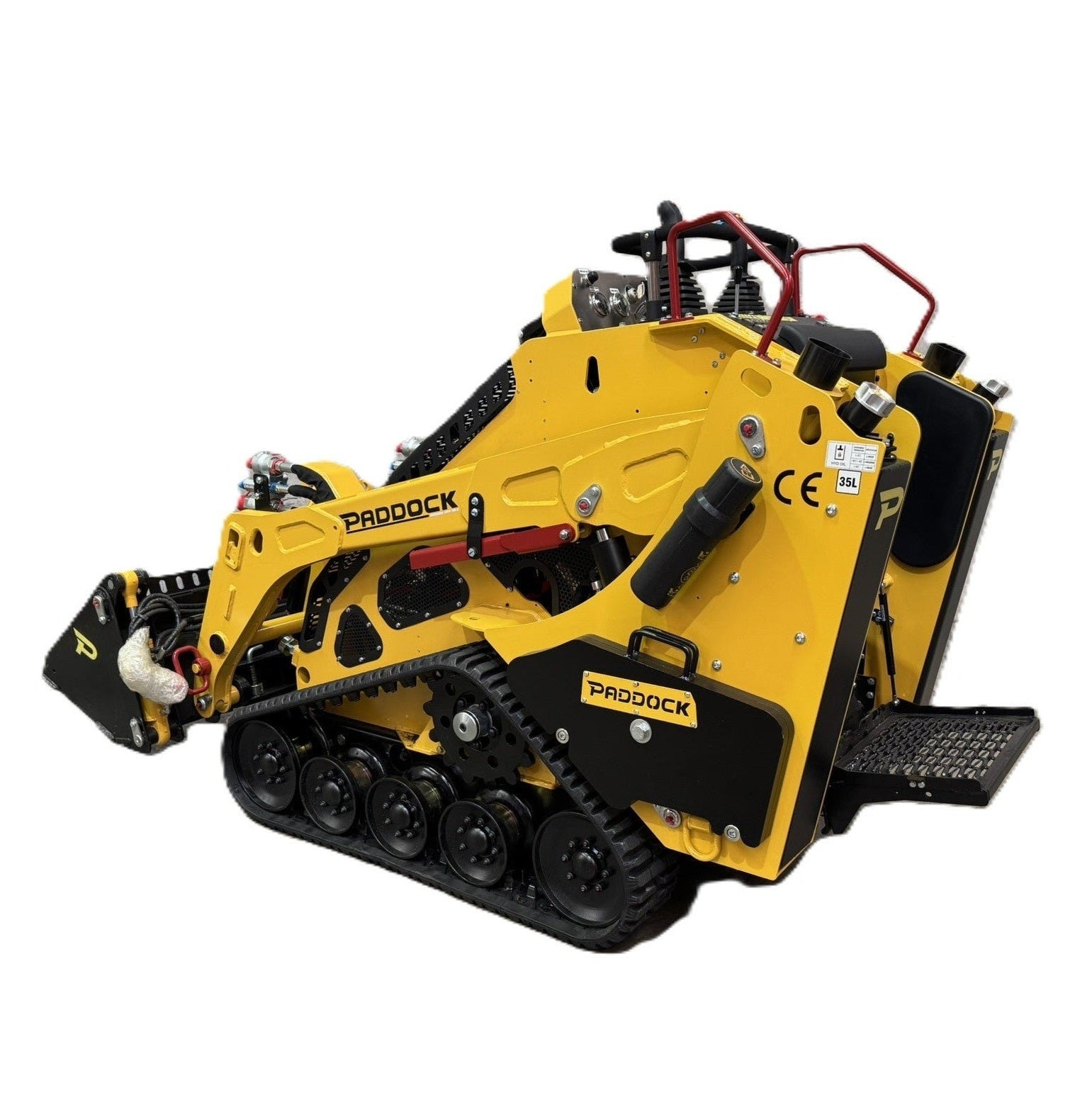

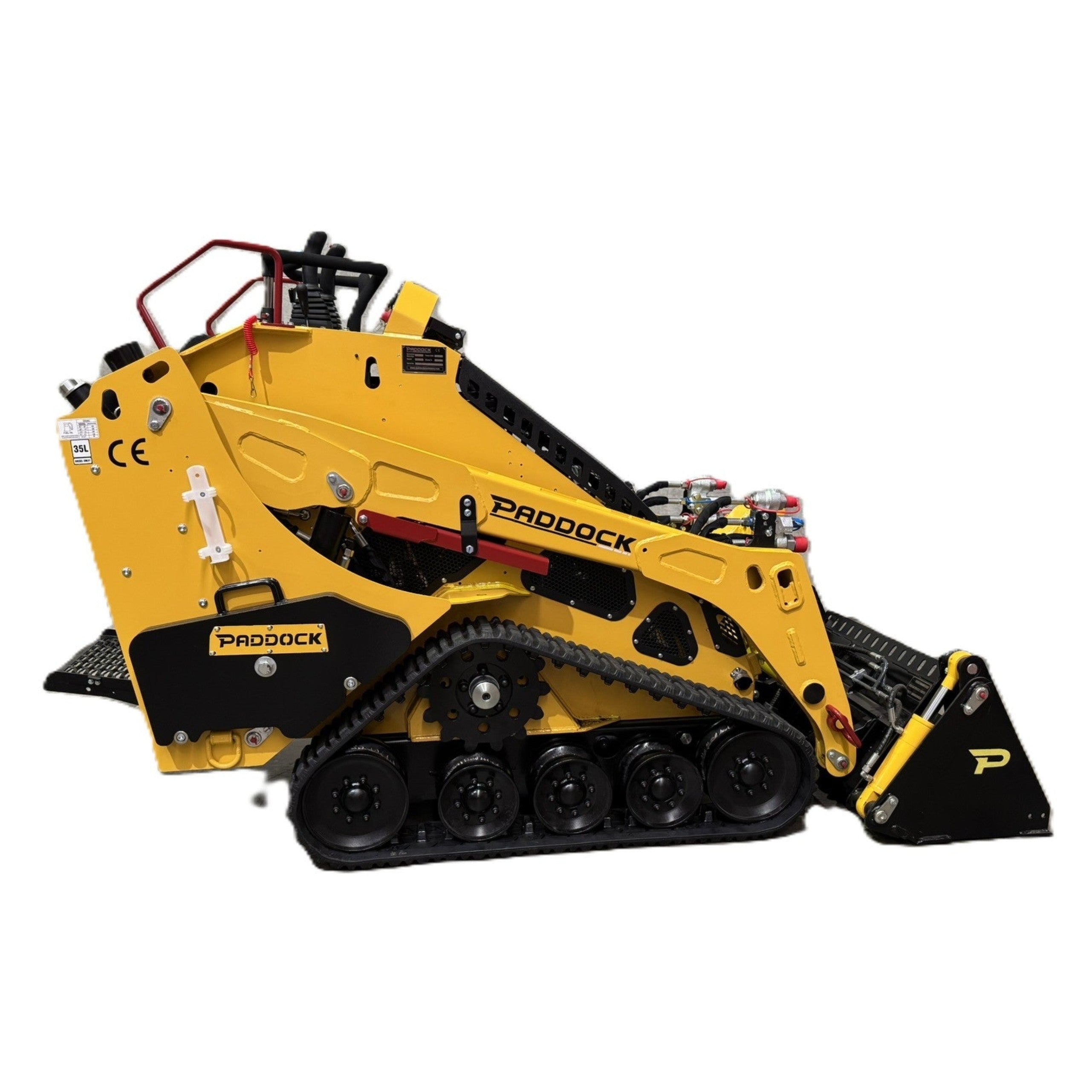

Paddock™ STRKL1200 Tracked Mini Loader Pro
Powered by a Perkins 403D-15T 1.5L 3-cylinder turbo diesel engine, the STRKL1200 is designed for commercial users requiring a compact loader with strong hydraulic performance and compatibility with a broad range of attachments.
Key Features
- Perkins 403D-15T 1.5L 3-cylinder turbo diesel engine
- 40HP (30kW) at 3000 RPM
- 900kg machine load capacity
- Joystick drive control
- Tracked drive system with 200mm tracks
- Triple hydraulic pump system
- Main auxiliary hydraulic flow: 53–58L/min
- Secondary auxiliary hydraulic flow: 11–14L/min
- Hydraulic operating pressure up to 25MPa depending on application
- Bucket float function as standard
- Hydraulic oil cooler as standard
- Italian Bondioli & Pavesi hydraulic pump
- Italian HC hydraulic servo control valve
- Parker hydraulic hoses
- Italian DNP flat-face hydraulic quick connects
- Donaldson air filtration
- Japanese NSK bearings throughout
- Key-start ignition
- Parking brake as standard
- Heavy-duty steel construction
- Powder-coated finish
Perkins Turbo Diesel Engine
The STRKL1200 uses a Perkins 403D-15T turbocharged diesel engine producing 40HP (30kW) at 3000 RPM. The 1.5L three-cylinder engine provides the power required for loader operation as well as hydraulically driven attachments.
Hydraulic Performance
The loader uses a multi-pump hydraulic system designed to support both machine operation and hydraulically powered attachments.
Main auxiliary flow is rated at 53–58L/min, with a secondary auxiliary circuit providing 11–14L/min. Hydraulic pressure varies with the application and can operate up to approximately 25MPa.
This makes the machine suitable for compatible attachments including augers, trenchers, buckets, grapples, rock breakers and other hydraulic implements with appropriate flow and pressure requirements.
Attachment Compatibility
The STRKL1200 features a quick-hitch mounting plate designed for use with compatible mini loader attachments.
The hitch plate measures approximately 580 x 213mm (W x H) with 369mm centre-to-centre pin spacing using 20mm pins. It is compatible with the Digga multi-fit pickup arrangement used on compatible Digga attachments, including reference FR-000931.
Always confirm attachment dimensions, hydraulic flow requirements, operating pressure and connection type before installation.

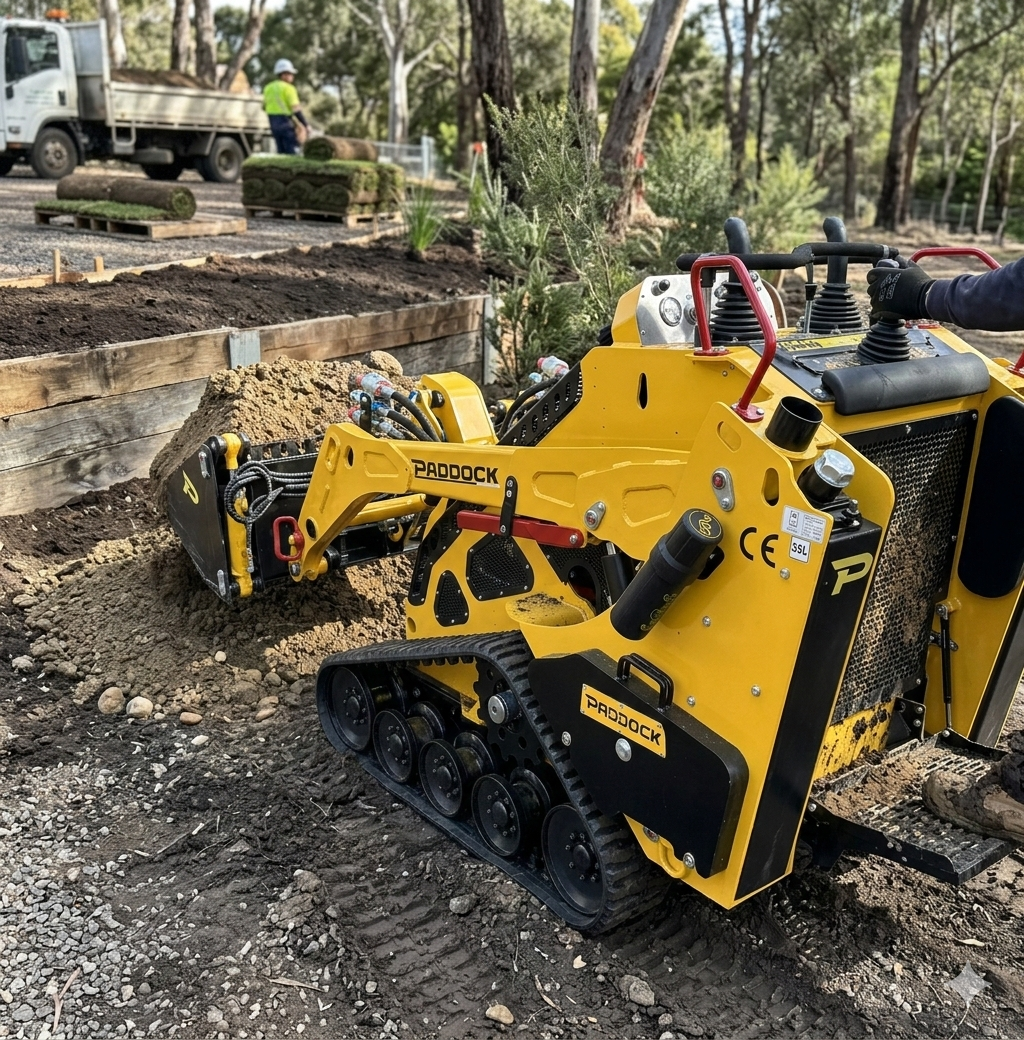

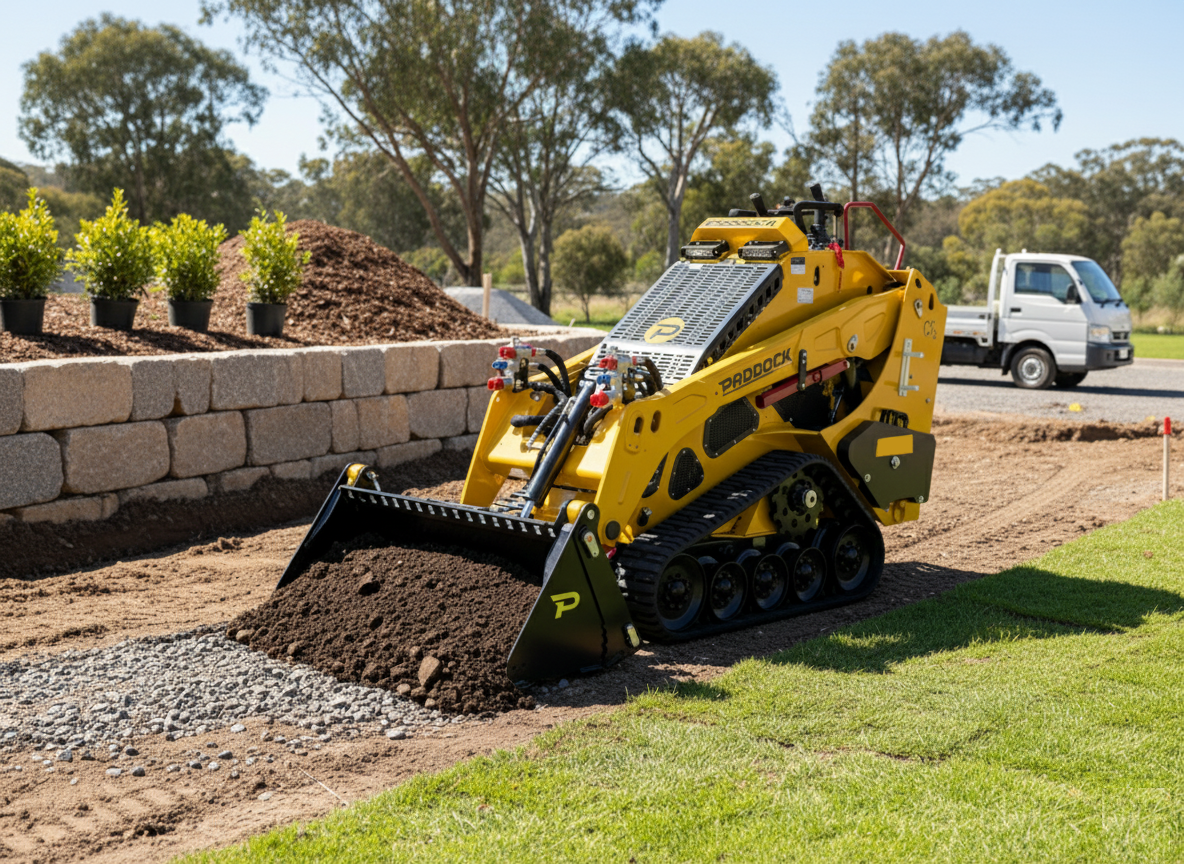

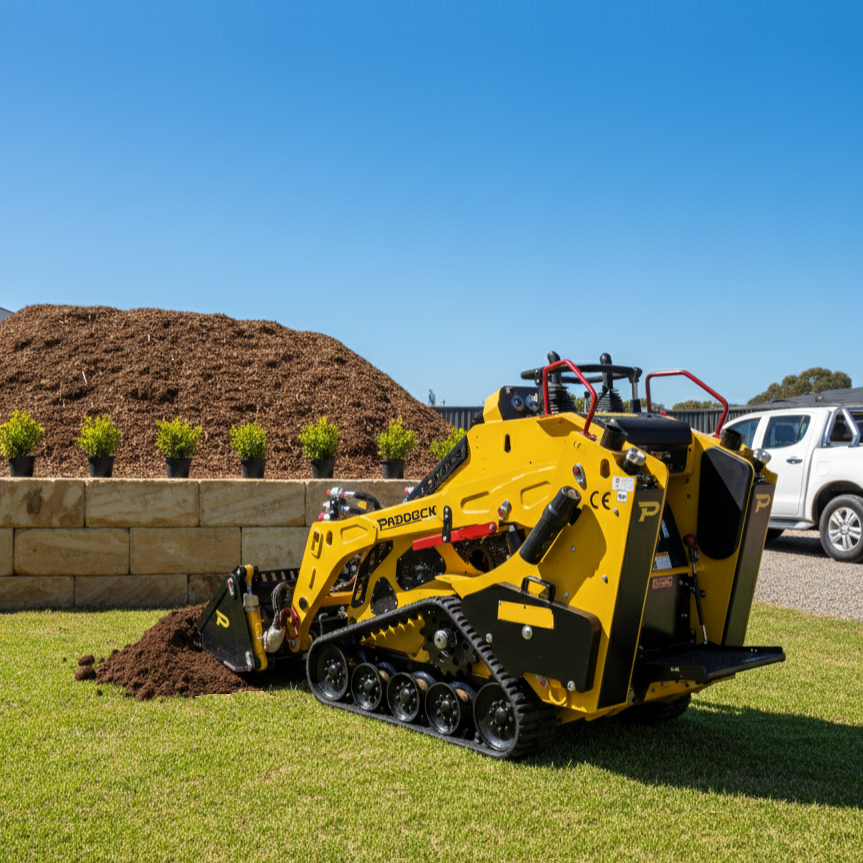

Typical Applications
With the appropriate attachment fitted, the Paddock™ tracked mini loader can be used across a wide range of applications including:
- Earthmoving and material handling
- Trenching
- Post-hole boring and augering
- Landscaping
- Site preparation
- Rock breaking
- Grading and scraping
- Grappling and material handling
- Property and grounds maintenance
Optional 4-in-1 Bucket
A compatible Paddock™ 4-in-1 bucket is available separately and can be used for applications including loading, grading, scraping, grabbing and material handling.
Bucket teeth are sold separately.
Loader Specifications
| Specification | STRKL1200 |
|---|---|
| Machine Load Capacity | 900kg |
| Travel Speed | Up to 9–10km/h |
| Engine | Perkins 403D-15T |
| Engine Configuration | 1.5L, 3-cylinder turbocharged diesel |
| Engine Output | 40HP (30kW) @ 3000 RPM |
| Fuel | Diesel |
| Fuel Tank | 40L |
| Starter | Key start |
| Battery | 12V maintenance-free |
| Air Filter | Donaldson |
| Hydraulic Valve | Italian HC hydraulic servo control valve with joystick drive control |
| Hydraulic Pump | Italian Bondioli & Pavesi 21cc |
| Main Auxiliary Hydraulic Flow | 53–58L/min |
| Secondary Auxiliary Hydraulic Flow | 11–14L/min |
| Hydraulic Pressure | 18–25MPa depending on application |
| Bucket Float Function | Standard |
| Hydraulic Oil Tank | 35L |
| Hydraulic Oil Cooler | Standard |
| Hydraulic Connections | Italian DNP flat-face G1/2 and G3/8 quick connects |
| Bearings | Japanese NSK |
| Hitch Plate | 580 x 213mm (W x H) |
| Hitch Pin Spacing | 369mm centres, 20mm pins |
| Parking Brake | Standard |
| Tracks | 200mm flat-bar tracks, KDF |
| Operating Weight | 2340kg |
| Machine Weight | 1850kg |
| Machine Dimensions | 2250mm (L) x 1060mm (W) x 1600mm (H) |
| Tipping Pin Height | 2100mm |
| Warranty | 24 month parts supply warranty 12 month engine warranty |
Operator Manual
Optional Mini Loader & Trailer Bundle
For customers requiring a complete transport and attachment package, a Paddock™ Ultimate Diesel Mini Loader & Trailer Bundle is also available.
View the Paddock™ Ultimate Diesel Mini Loader & Trailer Bundle
Service & Maintenance
Routine servicing includes engine oil changes, hydraulic fluid inspection and replacement, filter servicing and regular lubrication of grease points in accordance with the supplied maintenance schedule.
Check all fluid levels before initial operation and before each use as required. Engines may be transported with only sufficient oil for storage and transport, so the engine oil level must be checked and filled to the specified level before starting.
Always operate and maintain the loader in accordance with the supplied operator manual.
