Description
Paddock Machinery offers extremely high quality equipment at affordable prices. Ideal for professional and trade applications, when buying Paddock brand you can rest assured you're getting a heavy duty proven design that won't let you down. These Alloy trailers are 100% Australian Made here in Brisbane. Each trailer comes with a 2 year warranty.
*Mini Loader & attachments in image are not included.
Australian Made! Finance options available.

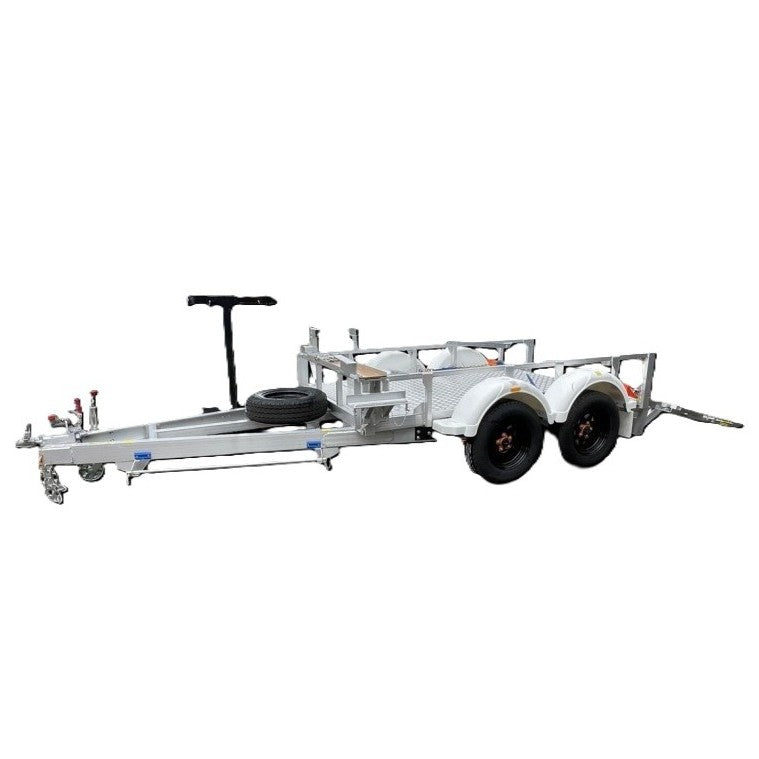

Mini Loader & Excavator Alloy Equipment Trailers
- 12mths QLD registration included (other states please inquire)
- All Trailers include 2 years warranty
- 100% Australian made in Brisbane
- Customise the trailers to suit the attachments ordered!
These are high quality heavy duty custom made machinery trailers ideally suited to the Paddock mini loaders, excavators and the range of accessories. These trailers are locally built here in Brisbane and can have a certain level of (attachment) customisation depending on user requirements. These trailers are extremely heavy duty and well built, just like the Paddock range of equipment.
Mini Loader Alloy Trailers options -
- 2,250kg Tandem Axle & 3,200kg Tandem Axle

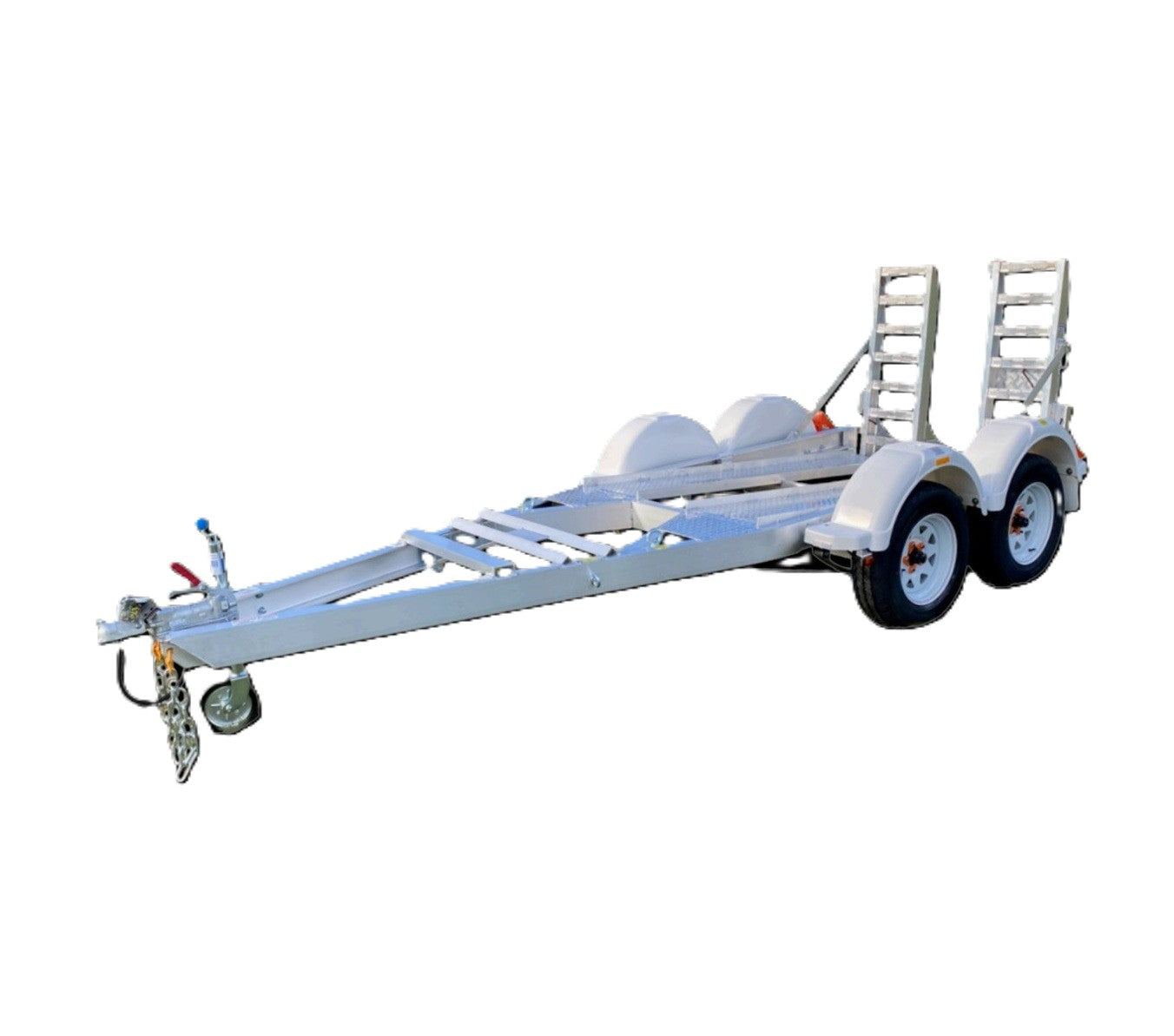

Excavator Alloy Trailers options -
- 2,250kg Tandem Axle & 2,900kg Tandem Axle
Find our Manual here
| 2.25T MINI LOADER | 3.2T MINI LOADER | 2.25T EXCAVATOR | 2.9T EXCAVATOR | |
|---|---|---|---|---|
| CHASSIS | A-FRAME | A-FRAME | FORM BENT | FORM BENT |
| GTM (KG) | 2000KG | 3000KG | 2000KG | 2800KG |
| ATM (KG) | 2250KG | 3200KG | 2250KG | 2940KG |
| EST TARE (KG) | 600KG | 650KG | 360KG | 440KG |
| EST PAYLOAD (KG) | 1650KG | 2550KG | 1890KG | 2500KG |
| LOAD AREA (MM) | 3000 X 1500 WITH 450MM BEAVER TAIL | 3000 X 1500 WITH 450MM BEAVER TAIL | 2100 X 1140 | 2100 X 1140 |
| SUSPENSION | PARABOLIC | ROCKA ROLLA | PARABOLIC | ROCKA ROLLA |
| NO. OF LEAF | PARABOLIC - SINGLE LEAF | 7 LEAF | PARABOLIC - SINGLE LEAF | 7 LEAF |
| AXLES | 50 SQUARE AXLE STRAIGHT | 50 SQUARE AXLE STRAIGHT | 50 SQUARE 2" DROP | 50 SQUARE 2" DROP |
| STUD PATTERN | 5 STUD FORD | 5 STUD FORD | 5 STUD FORD | 5 STUD FORD |
| BRAKES | DRUM OVERRIDE (1 BRAKED - 1 LAZY) | ELECTRIC (BOTH AXLE BRAKED) | DRUM OVERRIDE (1 BRAKED - 1 LAZY) | ELECTRIC (BOTH AXLE BRAKED) |
| BRAKE SIZE | 9" DRUM | 10" ELECTRIC | 9" DRUM | 10" ELECTRIC |
| BRAKE NOTES | * NOT APPLICABLE | * Customer will require in-car controller (own expense) * Brakes are 12volt - if towing with a 24 volt vehicle you will need an inverter fitted to tow vehicle (own expense) |
* NOT APPLICABLE | * Customer will require in-car controller (own expense) * Brakes are 12volt - if towing with a 24 volt vehicle you will need an inverter fitted to tow vehicle (own expense) |

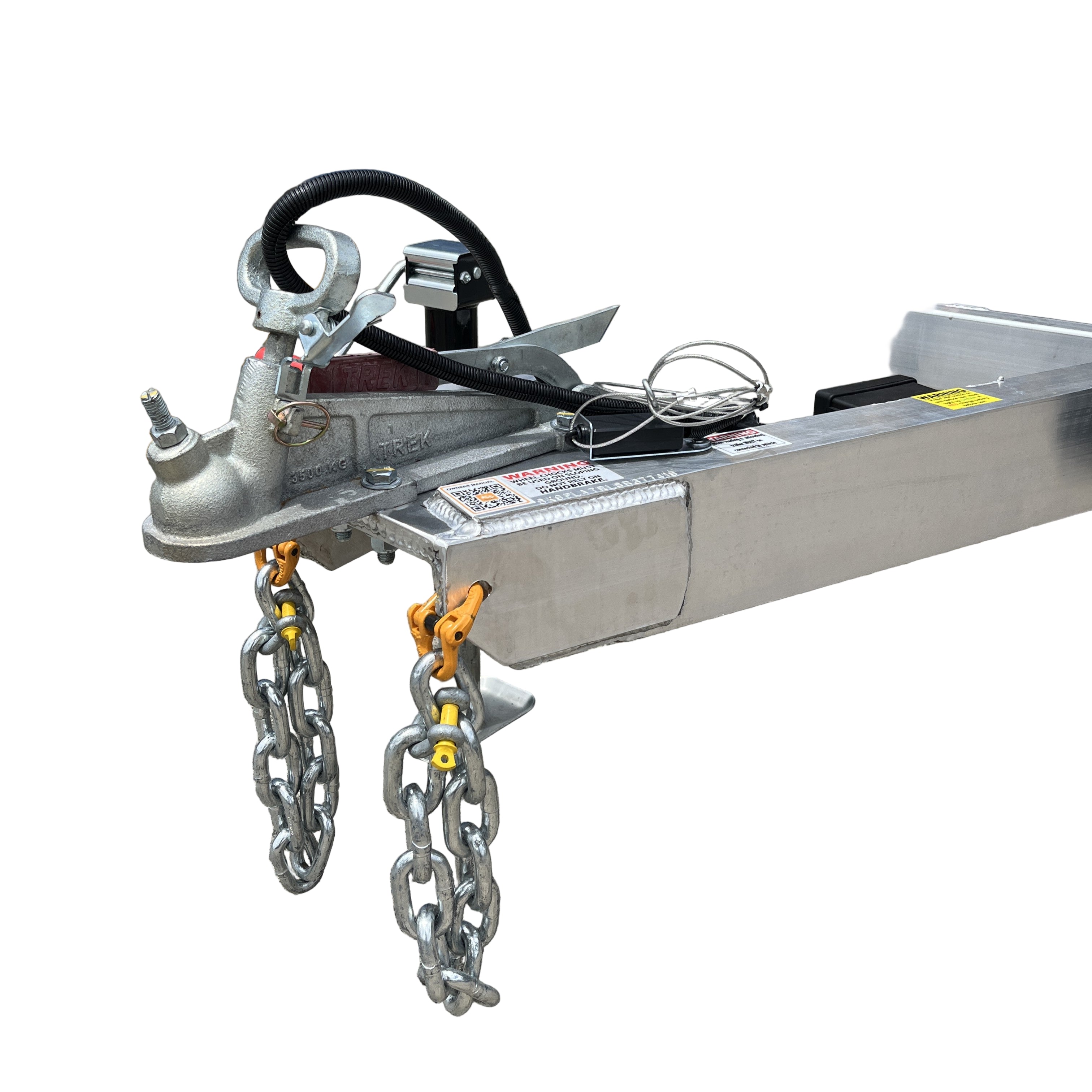

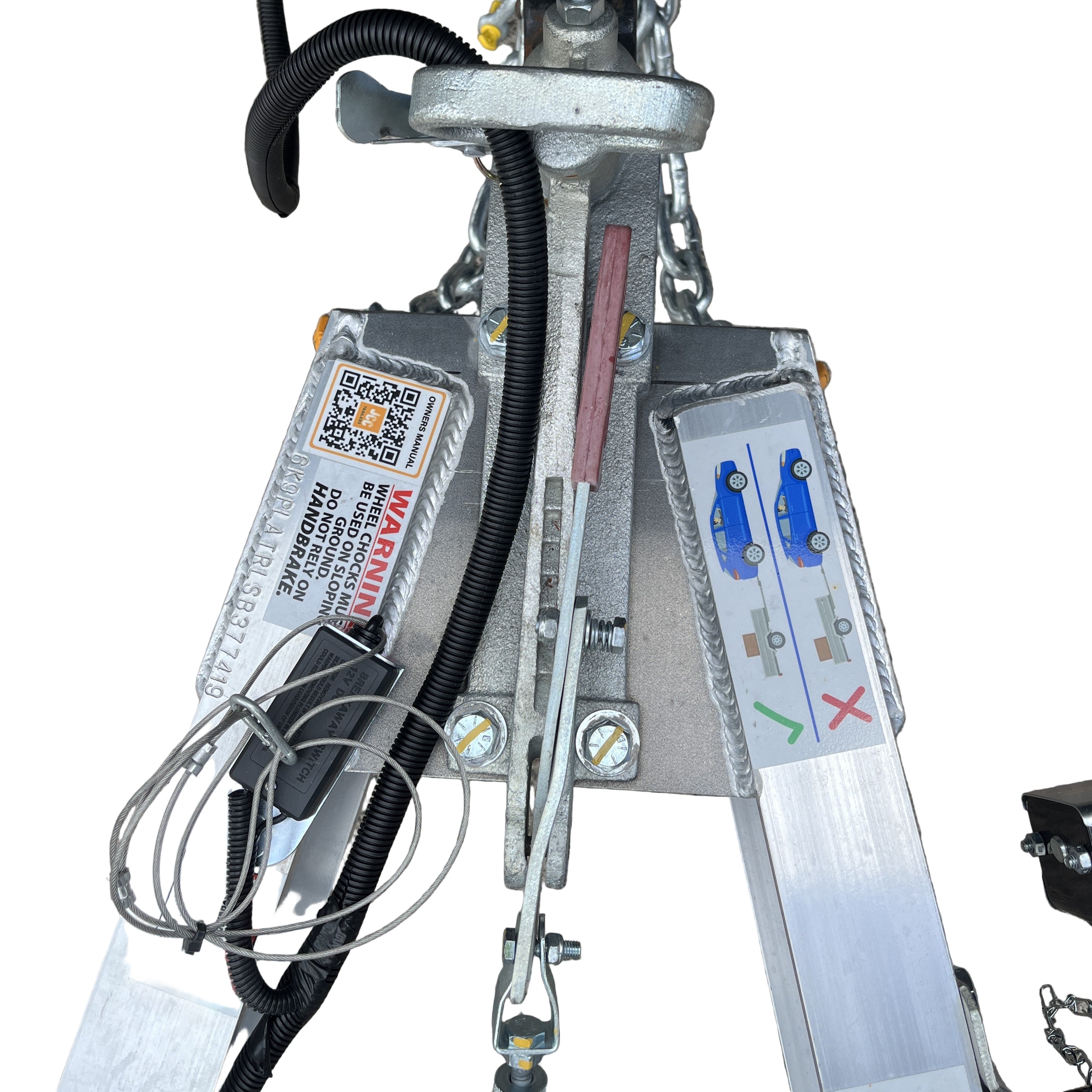

| COUPLING | OVERIDE 3500KG WITH BRAKE PLATE | 3500KG ELECTRIC | OVERIDE 3500KG WITH BRAKE PLATE | 3500KG ELECTRIC |
| FLOOR | 3.0MM ALLOY TREADPLATE FULL | 3.0MM ALLOY TREADPLATE FULL | 3.0MM ALLOY TREADPLATE TRACK | 3.0MM ALLOY TREADPLATE TRACK |

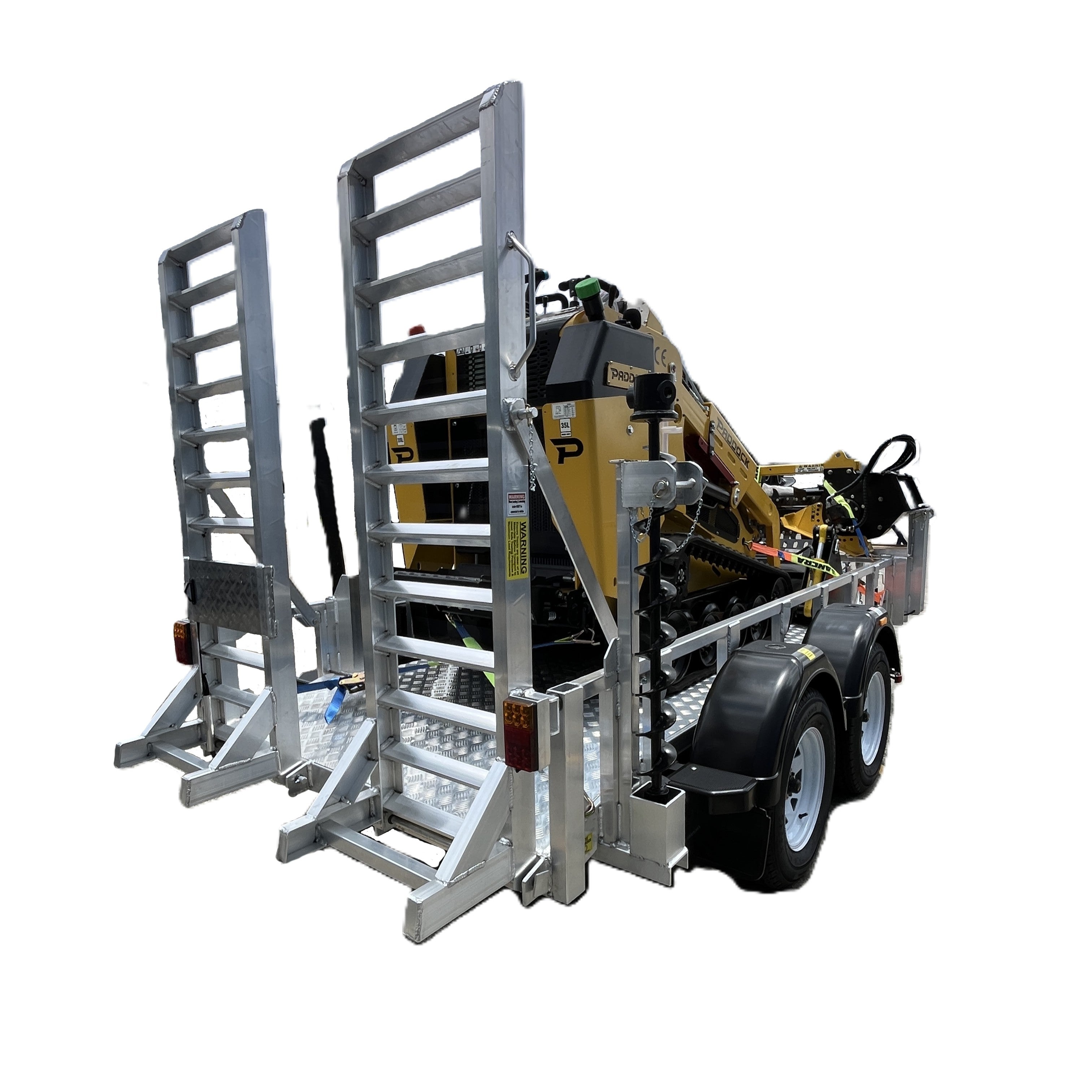

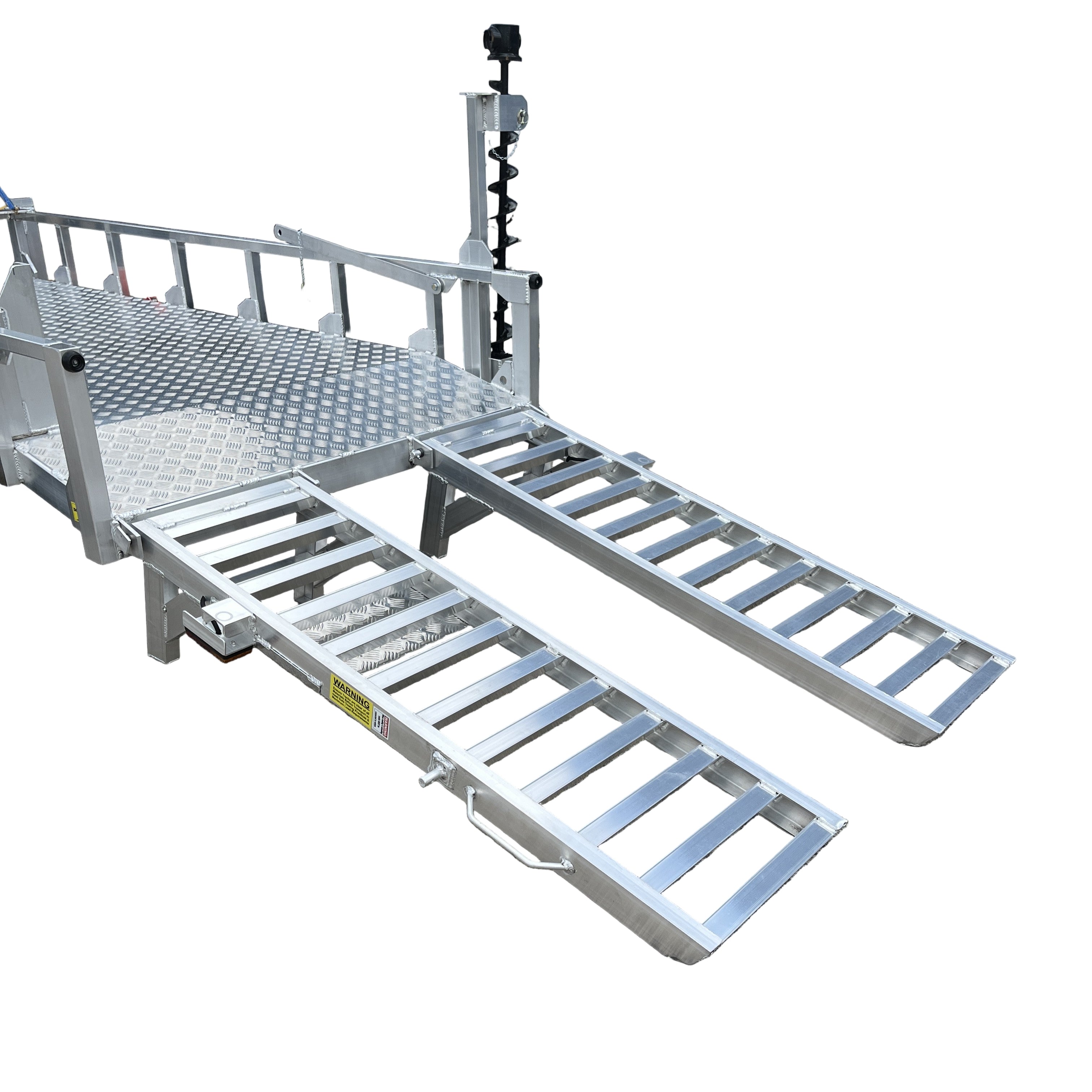

| RAMPS | 2X SINGLE ALLOY LADDER STYLE CHANNEL RAILS 1700X500 | 2X SINGLE ALLOY LADDER STYLE CHANNEL RAILS 1700X500 | 2X SINGLE ALLOY LADDER STYLE ANGLE RAILS 1200X390X400 | 2X SINGLE ALLOY LADDER STYLE ANGLE RAILS 1200X390X400 |

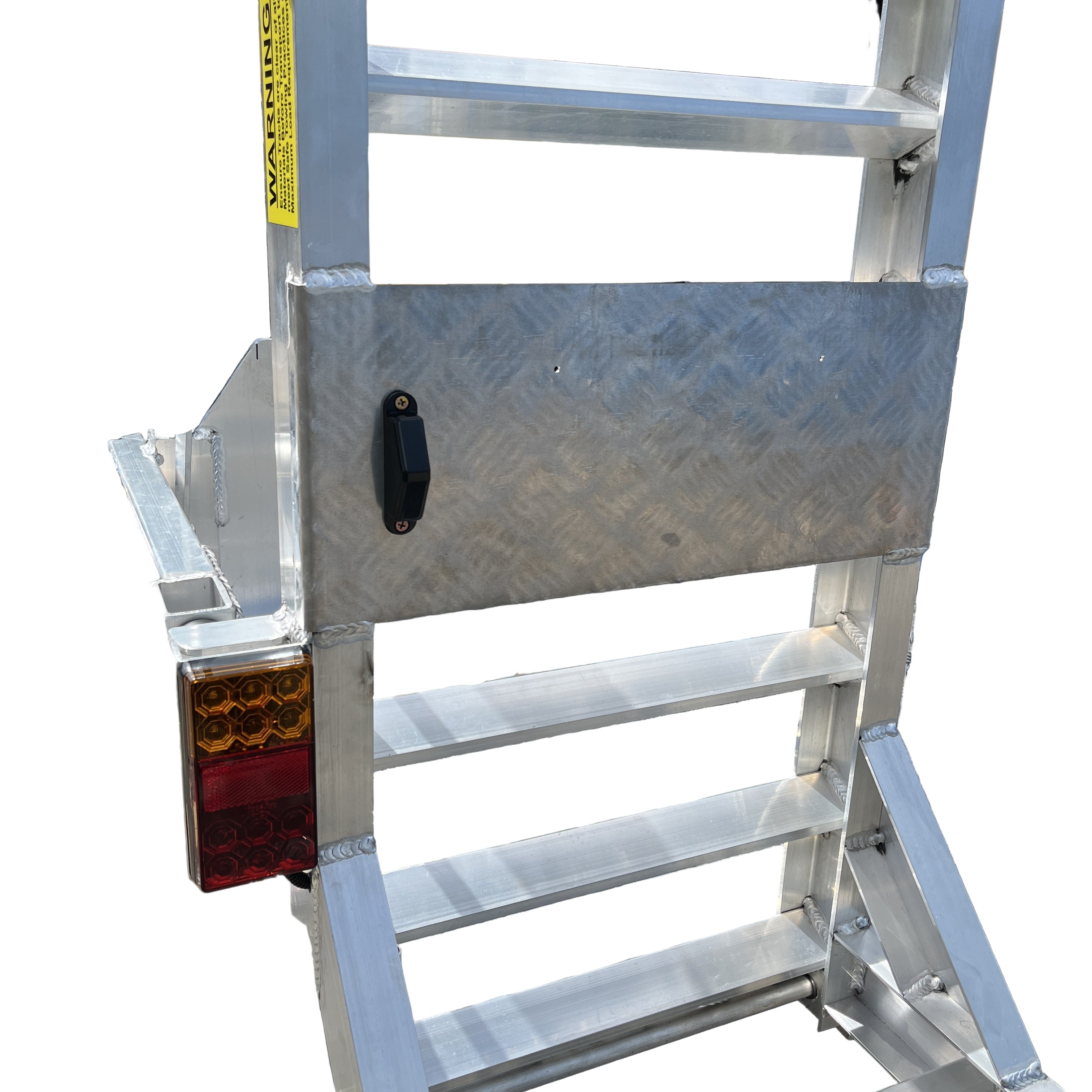

| LIGHTS | LED MULTI-VOLT (12-24V) (ADR APPROVED) | LED MULTI-VOLT (12-24V) (ADR APPROVED) | LED MULTI-VOLT (12-24V) (ADR APPROVED) | LED MULTI-VOLT (12-24V) (ADR APPROVED) |

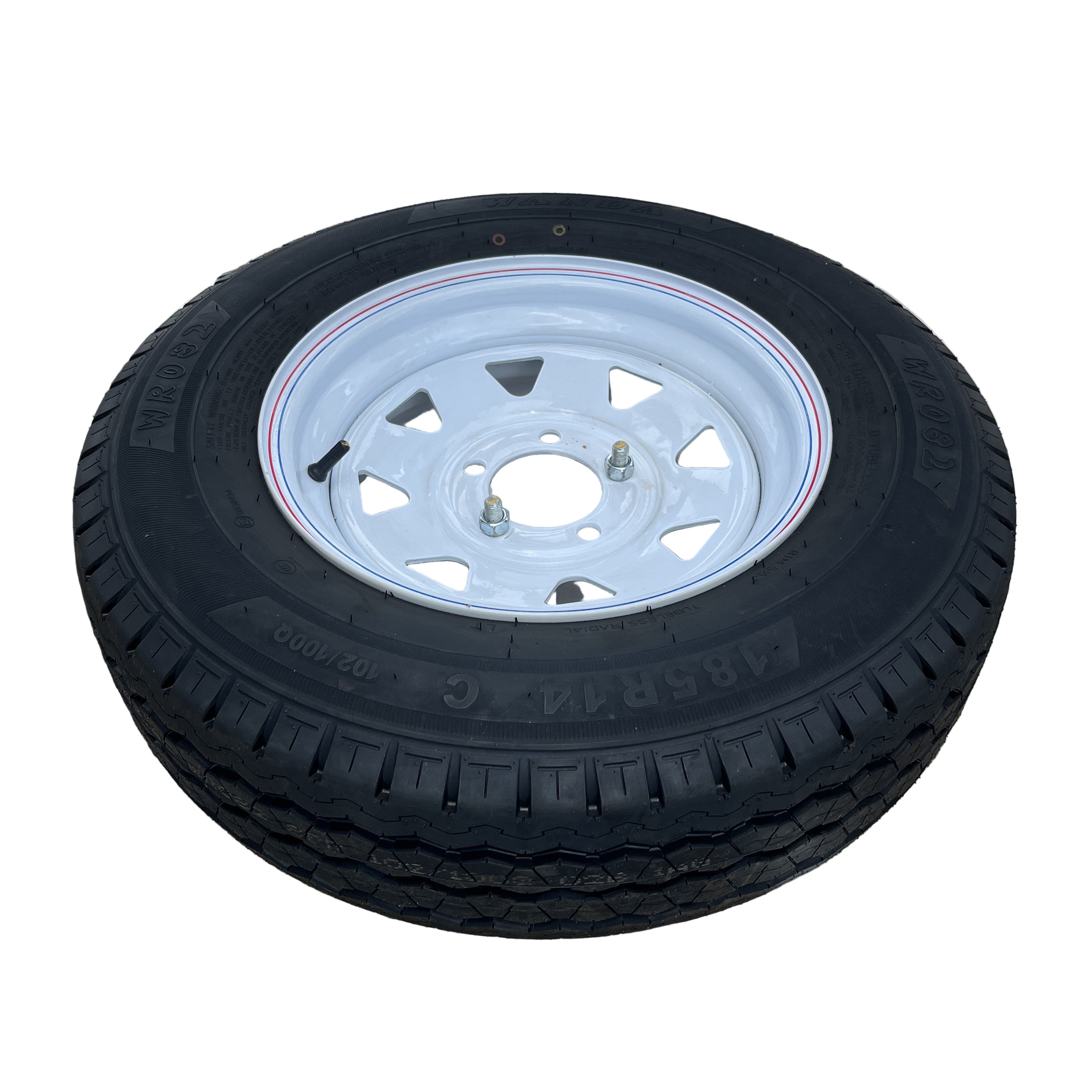

| TYRES | 185/14LT | 185/14LT | 185/14LT | 185/14LT |
| RIMS | 14" WHITE 5 STUD FORD | 14" WHITE 5 STUD FORD | 14" WHITE 5 STUD FORD | 14" WHITE 5 STUD FORD |
| SPARE WHEEL | FLAT DRAWBAR TOP. INCLUDED | FLAT DRAWBAR TOP. INCLUDED | SPARE WHEEL & MOUNT ADDITIONAL $220+GST | FLAT DRAWBAR UNDER INCLUDED |
| GUARDS | MOULDED PLASTIC (BLACK) | MOULDED PLASTIC (BLACK) | MOULDED PLASTIC (BLACK) | MOULDED PLASTIC (WHITE) |
| COLOUR | ALLOY FINISH | ALLOY FINISH | ALLOY FINISH | ALLOY FINISH |

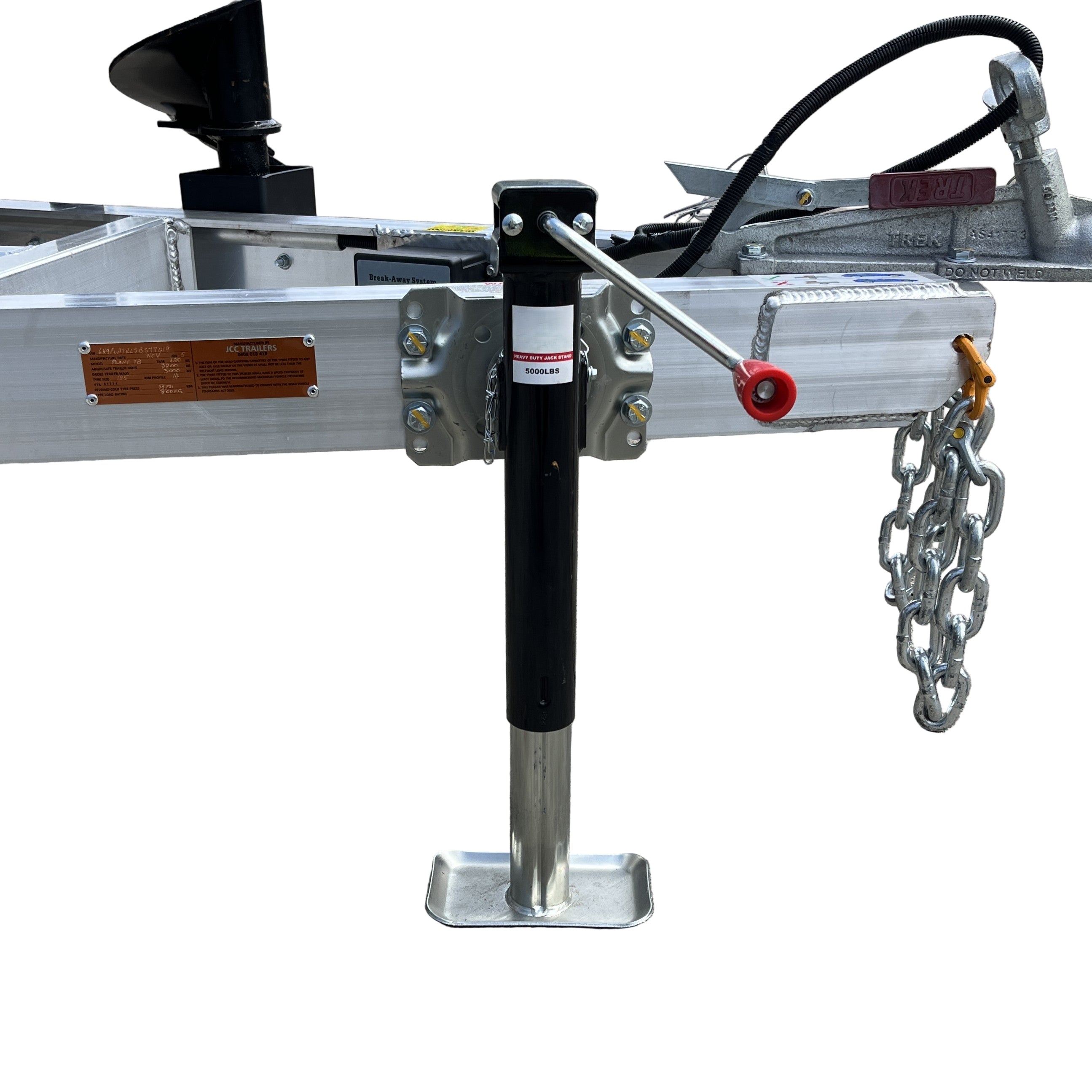

| JOCKEY WHEEL | SWING UP BOLT ON | SWING UP BOLT ON | SWING UP BOLT ON | SWING UP BOLT ON |
| TRAILER SIDES | OPEN RAIL | OPEN RAIL | NO RAIL (FORM BENT) | NO RAIL (FORM BENT) |

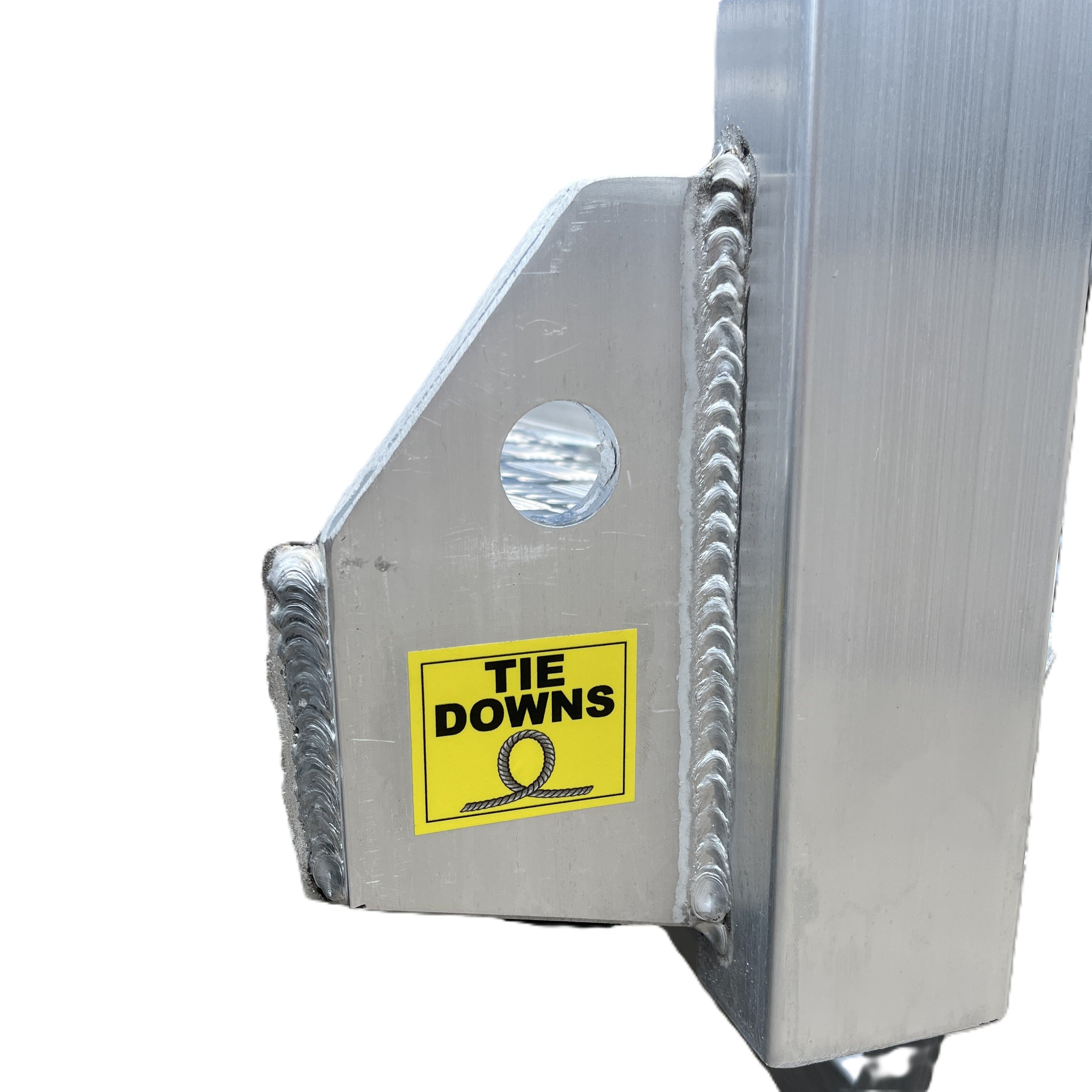

| TIE DOWN POINTS | TO SUIT MACHINE & ATTACHMENTS | TO SUIT MACHINE & ATTACHMENTS | 6 X RATED EYE BOLT | 6 X RATED EYE BOLT & 1 X REAR EXCAV TIE POINT (CENTRE) |
| TRAILER PLUG | 7 PIN PLASTIC FLAT | 7 PIN PLASTIC FLAT | 7 PIN PLASTIC FLAT | 7 PIN PLASTIC FLAT |
| CHAIN RESTRAINT KIT | YES - MINI LOADER KIT INCLUDED | YES - MINI LOADER KIT INCLUDED | YES - EXCAVATOR KIT INCLUDED | YES - EXCAVATOR KIT INCLUDED |

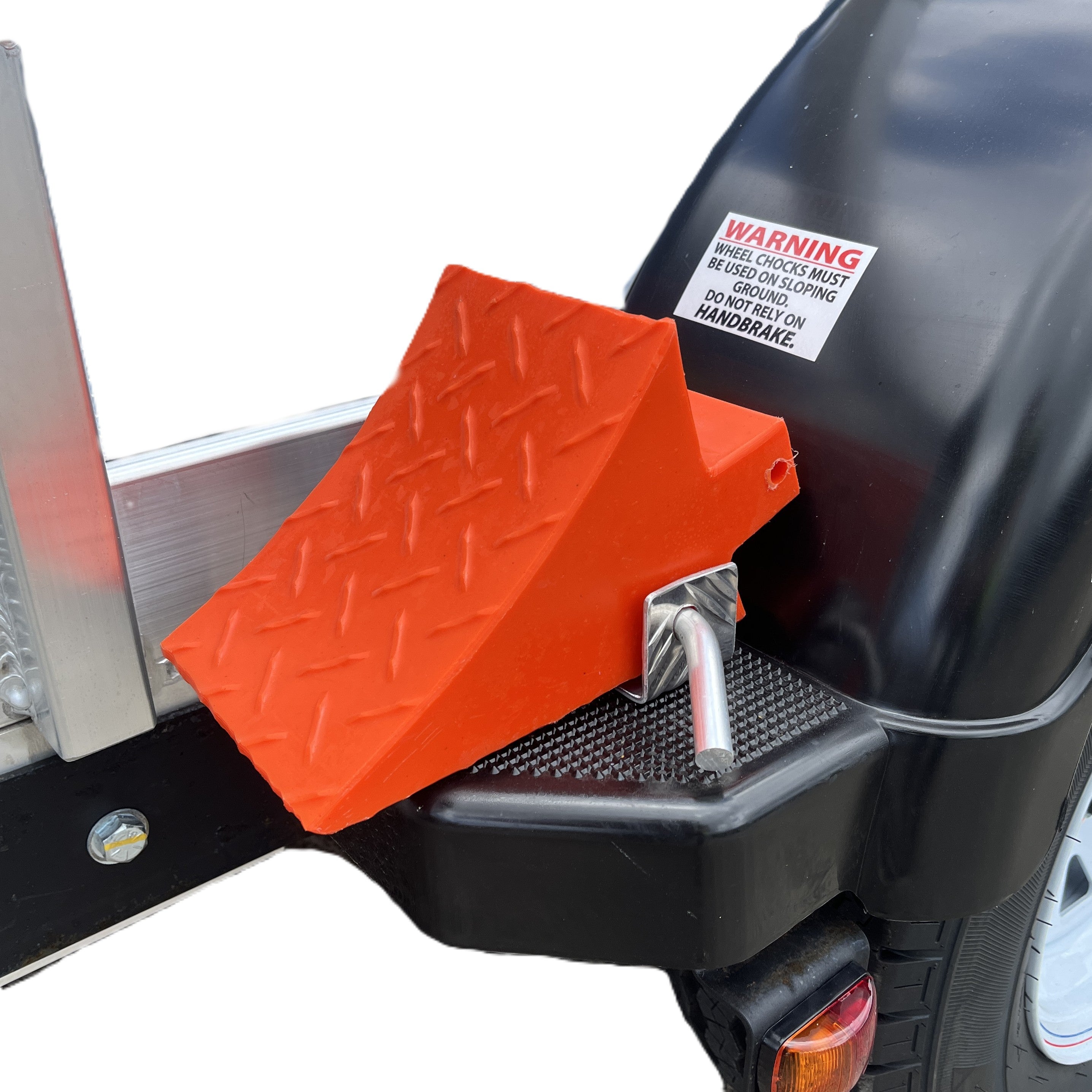

| ADDITIONAL INCLUDED ITEMS | 2 X WHEEL CHOCKS MOUNTED ON GUARDS | 2 X WHEEL CHOCKS MOUNTED ON GUARDS | 2 X WHEEL CHOCKS MOUNTED ON GUARDS | 2 X WHEEL CHOCKS MOUNTED ON GUARDS |

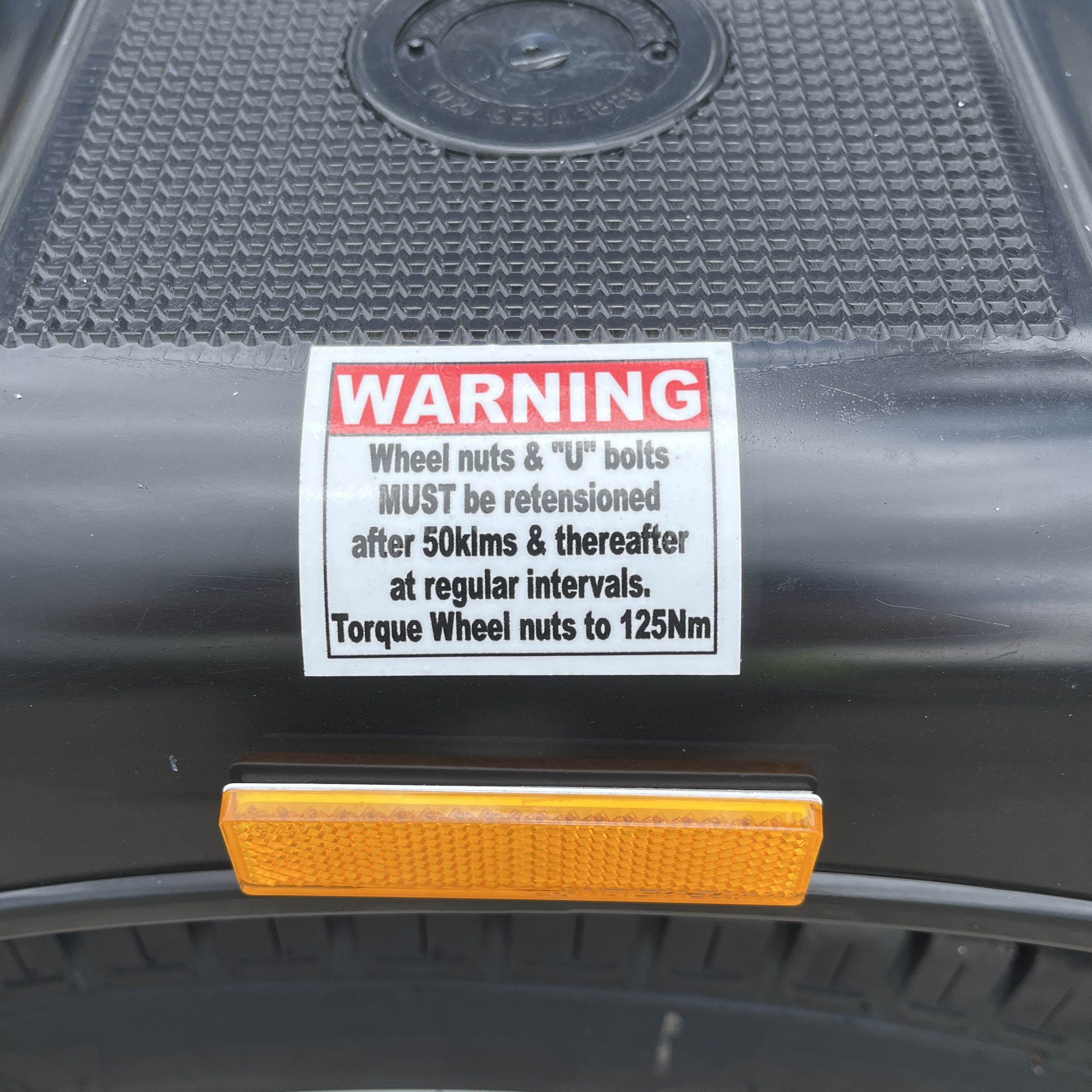

| WHEEL NUT INDICATORS | WHEEL NUT INDICATORS | WHEEL NUT INDICATORS | WHEEL NUT INDICATORS | |

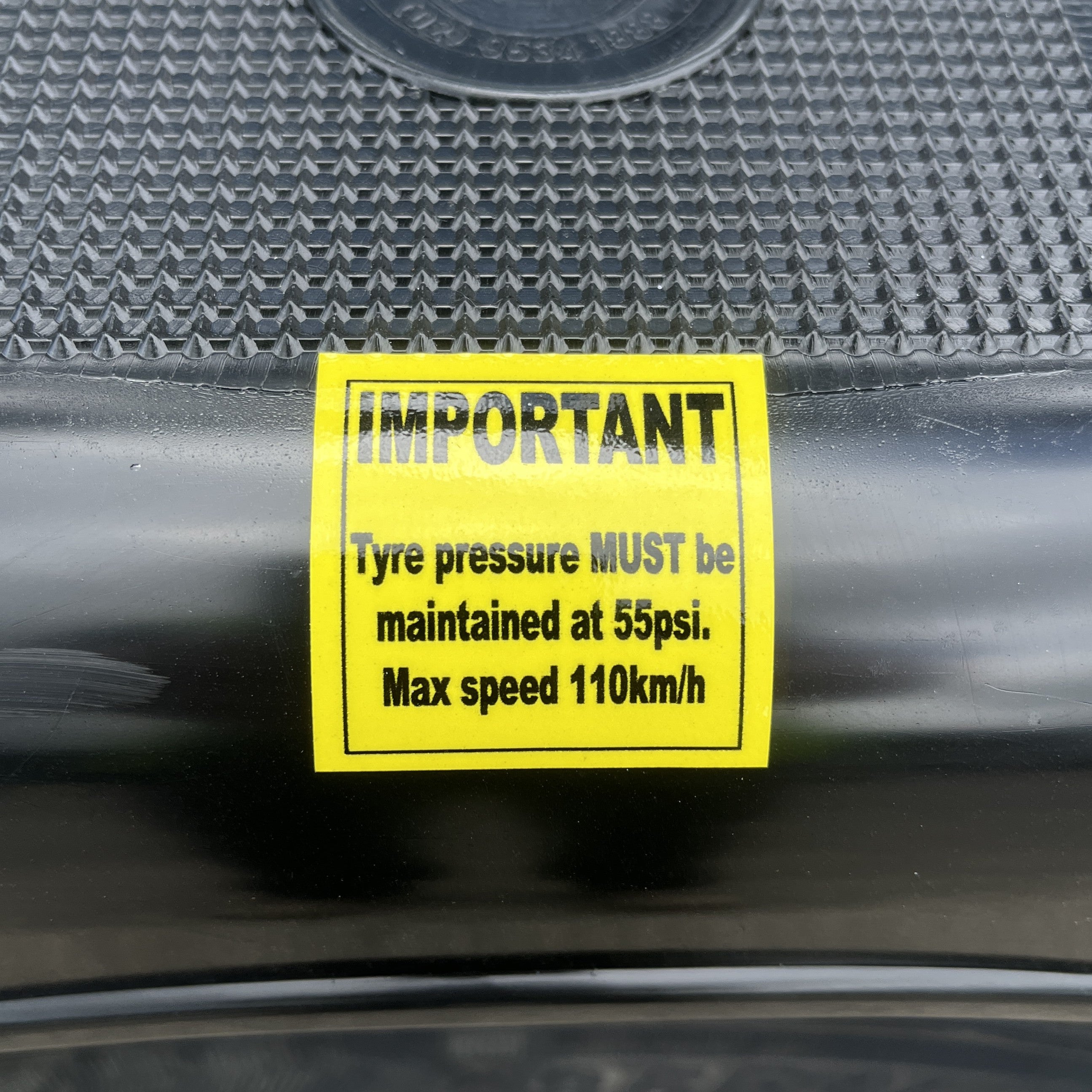

| 1 X SAFETY LABEL KIT | 1 X SAFETY LABEL KIT | 1 X SAFETY LABEL KIT | 1 X SAFETY LABEL KIT |
Please note: When adding attachment holders. We need to check load capacity of trailer.
Optional Extras:

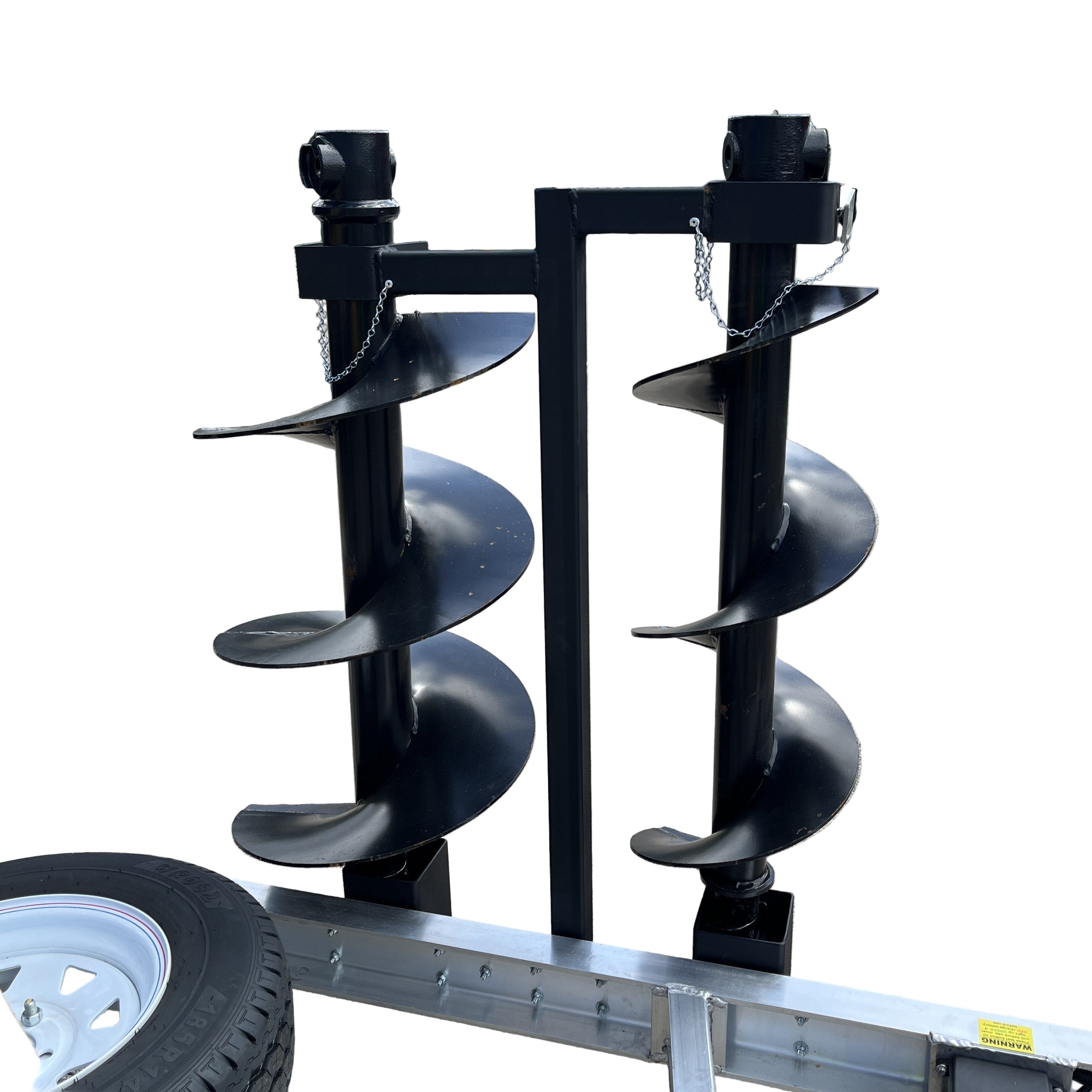

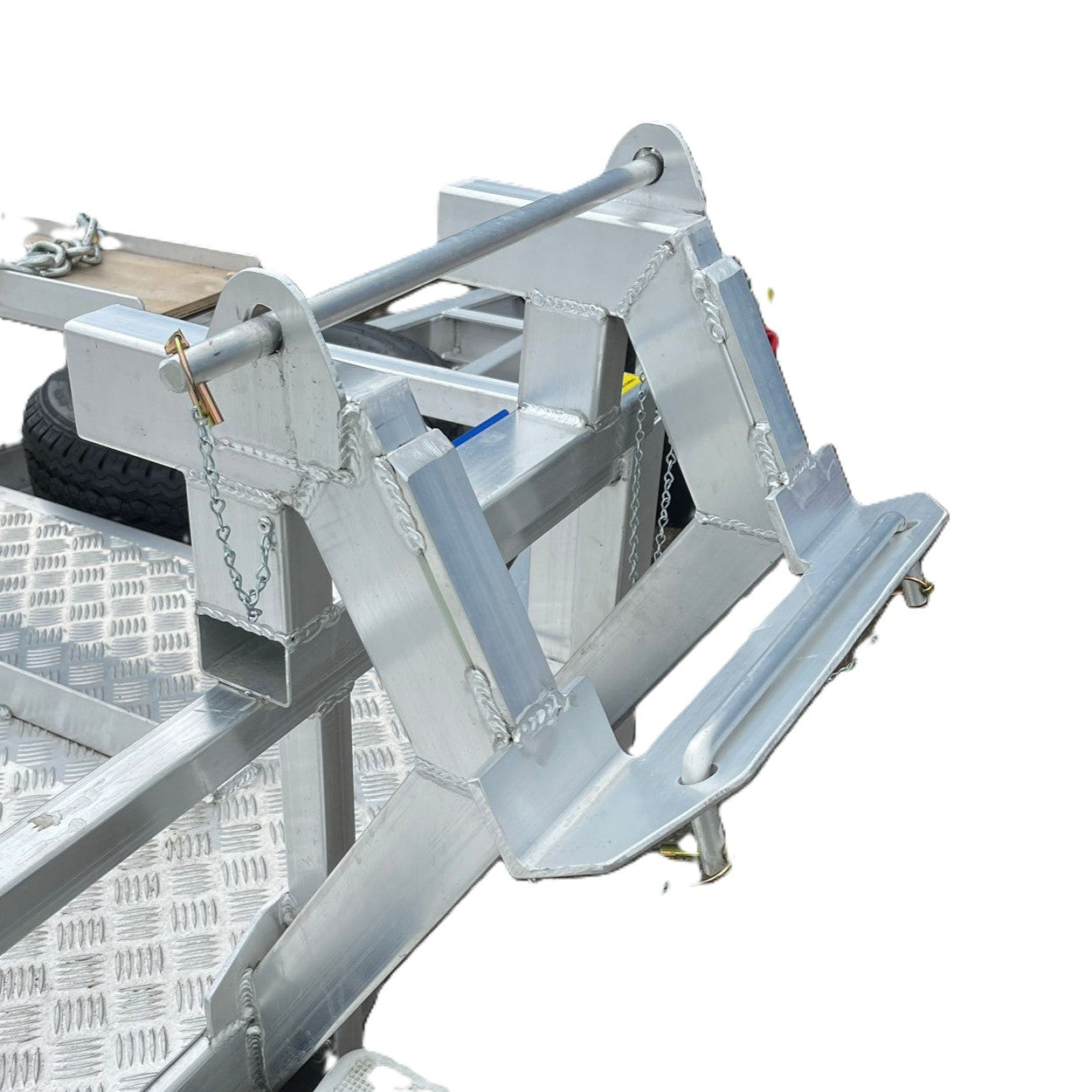

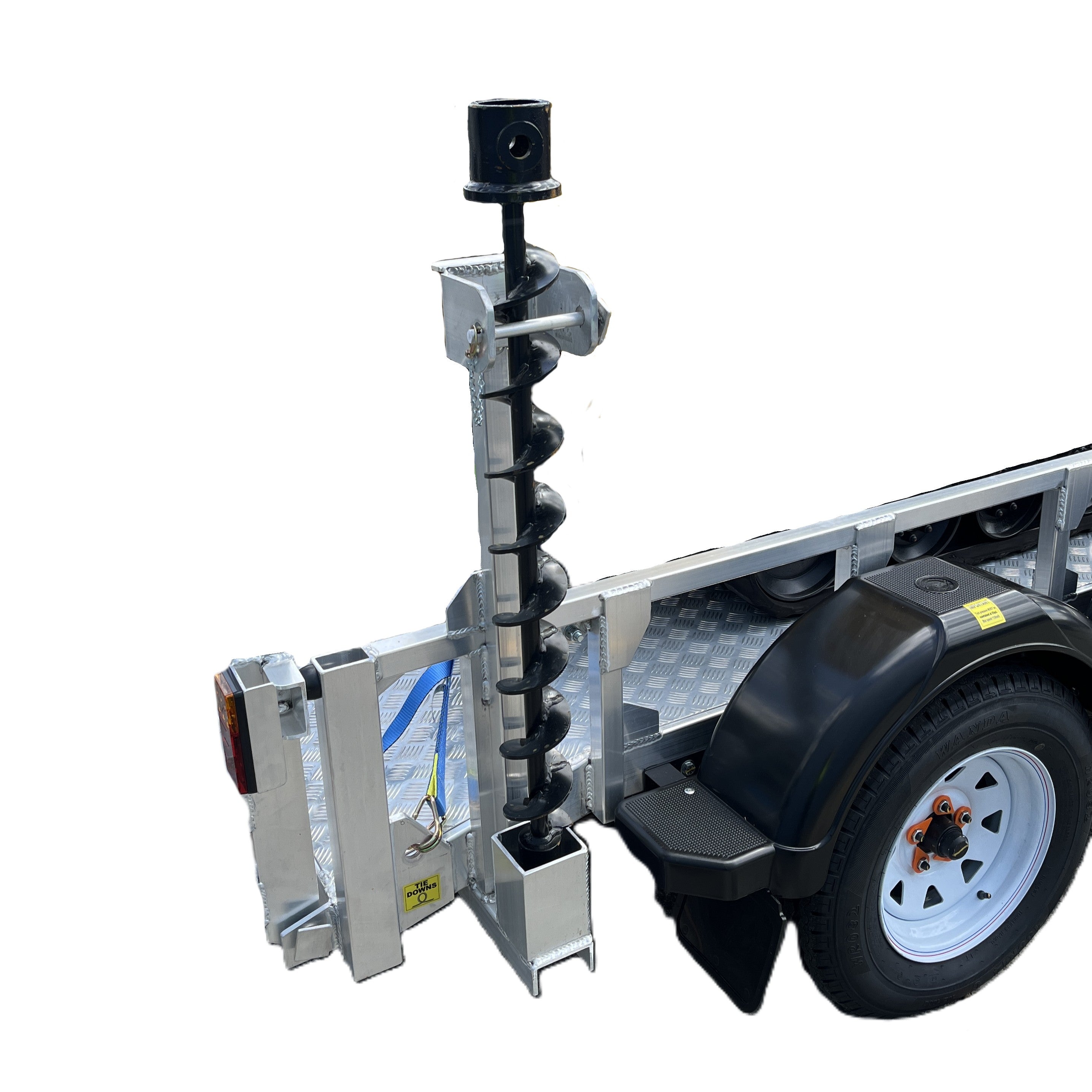

- Add optional Power Head Mount & 3x Auger Holder - $1190 (inc GST)

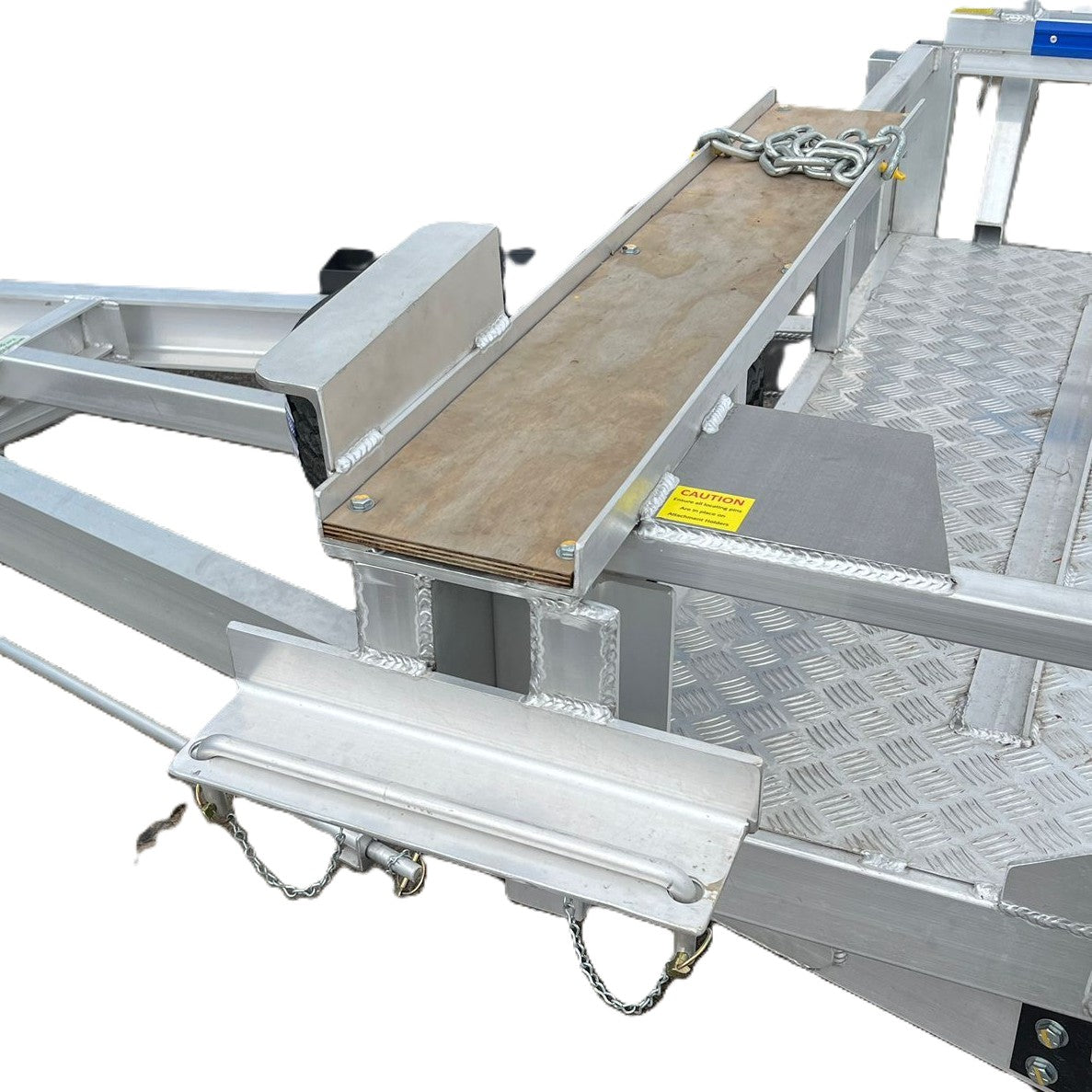

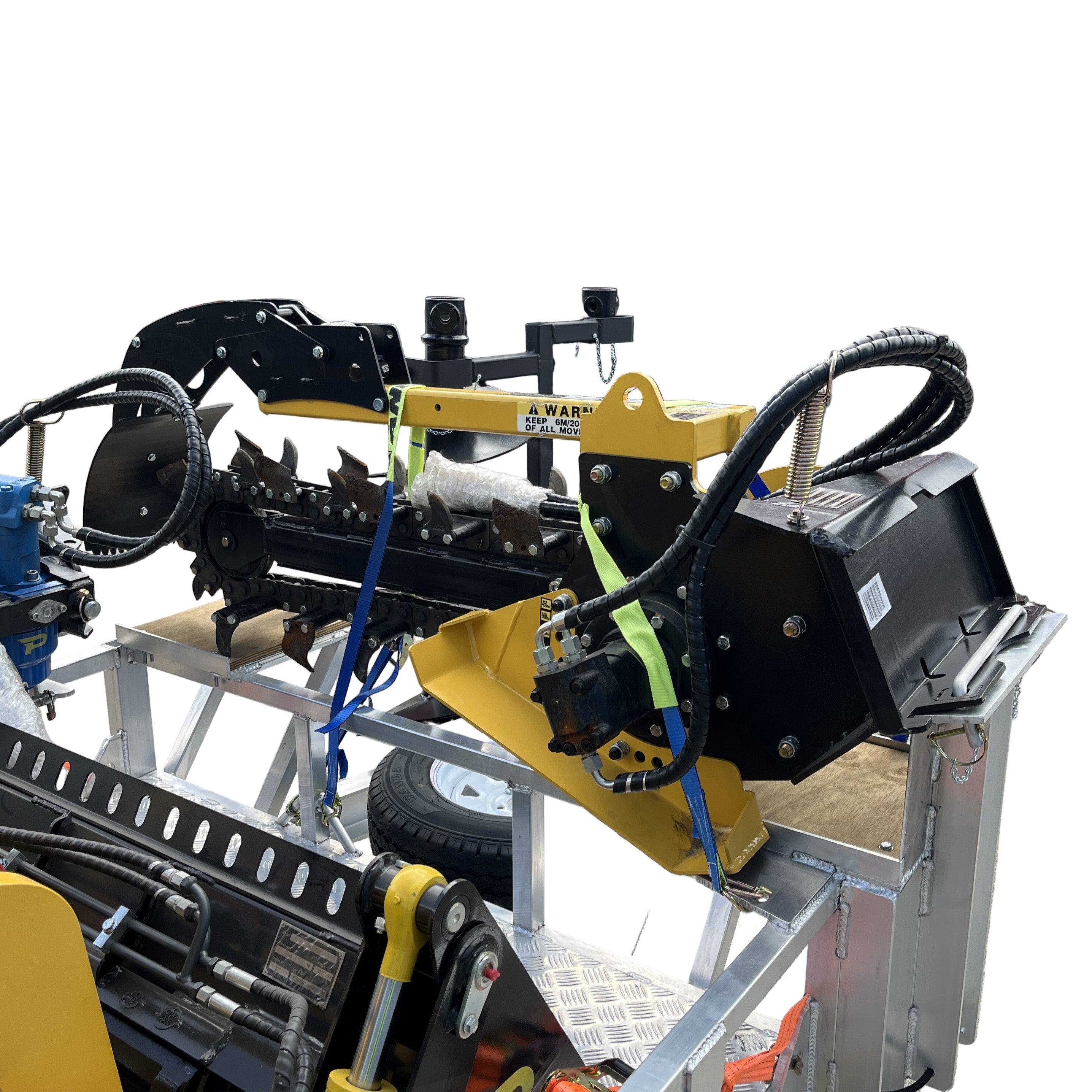

- Add optional Trencher Mount - $549 (inc GST)
- Add optional Spreader Bar Mount - $529 (inc GST)
- Add optional Mixer Bowl Mount - $395 (inc GST)
- Add optional Excavator 2.25T Spare Wheel & Mount - $220 (inc GST) - Check Weights On 1.7t Machine If Adding Spare Wheel (Will Lower Load Cap By 20kg
- Add optional Excavator 2.9T Auger Rack & Well - $1250 (inc GST)
- Add other accessories - can be quoted based on requests
Trailer Registration:
12 months registration included (for QLD, other states please inquire). We can do this for any state in Australia. Customer to provide details at ordering and we will organise for the trailer to be registered directly into your name or business name so there is no need to perform additional road worthy reports on delivery.
Don't Compromise Quality
When working with machinery, equipment quality should not be compromised, cheap copy machines breakdown costing you money. Paddock only use the highest quality materials making them a machine for life. Ensure you're getting genuine branded equipment, not some Chinese copy.
Shipping Information:
Trailers are to be collected from our Brisbane office and other states please inquire.

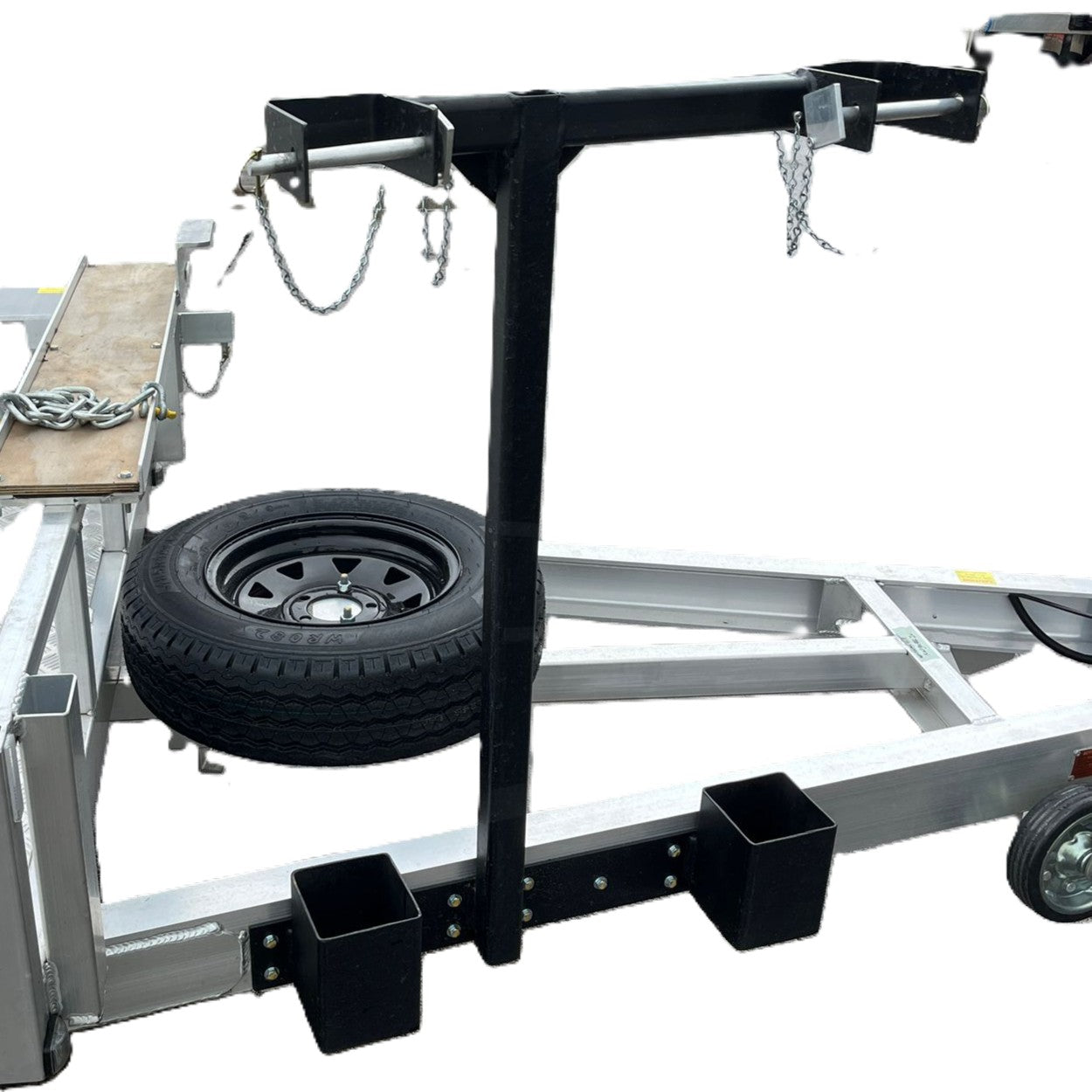

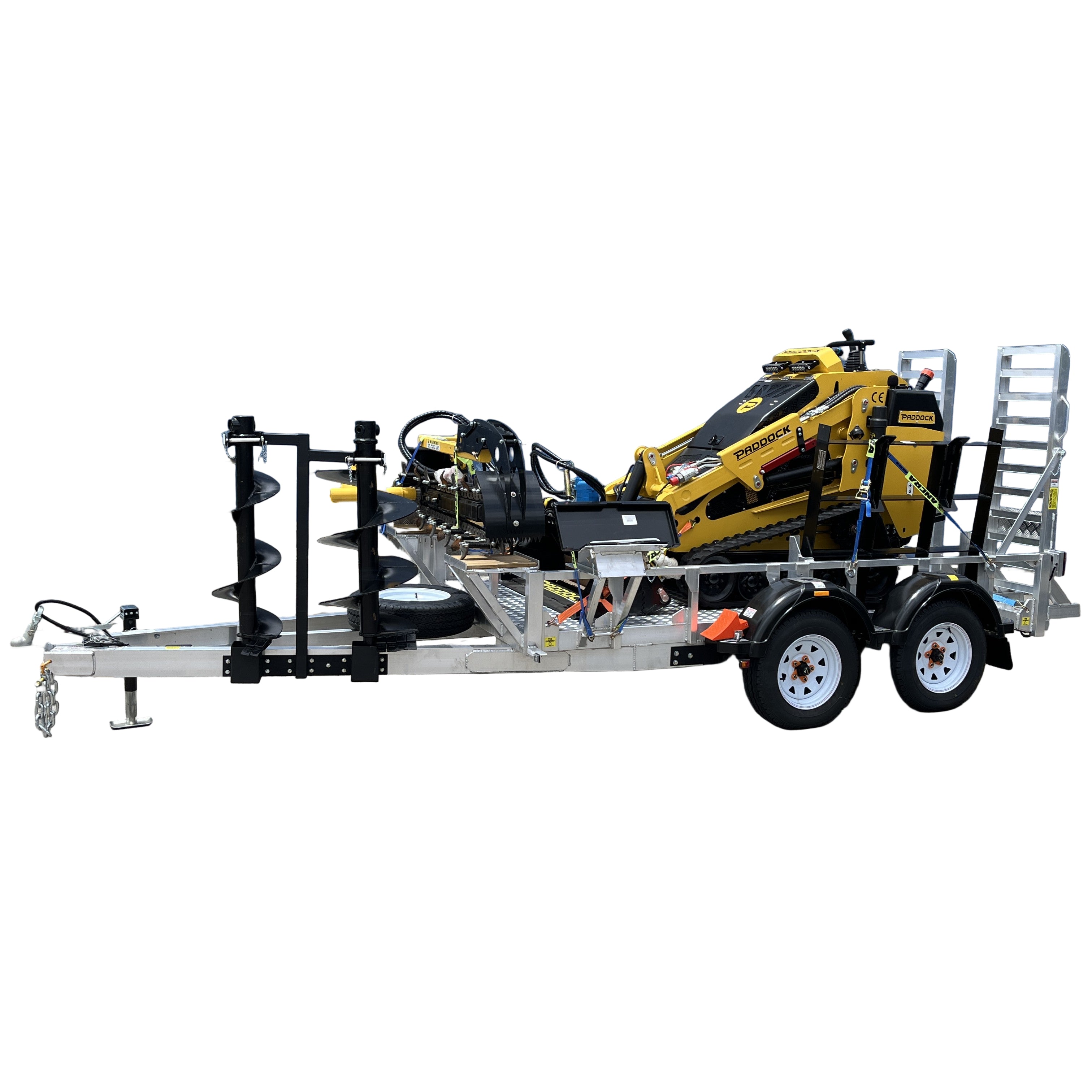

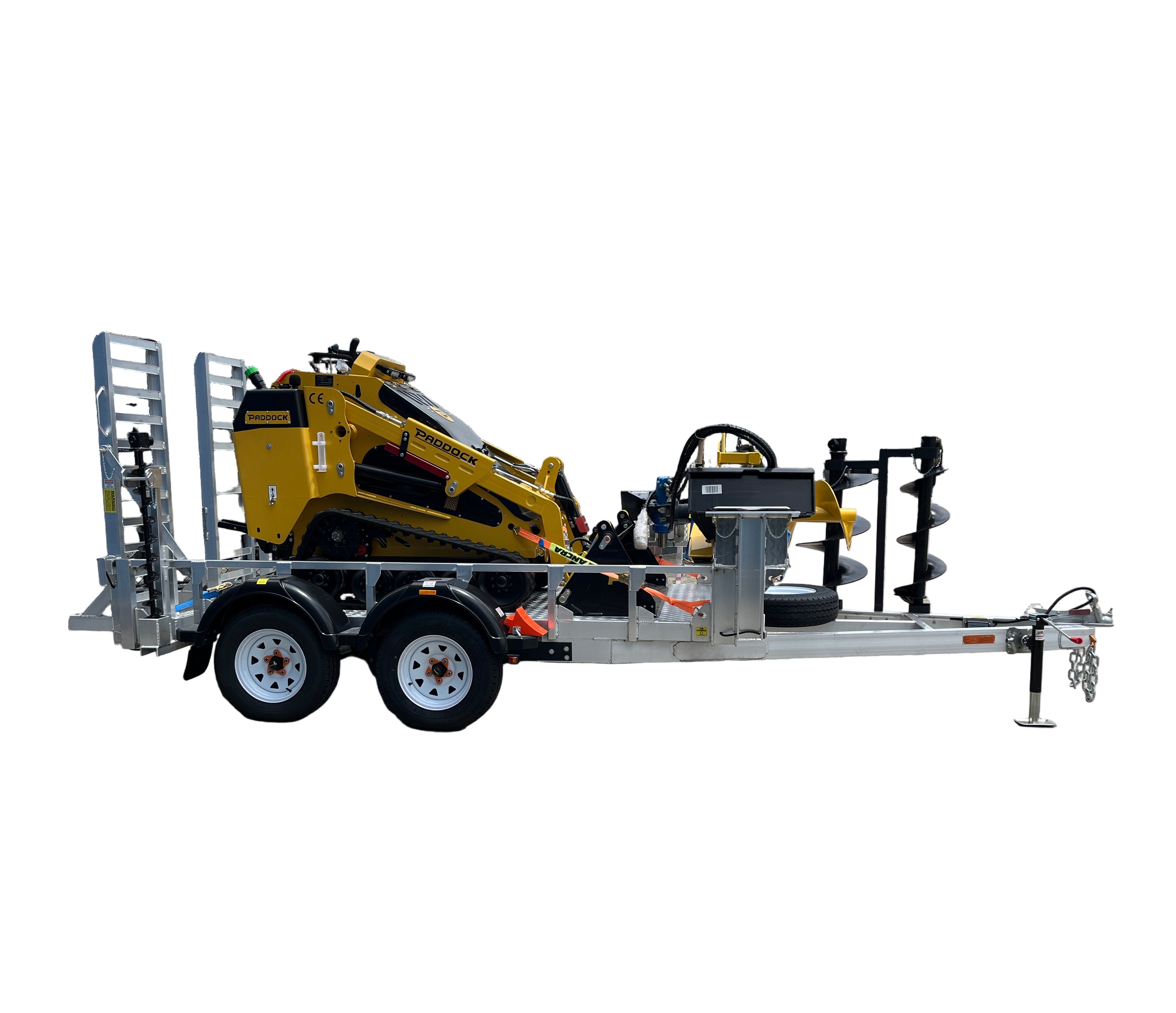

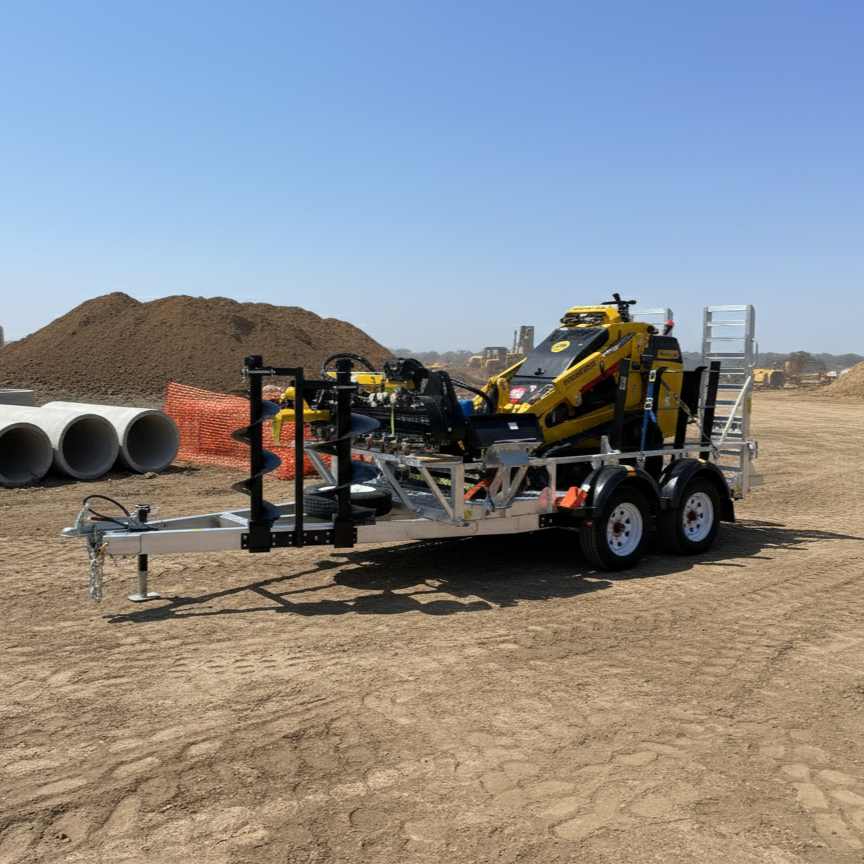

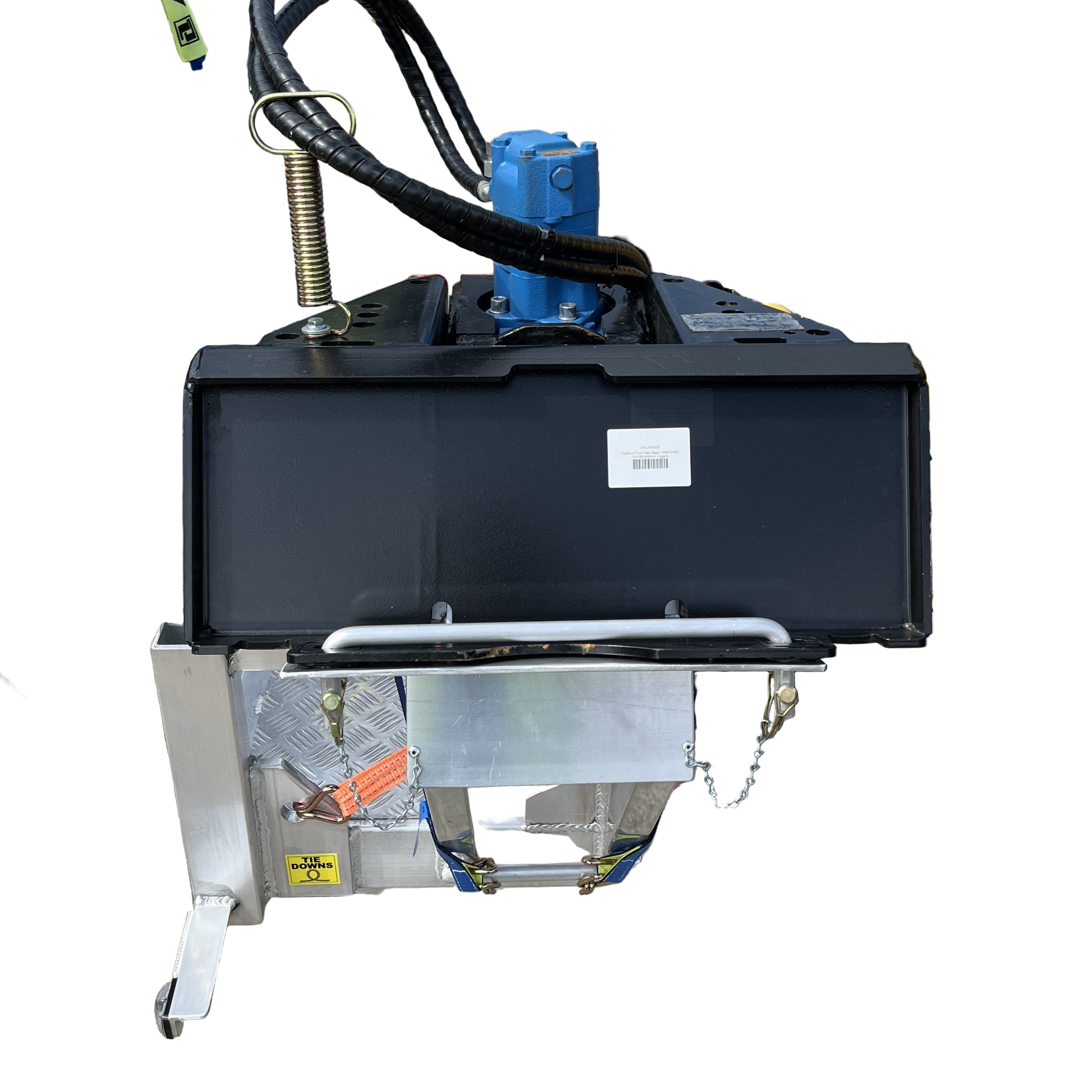

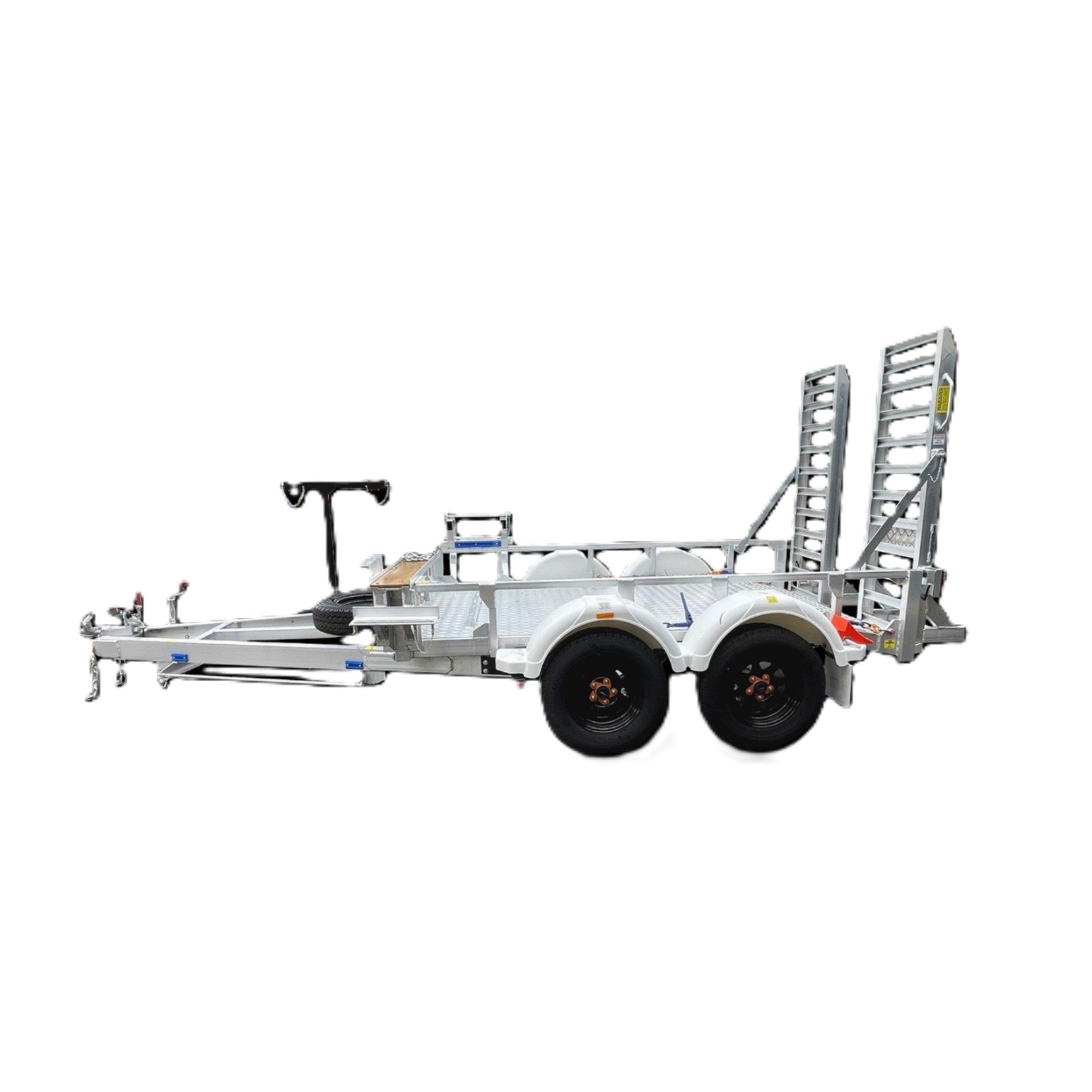

*The images are for a mini loader/excavator trailers built for a customer with auger drive rack and trencher platform. This is not included in the base trailer model. The final trailer will depend on what is ordered and attachments required and images may vary.
**Scintex can supply heavy duty ratchet straps for an additional cost or bring your own tie downs.
