Trolltek™ 12V 100Ah Slimline LiFePO4 Battery & 240V AC Charger Bundle
Description
The Trolltek™ 12V 100Ah Slimline LiFePO4 Battery & AC Charger Bundle combines a super slimline Bluetooth lithium battery with the Trolltek™ TTKCH1 300W AC lithium battery charger and battery connection cables.
With a slim 55mm battery body, integrated Bluetooth monitoring and multiple connection options, this bundle is designed for 4WD, marine, camping, off-grid and other compatible 12V installations where available mounting space is limited.
Trolltek™ 12V 100Ah Slimline LiFePO4 Battery & AC Charger Bundle
Bundle Includes
- Trolltek™ 12V 100Ah LiFePO4 Super Slimline Battery with Bluetooth
- Trolltek™ TTKCH1 12V / 300W AC Lithium Battery Charger – 14.6V, 20A
- Trolltek™ Fused Battery Connector Cable
- Trolltek™ Battery Connector Splitter Cable
View Trolling Motor Setup Resource
Super Slimline 12V Lithium Battery
The Trolltek™ 12V 100Ah Slimline Battery provides 1280Wh of energy storage in a low-profile enclosure measuring just 55mm through the main battery body.
Its slim design makes it well suited to installations where a conventional battery case is difficult to accommodate.
Multiple Connection Options
The battery provides several connection options for integration into compatible 12V electrical systems:
- M6 x 1.25 threaded terminals
- 1 x 50A Anderson-style connection – maximum output 50A
- 1 x 120A Anderson-style connection – maximum output 120A
Connected loads must remain within the applicable connector, cabling and battery current ratings.
Bluetooth Battery Monitoring

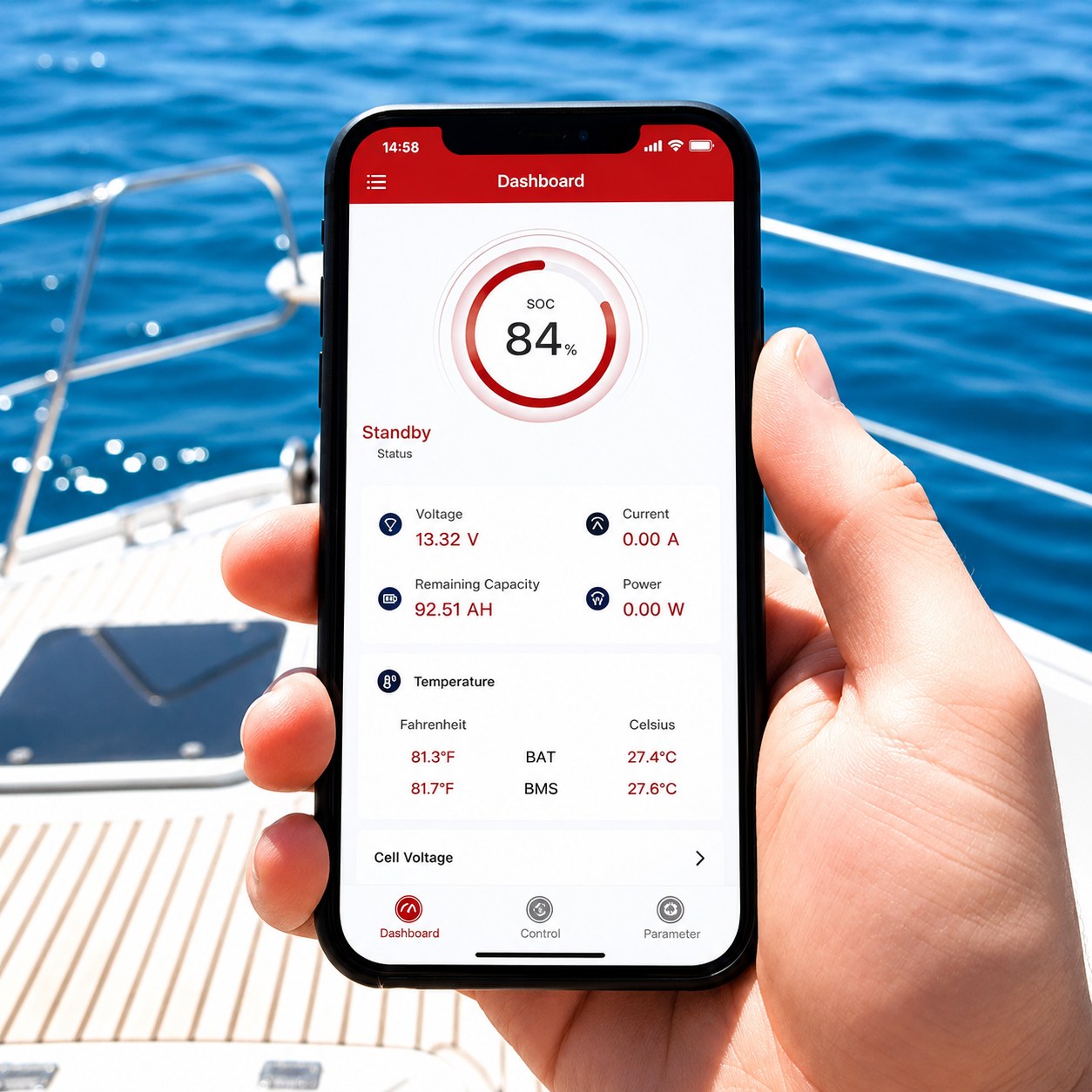

Integrated Bluetooth connectivity allows battery information to be monitored through the Trolltek™ app on compatible iPhone and Android devices.
The app provides access to battery information including state of charge, voltage, usage data and other available operating information.
Integrated Battery Management System
The integrated Battery Management System (BMS) manages battery operation and provides protection functions including:
- Low-voltage protection
- High-voltage protection
- Over-temperature protection
- Short-circuit protection
- Cell balancing
Heavy Duty LiFePO4 Construction
The battery uses new UL-certified pouch cells supported by a reinforced internal structure designed for mobile and demanding applications.
Cell specifications provide for 6,500+ cycles based on 50% depth of discharge (DOD) under appropriate operating conditions.
Pressure Relief Valve
A one-way pressure relief valve is incorporated into the battery enclosure to provide a controlled means of relieving internal pressure should excessive gas build-up occur.
High Charge & Discharge Capability
The battery supports up to 100A continuous charging and 100A continuous discharge, with a maximum pulse current of 280A.
The included TTKCH1 AC charger provides a 20A charging output. The battery's 100A maximum continuous charging specification represents the maximum supported battery charge current and is separate from the output of the included charger.
Battery Safety & Testing
- UN38.3 tested battery
- UL1642 certified cells
- Cells tested to IEC62133
- Integrated BMS protection
- IP43 rated enclosure
Charge From 230–240V AC Power
The included Trolltek™ TTKCH1 300W AC Lithium Battery Charger provides convenient charging from standard 230–240V AC mains power.
Designed for compatible 12V LiFePO4 batteries, the charger provides a 14.6V charging output at up to 20A.
Battery Specifications
| Specification | Details |
|---|---|
| Nominal Voltage | 12V |
| Voltage After Charging | 13.4–13.8V |
| Capacity | 100Ah / 1280Wh |
| Threaded Terminals | M6 x 1.25 |
| 50A Connection | 1 x Anderson-style connection – maximum output 50A |
| 120A Connection | 1 x Anderson-style connection – maximum output 120A |
| BMS | Included with Bluetooth connectivity |
| App | Trolltek™ app for compatible iPhone and Android devices |
| Maximum Continuous Charging | 100A |
| Maximum Continuous Discharge | 100A |
| Maximum Pulse Current | 280A |
| Maximum Storage Temperature | 45°C |
| Under-Bonnet Installation | Not recommended |
| Cells | New UL-certified pouch cells |
| Cycle Specification | 6,500+ cycles based on 50% DOD |
| Parallel Connections | No limit specified |
| Series Connections | Maximum 4 batteries for a 48V system |
| Enclosure | IP43 |
| Dimensions | 525mm (L) x 270mm (W), 310mm including feet x 55mm (H) |
| Weight | 15kg |
| Warranty | 5 Years |
Included AC Charger Specifications
| Specification | Details |
|---|---|
| Model | TTKCH1 |
| Charger Type | Trolltek™ AC LiFePO4 Battery Charger |
| AC Input | 230–240V AC, 50/60Hz |
| Battery Voltage | 12V |
| Charging Voltage | 14.6V |
| Charging Current | 20A |
| Rated Power | 300W |
| Protection | Soft start, over-voltage, over-temperature and short-circuit protection |
| Efficiency | 92–96% |
| Enclosure | IP65 |
Operating Temperature
The battery has a specified operating temperature range of -20°C to 60°C. Charging is not recommended below 0°C.
Maximum specified storage temperature is 45°C and under-bonnet installation is not recommended.
Installation Notes
Confirm that the battery voltage, available connection type, connector current rating and BMS limits are suitable for the intended equipment before installation.
When batteries are connected in series or parallel, installation should follow Trolltek™ connection requirements and all batteries within the bank should be appropriately matched.
