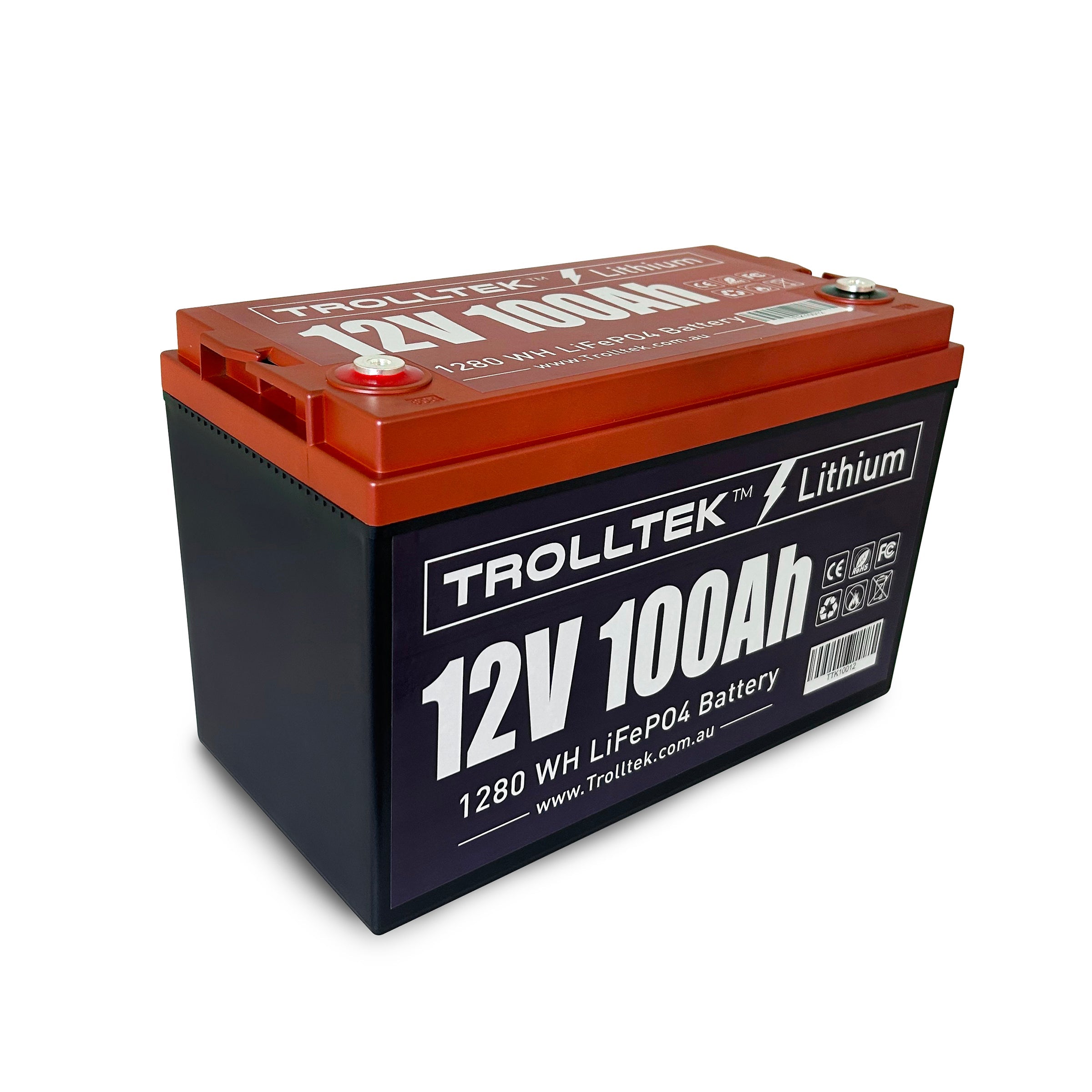

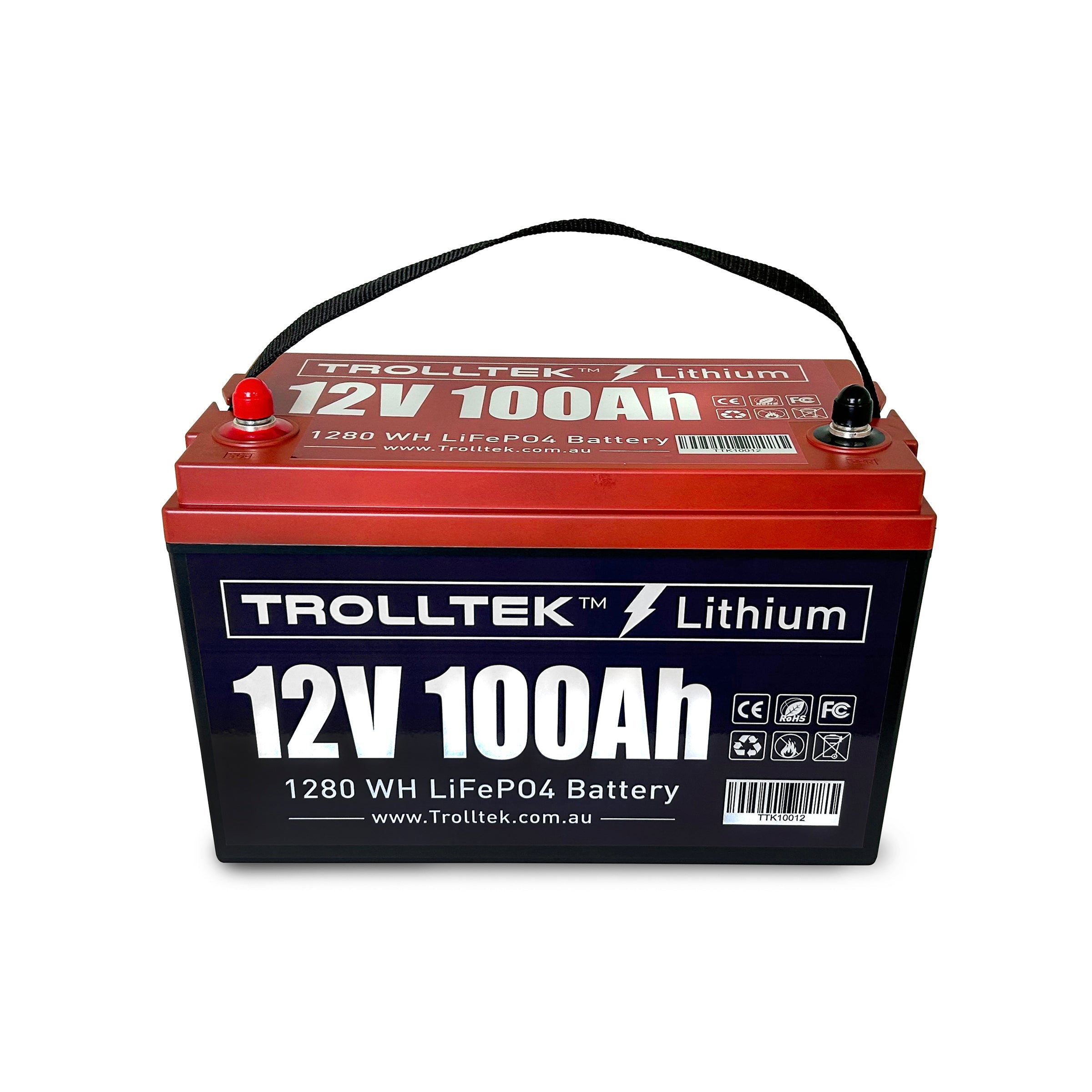

12V Trolltek™ LiFePO4 Lithium Battery

Current Price $999.00
Original Price $1,299.00
(inc GST)
SKU TTK10012

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.



Description

DURABILITY

Trolltek™ batteries are built strong for the harsh marine environment with heavy duty internal construction and fully sealed outer casing.


CYCLES

Trolltek™ batteries are only built with the highest performance, new, UL certified cells, meaning the battery performs and lasts even with huge cycle counts. Users can expect up to 80% capacity at 3,000 cycles in recommended conditions.
The battery half life is reached at over 6,000 cycles meaning with daily cycling the battery will still be performing after more than 16yrs.


UPGRADED INTERNAL STRUCTURE

Internal cells and wiring benefit from heavy duty supports.


BMS

Using a heavy duty Battery Management System ensures Trolltek™ batteries perform in the most demanding applications. Bluetooth connection is standard on all Trolltek™ batteries meaning users always know their state of charge and usage currents.


SAFETY & CERTIFICATIONS

An active BMS protection circuit manages cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and high temperature protection for increased performance and longer life. All batteries are UN 38 certified.

Trolltek™ cells are UL1642 certified and have been tested per IEC62133 standards. Trolltek™ batteries meet all US & International regulations for air, ground, train, & marine transport.


DISCHARGE

Suitable for continuous draw of 100A and peak loads up to 280A.


CHARGE

Modern outboards have larger alternators and can charge your batteries faster than ever before. Recharge your Trolltek™ at speed with maximum 100A continuous charging current via the BMS.


OPERATING TEMPERATURE

Suited to challenging environments, use from -20°C up to 60°C.
Do not charge at sub 0°C temperatures.


WARRANTY

Trolltek™ offer a 5yr pro rata warranty on lithium batteries.

Specifications Value
Voltage

12V

13.4-13.8V (after charging)

CAPACITY

100AH / 1280WH

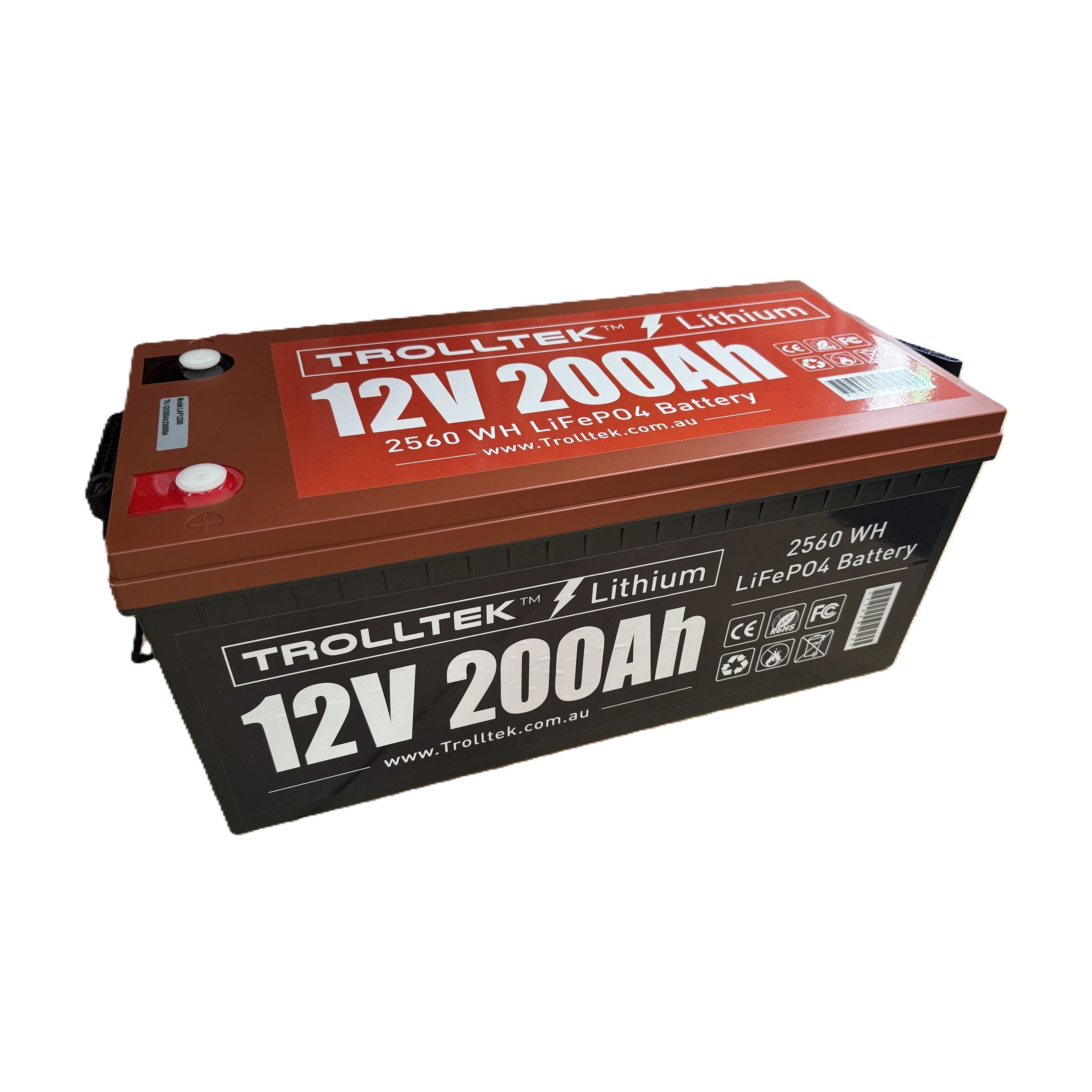

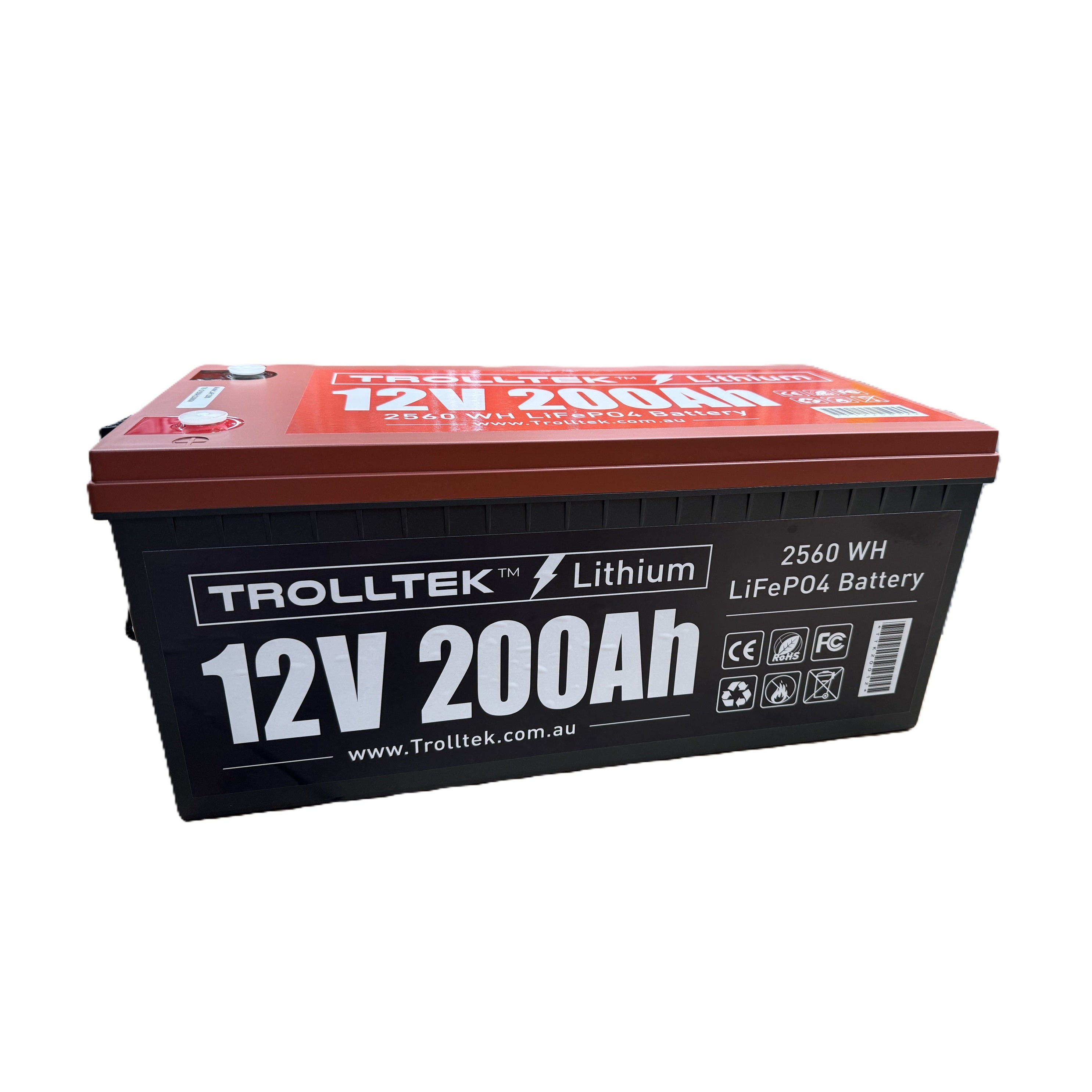

200AH / 2560WH

BMS

Included with Bluetooth connection

Trolltek app available for iPhone and Android monitoring (free download, no advertising or subscription fees)

Low voltage protection

High voltage protection

Over temperature protection

COMPATABILITY

Popular choice for use with 12V Minn Kota, MotorGuide, Watersnake trolling motors

MAX. CONTINUOUS CHARGING 100A
MAX. CONTINUOUS DISCHARGE 100A
MAX. PULSE CURRENT 280A
MAX. STORAGE TEMP. 45°C - Not recommended for under bonnet installations
CELLS

New, UL Certified, Pouch cells

Capable of 6,500+ cycles based on 50% DOD (Depth of discharge)

PARALLEL/SERIES CONNECTIONS

Parallel - no limit

Series - Max. 4 for a 48V system

ENCLOSURE Fully sealed, waterproof, submersion tested
DIMENSIONS & WEIGHT

100AH / 329x172x214mm / 11.2 kg

200AH / 522x240x218mm / 22 kg

WARRANTY 5yrs pro rata
