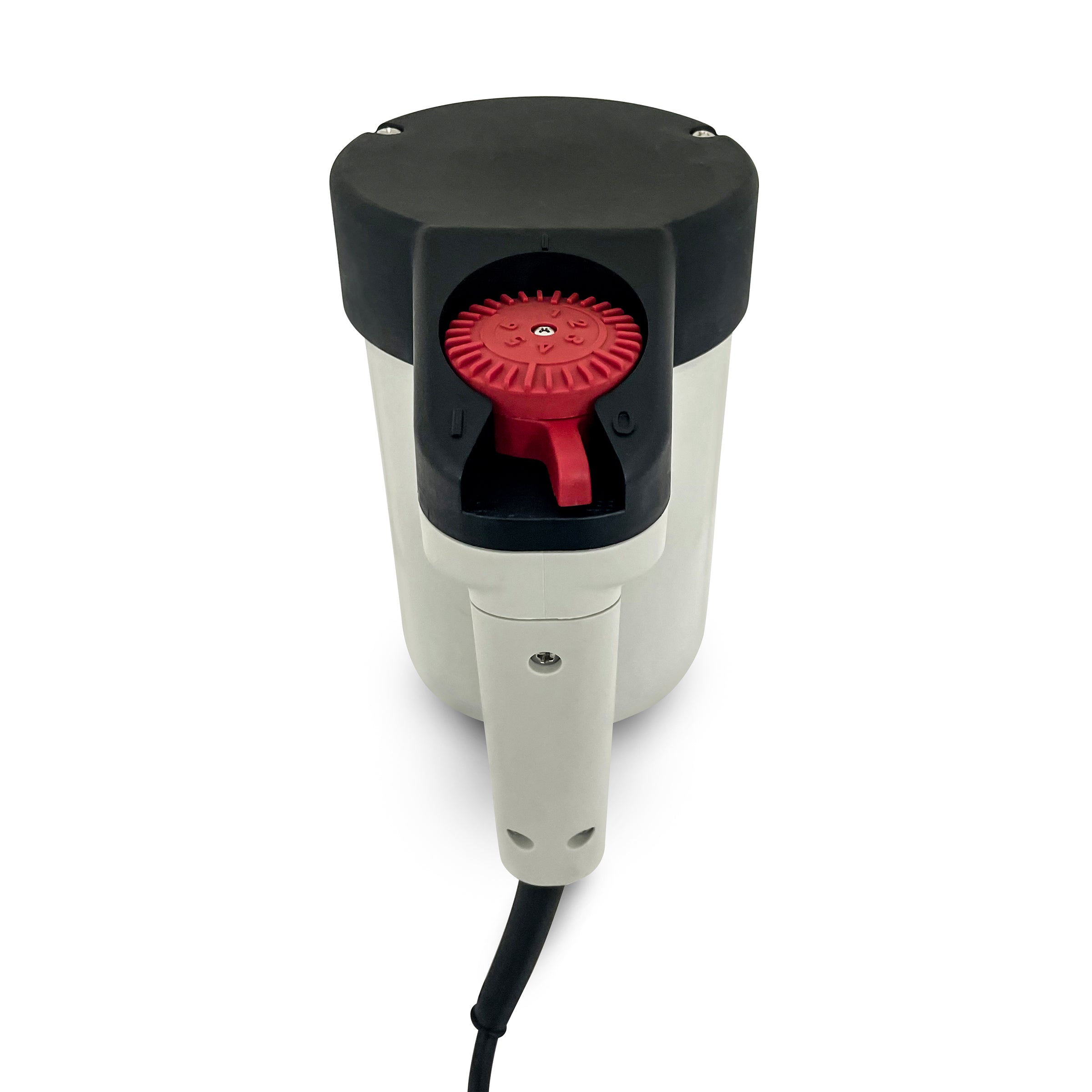

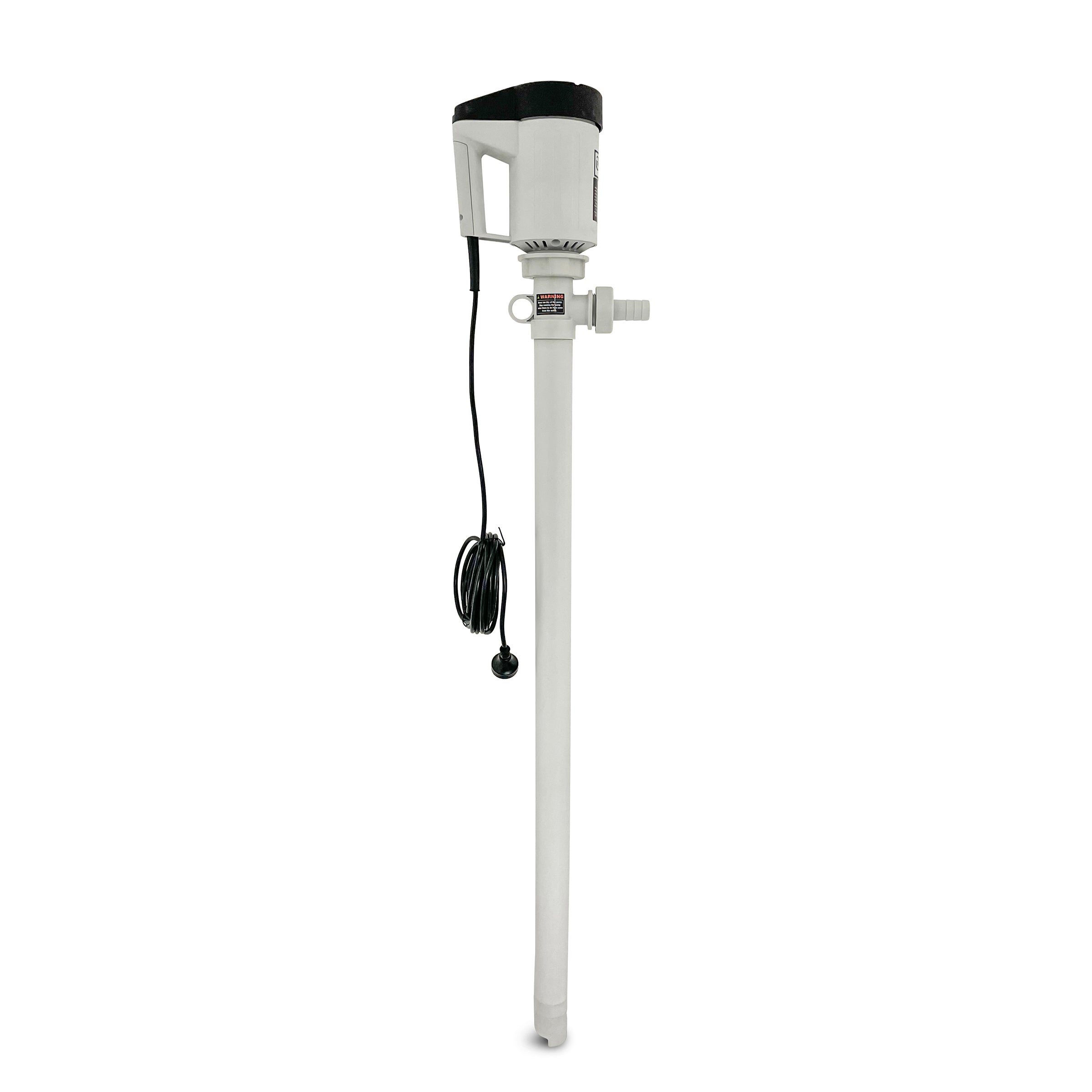

240 Volt drum pump with suction tube, achieves high flow rates and suitable with many fuels including diesel. Also use with water and some chemicals.

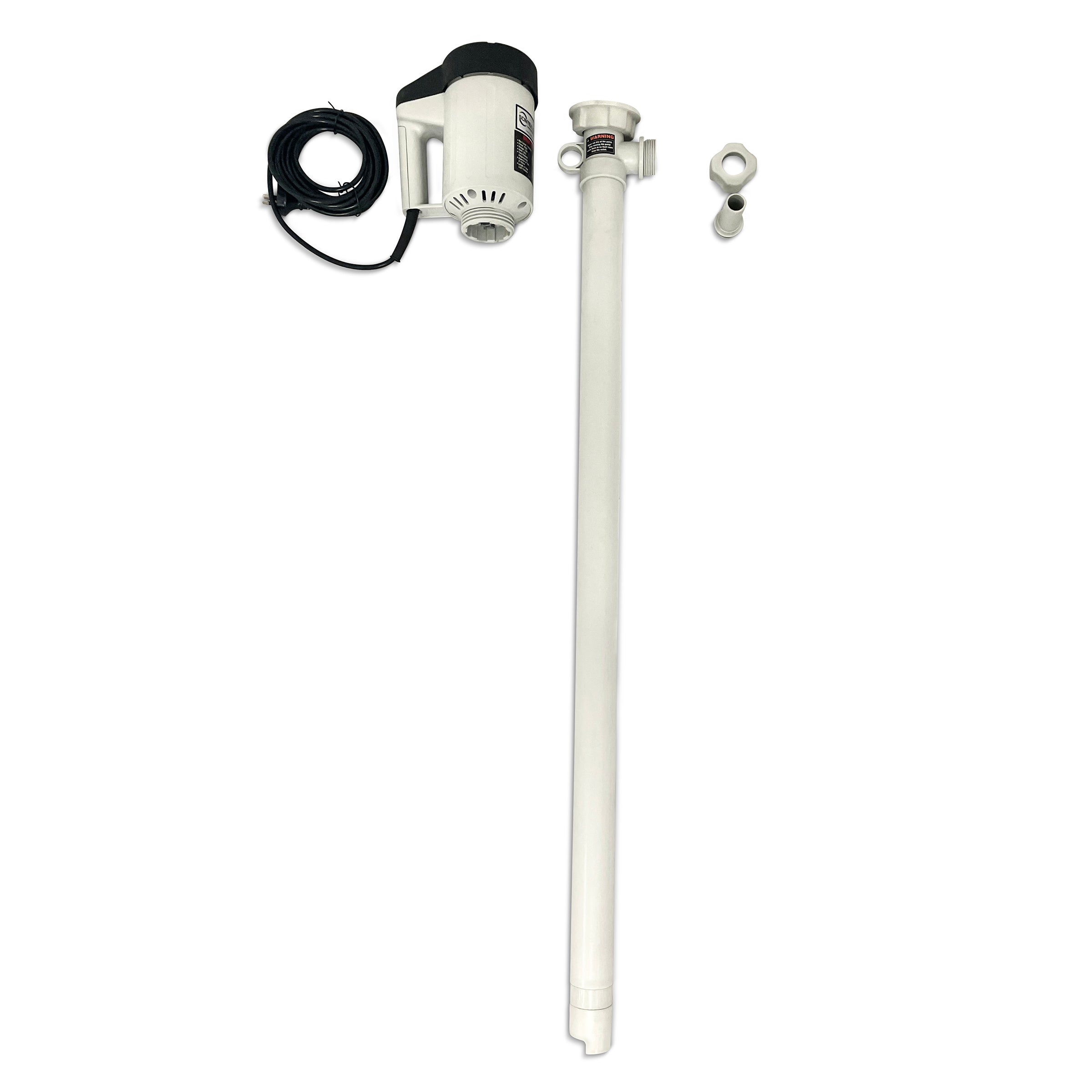

Suitable for use with a range of fluids including diesel, kerosene, water and some compatible chemicals. Note: not suitable for use with unleaded petrol or flammables. Fast flow rate makes this great for many applications such as refueling machinery, utilities, tractors, harvesters, transferring water from drums and fertilisers. Included in this kit is the pump motor, dip tube and outlet fittings. Able to run continuously and also suited to stop-start applications. Thermal overload protection provides additional safety and longevity of the pump.
|Specifications||240V Drum Barrel Pump|
|Voltage||240V Single Phase|
|Flow Rate||up to 90L/min|
|Tube Outlet||1 1/4" BSP Male Threaded with 1" hose barb supplied.|
|Rotation||With load 3,000 - 11,000 RPM|
|Suction Lift||1m (Length of tube)|
|Tube Length||1000mm or 47"|
|Temperature||-20oC to 60oC|
|Fluid Viscosity||0 - 200 CPS|
|Construction||Polypropylene body, 304SS shaft, PTFE slide bearing, FKM o-ring seals|
|Features||Overload protection, low noise|
Well constructed drum fuel pump. Fast flow rate and screws direct to our 44\'s for transferring diesel to equipment. Easy to assemble and use.
