Description

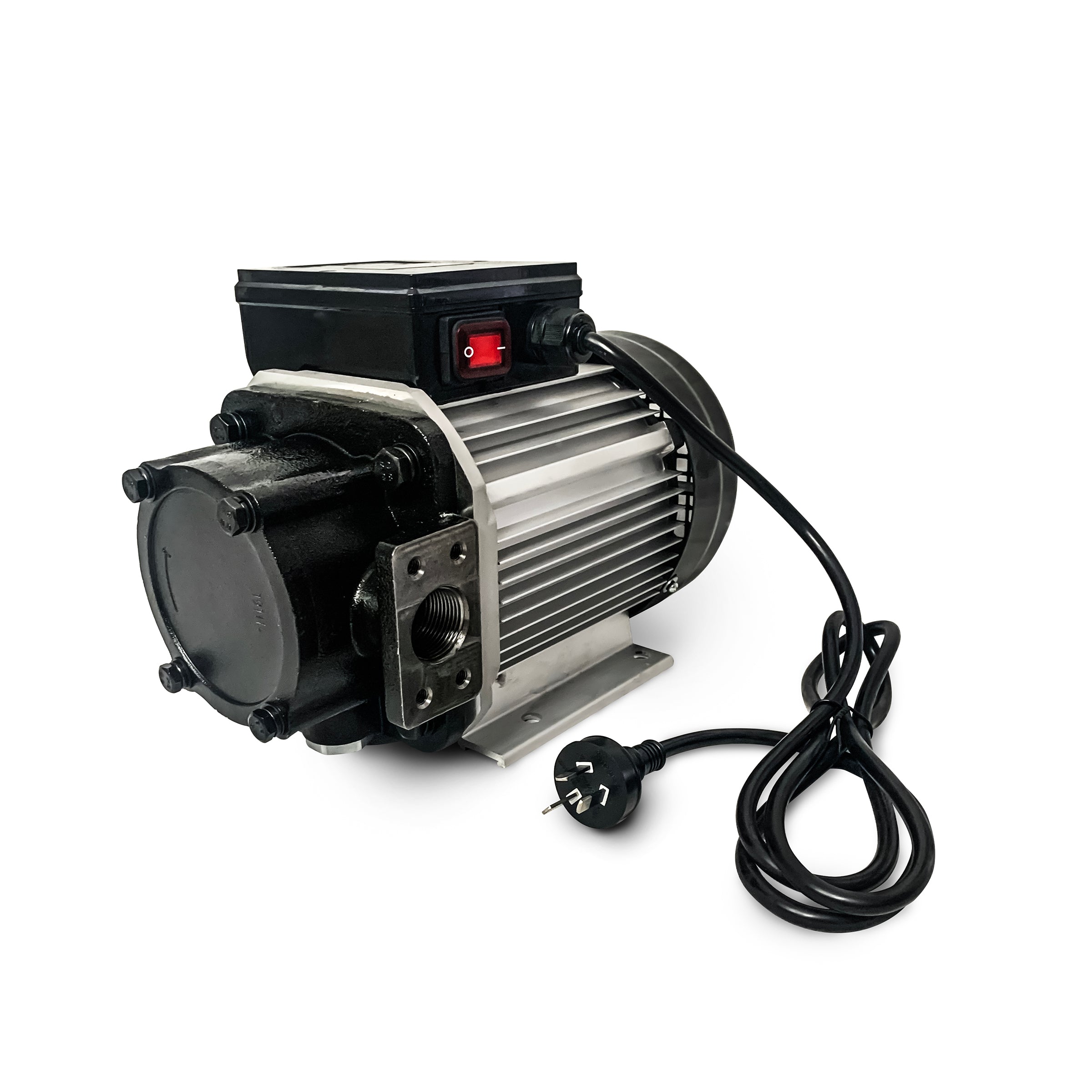

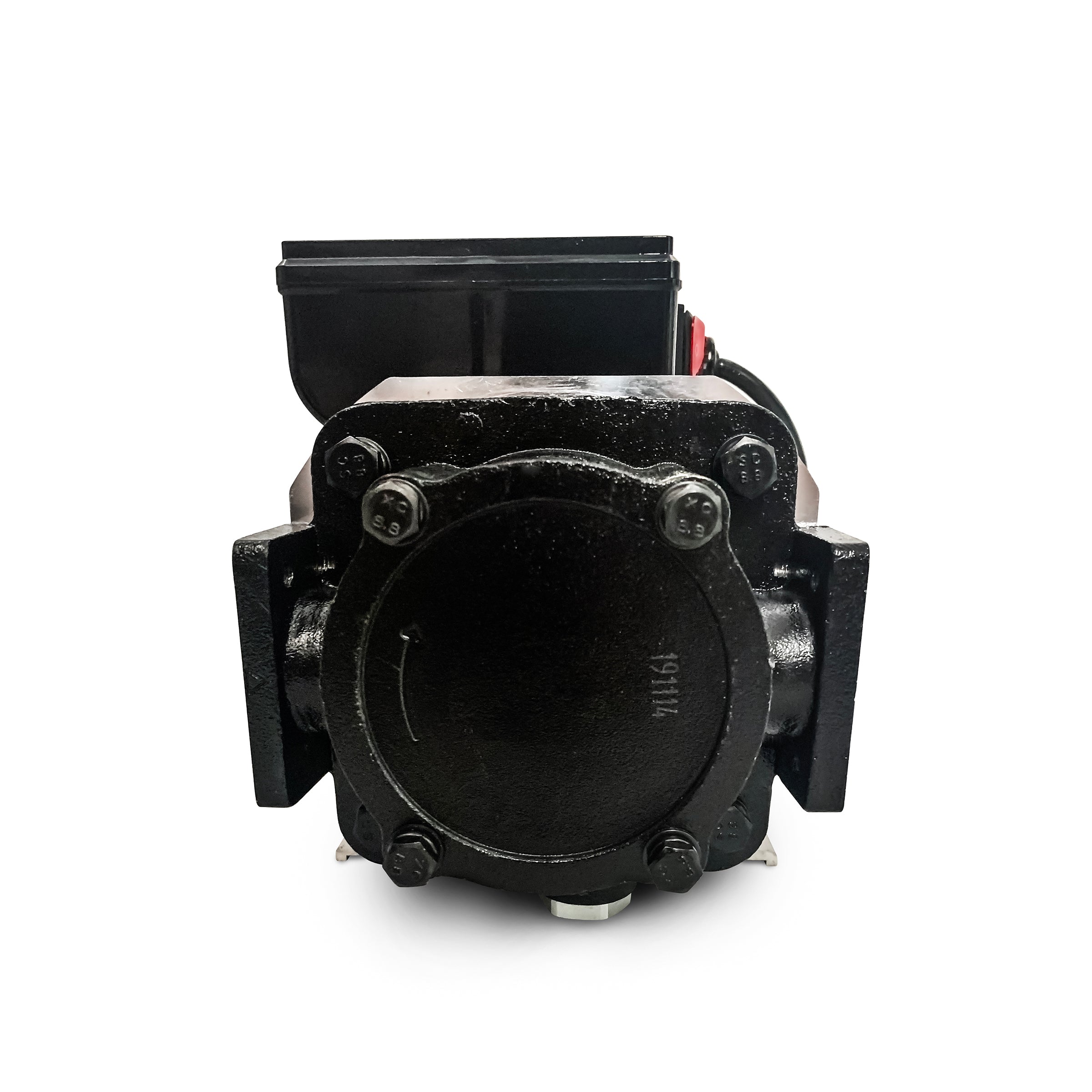

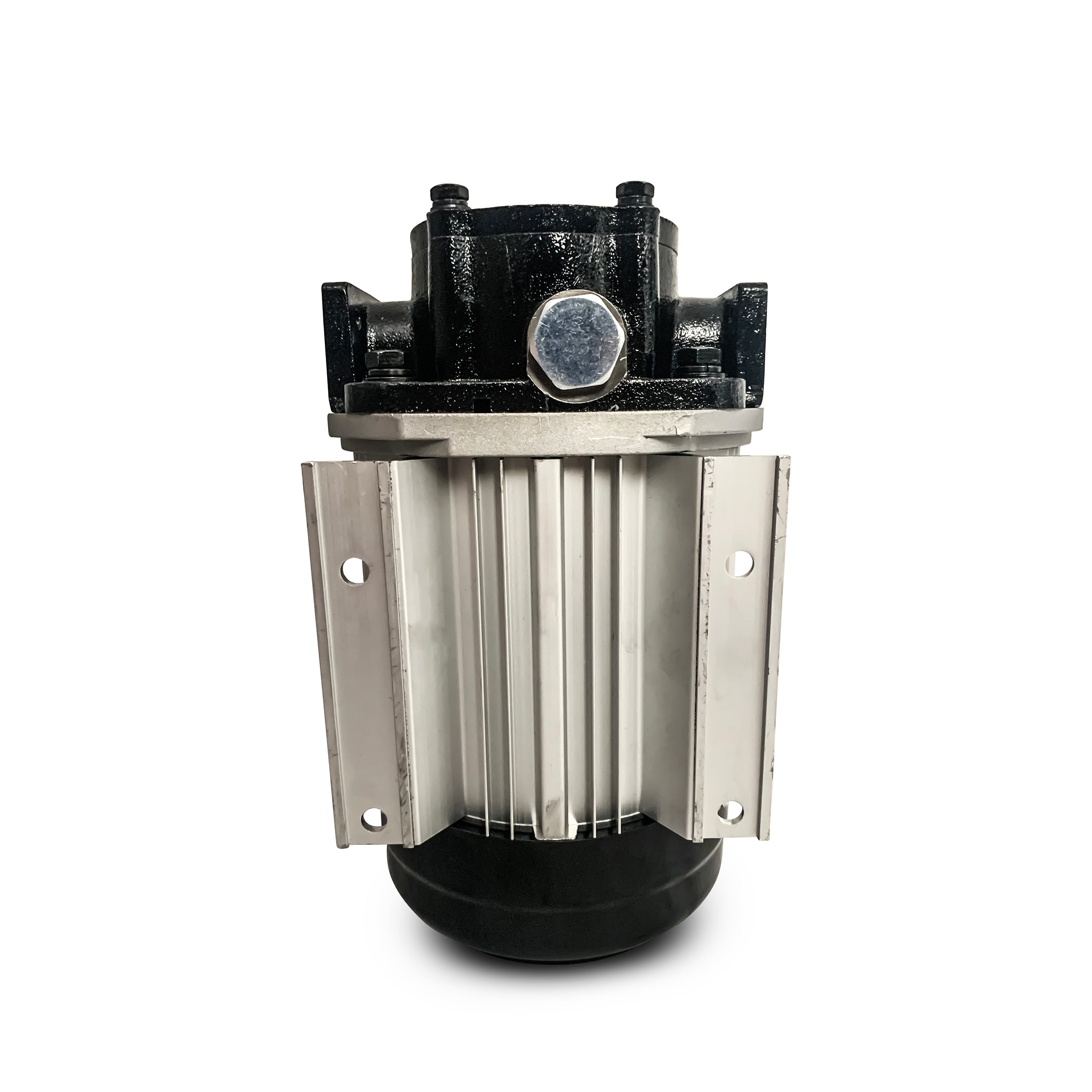

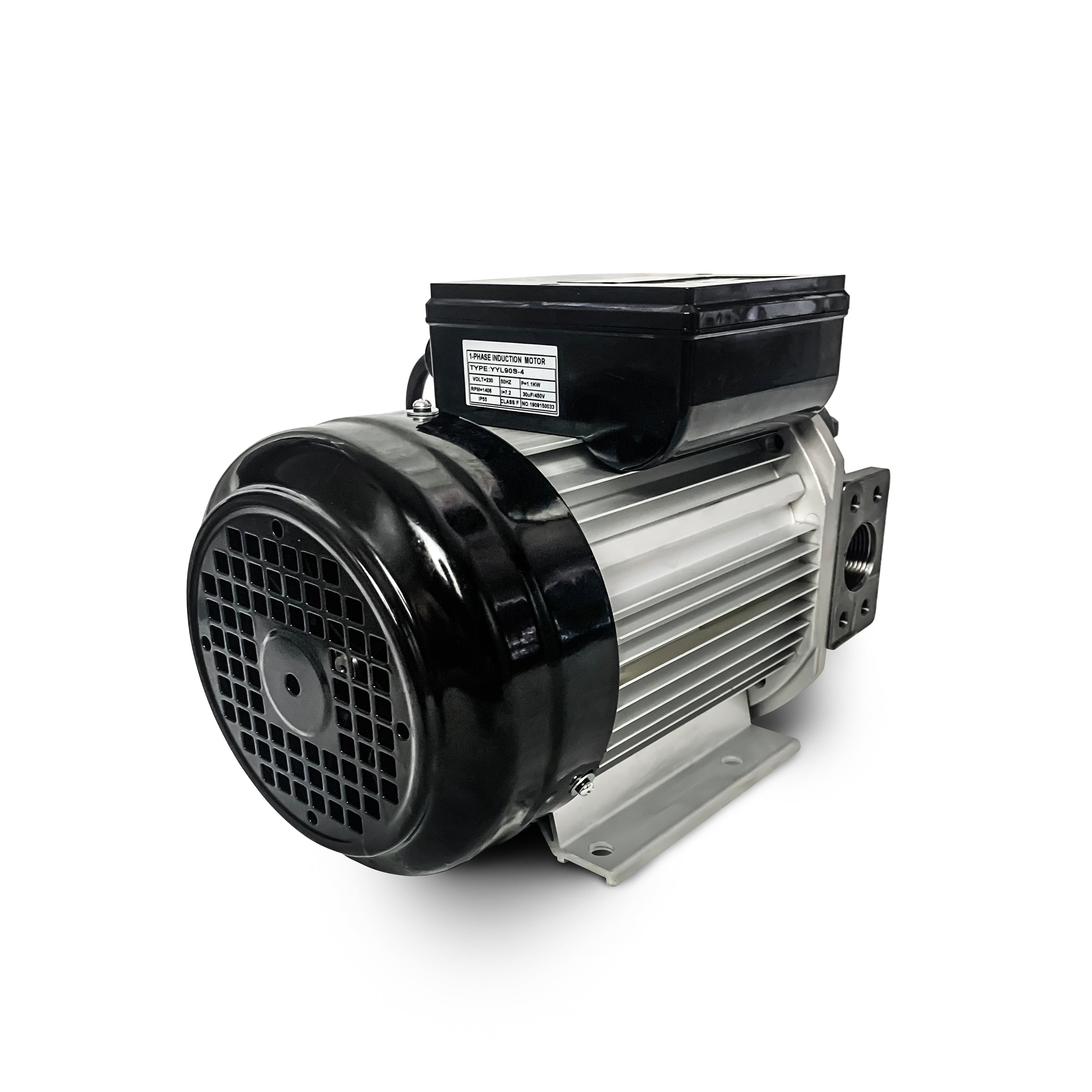

This 240V gear oil pump can handle viscous fluids like motor oils and lubricants but is also suitable for diesel transfer. Threaded inlet/outlet ports allow for simple plumbing to your pumping application.
High Flow Gear Pump
This is a high flow rate gear type positive displacement pump. It is ideal for the fast transferring of light oils, motor oils, vegetable oils and other lubricants. Suited to light industrial these are a quality pump suitable for a range of applications. The pump has a high suction capacity and develops great pressure making it ideal for a range of applications. Commonly used by mechanics, diesel fitters, filtration persons and the home handyman.
Note: Gear type pumps incorporate rotating internal gears and fairly tight tolerances. Gear pumps do not operate well with dirty fluids or solids which can jam between the gears. Always use this style of pump in conjunction with a suction strainer or filter when the cleanliness of the pumped fluid can't be guaranteed.
Oil Pump Features:
- Equipped with a relief valve device
- Low Noise
- Compact Construction
- High Suction Capacity
- 12 month warranty
| Gear Pump Specifications | Value |
|---|---|
| Voltage | 240V Single Phase |
| Power | 1100 Watts |
| Motor | IP55, Continuous Duty |
| Flow Rate | 40 L/min |
| Max. Recommende Fluid Temp | 60 °C |
| Inlet / Outlet | 1.0" |
| Pressure | 145 psig or 10 Bar |
| Suction | 2m lift |
| Compatabile Oils |
Viscosity up to 10,000 SUS / 2000cst |
| Operating Noise | ~70 dB |
| Approx. Weight | 24 Kg |
| Approx Dimensions | 400 x 200 x 200 mm |
| Construction |
Steel Gears, Mechanical Shaft Seal |
