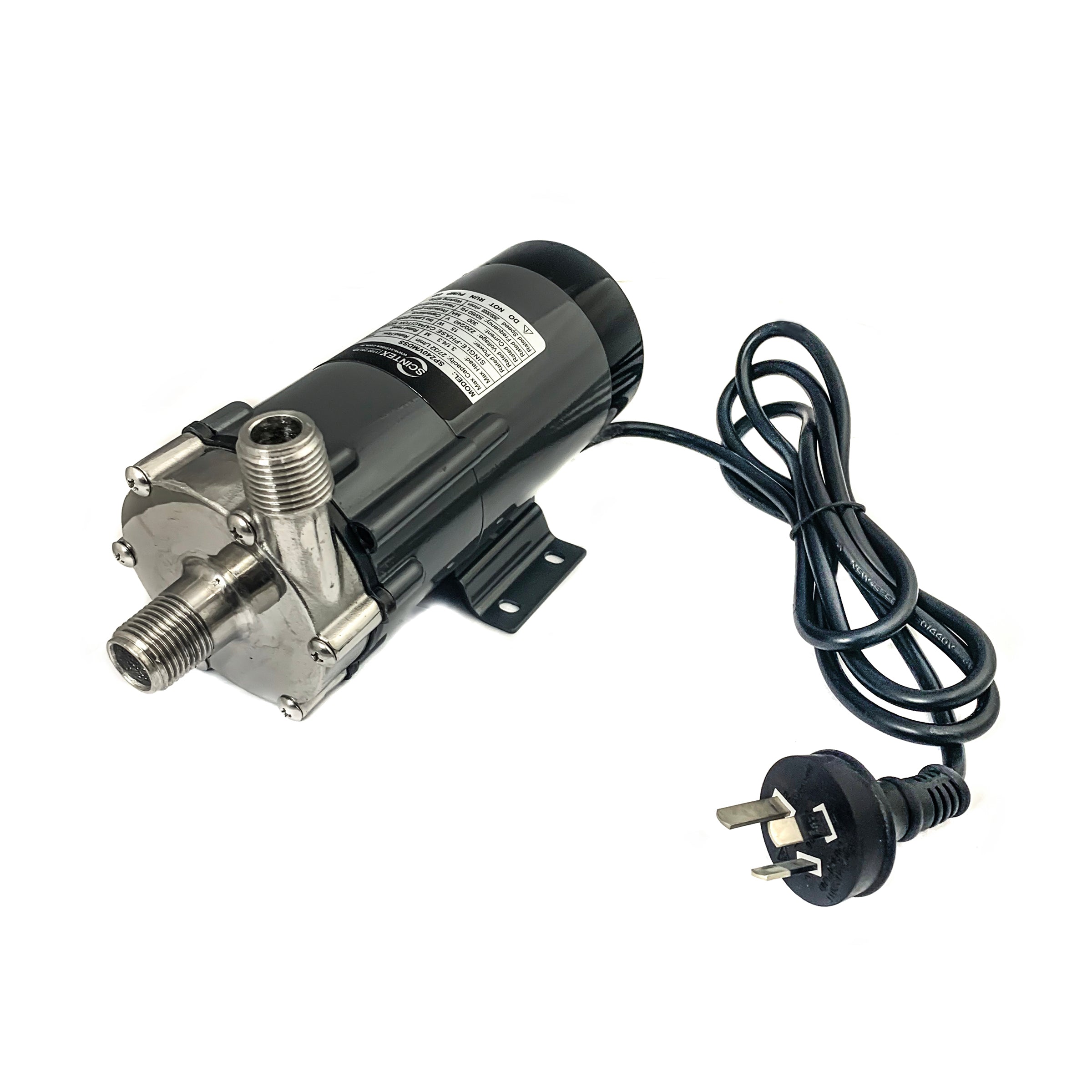

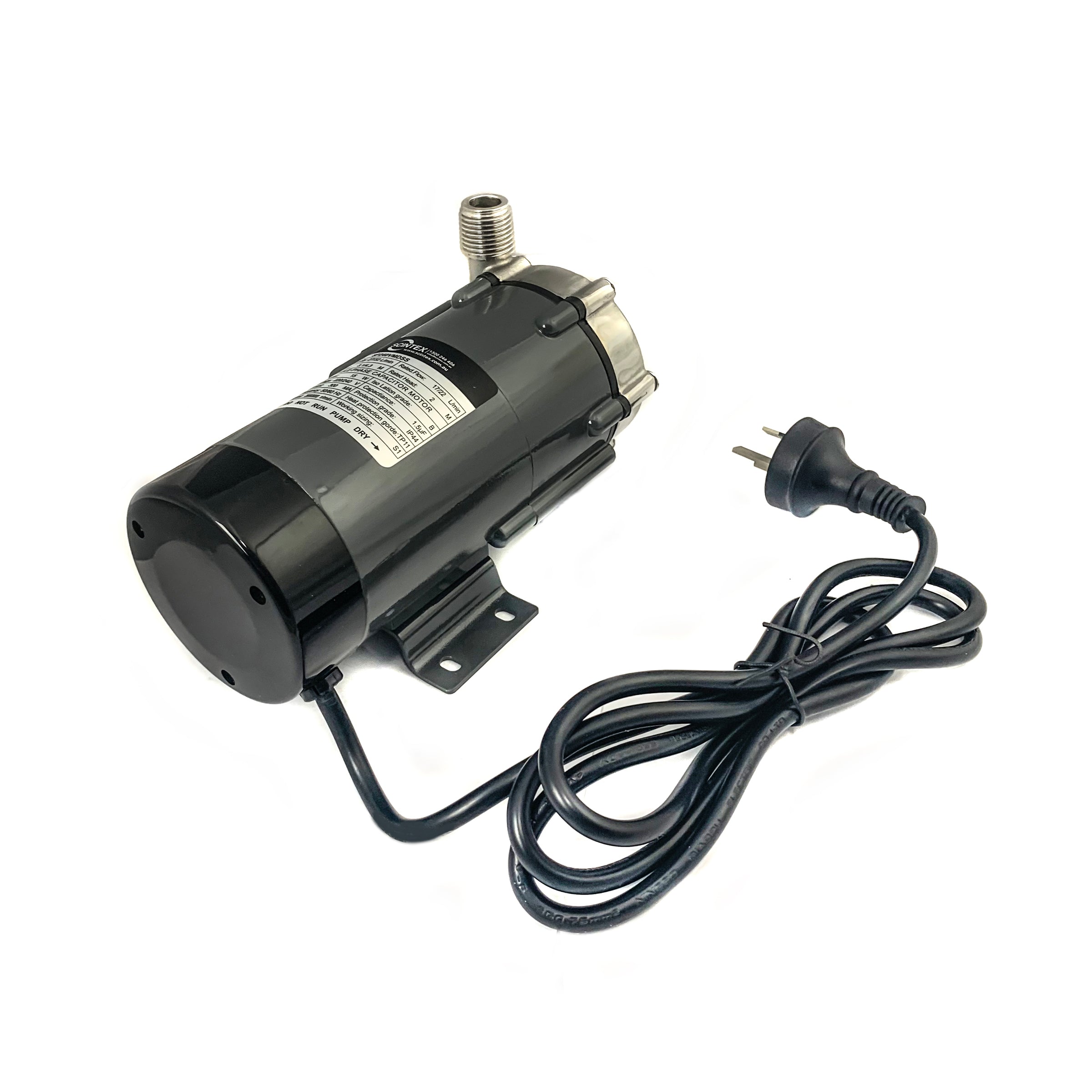

Stainless Steel Magnetic Drive Pump
Description
240V magnetic drive pump perfect for water treatment, pollution control, chemical industries, pharmaceutical industry and breweries. Capable of handling liquid temperatures of up to 100°C, ideal for hot wort transferring making this a favourite pump for brewers and those needing a quality built pump.
240V Food Grade Magnetic Drive Pump
The advantages that come with a mag driven pump are numerous. This style of pump has a reduced risk of fluid and vapour emissions making it the perfect solution for a range of applications. An added bonus is when working near these pumps, you aren't exposed to dangers from hazardous, corrosive, flammable and/or explosive fluids as you would with a conventional pump. Mag-drive pumps have a reputation of being very expensive, this unit offers an affordable alternative proven to perform.
Magnetic Drive Pump Features:
- Permanent magnet drive means smoother operation
- Lack of dynamic seals provides easier maintenance
- 1/2" BSPT Thread Outlet Port
- Thermal Protected
- Steel Mounting Plate
- 27-32 L/min flows
- Magnetic coupled stainless head ideal for wet environments
- Continuous duty
- Silent Operation
- Accepts liquid temperatures of up to 100°C
- 12-month warranty
Advantages of Mag Drive Pumps
Due to their simple design, these pumps are highly versatile and can be used in the industrial, mining, brewery and manufacturing plant service to name a few. These pumps are popular for people brewing beers and needing to circulate and chill via a refrigeration look. The pumps are simple to maintain with few parts meaning the total life cycle cost of the equipment is greatly reduced.
Mag Drive Wort Pump and Other Applications
Generally, when the product being pumped is of a hazardous nature or where contimination from the outside environment is critical such as for food grade pumping, the magnetic pump is used. Its design prevents the leakage of any fluid, as it's a seal-less centrifugal pump in which the motor is coupled to the pump by magnetic technology rather than by a mechanical shaft. As a result, the magnetic drive pump brings the benefits of superior quality pumping performance to a range of applications:
- Pumping hot wort at temperatures up to 100°C in beer dispensing
- Beverage transfer
- Water treatment, moving compatible chemicals from bulk tanks to day tanks in water treatment plants
- Pollution Control
- Chemical Industry
- Petrochemical processes
- Pharmaceutical Industry
- Transfer of diesel and petrol exhaust fluids
- Handles a wide range of viscosity fluids
- Can also be used to pump fresh water
| Model | SP240VMDSS |
|---|---|
| Motor | Permanent Magnet Drive |
| Pump Type | Centrifugal |
| Voltage | 240V AC |
| Power | 50/60Hz 15W |
| Amps | 0.4A |
| Motor speed | 2600 RPM at 50 Hz |
| Inlet / Outlet | 1/2" BSPT thread |
| Rated Flow rate | 17 L/min at 2m discharge head |
| Max. Flow rate | 27 L/min |
| Max. Head (M) | 3.1 m |
| Suction Lift | minimal, flooded suction recommended |
| Liquid Temperatures | -10°C to 100°C |
| Wet end construction | Stainless steel |
| Duty Cycle | Continuous |
| Thermal protection | Included |
| Certified Food Grade | No |
| Approx. Dimensions | 24 x 13.5 x 13cm |
| Warranty | 12 Months |
Fittings: Scintex can supply fittings and hose suitable for use with this pump.
