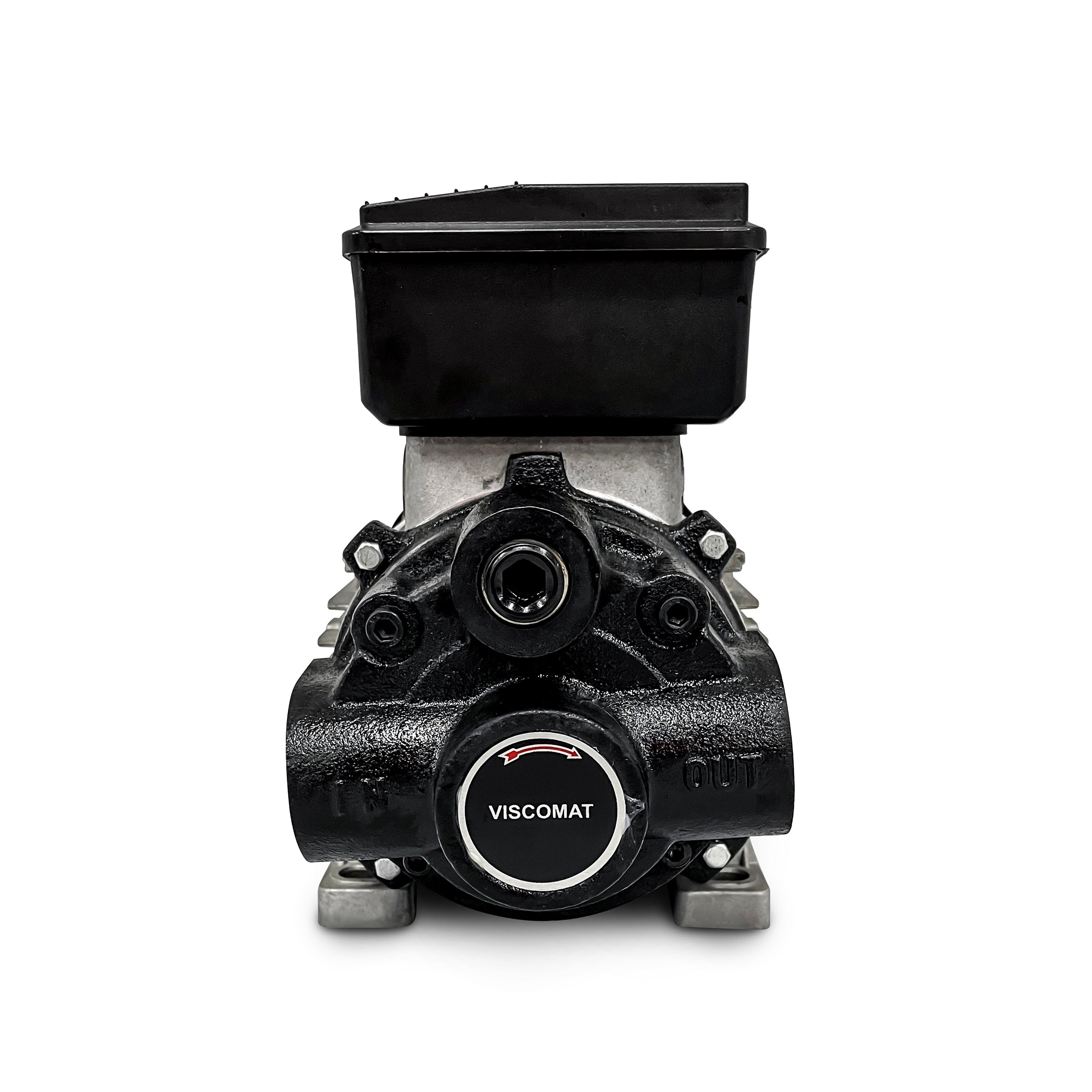

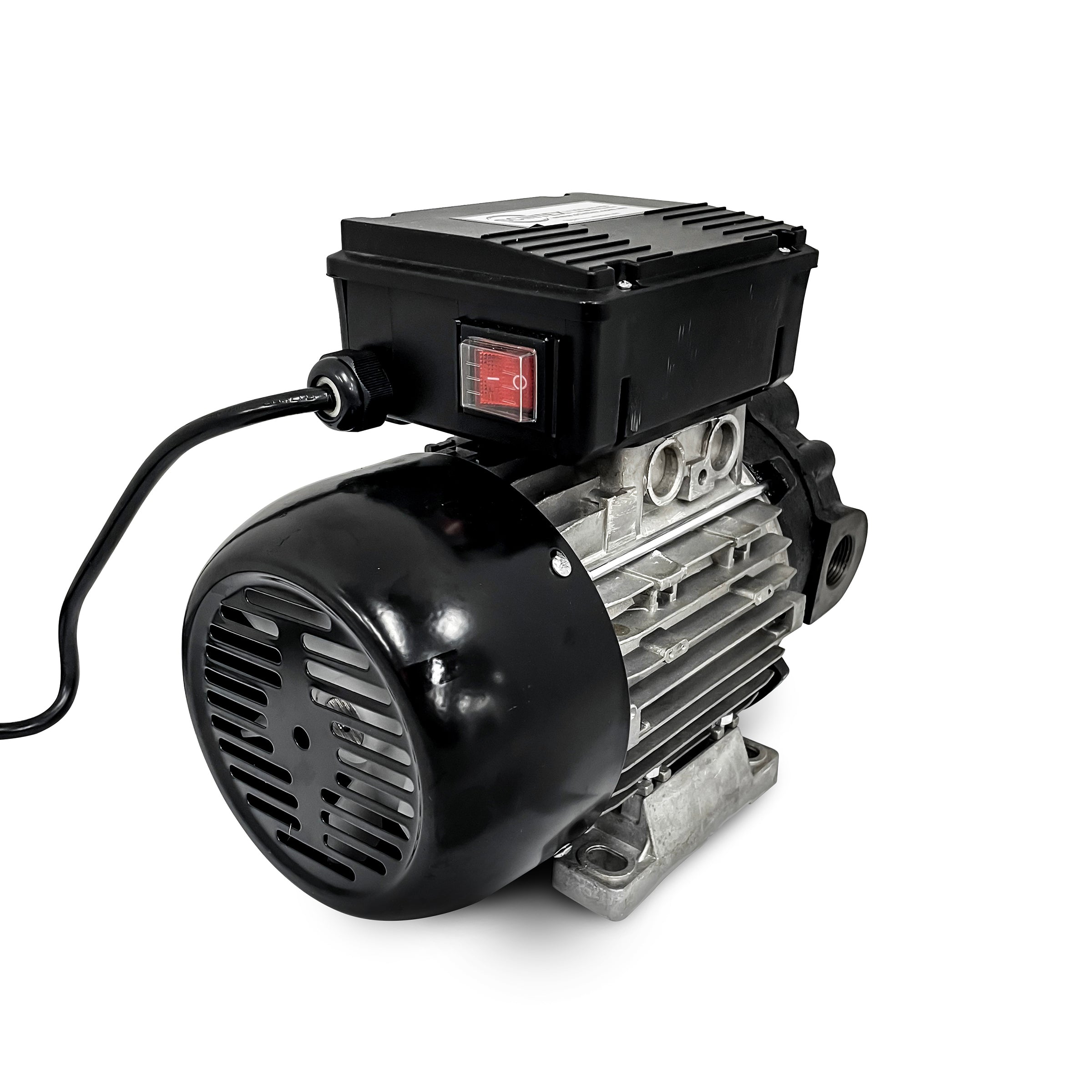

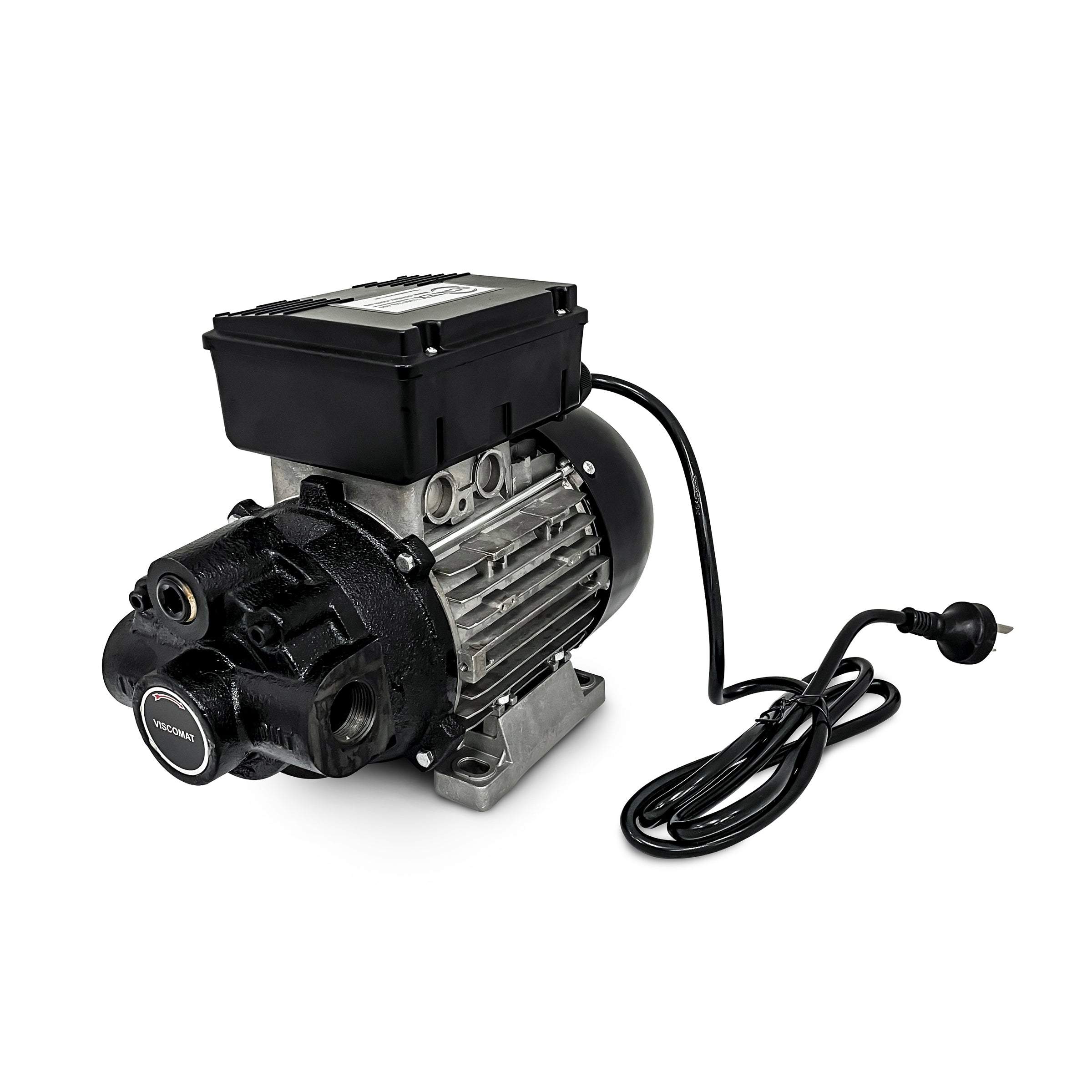

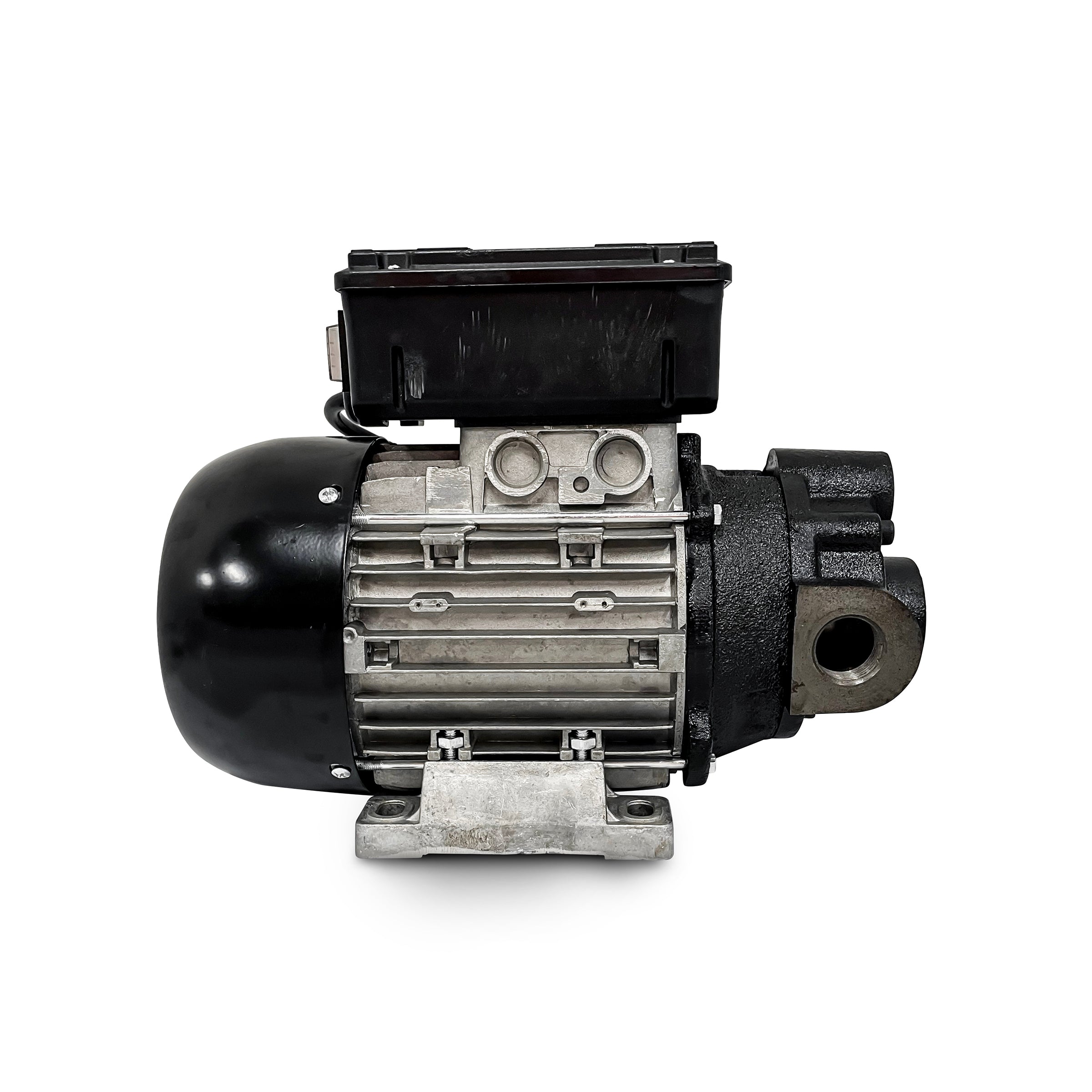

240V Vane Oil Transfer Pump – 25 L/min, 6 Bar
Description
The 240V Vane Oil Transfer Pump is designed for transferring lubricating oils and other compatible higher-viscosity fluids where a conventional fuel transfer pump may not be suitable. Delivering up to 25 L/min with a stated maximum pressure of 6 bar, the pump combines self-priming performance with a continuous-duty 750W electric motor.
An integrated adjustable bypass valve allows brief operation against a closed discharge, making the pump well suited to lubricant dispensing systems incorporating a compatible shut-off nozzle.
240V Vane Oil Transfer Pump – 25 L/min
This electrically driven vane pump is designed for transferring oils with a stated working viscosity range of 50–500cSt. The pump provides smooth flow and useful discharge pressure for workshop, industrial, agricultural and lubricant transfer applications.
The IP55 electric motor is rated for continuous-duty operation, while the self-priming pump design provides useful suction capability for suitable oil-transfer installations.
Oil Transfer Pump Features
- Up to 25 L/min flow rate
- Maximum stated pressure 6 bar
- 240V single-phase operation
- 750W electric motor
- IP55 motor
- Continuous-duty motor rating
- Self-priming vane pump design
- Suitable for oils from 50–500cSt at working temperature
- Integrated adjustable bypass valve
- 3/4" BSP female inlet and outlet
- Mechanical shaft seal
- Die-cast aluminium pump body
- Maximum fluid temperature 60°C
- Stated operating noise below 70dB
- Approx. 13kg
- 12 month warranty
Designed for Oil & Lubricant Transfer
The vane pump design is intended for transferring lubricating oils and other compatible fluids with viscosities from approximately 50 to 500cSt at operating temperature.
This makes it useful for applications where the transferred fluid is considerably more viscous than diesel or other light fuels.
Actual flow and suction performance will vary with fluid viscosity, temperature, hose size, suction lift, discharge pressure and other installation conditions.
Up to 25 L/min Flow
The pump has a stated maximum flow rate of 25 L/min, allowing larger volumes of compatible oil to be transferred efficiently.
The maximum flow figure should not be treated as guaranteed flow under every operating condition. Colder or more viscous oils and increased suction or discharge restrictions will reduce actual transfer rate.
Up to 6 Bar Pressure
The pump is specified for a maximum pressure of 6 bar, making it suitable for compatible oil-transfer and dispensing systems requiring useful discharge pressure.
All hose, fittings, valves, nozzles, meters and other components used with the pump must be appropriately rated for the fluid, pressure and temperature of the installation.
Integrated Adjustable Bypass Valve
An adjustable bypass valve is incorporated into the pump body. This allows the pump to recirculate fluid internally during brief periods of closed-discharge operation, such as when a compatible dispensing nozzle is momentarily shut.
The bypass is not intended for extended operation with the discharge closed. Prolonged bypass operation can increase fluid and pump temperature and should be avoided.
Self-Priming & Suction Performance
The self-priming pump design provides a stated suction lift capability of approximately 2.5m under suitable conditions.
For oils with viscosity not exceeding approximately 100cSt, the supplied specifications indicate suction vacuum can reach approximately 0.7–0.8 bar without compromising normal pump operation.
Suction performance depends heavily on fluid viscosity and temperature. For best performance, keep suction lines as short and unrestricted as practical and ensure all suction-side connections are airtight.
Continuous-Duty Electric Motor
The pump is powered by a 750W, 240V single-phase electric motor with an IP55 motor enclosure and continuous-duty rating.
Continuous-duty motor capability does not remove the need to operate the pump within its specified pressure, fluid temperature, viscosity and installation limits.
Typical Applications
- Lubricating oil transfer
- Workshop oil dispensing systems
- Drum and tank transfer
- Machinery servicing
- Industrial lubrication systems
- Agricultural equipment maintenance
- Fleet and workshop servicing
- Compatible medium-viscosity fluid transfer
Vane Oil Pump Specifications
| Specification | Model 12/30 – SPEVOP25LPM |
|---|---|
| Pump Type | Electric vane oil transfer pump |
| Voltage | 240V single phase |
| Motor Power | 750W |
| Motor Rating | IP55 / continuous duty |
| Maximum Stated Flow | 25 L/min |
| Maximum Stated Pressure | 6 bar |
| Inlet | 3/4" BSP female |
| Outlet | 3/4" BSP female |
| Compatible Oil Viscosity | 50–500cSt at working temperature |
| Maximum Fluid Temperature | 60°C |
| Stated Suction Lift | Approx. 2.5m under suitable conditions |
| Bypass | Integrated adjustable bypass valve |
| Pump Body | Die-cast aluminium |
| Shaft Seal | Mechanical seal |
| Operating Noise | Stated <70dB |
| Approx. Weight | 13kg |
| Dimensions | Approx. 330 × 180 × 230mm (L × W × H) |
| Warranty | 12 months |
Installation Considerations
Oil viscosity changes considerably with temperature, so pump performance can vary between cold startup and normal operating temperature. Ensure the fluid remains within the stated viscosity and temperature limits during operation.
For suction-side installations, use appropriately sized hose or pipe, minimise unnecessary fittings and restrictions, and ensure all connections are sealed against air ingress.
Where contamination may be present in the storage tank, install suitable upstream filtration or a strainer compatible with the pump and fluid.
Ensure the electrical supply and protection are appropriate for the 750W single-phase motor and installation environment.
