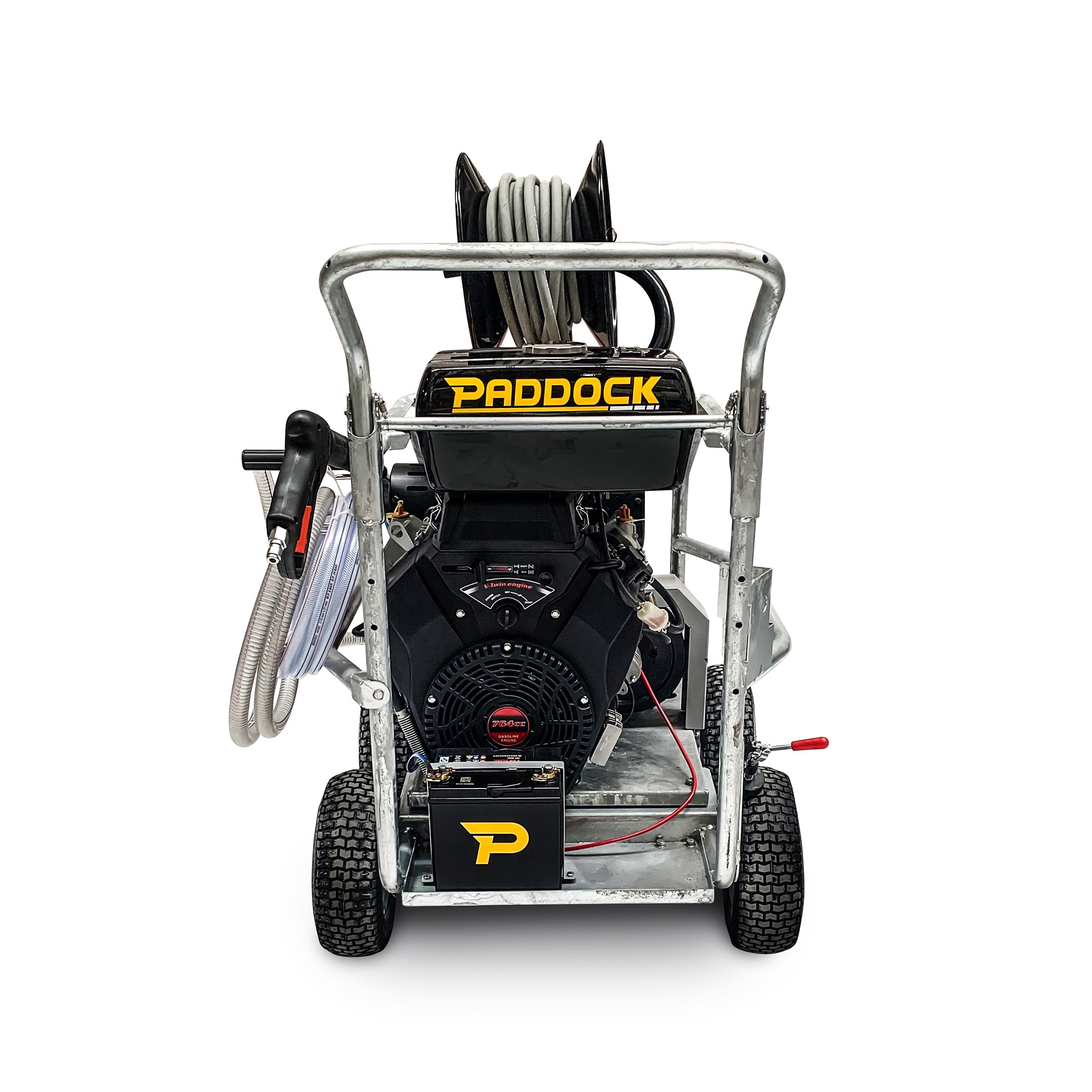

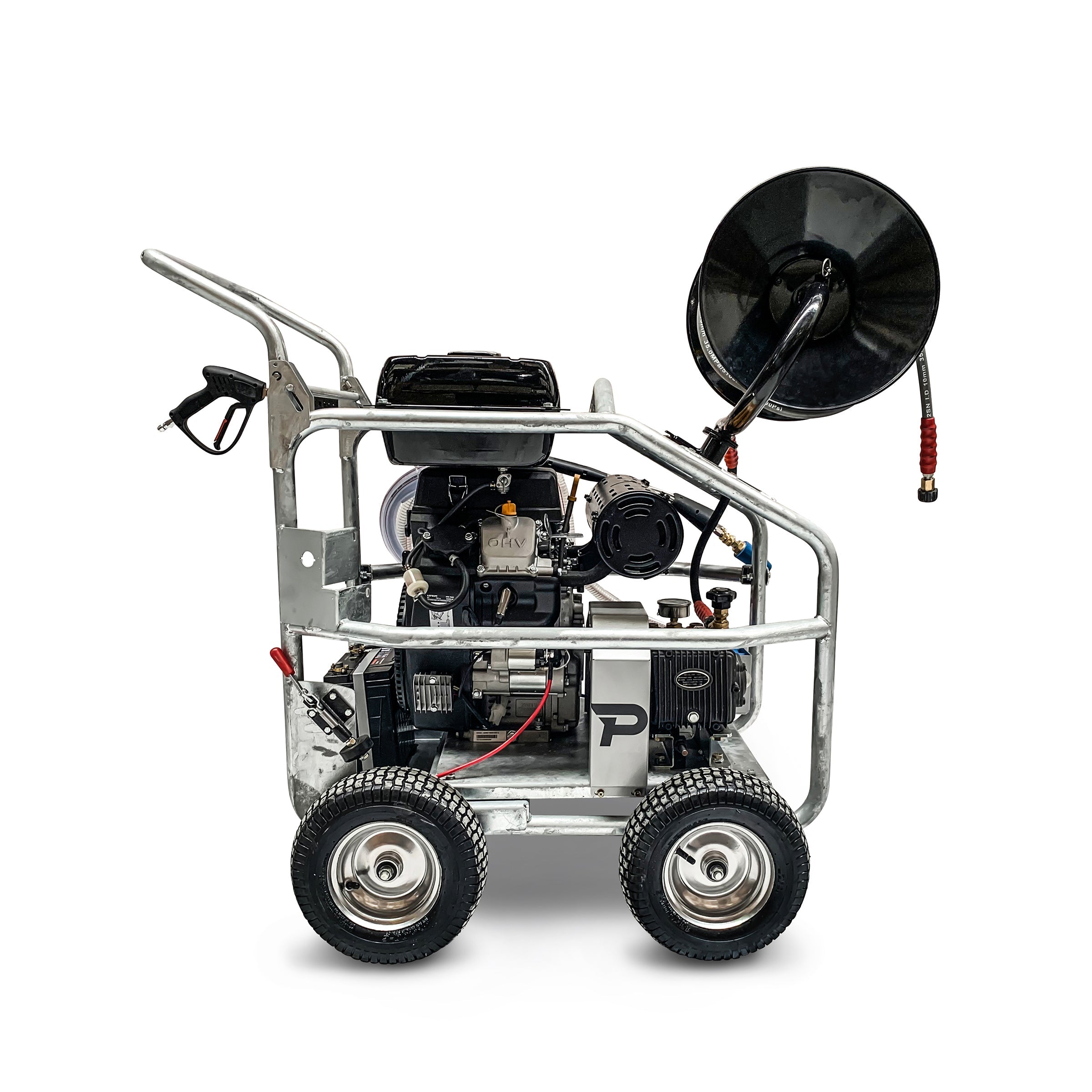

Paddock™ 5,000 PSI Cold Water Pressure Washer

Description

The Paddock™ 5,000 PSI cold water pressure washer is a heavy duty commercial cleaning machine delivering up to 5,000 PSI and 25 L/min flow. Combining a powerful 764cc Loncin V-twin petrol engine with a long-life belt driven pressure pump, this professional washer is built for demanding applications including driveways, machinery, trucks, agricultural equipment, commercial cleaning and property maintenance.

Paddock™ 5,000 PSI Cold Water Pressure Washer - 25 L/min

When selecting a pressure washer, it's important to look beyond maximum pressure figures. Effective commercial cleaning requires a combination of high pressure and strong water flow, together with an engine and pump capable of sustaining that performance.

The Paddock™ pressure washer combines a nominal operating pressure of 4,500 PSI with a maximum pressure of 5,000 PSI and an impressive 25 L/min flow rate. High quality components and a heavy duty frame make this machine suitable for demanding commercial and heavy domestic cleaning applications.

Pressure Washer Features

• 4,500 PSI nominal operating pressure
• 5,000 PSI maximum pressure
• High 25 L/min water flow
• 764cc 24hp Loncin V-twin petrol engine
• Electric key start
• Heavy duty belt driven pressure pump
• Pump operates at a maximum of 1560 RPM for reduced heat and wear
• Full external bypass with adjustable pressure setting
• Pump thermal relief included
• Integrated heavy duty hose reel
• 25m non-marking, double steel wire braided high pressure hose
• Heavy duty spray gun and 20" lance
• Colour coded spray nozzle set
• 5,000 PSI turbo head included
• Galvanised steel frame with integrated lifting point
• 2 year warranty

Heavy Duty Belt Driven Pressure Pump

Many pressure washers directly couple the engine to the pressure pump, resulting in the pump operating at high engine speeds. While this can reduce manufacturing cost, higher pump speeds can also generate additional heat and wear.

The Paddock™ cold water pressure washer uses a belt reduction drive between the engine and pump. This allows the pump to operate at a maximum speed of approximately 1560 RPM, helping it run cooler and reducing wear during demanding applications.

The pressure pump incorporates a forged brass head, ceramic coated pistons and stainless steel valves. Quality internal components, bearings and packing help provide reliable operation and a long service life.

High Pressure and High Flow

Maximum pressure is only one consideration when comparing pressure washers. Water flow is equally important, particularly when cleaning large areas or heavily soiled machinery and equipment.

This Paddock™ washer combines a nominal 4,500 PSI operating pressure with 25 L/min water flow, providing the combination of pressure and water volume required for demanding cleaning applications. Maximum pressure is rated at 5,000 PSI.

Powerful Loncin V-Twin Petrol Engine

The pressure washer is powered by a 764cc, 24hp Loncin V-twin 4-stroke petrol engine. The engine provides ample power for the high-flow pressure pump and features convenient electric key starting.

The petrol powered design also allows the washer to operate independently of mains electricity, making it ideal for worksites, farms, commercial properties and remote cleaning applications.

Commercial Pressure Washer Equipment

The Paddock™ pressure washer is supplied with the equipment required for a wide range of cleaning jobs.

Integrated Hose Reel: The heavy duty reel provides convenient storage for the supplied 25m high pressure hose. The reel has additional capacity to make winding and storing the hose easier.

Non-Marking High Pressure Hose: The supplied 10mm hose features double steel wire braided construction with a non-marking outer coating. The hose is rated to 5,000 PSI and is designed for demanding commercial use.

Heavy Duty Spray Gun & Lance: The supplied spray gun is rated to 5,000 PSI and includes a 20" lance for practical everyday cleaning.

Colour Coded Spray Nozzles: A selection of quick-change spray nozzles is included, ranging from a concentrated 0° jet through to a wider 40° spray pattern. A black detergent nozzle is also supplied for compatible cleaning applications.

Turbo Head: A 5,000 PSI turbo head is included. Turbo nozzles combine a concentrated cleaning jet with a rotating spray action, making them highly effective for demanding jobs such as cleaning concrete and removing stubborn dirt and grime.

Heavy Duty Galvanised Frame

The pressure washer is mounted in a heavy duty galvanised steel frame with a powder coated finish. The four-wheel design provides stability across a range of working environments, while an integrated lifting point assists when loading the machine onto utilities, trailers or moving it around worksites.

Typical Applications

• Commercial pressure cleaning
• Driveways and concrete areas
• Truck and machinery wash downs
• Agricultural and earthmoving equipment
• Workshops and industrial facilities
• Property and acreage maintenance
• Gutters and outdoor surfaces
• Construction sites
• Heavy domestic cleaning

Pressure Washer Specifications

Important: The engine is stored and transported with only enough oil to keep internal components lubricated. Additional engine oil must be added to the correct level before starting. Refer to the operating instructions before first use.

Assembly: For ease of shipping, some minor assembly is required before operation.
