Albright Winch Solenoids & DC Contactors – DC88P, DC66P & SW80
Description
Genuine Albright winch solenoids and contactors designed for controlling high-current DC motors in electric winch applications. Available in DC88P, DC66P and SW80P configurations, with options suitable for Sherpa 4x4 and ATV winches as well as other compatible DC motor installations.
Albright manufactures specialist DC contactors, with compact designs well suited to demanding automotive, 4WD and winching applications.

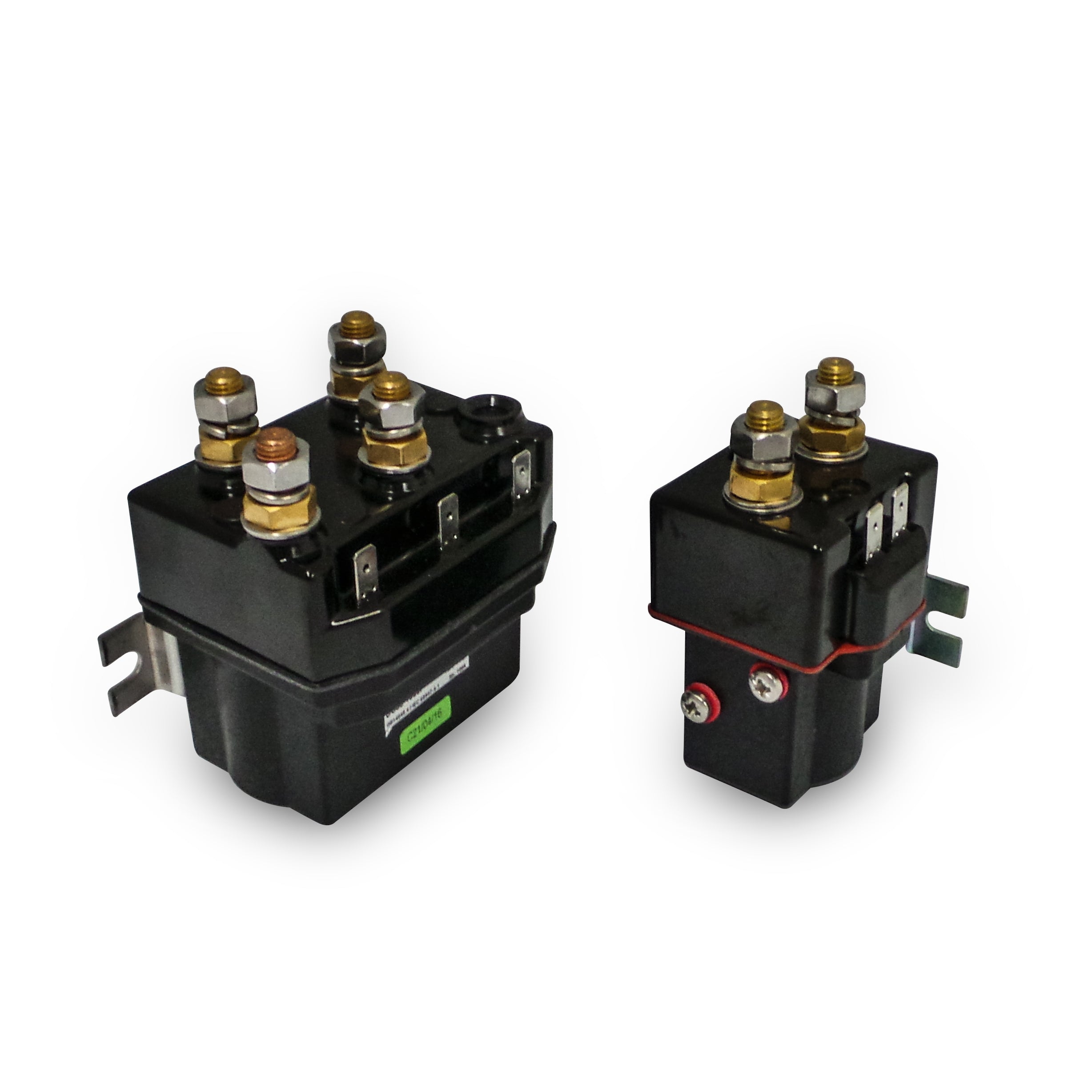

Genuine Albright Winch Motor Solenoids & Contactors
Albright DC contactors are widely used for controlling the high electrical currents required by electric winch motors.
The DC88P and DC66P are bi-directional motor reversing contactors, allowing a compatible winch motor to operate in both directions for winch-in and winch-out operation.
The correct contactor should be selected according to the winch motor configuration, system voltage, current requirements and electrical connections.
Albright Winch Solenoid Features
- Genuine Albright contactors
- DC88P available in 12V or 24V
- DC66P available in 12V or 24V
- SW80P available in 12V
- High-current DC switching
- Compact monoblock construction
- DC88P and DC66P bi-directional motor control
- Suitable for compatible series-wound and permanent-magnet DC motors
- Can be integrated with compatible wired or wireless winch controls
- Suitable as replacement contactors for compatible Sherpa winches
- 12 month warranty

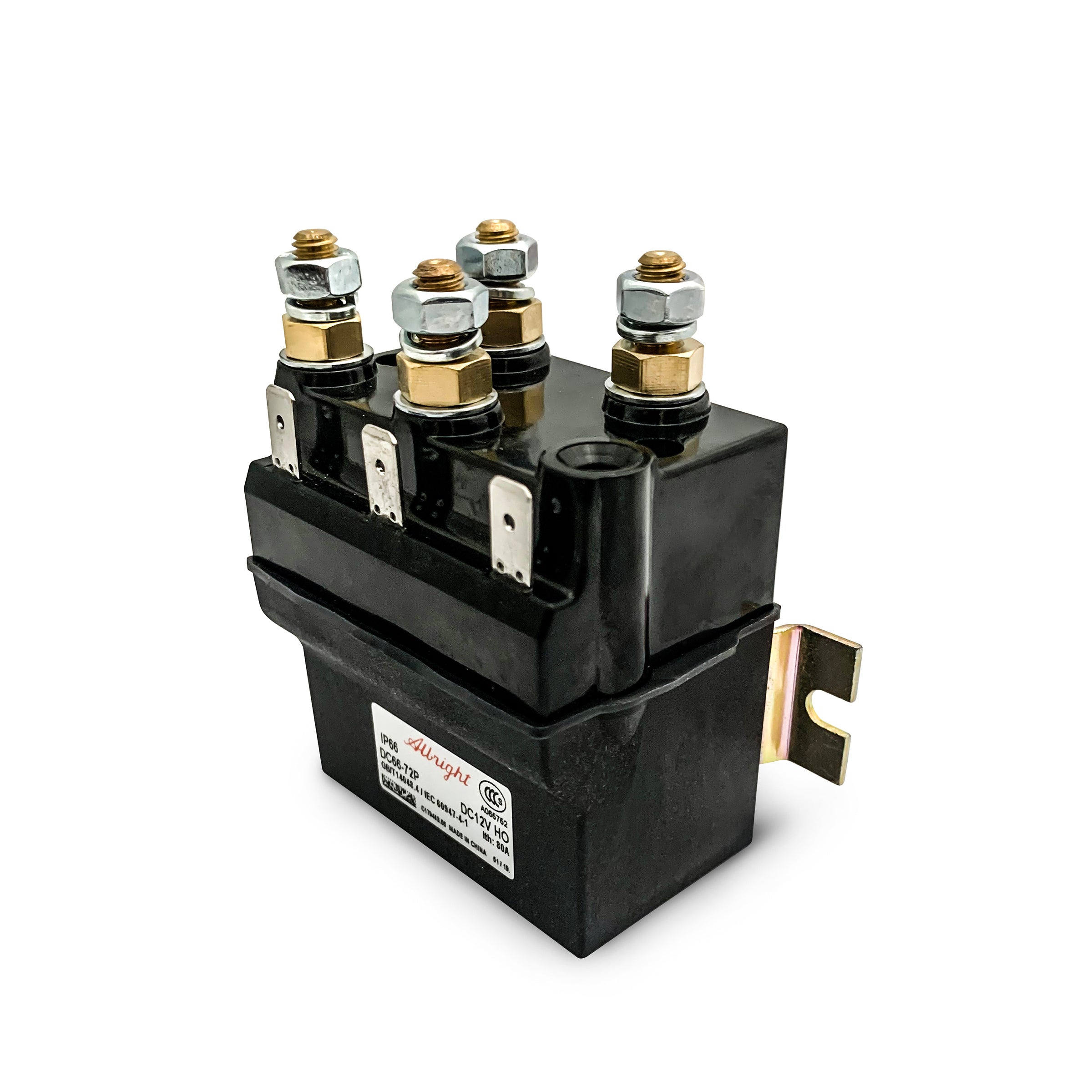

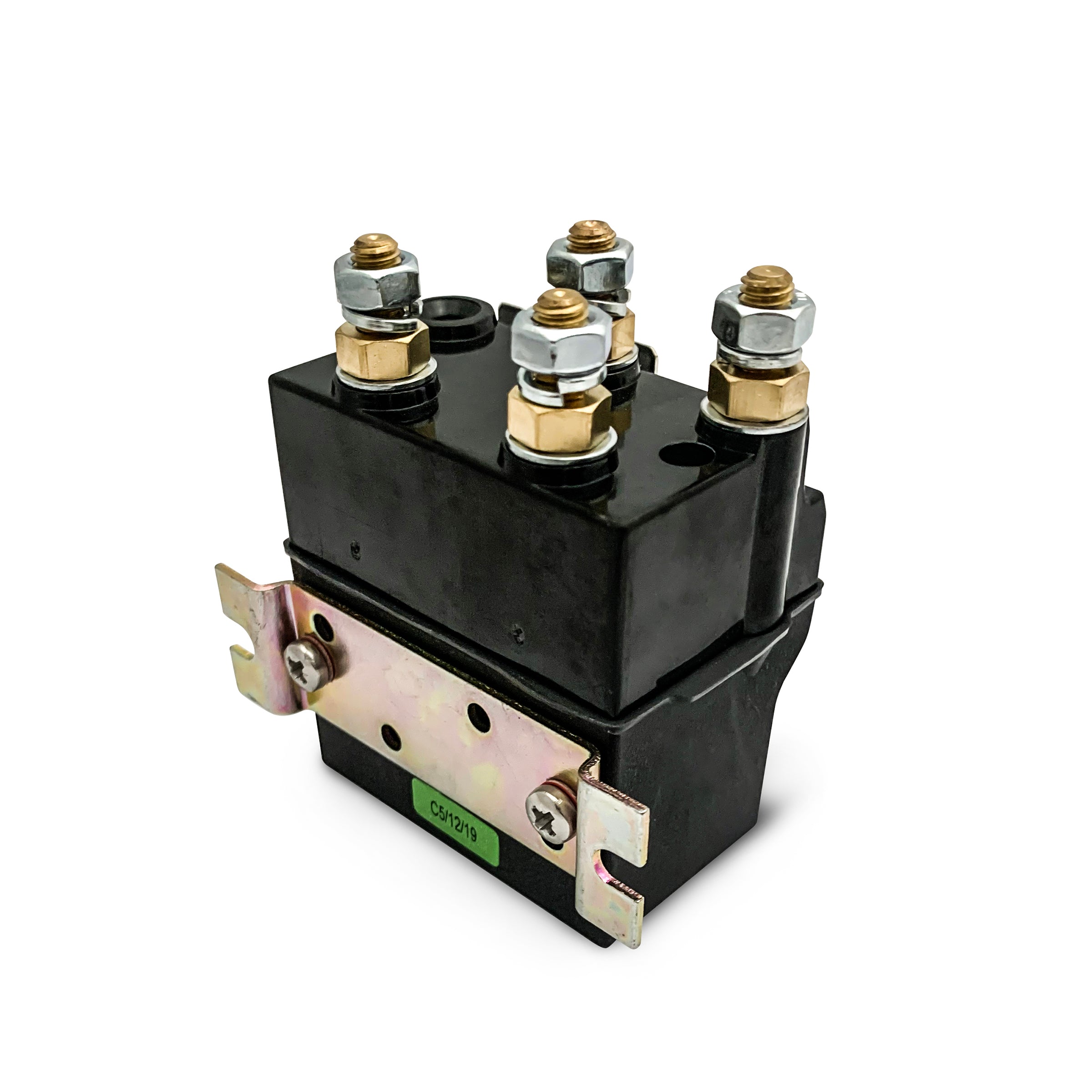

Albright DC88P Winch Contactor
The DC88P is the larger contactor option in this range and is used with Sherpa 4x4 winches rated above 8,000lb.
It is a bi-directional motor reversing contactor designed for high-current DC motor applications and is available for 12V or 24V systems.
- Maximum stated current: 800A
- 12V and 24V options
- M8 terminals
- Suggested winch range: 8,000–25,000lb
- Bi-directional motor reversing operation
Albright DC66P Winch Contactor
The DC66P provides a more compact bi-directional contactor option for compatible lower-current winch applications.
- Maximum stated current: 500A
- 12V and 24V options
- M6 terminals
- Suggested winch range: 4,500–9,000lb
- Bi-directional motor reversing operation
The DC66P is used for compatible Sherpa ATV winch applications.

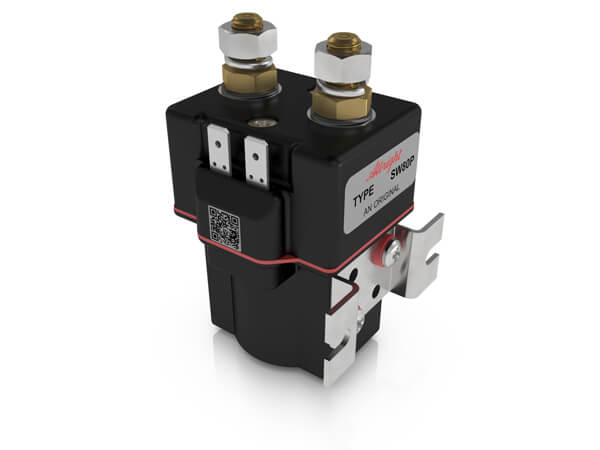

Albright SW80P Contactor
The SW80P is another high-current Albright DC contactor option available for compatible 12V installations.
- Maximum stated current: 500A
- 12V
- M8 terminals
- Suggested winch range: 4,500–9,000lb
Albright Solenoid Specifications
| Specification | DC88P | DC66P | SW80P |
|---|---|---|---|
| Maximum Stated Current | 800A | 500A | 500A |
| Voltage Options | 12V or 24V | 12V or 24V | 12V |
| Suggested Winch Range | 8,000–25,000lb | 4,500–9,000lb | 4,500–9,000lb |
| Terminal Size | M8 | M6 | M8 |
| Dimensions | Refer to datasheet | Refer to datasheet | Refer to datasheet |
| Warranty | 12 months | 12 months | 12 months |
Selecting the Correct Winch Solenoid
When replacing an existing winch solenoid or contactor, do not select a replacement based solely on the winch's rated pulling capacity.
Check the following before ordering:
- 12V or 24V electrical system
- Winch motor configuration
- Required current capacity
- Contactor function and wiring arrangement
- Main terminal size
- Control wiring configuration
- Physical mounting space
The suggested winch-load ranges shown above provide a general selection guide. Final compatibility should be confirmed against the winch motor and electrical system.
Data Sheets
Refer to the Albright data sheets for detailed dimensions, electrical characteristics and duty-cycle information.
- Albright DC88P Winch Solenoid Data Sheet
- Albright DC66P Winch Solenoid Data Sheet
- Albright SW80P Winch Solenoid Data Sheet
Winch Solenoid Wiring Diagram
The following diagram provides a reference for the Sherpa 4x4 winch wiring arrangement.
Important: Disconnect the vehicle battery before working on winch power wiring. High-current winch circuits should use correctly sized cables, secure connections and appropriate electrical protection for the installation.
