Analogue Fuel Flow Meters

Current Price $149.00
Original Price $349.00
(inc GST)
SKU SPEVFMALUM

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.



Description

Reliable, heavy duty, analogue fuel flow meters. Available in two sizes which can measure flows up to 120LPM and 150LPM. Ideal for use on any fuel transfer pump, particularly on farms, fuel depots or mounted on refueling vehicles. Threaded inlet / outlets make plumbing simple and Scintex can supply fittings and hose to suit your needs.

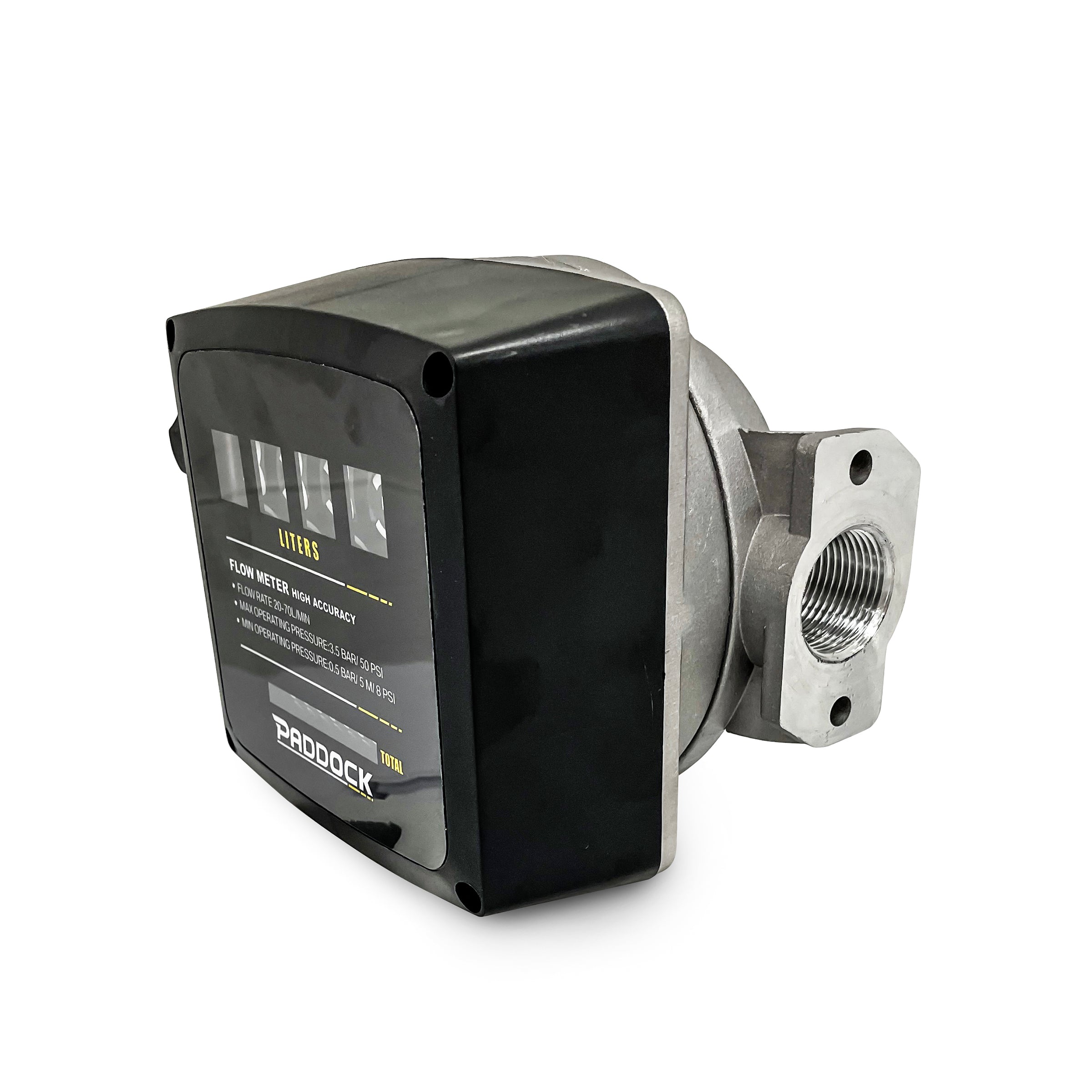

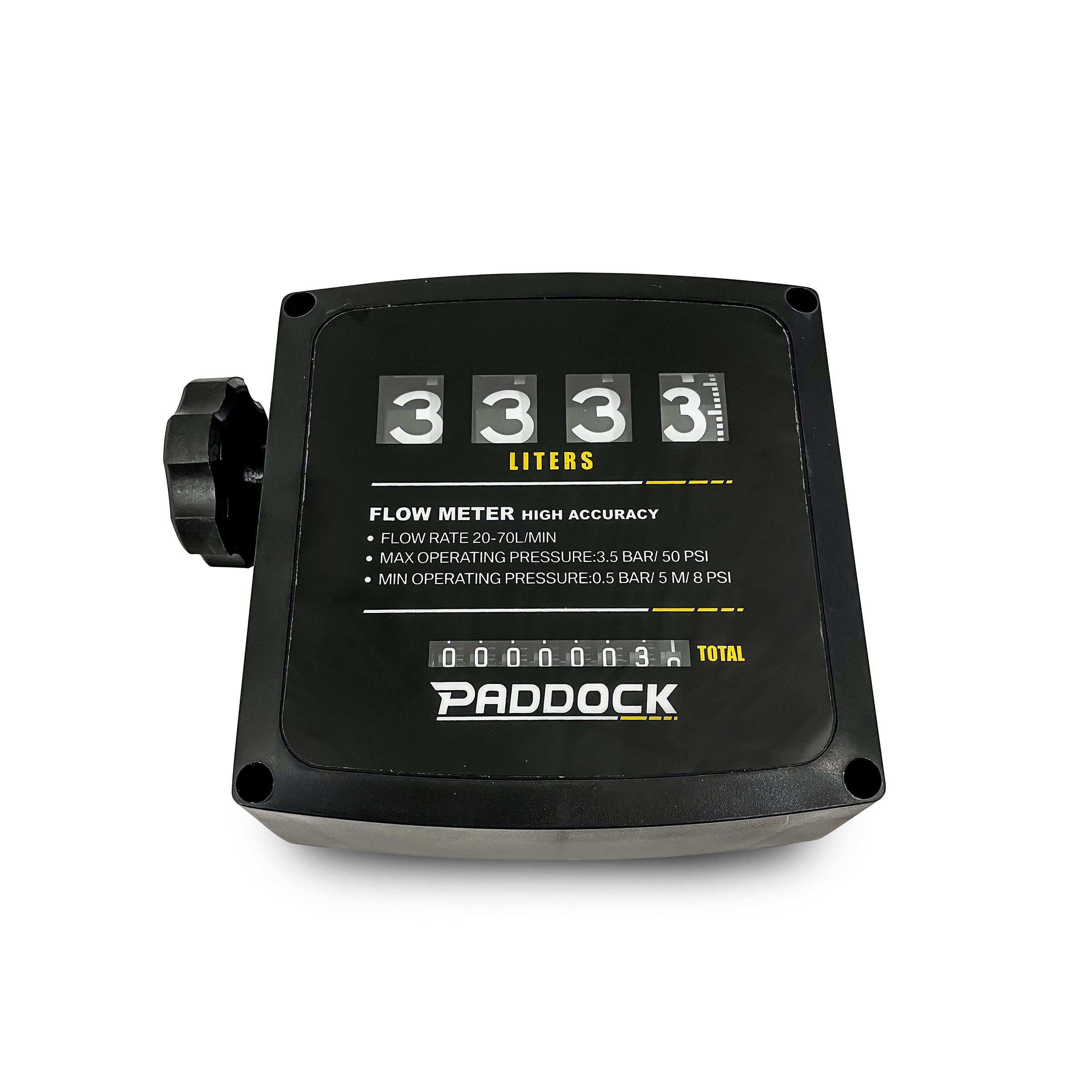

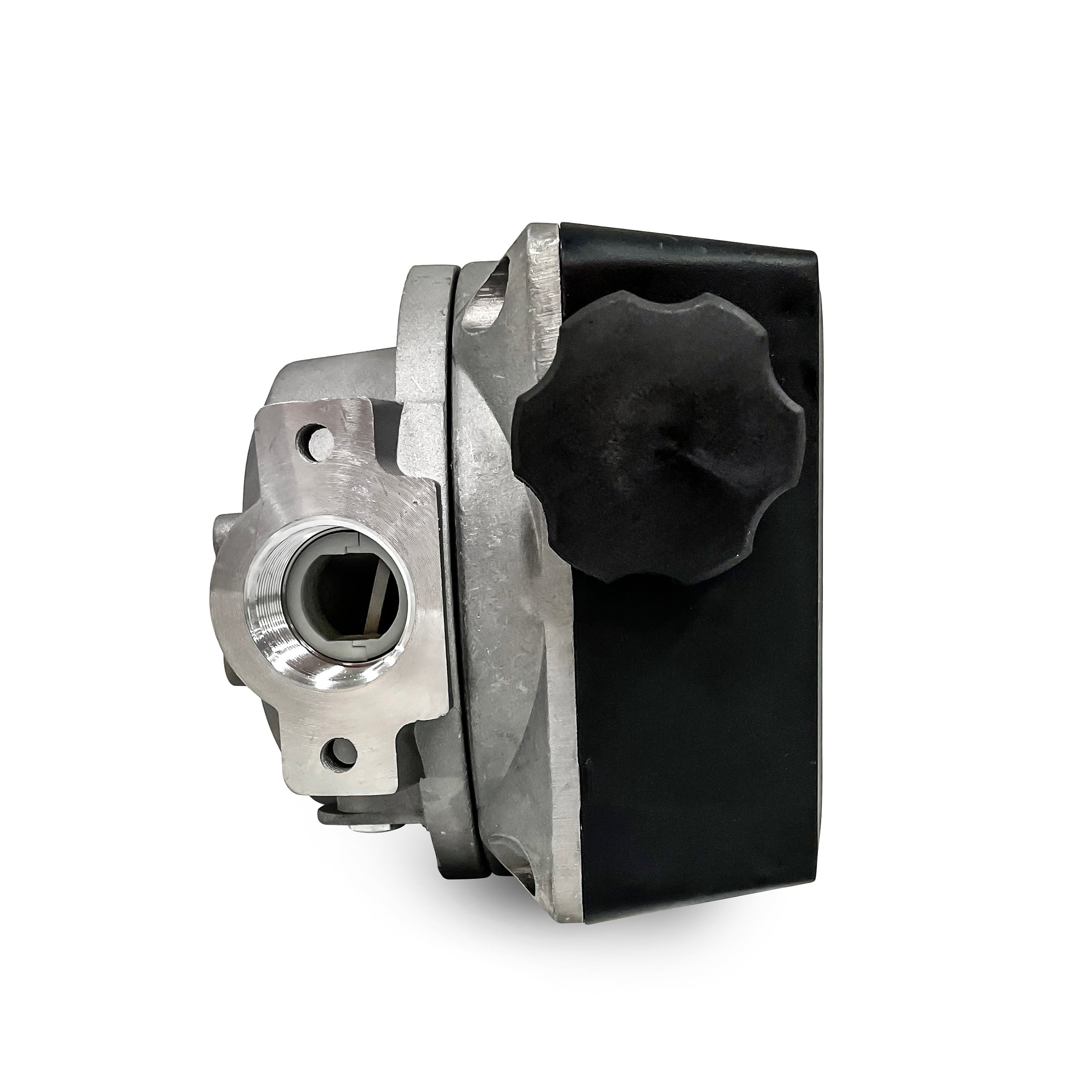

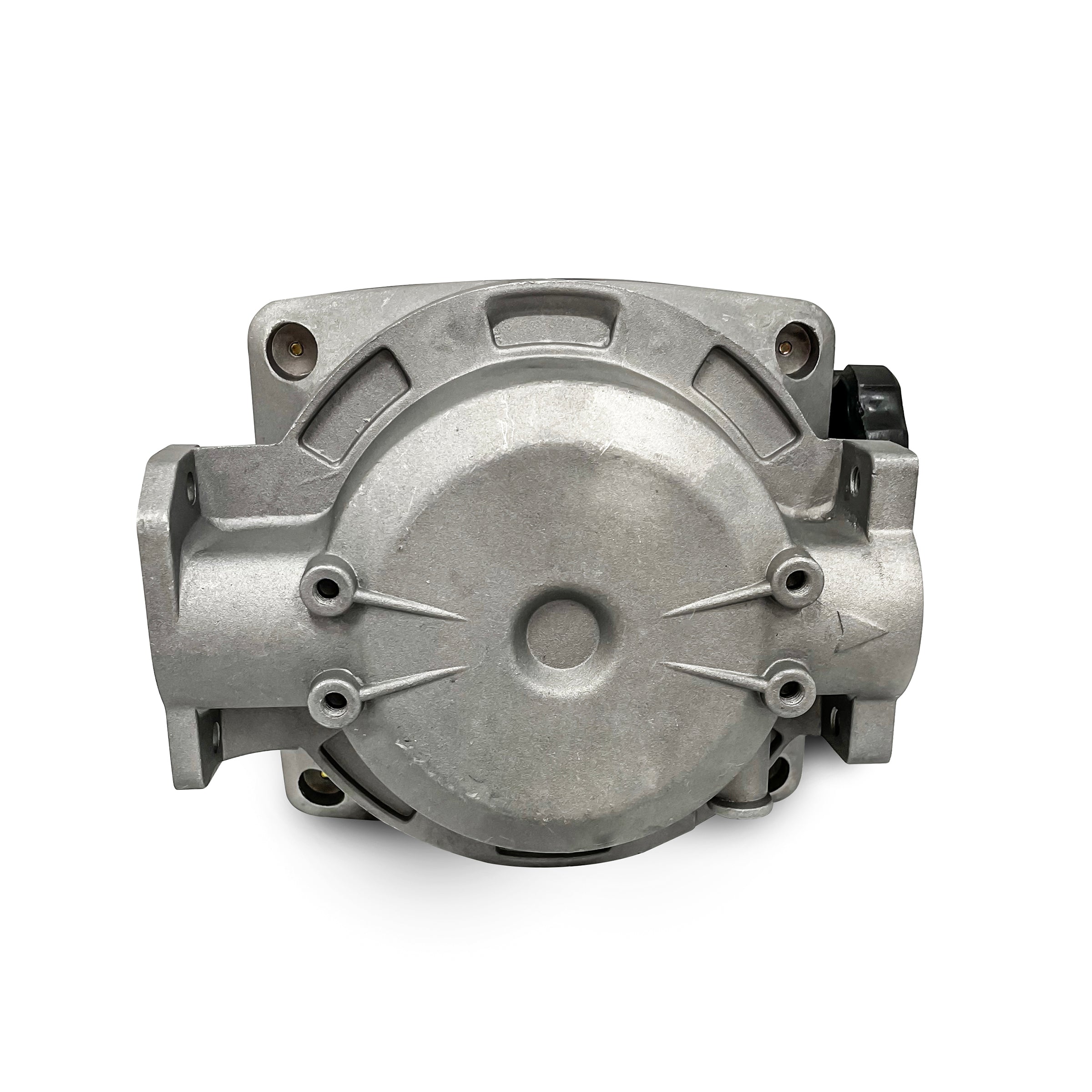

Analogue Fuel Flow Meter

These fuel flow meters are ideal for measuring fuel flow volumes of diesel, biodiesel, gasoline, kerosene, mineral spirits and other solvents. Quality aluminium construction with large, high visibility white numbers. Reset the 4 digit counter to zero with a quick reset knob. The flow meter displays two totals, a running total which can be reset, as well as an all-time total. An additional feature of this flow meter is that the front gauge panel can be rotated allowing the inlet / outlets to be aligned in the vertical or horizontal planes. This gives a range of mounting options to accommodate your pump system or application.

Specification 20 - 120 LPM Flow Meter 20 - 150 LPM Flow Meter
Gauge Range

Resettable Total 0 - 9999 L

Grand Totaliser 0 - 99999999 L

Resettable Total 0 - 9999 L

Grand Totaliser 0 - 99999999 L

Max. Flow Rate 120 L/min 150 L/min
Max Pressure 3 bar, 43.5 PSI 3 bar, 43.5 PSI
Hose / Fitting Size 1" BSP Female 1" BSP Female
Precision +/- 1% +/- 1%
Construction Aluminium Metering Chamber Aluminium Metering Chamber
Weight 1.8 kg 1.8 kg
Dimensions

Inlet to Outlet (Length) - 240mm

Height - 165mm

Depth - 150mm

Compatible Fuels Diesel, Biodiesel, Gasoline, Unleaded Petrol, Kerosene, Mineral Spirits, Some Solvents, Water
