Automatic Fuel Nozzles
Description

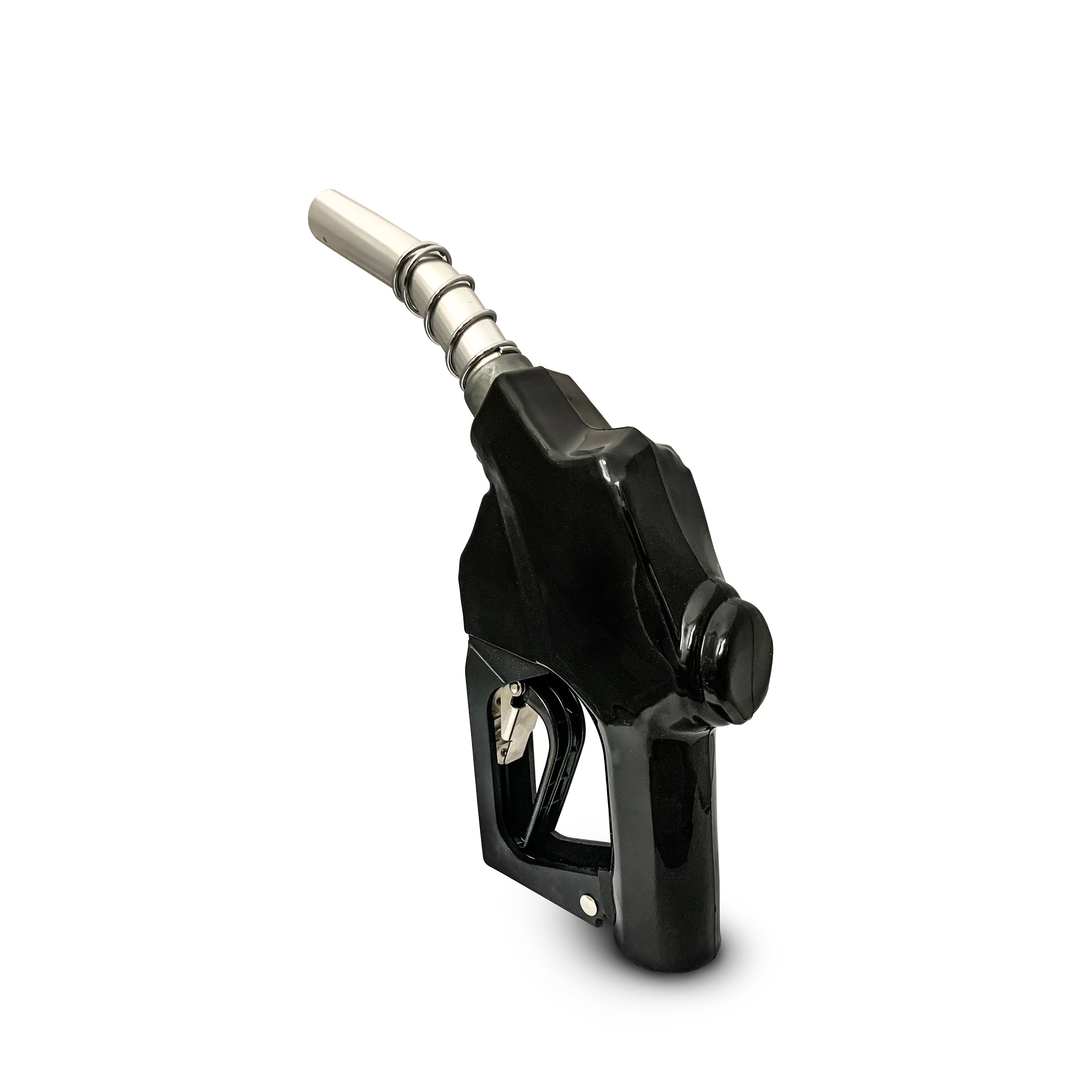

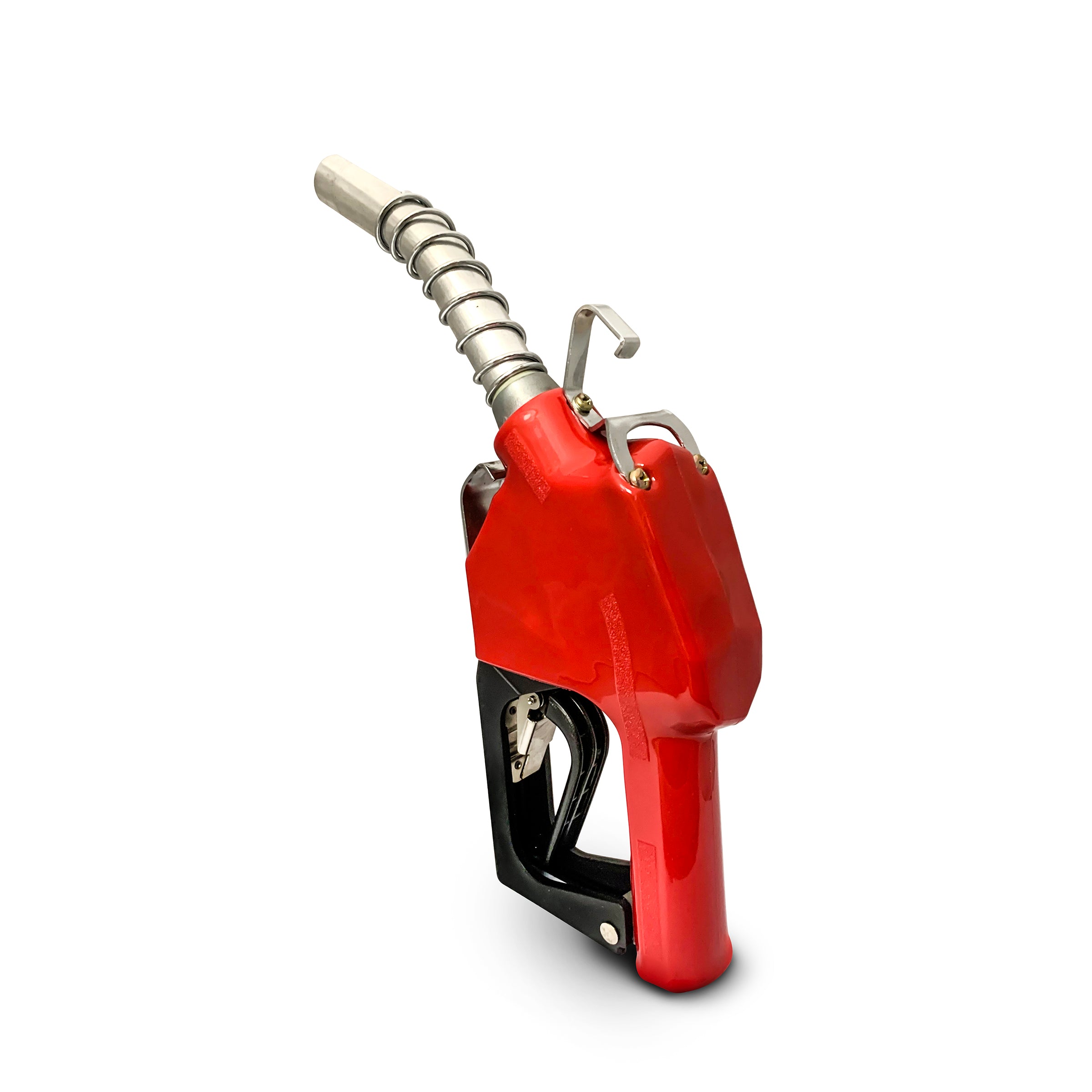

Auto cutoff fuel nozzles. Suitable for many fuel transfer applications and fuel bowsers. Available in two sizes, with diesel or unleaded petrol bowser style spouts. These nozzles click to the off position when back pressure is applied to the nozzle tip.
Automatic Fuel Dispensing Nozzle Gun
- 3/4" & 1" BSP female inlet options available
- Suitable for use with many of the Scintex range of pumps
- Nozzles can be supplied with 3/4" or 1" swivel fittings to suit your hose type
| Fuel Nozzle Specification | 3/4" Auto Nozzle Straight | 3/4" Auto Nozzle Bent | 1" Auto Nozzle |
|---|---|---|---|
| Inlet Size | 3/4" BSP | 3/4" BSP | 1" BSP |
| Shut Off | Automatic | Automatic | Automatic |
| Spout Diameter | 13/16" (fits most common Petrol ports) | 15/16" | 1 & 1/16" (Diesel spout) |
| Spout shape | Straight | Bent | Bent |
| Construction | Aluminium Alloy | Aluminium Alloy | Aluminium Alloy |
| Features | Hanging Hook, handle lock | Hanging Hook, handle lock | Hanging Hook, handle lock |
| Colour | Blue | Red | Black |
NOTE: Not suitable for use in gravity feed systems as there is generally insufficient pressure for the open/close mechanism to work. For gravity feed we recommend the standard manual shut off nozzle.
Optional Extras: Scintex can supply this fuel nozzle with an aluminium swivel fitting to suit. This reduces binding, recoil and kinking in the fuel hose. The swivel incorporates a quality, viton o-ring to prevent leakage yet allow ease of rotation. To add simply select from the drop down menu above.
