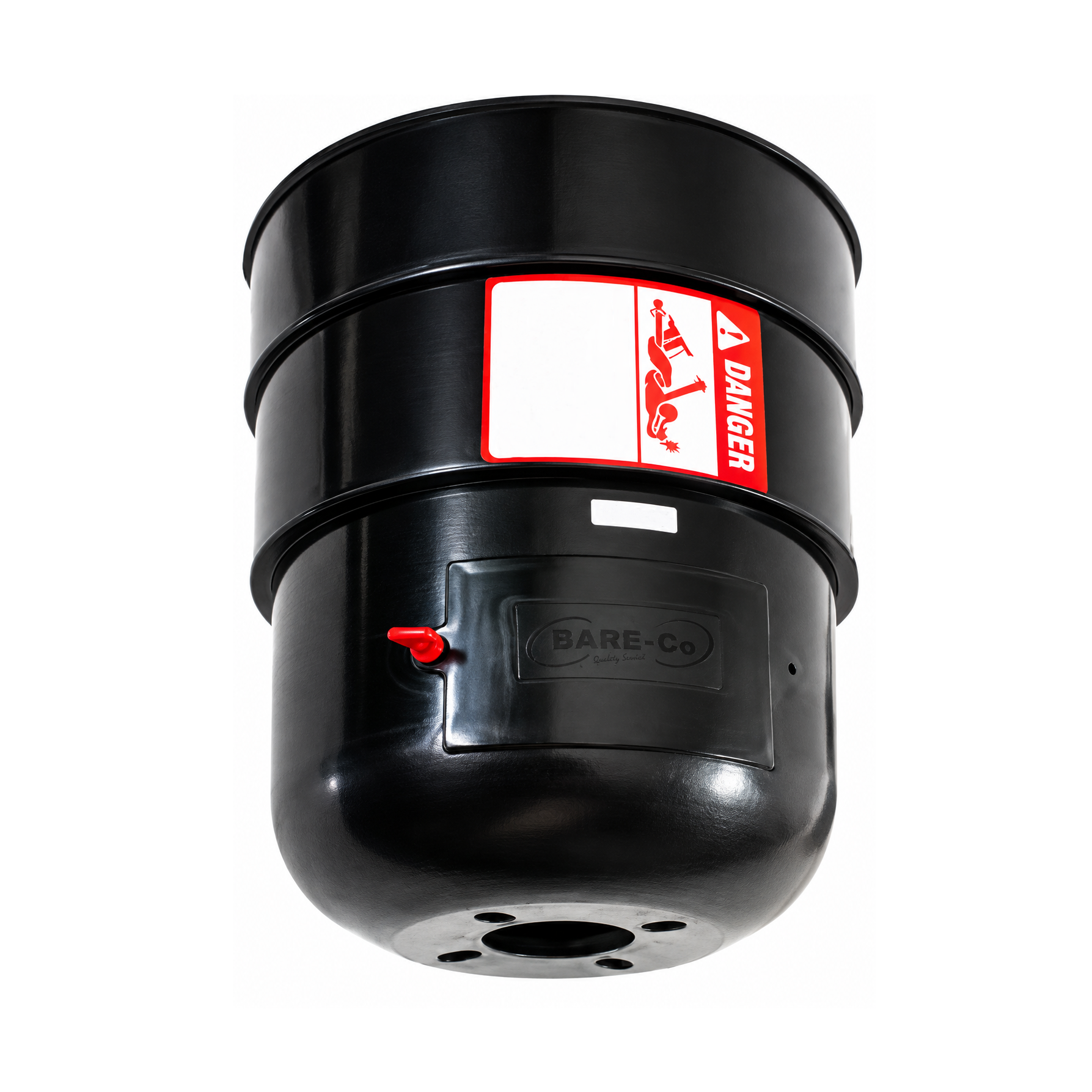

BARE-Co PTO Safety Cover – 10" / 250mm – Suits 8" Safety Clutch
Description
Help protect exposed PTO components with the BARE-Co PTO Safety Cover. Designed for agricultural machinery and PTO-driven equipment, this heavy-duty guard provides a protective barrier around compatible PTO safety clutches and rotating driveline components.
Measuring approximately 10" (250mm) in diameter x 13" (335mm) long, the cover is designed to accommodate an 8" diameter safety clutch or equivalent. Ideal for replacement, maintenance or custom agricultural machinery applications where a suitable PTO guard is required.
BARE-Co PTO Safety Cover – 10" / 250mm
- Heavy-duty PTO safety cover
- Helps guard rotating PTO and driveline components
- Suitable for compatible agricultural machinery and implements
- 10" / 250mm approximate outside diameter
- 13" / 335mm approximate overall length
- Designed to accommodate an 8" diameter safety clutch or equivalent
- Suitable for replacement and custom machinery applications
- Durable construction for agricultural environments
Protective PTO Guarding
Power Take-Off (PTO) systems transfer significant power from tractors and other machinery to driven implements. Exposed rotating components can present a serious entanglement hazard, making correctly fitted and maintained guarding an important part of PTO equipment safety.
The BARE-Co PTO Safety Cover is designed to provide a protective barrier around compatible PTO driveline and safety clutch components, helping prevent accidental contact with rotating parts during operation.
Fits 8" Diameter Safety Clutch or Equivalent
With an approximate outside diameter of 10" / 250mm, this cover is designed to accommodate an 8" diameter safety clutch or equivalent.
The cover measures approximately 13" / 335mm long, providing substantial coverage around compatible PTO components.
Before ordering, measure the existing clutch, driveline and available mounting area to confirm compatibility with your equipment.
Suitable for Agricultural Machinery
This PTO safety cover can be used across a range of compatible PTO-driven agricultural machinery and implements, including applications such as:
- Tractor PTO implements
- Slashers and rotary cutters
- Mowers
- Spreaders
- Mulchers
- Rotary tillers
- Agricultural attachments
- Replacement PTO guarding applications
Compatibility will depend on the dimensions, PTO configuration and guarding arrangement of the individual machine.
PTO Safety Cover Specifications
| Specification | Details |
|---|---|
| Product Type | PTO safety cover / guard |
| Cover Diameter | 10" / 250mm |
| Overall Length | 13" / 335mm |
| Clutch Compatibility | Fits 8" diameter safety clutch or equivalent |
| Application | PTO-driven agricultural machinery and implements |
Check Fitment Before Ordering
PTO guards are not universally interchangeable. Before purchasing, check the dimensions of your existing PTO clutch, shaft and mounting arrangement against the specifications above.
Allow sufficient clearance around all rotating components and ensure the guard can be correctly secured without interfering with normal operation of the PTO driveline.
Important PTO Safety Information
Never operate PTO-driven machinery with required guards removed, damaged or incorrectly fitted. Stop the tractor or power unit, disengage the PTO, shut down the engine and ensure all rotating components have completely stopped before inspecting, adjusting or working around the PTO driveline.
The safety cover must be correctly installed and securely retained before operation. Always follow the tractor, implement and PTO driveline manufacturer's installation, guarding and operating instructions.
