Brushless Motor Water Pumps

Current Price $999.00
Original Price $1,599.00
(inc GST)
SKU SWP24VBL

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.



Description

Evolved from the automotive industry where electric pumps need to be stable and capable of continuous operation without fear of worn out brushes come these high quality brushless motor water pumps. Capable of high discharge heads these pumps have a great range of uses across many industries including farming and agriculture, automotive coolant circulation on buses, trucks and boats plus many more applications you can dream up.

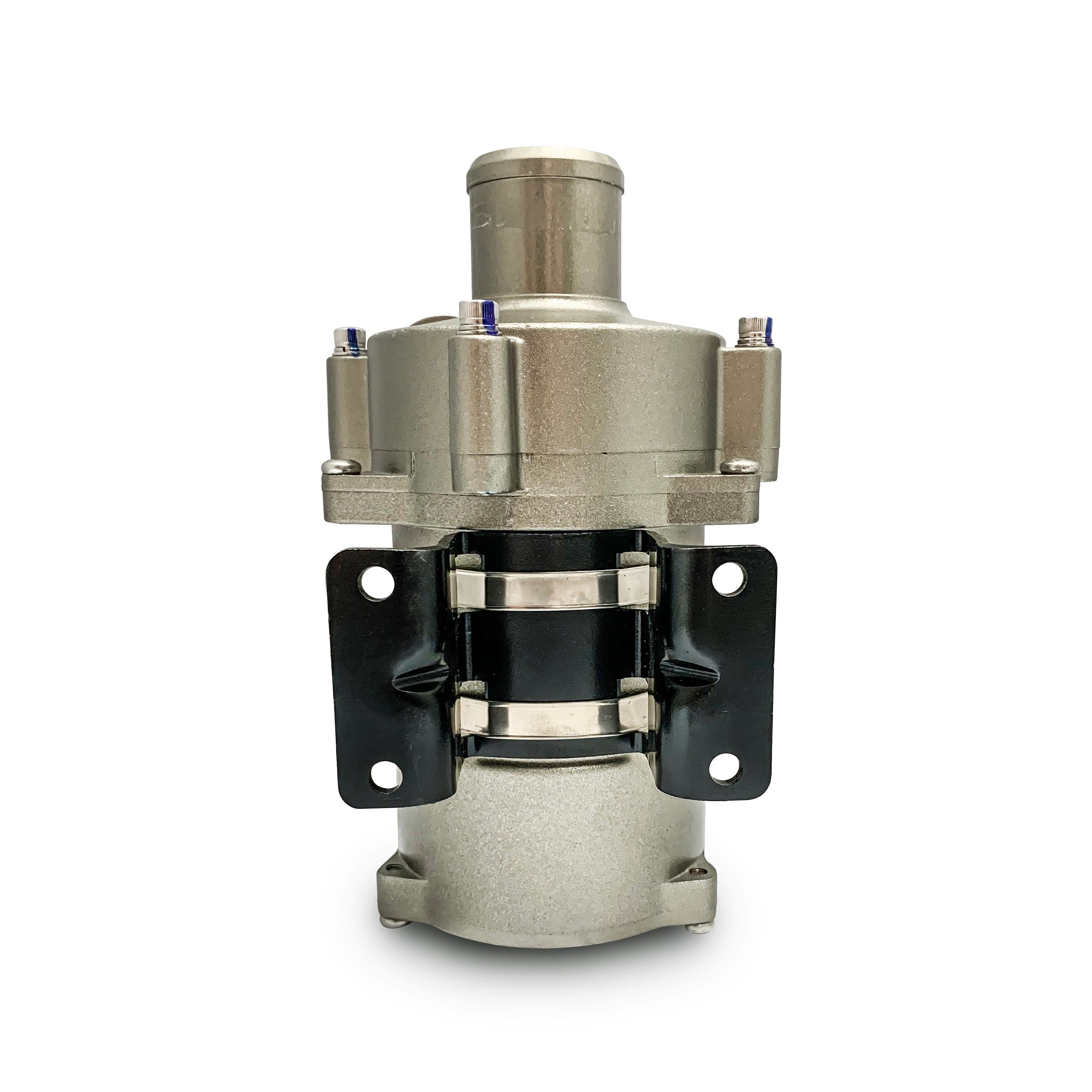

Brushless Motor Pressure Pump 24V DC

These pumps run a large 240w brushless motor which helps to deliver high flow rates and impressive discharge pressures. Ideal for moving water over distances with solar panel and battery setups.

Unlike many other low voltage pumps on the market, these units run a 20,000+ hr life brushless motor meaning these pumps are suitable for continuous operation 24hrs a day, 365 days per year without fear of breakdown or reduced performance.

These pumps are used on large trucks, buses and ships to circulate cooling water. This type of service requires exceptional reliability and performance. Also popular for household heating water circulation, these pumps are very efficient with low power draw.

 Users should avoid running this pump dry as this will shorten the pumps operating life. The pump does have a dry run protection system which kicks in after 15 mins of operation without flow.

Pump Specifications Value
Voltage 24v (18-32v input acceptable)
Motor

Brushless, 250W, IP67

20,000+ hr operating life at 36C / 24v

Amperage rated 10 amp / max. 16 amp
Motor Controller Integrated into pump, simply connect 24v supply
Max. Ambient Temperature 120 C - suitable for under bonnet installations on large trucks
Pump Type Centrifugal
Flow rate Varies: 2800 L/hr @ 16m discharge head
System Pressure -0.2 - 2.5 bar
Compatible liquids Water/glycol (max 60% Glycol)
Inlet / Outlet 38 mm (1-1/2")
Construction

Alloy pump casing

Impeller PPS+GF

Shaft sleeve: carborundum composite materials

Shaft: stainless steel(3CR14) shaft

Magnet housing: PPS plastic encapsulation

Seal ring: EPDM

Features

Reverse polarity protection

Dry running protection

Over voltage, over current protection

Overload, over temperature protection

Mounting bracket Included
Connector AMP282104-1 (matched Plug AMP282080-1)
Dimensions 190 x 90 x 157 mm
Weight ~ 2.2 kg
Warranty 12 months



Brushless Motor Pump Performance Data

Flow (L/hr) Head (m)
5,000 2
4,000 8
3,000 14
2,000 19
800 20

Water Pressure Pump Wiring Sizes

Length of Wire (m) Wire Size (mm2)
16 1.5
25 2.5
31 3
40 4
