Description

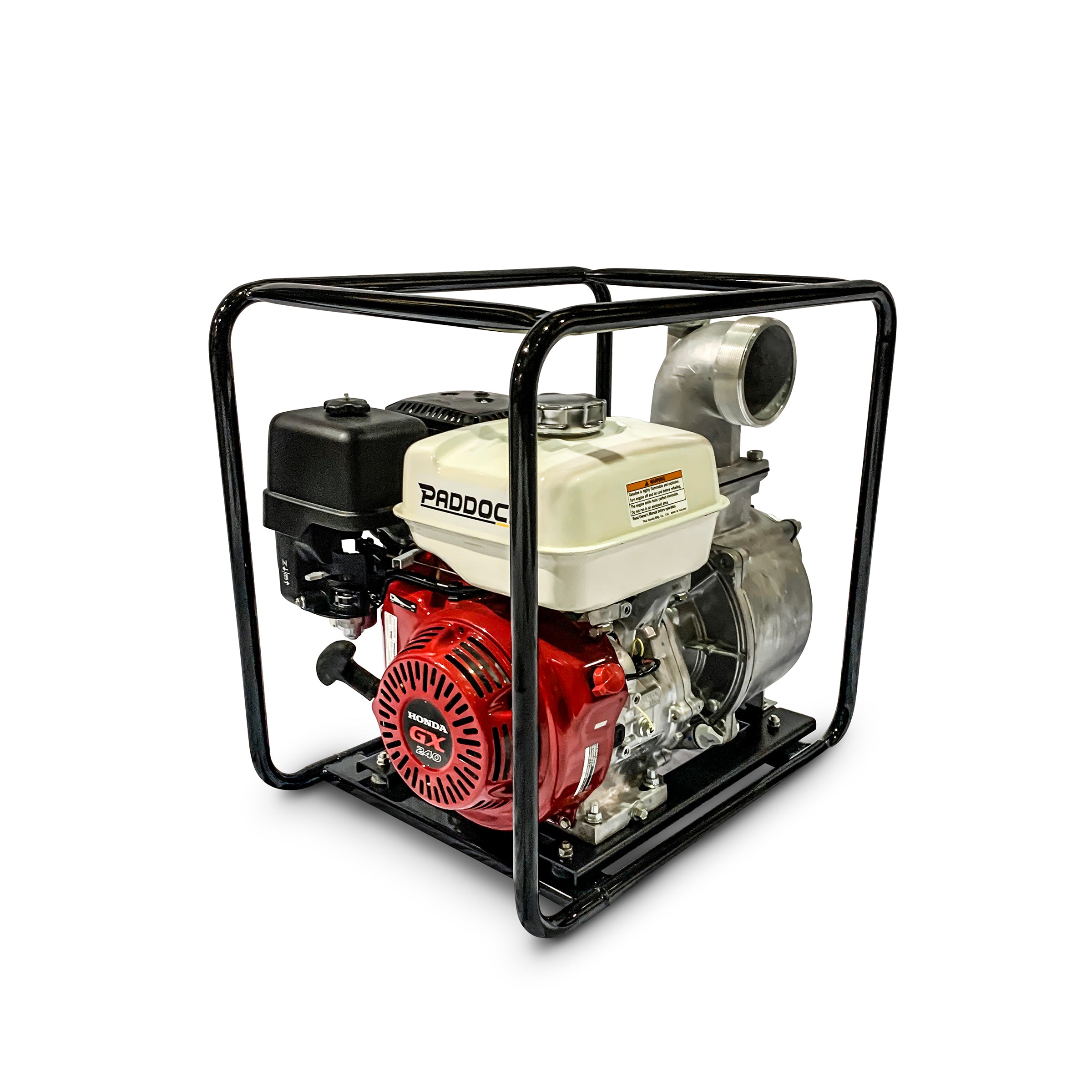

Premium series, clean water irrigation pumps by Paddock Machinery. Ideal for moving water and general purpose applications. Quality Japanese construction suited to the harsh Australian environment.
Irrigation and Transfer Honda Engine Driven Trash Pumps
- Suited to clean water applications with solids up to 6-7mm
- High quality Japanese pump offers thicker and stronger castings
- Genuine Honda GX commercial engines
- Steel roll-over cage protection
- High efficiency and performance from a quality design
Pump Details:
This pump is part of the Paddock premium range of pumps designed and built in Japan. These are a clear water transfer pump. Transfer pumps are the most commonly used model and suited to a range of applications from general purpose stock water transfer, irrigation, flood mitigation plus much more. These pumps are highly efficient compared to semi and full trash models.
Manufactured in Japan, these pumps are built to the highest quality standard and are garanteeded to perform. The pump castings are thicker, stronger and better designed then others in the market. The pump casing has a wear resistant liner and the impeller is manufactured from FC150 Japanese cast iron. The carbon ceramic mechanical seal ensures leak free performance.
Engine Details:
The Honda GX series of 4-stroke commercial engines are world renown for being workhorse engines with extreme reliability. Honda engines are always easy to start and are very well supported with Honda dealers and spare parts kept in every corner of the continent. For a ultimate in reliability stick with the Honda GX series of engines.
| Specifications | SPWP5050HX | SPWP100HX |
|---|---|---|
| Pump Inlet / Outlet | 2" / 2" | 4" / 4" |
| Max. Flow (L/min) | 400 | 1800 |
| Max. Total Head | 50 m | 28 m |
| Max. Suction Head | 8 m | |
| Solids Handling Capacity | 6 mm | 7 mm |
| Honda Engine | GX160 | GX240 |
| Engine Type | 4-Stroke Commercial Series | |
| Engine Power HP - 3600RPM |
4.8 hp | 7.9 hp |
| Fuel | Unleaded Petrol | |
| Fuel Tank | 3.1 L | 5.3 L |
| Starter | Recoil | |
| Weight | 25 kg | 47 kg |
| Dimensions | 527 x 368 x 417mm | 610 x 425 x 565mm |
| Wetted materials | Carbon-ceramic Seals Cast Iron FC150 Impeller Cast Iron FC150 Volute |
|
| Inclusions | Hose couplings, strainer and clamps | |
| Warranty | 3 yrs | |
| Manufactured | Japan | |
