Concrete Core Drills

Current Price $999.00
Original Price $1,499.00
(inc GST)
SKU PCD2200W

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.



Description

The Paddock Machinery range of core drilling equipment is unrivaled in the industry. Built to outperform and outlast. The core drills have over sized motors and oil filled gearboxes so you get years of trouble free coring. For the perfect setup use with the Paddock range of core drill stands, vacuum pumps and coring bits. However, the drill motors are compatible with other brands of drill stands and drill bits. Great for use in a range of construction, plumbing and building applications. Ideal for coring concrete, masonry, brick and stone. Suitable for wet or dry coring. Popular with construction trades, plumbers, builders, electricians, gas installers and more.

Core Drill Motors by Paddock Machinery

Built for tradies - Priced for DIYers.



Paddock™ Core Drill Motors
  • Heavy duty construction
  • Trade quality
  • Drill cores in a range of diameters
  • Simple to service and maintain
  • Spare parts & service available
  • Use with a range of drill stands and core drill bits

Paddock core drill motors incorporate heavy duty, three speed gearboxes allowing greater flexibility in coring diameter and concrete grades. The motors have a soft start feature to reduce current surge and torque when turning on. Overload protection and the PRCD provides additional safety. These drills are simple to use! Each drill motor has the water feed lines inbuilt for wet coring. The drill mounts are easy to fit to a range of drill stands and can be interchanged. The drive head is the industry standard diameter and thread giving the user a range of brands and options for the core drill bits. Heavy duty casings and construction will give the drill motors longevity on the toughest construction sites.

Like all of the Paddock range the core drill motors are backed by our Australian warranty and have full parts and service support. Designed to be low maintenance, servicing can be performed by almost any handy operator. Scintex recommends a package with Paddock drill stands, vacuum bases and diamond coring bits.

Compatible Paddock™ Core Drilling Equipment

Core Drill Stands

Paddock offers a range of core drill stands suitable for use with these core drill motors. Pair the drill motors as follows:

Drill Model PCD2200W - use with drill stand model PCDR250A. This drill stand is for drill bits up to 252mm (without spacers) and has the vacuum base incorporated and can also be fixed using the conventional bolt down method.

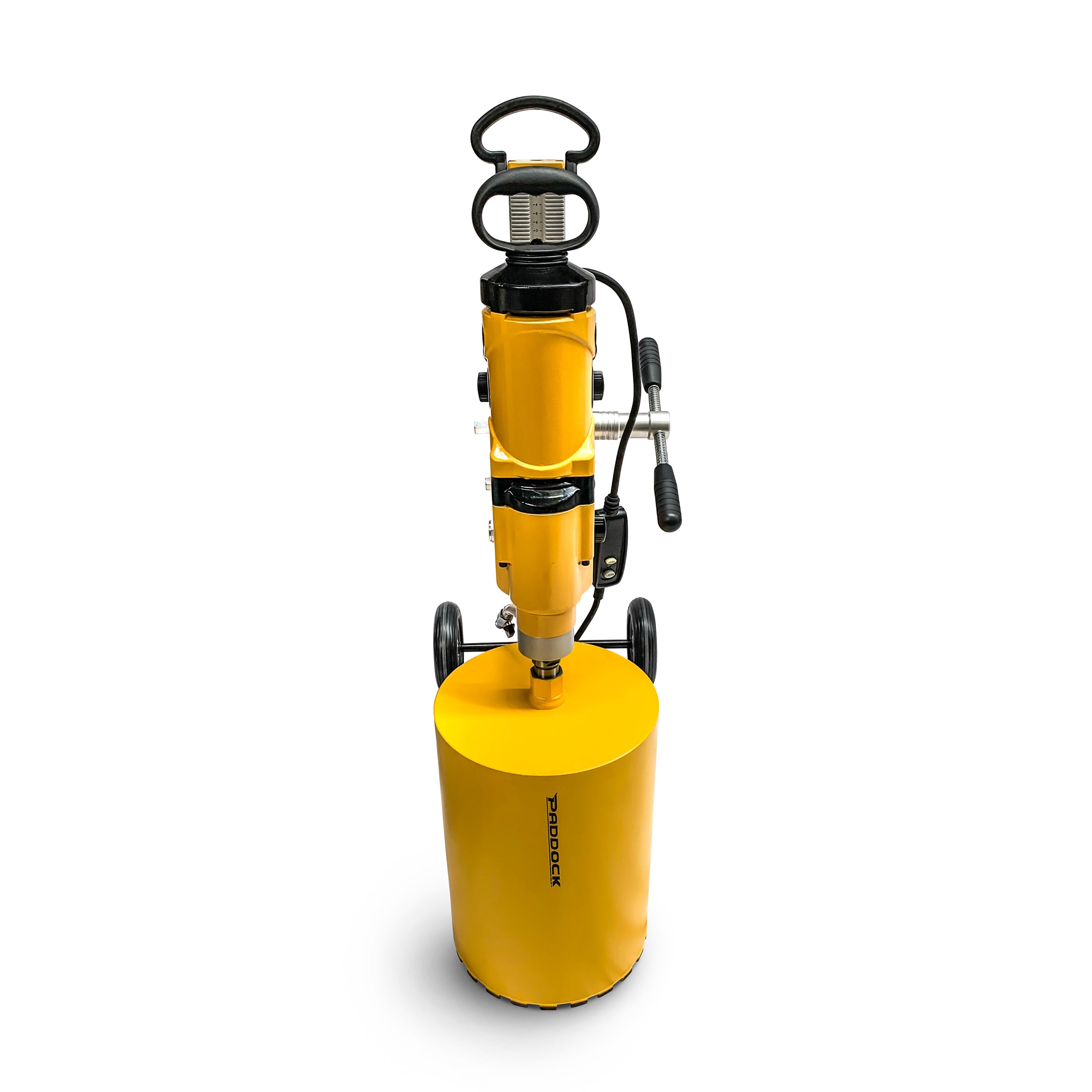

Drill Model PCD3300W - use with drill stand models PCDR350A or PCDR440A. The 350mm drill stand has the vacuum base as well as the conventional bolt down ability and is for core bits up to 352mm (without spacers). The 440mm model has a conventional bolt down base only and can handle larger diameter core bits.

Click here for more information on the core drill stands.

Core Drill StandsConcrete Coring Drill StandsPaddock Concrete Core Drill Stands Bases Rigs

Core Drill Vacuum Pumps

The Paddock core drill vac pump is suitable for use with the PCDR250A - 250mm drill stand with vacuum base and the PCDR350A - 350mm drill stand with vacuum base. Suitable for use with both the 2200W or 3300W drill motors. The vacuum pumps securely hold the drill stand in place for safe, accurate coring.

Click here for more information on the core drill vacuum pumps.

Core Drilling Vacuum PumpVac Pump for Concrete DrillsCore Drilling Package Electric

Diamond Core Drill Bits

By using the industry standard 1-1/4" drive head many brands of core drill bits can be used. The Paddock™ range of core drill bits are premium quality, economical and our recommended choice.

Click here for more information on Paddock core drill bits.

Concrete Diamond Core Drill BitsConcrete Coring Drill BitsDiamond Coring Bits

Optional Carry Cases

Paddock can supply heavy duty carry cases with custom cut foam inserts to suit these core drills. For more information see the link here: Core Drill Carry Cases

Core Drill Carry CaseCore Drill Foam Carry Case

Portable Water Tanks

Paddock™ offers a portable, rechargeable, electric water supply tank on a trolley. These are ideal for wet coring applications and dust suppression.

Click here for more information on the water tank trolleys.

Water dust suppression trolley tank electric
Core Drill Motor
PCD2200W PCD3300W
Brand Paddock™ Machinery Paddock™ Machinery
Power 2200W 3300W
Voltage 220V 50Hz 220V 50Hz
Current 10A 16A
IP Rating IP54 IP54
Speeds 3 Speed (580, 1400, 2800 RPM) 3 Speed (300, 600, 900 RPM)
Maximum Core Diameter 200mm 400mm
Spindle Thread 1-1/4" (industry standard) 1-1/4" (industry standard)
Construction Magnesium alloy Magnesium alloy
Coring Type Wet coring Wet coring
Materials Concrete, masonry, stone, brick Concrete, masonry, stone, brick
Features

Soft smart start motor

Overload protection (electric clutch)

Mechanical slip clutch

External carbon brushes

3-speed oil filled gearbox

Anti-vibration

Portable RCD

Oil level indicator

Inbuilt Spirit Level

Soft smart start motor

Overload protection (electric clutch)

Mechanical slip clutch

External carbon brushes

3-speed oil filled gearbox

Anti-vibration

Portable RCD

Oil level indicator

Warranty 12 Months
12 Months

Coring Speed vs Diameter

 Drill Motor RPM (PCD2200W) Max Core Diameter
580 200mm
1400 100mm
2800 60mm
 Drill Motor RPM (PCD3300W) Max Core Diameter
300 400mm
600 200mm
900 100mm

Core Drilling Applications:

  • Construction & building projects
  • Plumbing & drain holes
  • Electrical lines
  • Gas lines and pipes
  • Water pipes and sewerage
  • Heating, ventilation & air conditioning pipes
  • Structural testing
  • Man holes
  • ...and more

Shipping Information: Due to the size and weight of the core drill motors they need to be shipped by courier. Please contact us for a freight quote to your location as freight costs may vary to the online estimator.

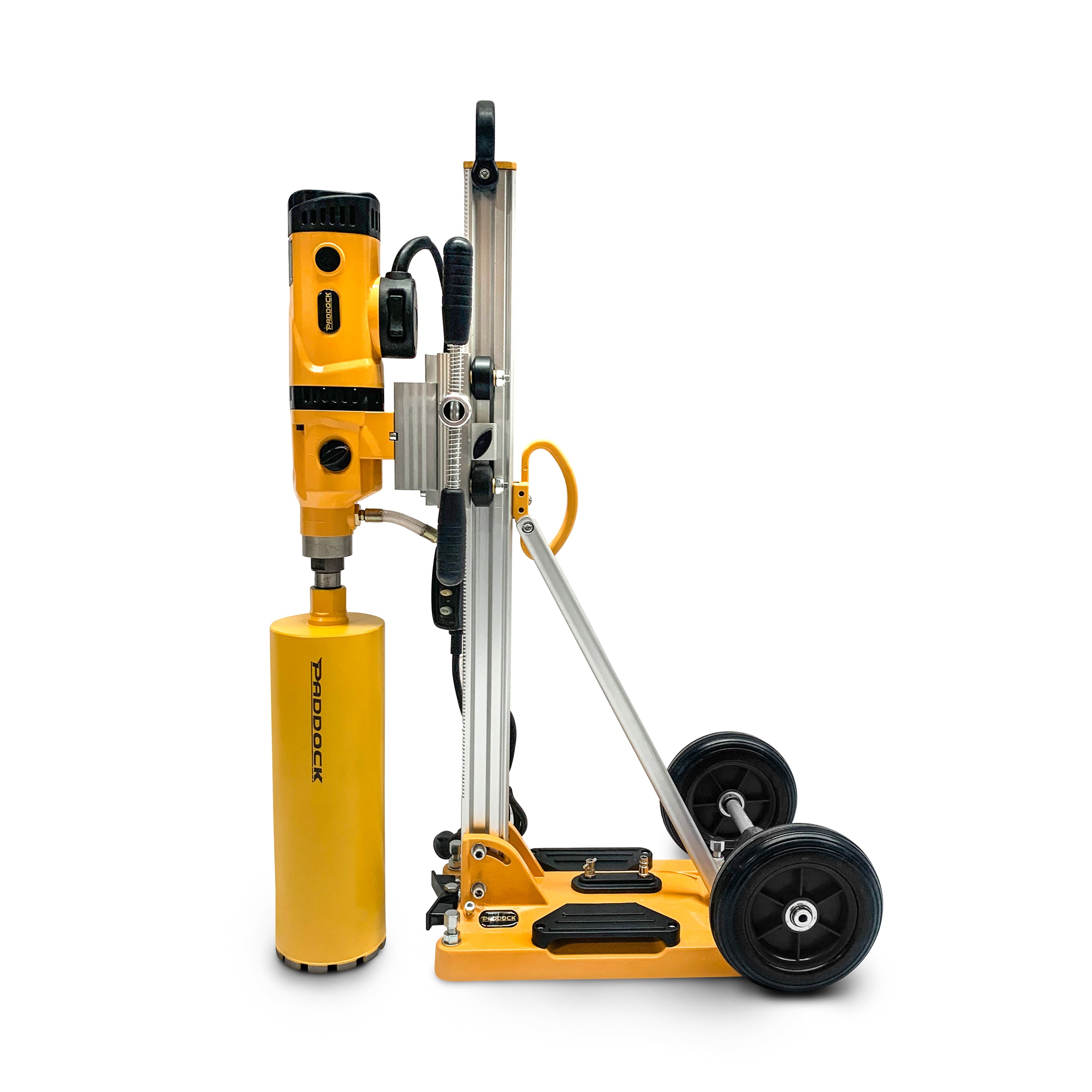

Note: This listing is for the drill motors only. Stands, vacuum pumps and drill bits sold separately. Photos of the drill rigs are for demonstration purposes.
