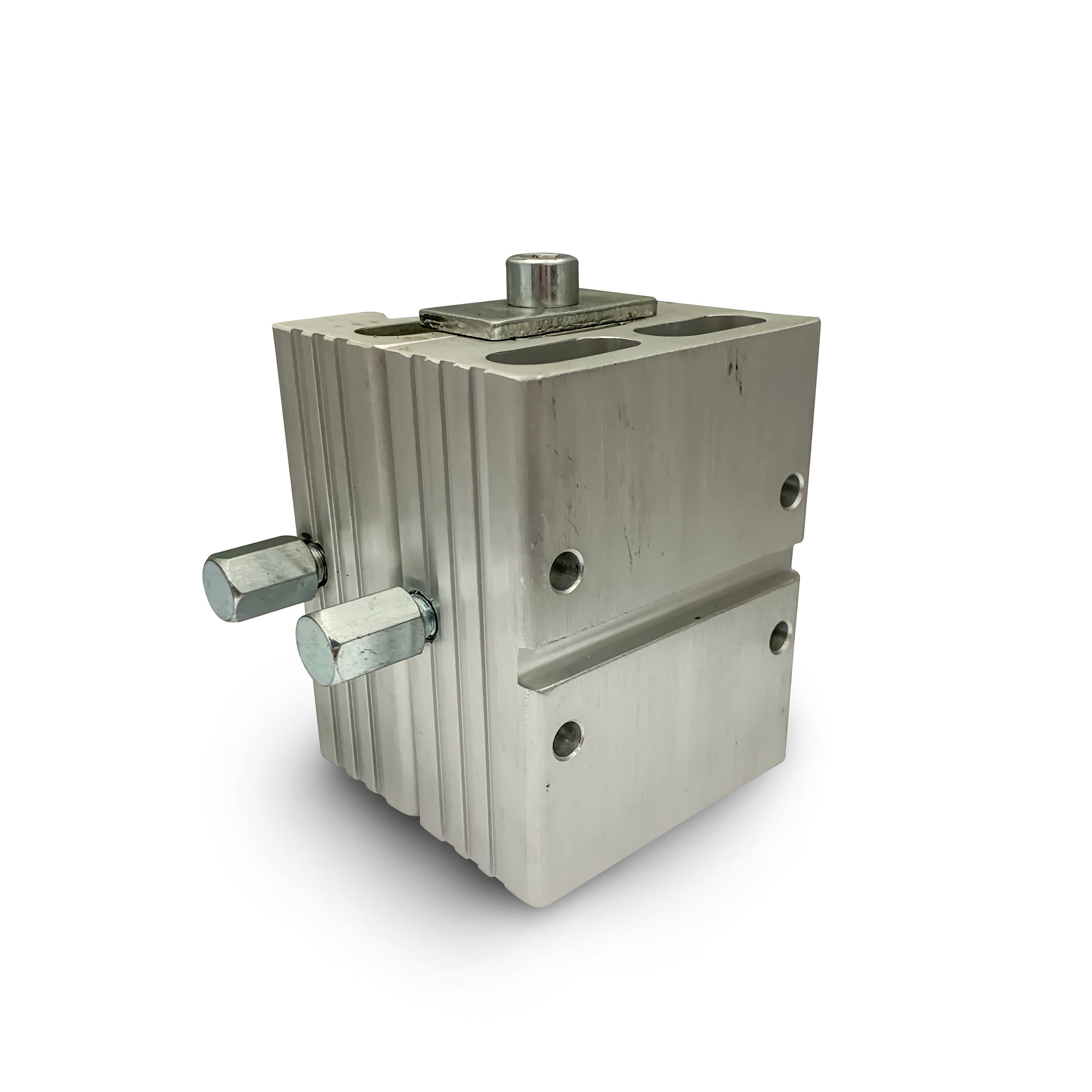

Paddock™ Core Drill Stand Spacer – 50mm Extension
Description
The Paddock™ Core Drill Stand Spacer provides additional clearance between the drill motor and stand, allowing larger-diameter core bits to be used where extra offset is required.
Manufactured from heavy-duty aluminium, the spacer uses a dovetail connection and an industry-standard four-bolt mounting pattern for compatibility with applicable Paddock™ core drill stands and other compatible drilling rigs.
Paddock™ Core Drill Stand Spacer
- Genuine Paddock™ accessory
- Provides additional clearance for larger core drill bits
- Heavy-duty aluminium construction
- Dovetail connection
- Industry-standard 4-bolt mounting design
- Includes locking bolts
- Compact 50mm spacer depth
Core Drilling Applications
The spacer is useful where additional offset is required between the drill stand and core bit during drilling applications such as:
- Construction and building projects
- Plumbing and drainage penetrations
- Electrical service penetrations
- Gas lines and pipework
- Water and sewer installations
- HVAC penetrations
- Structural testing
- Core sampling
Compatibility
The dovetail connection and four-bolt mounting pattern are compatible with the Paddock™ core drilling range and may also suit other compatible core drill stands using the same mounting arrangement.
View the Paddock™ Core Drill Range
Dimensions
| Specification | Details |
|---|---|
| Length | 123mm |
| Width | 100mm |
| Height / Spacer Depth | 50mm |
| Construction | Aluminium |
| Mounting | Dovetail connection with 4-bolt mounting pattern |
| Included | Locking bolts |
Note: Confirm the dovetail profile and mounting-hole pattern of your core drill stand before ordering.
