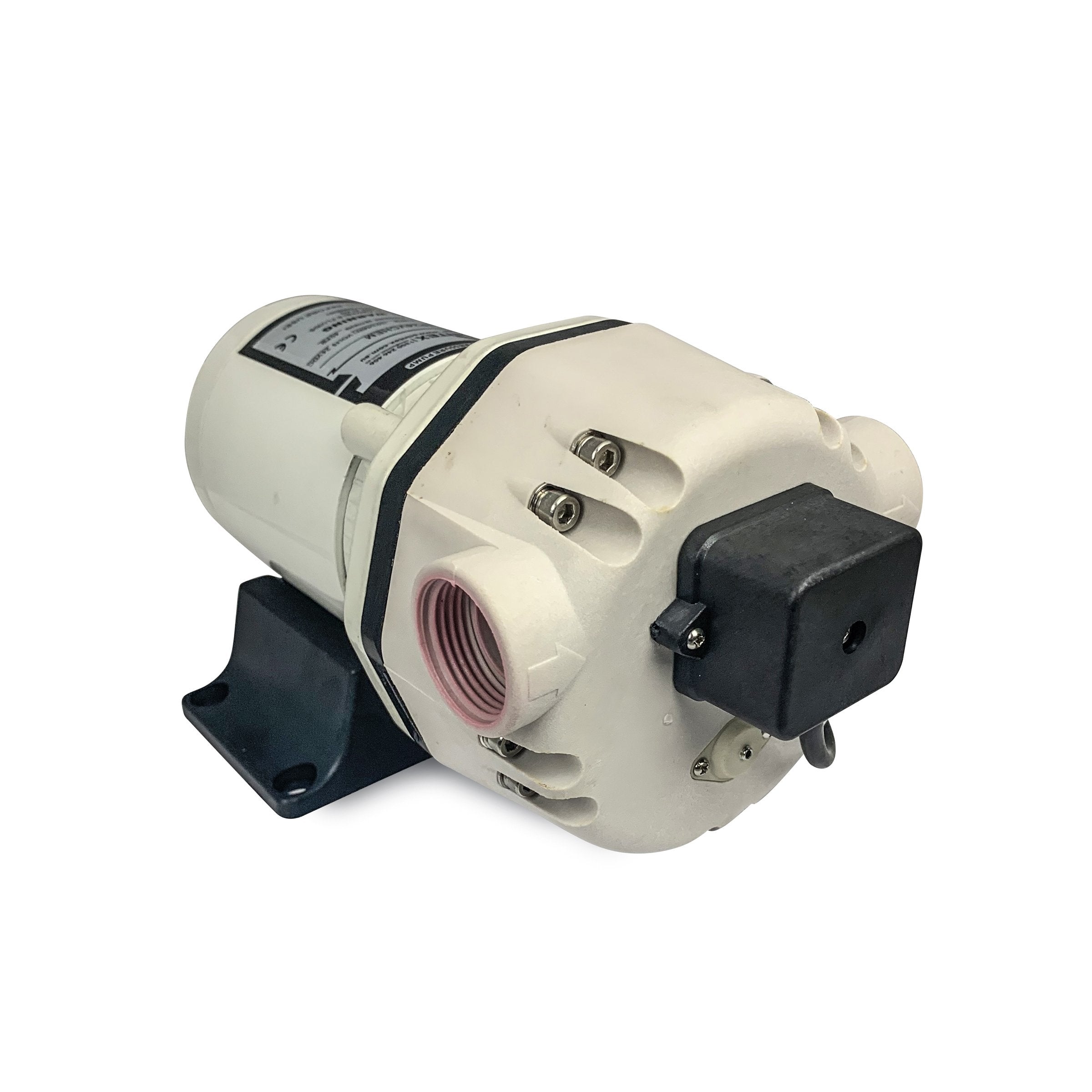

DC Chemical Transfer Pump
Description
This is a small footprint, smooth operation pump which is perfect for the unloading of chemical liquid transfers, totes or drums of AdBlue, diesel exhaust fluid, detergents, soaps, mild acids and alkalis. These pumps deliver good flows and pressures at an affordable price.
12V / 24V AdBlue DC Chemical Pump
These pumps have Viton diaphragms and valves making them compatible with a vast range of chemicals. They utilise a high quality permanent magnet motor which makes them suitable for continuous duty operation without overheating.
These pumps are suitable for pumping most liquid fertilisers. The pumps diaphragm design keeps the wetted materials separate from sensitive components which could corrode or foul, ensuring high performance and reliability.
The 5 chamber design of these pumps ensures smooth and steady flow compared to other diaphragm style pumps. Each pump has a inbuilt pressure switch meaning the pump will start and stop based on demand which is perfect for filling operations with nozzles, valves and taps.
AdBlue Pump Features:
- Permanent magnet and continuous duty
- Simple threaded connections
- Built-in pressure switch automatically starts and stops
- 12V/24V motor options
- 30-35 L/min Flowrate
- Specially designed for AdBlue transfer applications
- Viton check valve seals
- Capable of running dry for extended periods of time without damage
- 12-month warranty
Specialised AdBlue Liquid Transfer Pump and Other Applications
If using a pump to fill your AdBlue storage tank in your vehicle, an AdBlue compatible pump is required. It is critical that the high purity of the AdBlue be maintained, so all components exposed to AdBlue must be manufactured from specific, corrosion-resistant materials. This pump has been designed with corrosion-resistant materials and a careful layout to ensure the fluid stays in the pump chamber away from the motor and other metallic parts which would corrode with exposure.
- Specially designed for AdBlue transfer applications
- Popular in the mining sector
- Sewage or other areas where solids may be of concern
- Unloading chemicals from drums and totes
- Transfer of diesel and petrol exhaust fluids
- Can also be used to pump fresh water
Always check your pumping fluids compatability with the pumps wetted materials before purchasing.
| Model | SP12VCHEM | SP24VCHEM |
|---|---|---|
| Motor | Permanent Magnet, continuous duty | Permanent Magnet, continuous duty |
| Voltage | 12V DC | 24V DC |
| Power | 180W | 180W |
| Amps | 15A | 7.5A |
| Pressure Switch Setting | 40psi (2.8 Bar) | 40psi (2.8 Bar) |
| Inlet / Outlet | 1" BSP F | 1" BSP F |
| Max. Suction Lift | 3m (9ft) | 3m (9ft) |
| Flow rate | 30-35 L/min | 30-35 L/min |
| Liquid Temperatures | -10°C to 60°C | -10°C to 60°C |
| Check Valve | Viton | Viton |
| Duty Protection | Thermal Overload, Automatic Restart | Thermal Overload, Automatic Restart |
| Run Dry Protection | Yes | Yes |
| Wetted Materials |
Thermoplastic vulcanizates (Santoprene) Viton Polyamide (PA 6.6) Stainless Steel |
Thermoplastic vulcanizates (Santoprene) Viton Polyamide (PA 6.6) Stainless Steel |
| Warranty | 12 Months | 12 Months |
Fittings: Scintex can supply fittings and hose suitable for use with Urea or AdBlue.
