Dewatering Submersible Pump

Current Price $549.00
Original Price $699.00
(inc GST)
SKU SPSP0450F

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.

Description

High quality submersible dewatering pumps. These single phase pumps are lightweight and compact yet still deliver impressive flow rates. Ideal for general water moving applications from basements, pools, construction site drainage, wells, pits plus much more.

Paddock Dewatering Submersible PumpsTsurumi De-watering Drainage Pumps Australia

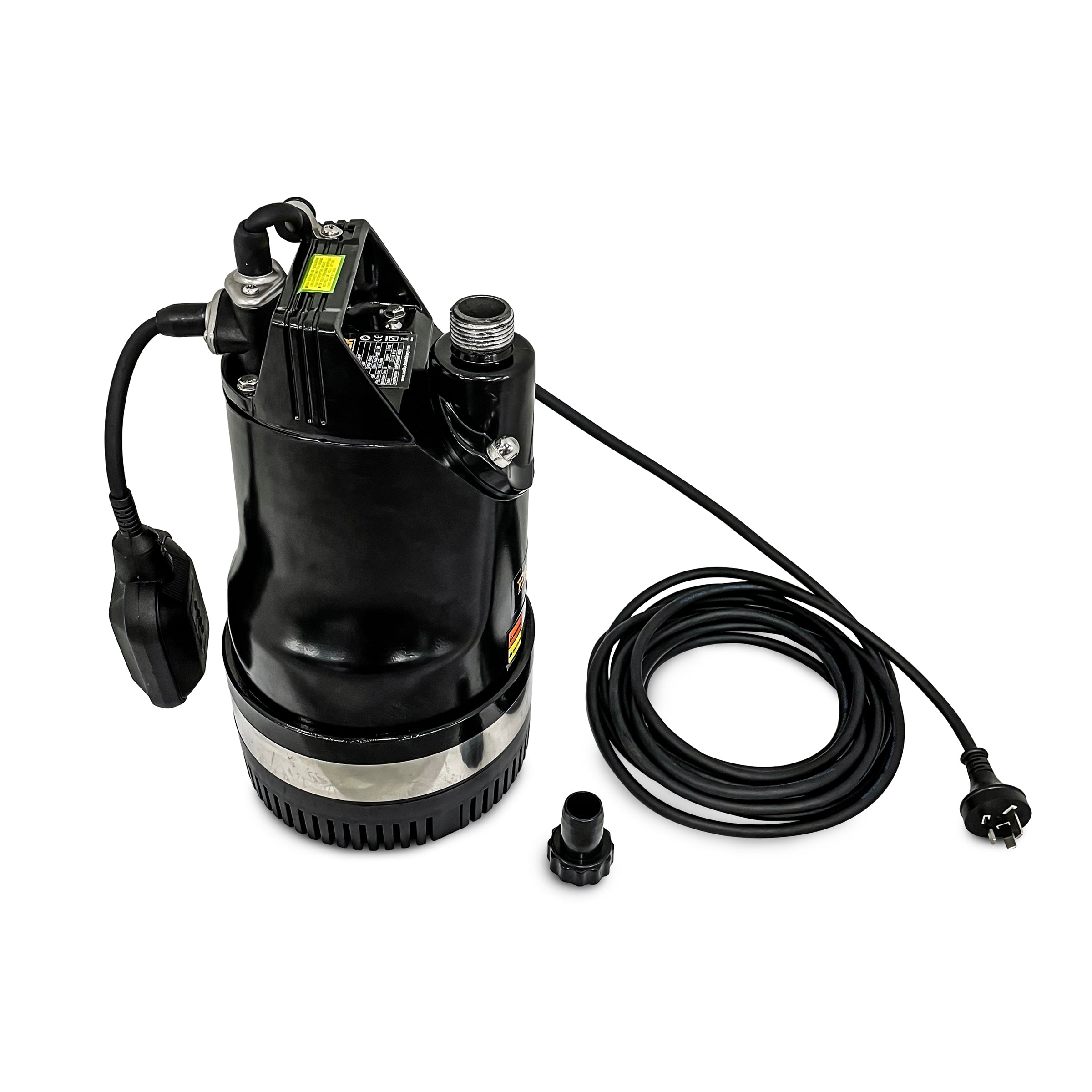

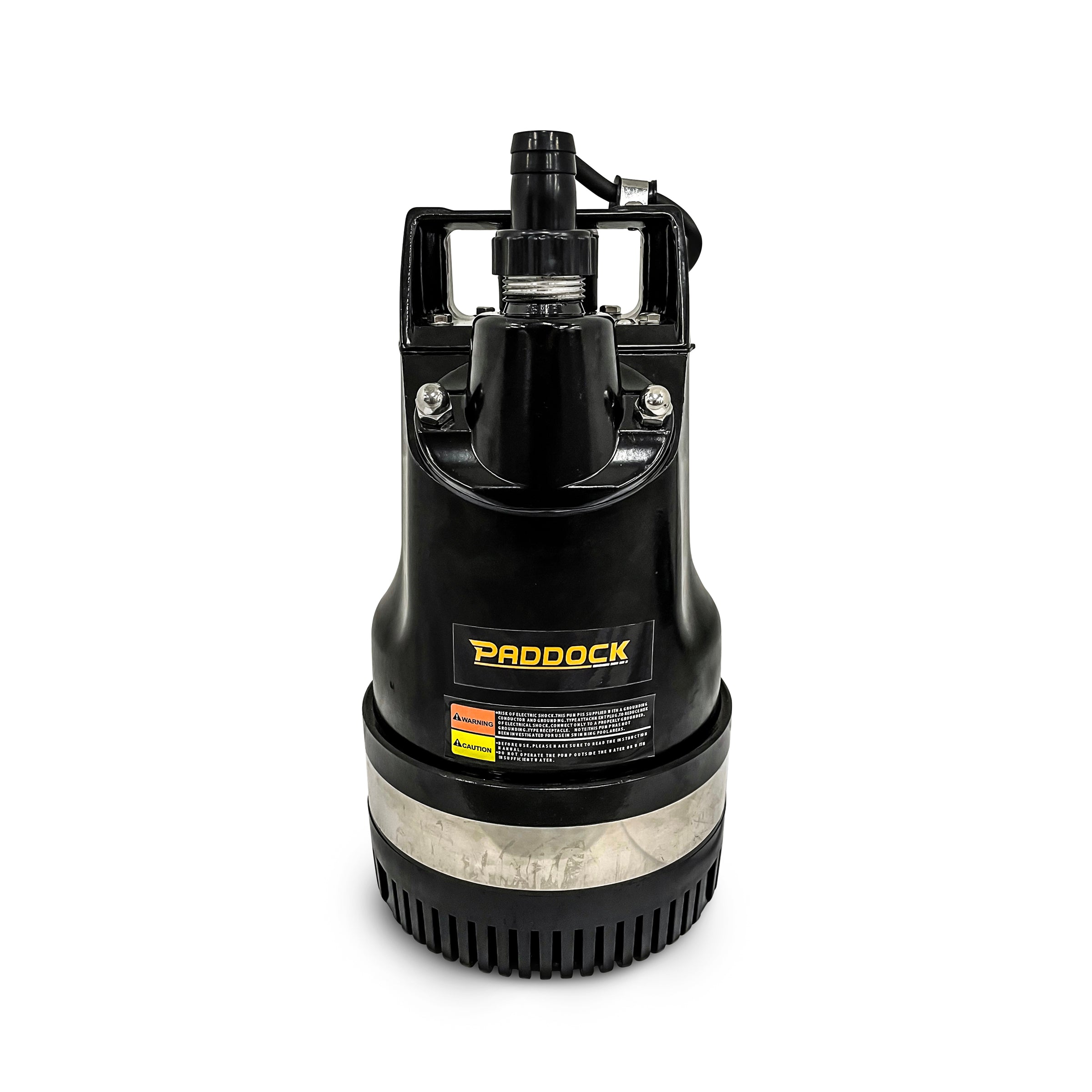

Single Phase Dewatering Submersible Pump 200-300 L/min

The pumps are great all rounders and reliable performers. The lightweight design is physically small, yet still delivers flow rates up to 300 L/min. If you need a small pump for moving water and want reliable performance from a lasting and proven design, look no further.

Also available are high discharge head models which generate greater pressures. These models are suited to applications where water may need to be moved over greater distances or elevations. The pump will run smoother as it works efficiently generating a higher flow rate as more challenging conditions.

Submersible Pump Features:
  • Available in manual or automatic level activation
  • Flow rates up to 300 L/min depending on the model
  • Discharge heads up to 15m depending on the model
  • Unique anti-wicking cable entry design
  • Thermal motor protection
  • Twin dual SiC mechanical seals
  • High quality construction

These pumps have adjustable discharge ports which allows users to attach a hose and pump vertically out of a small pit or horizontally saving a kinked hose if the application requires it.

Available in a range of options with or without level control which turns the pump on and off as the water level changes.

    Pump Specification SPSP0450F

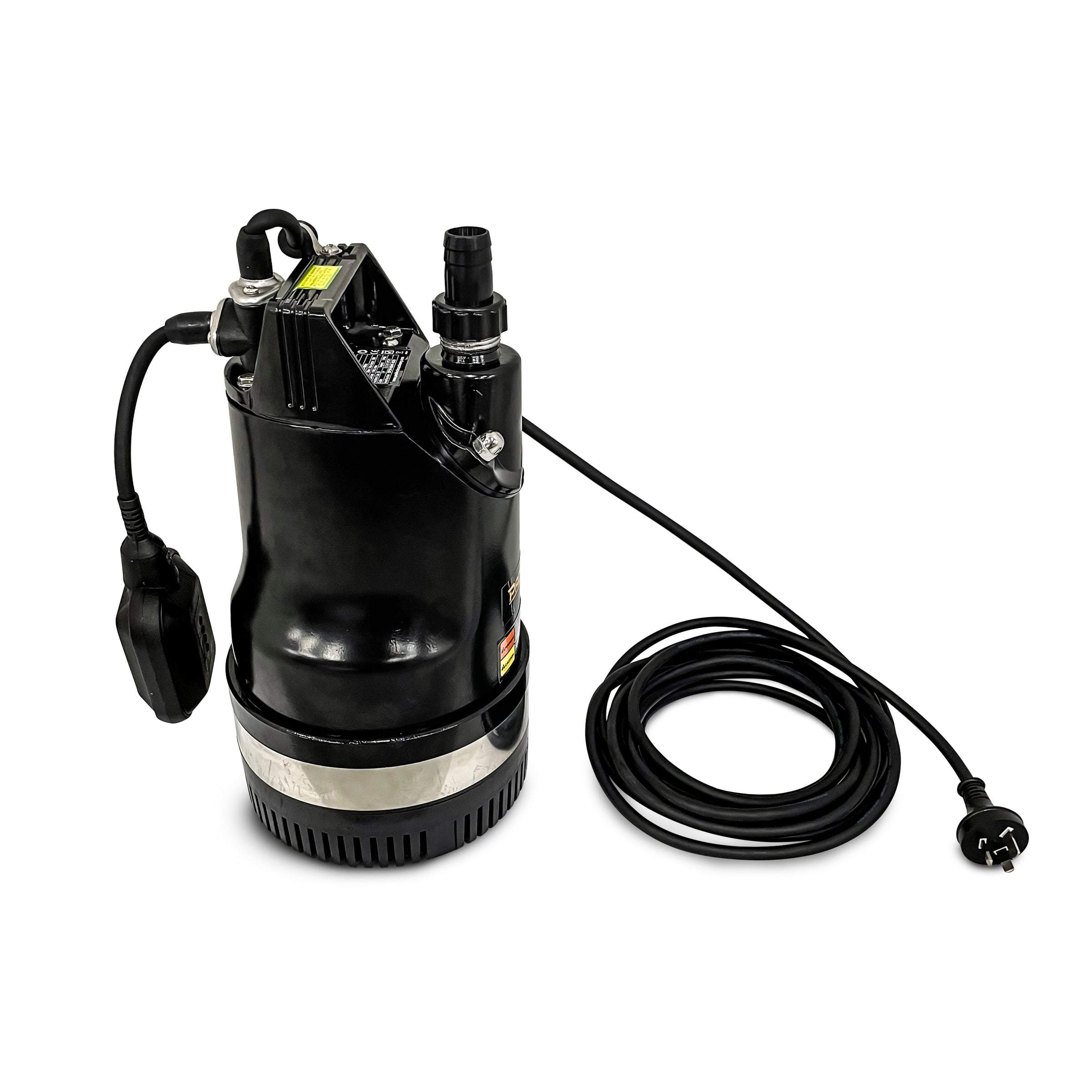

    SPSP0450N

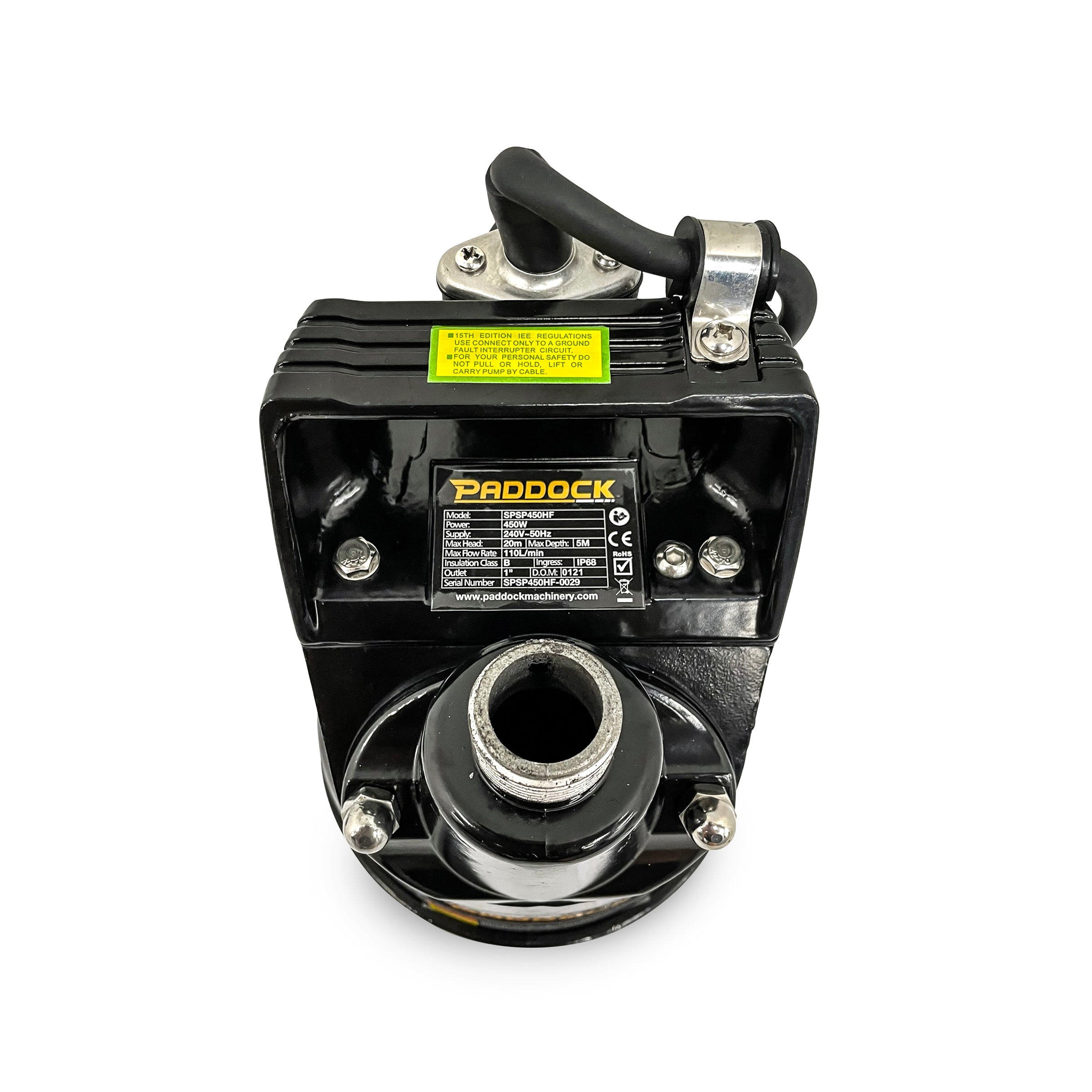

    SPSP450HF

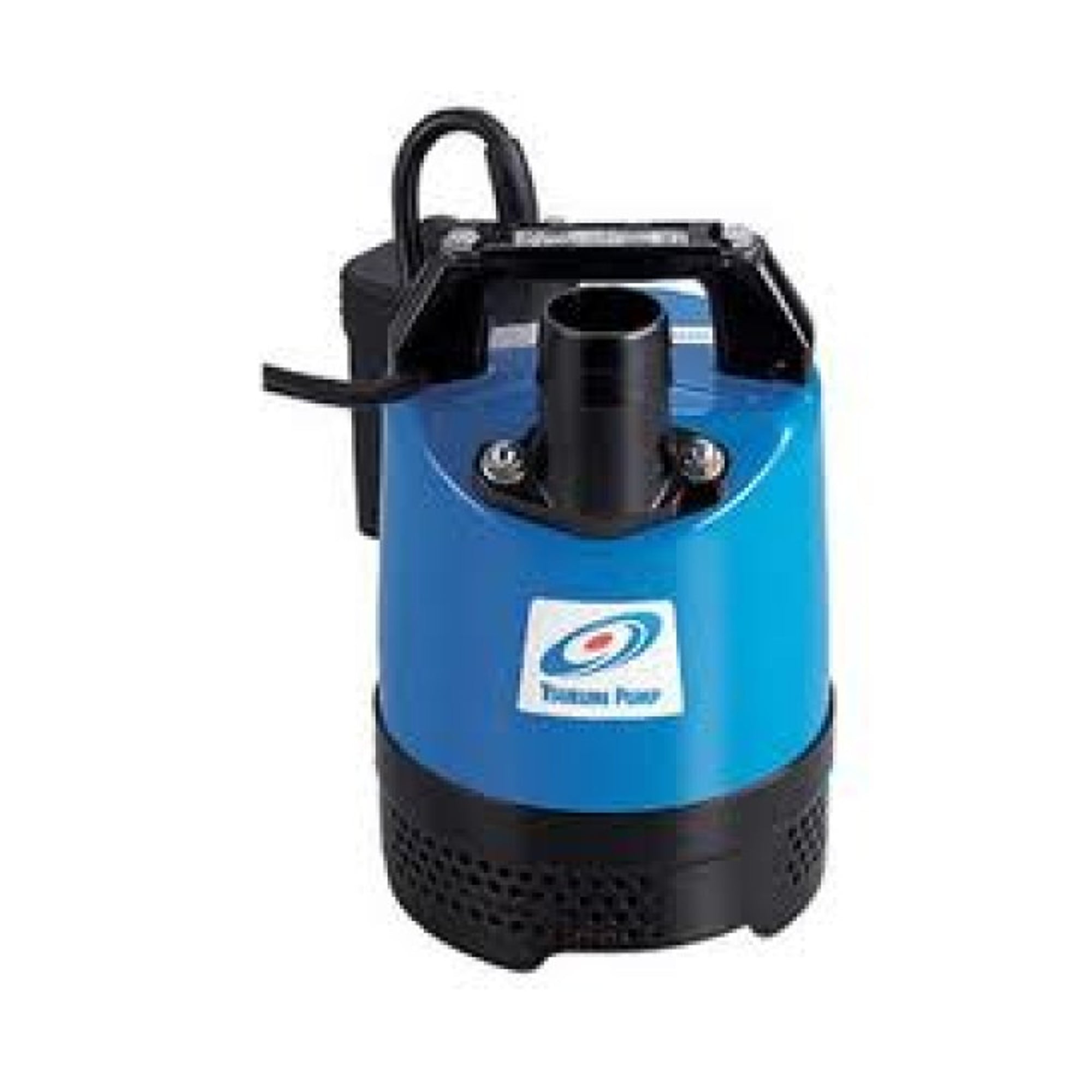

    LB-480 LB-800
    Manufacture Paddock Paddock Tsurumi Tsurumi
    Service General High Pressure General
    General
    Voltage 240V Single Phase 240V Single Phase 240V Single Phase 240V Single Phase
    Power 450 Watts 450 Watts 480 Watts 750 Watts
    Motor Continuous duty Cycle when submerged Continuous duty Cycle when submerged Continuous duty Cycle when submerged Continuous duty Cycle when submerged
    Level Control Automatic via Float

    SPSP0450N - Manual

    SPSP450HF - w/ float

    LB-480 - Manual

    LB-480A - Automatic - pump will start at ~115mm of water level

    LB-800

    LB-800A - Automatic - pump will start at ~170mm of water level

    Flow Rate (max) 260 L/min, 15.6 m3/hr 110 L/min, 6.6 m3/hr 225 L/min, 13 m3/hr 310 L/min, 18 m3/hr
    Discharge Head (max) 11 m 20 m 11 m 15 m
    Max. Submersion 5 m 5 m 5 m 5 m
    Inlet / Outlet 2" hose tail adjustable 1" hose tail adjustable 2" hose tail adjustable 2" hose tail adjustable
    Max. Fluid temp. 40 °C 40 °C 40 °C 40 °C
    Compatabile Fluids Water

    Max. solid handling 6mm
    Water

    Max. solid handling 6mm

    Water

    Max. solid handling 6mm

    Water

    Max. solid handling 6mm

    Approx. Weight 11 kg 15 kg

    10.4 kg

    11 kg - Automatic model

    13.2 kg

    13.8 kg - Automatic model

    Approx Dimensions 190 x 190 x 290 mm 190x190x302 mm 190 x 190 x 290 mm 190 x 190 x 340 mm
    Construction Semi vortex/open type impeller

    Oil resistant cable

    Anti-wicking cable entry

    Dual silicon carbide mechanical seals
    Semi vortex/open type impeller

    Oil resistant cable

    Anti-wicking cable entry

    Dual silicon carbide mechanical seals

    Semi vortex/open type impeller

    Oil resistant cable

    Anti-wicking cable entry

    Dual silicon carbide mechanical seals

    Semi vortex/open type impeller

    Oil resistant cable

    Anti-wicking cable entry

    Dual silicon carbide mechanical seals

    Warranty 2 yr 2 yr 1 yr 1 yr

     Tsurumi LB-480 LB-800 performance flow pump curve
