Fuel Canister Filter
$50.00
SKU SPEVFLT3B
FREIGHT ESTIMATE: Add to cart for shipping costs.
Description
Quality filter elements manufactured by one of the largest filter manufactures in the world. Available in 30 Micron. Ideal for retrofitting to your petrol or diesel engine.

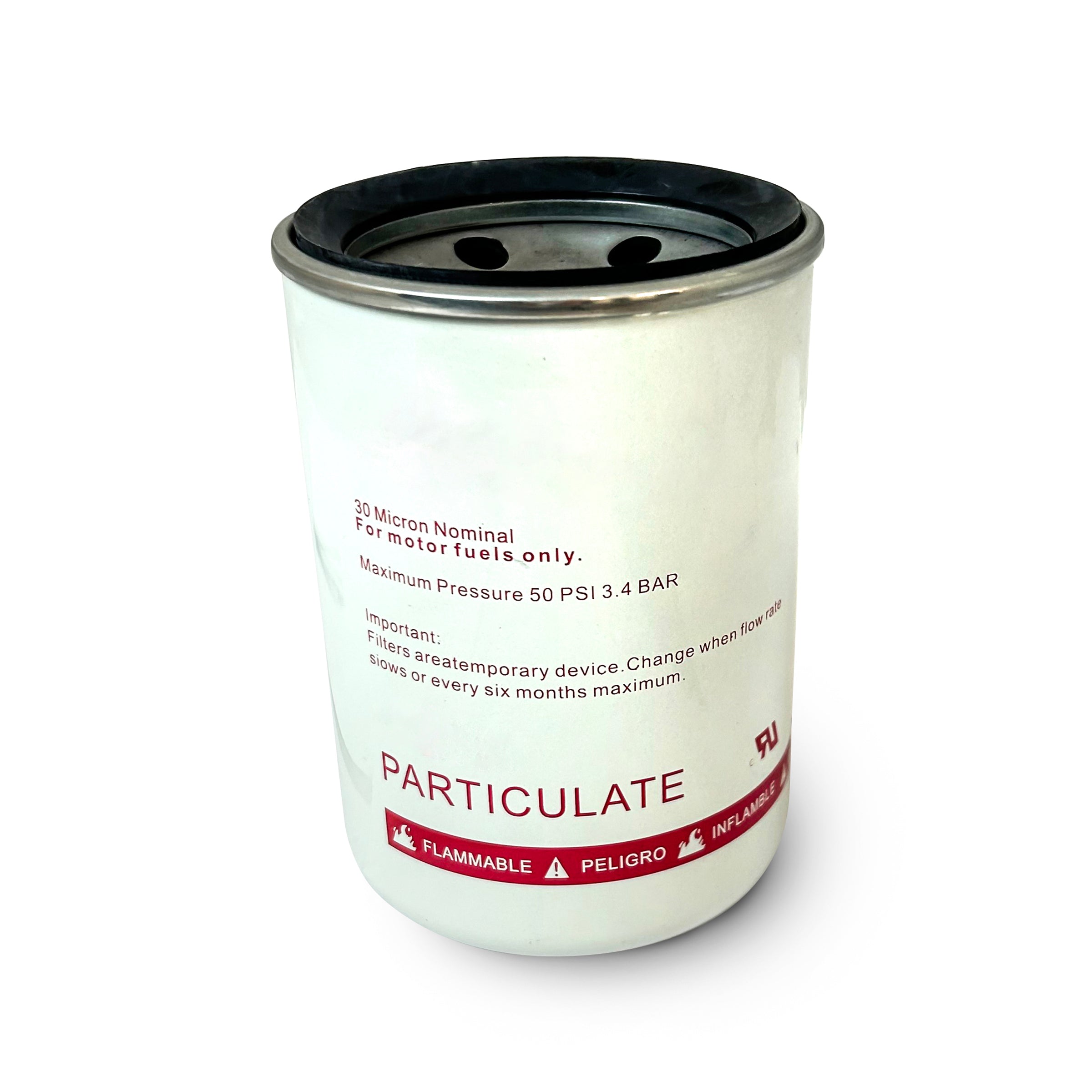

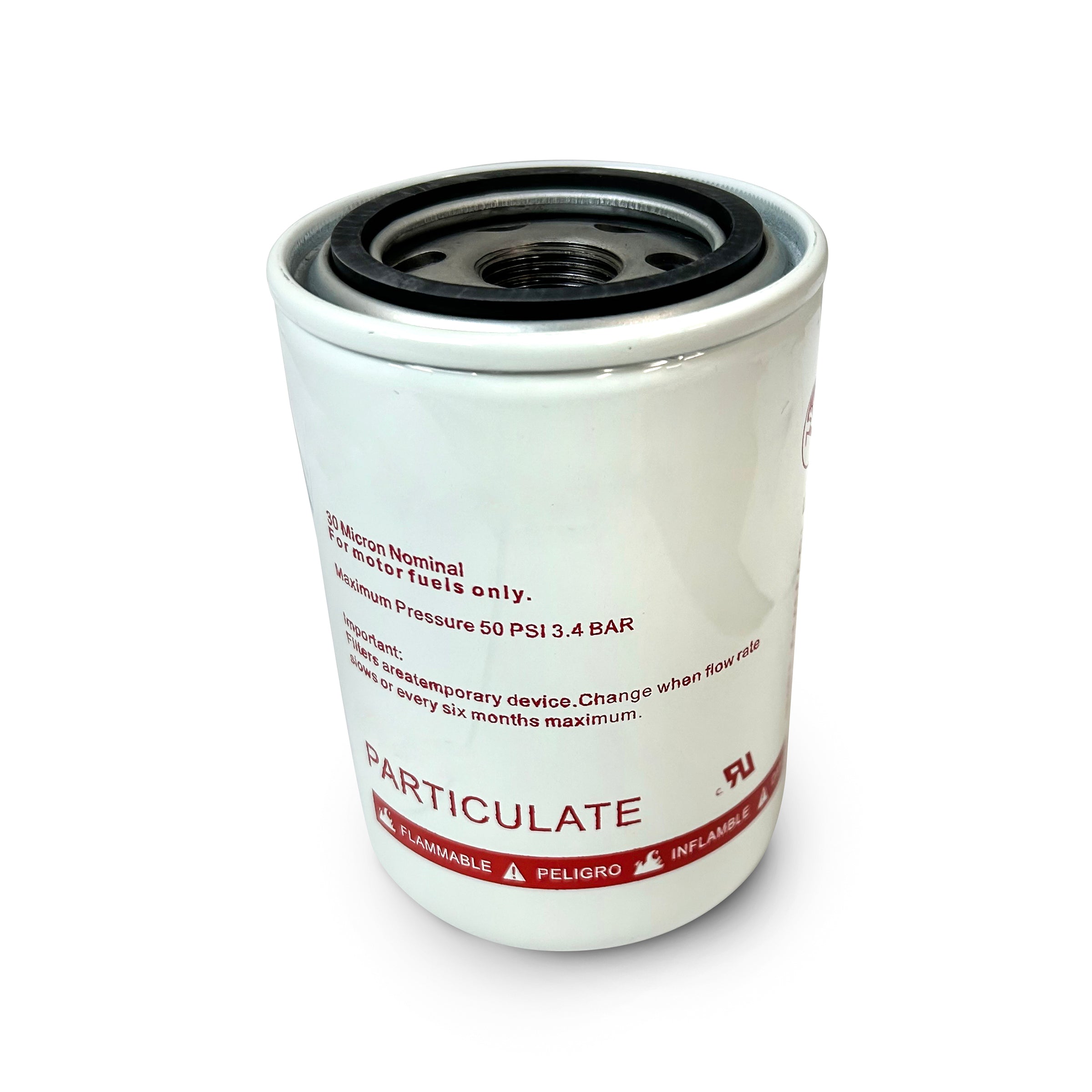

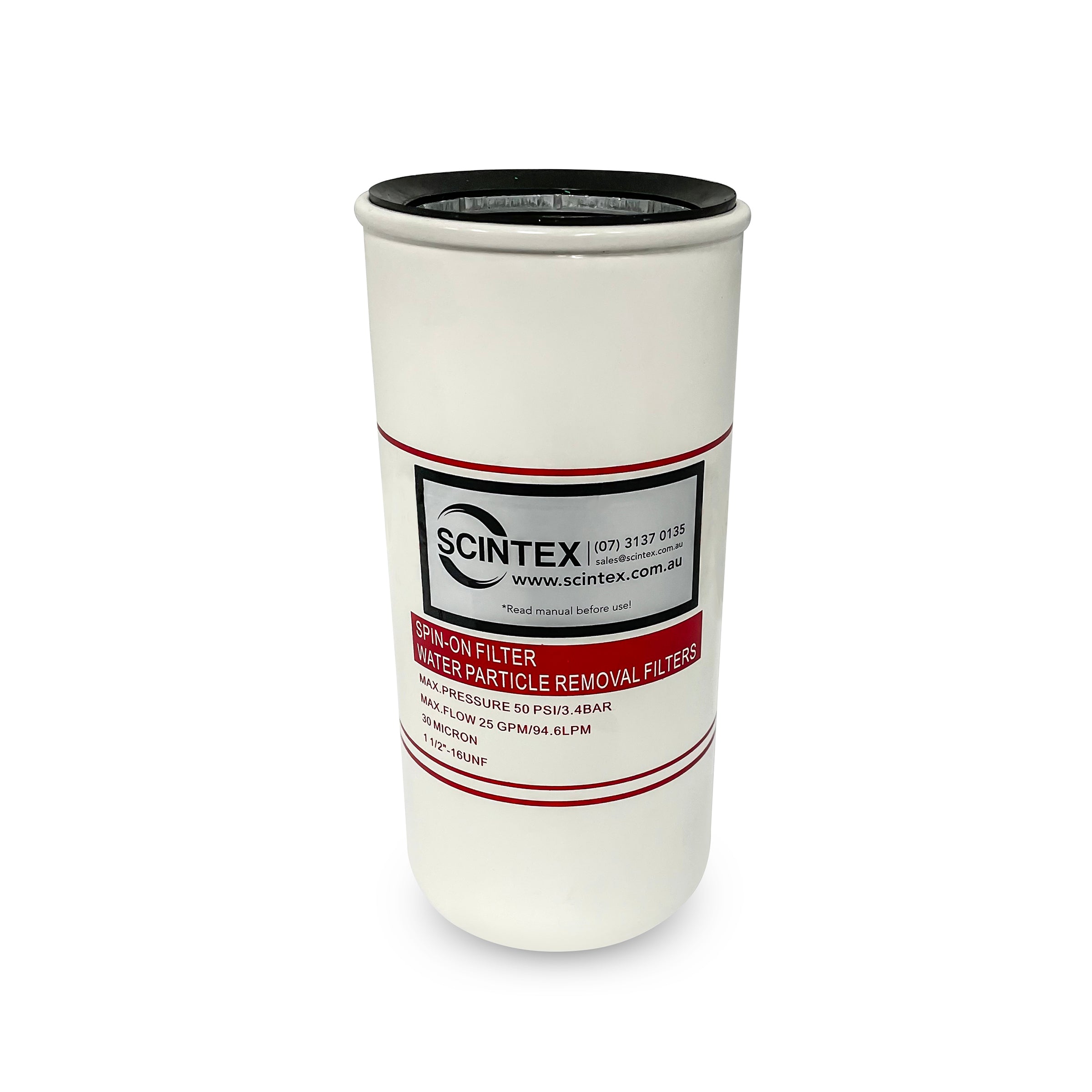

Spin On Standard Diesel or Petrol Fuel Filter Element 30um
These filter elements remove particulates down to 30um in size. They are ideal for a range of end users including farming with tractors and machinery, diesel or petrol engine generators and equipment plus large commercial machinery diesel fuel filtration.
These filter elements are available in a 5-1/2" or the larger 8" size and will help extend the life of the equipment they're protecting.

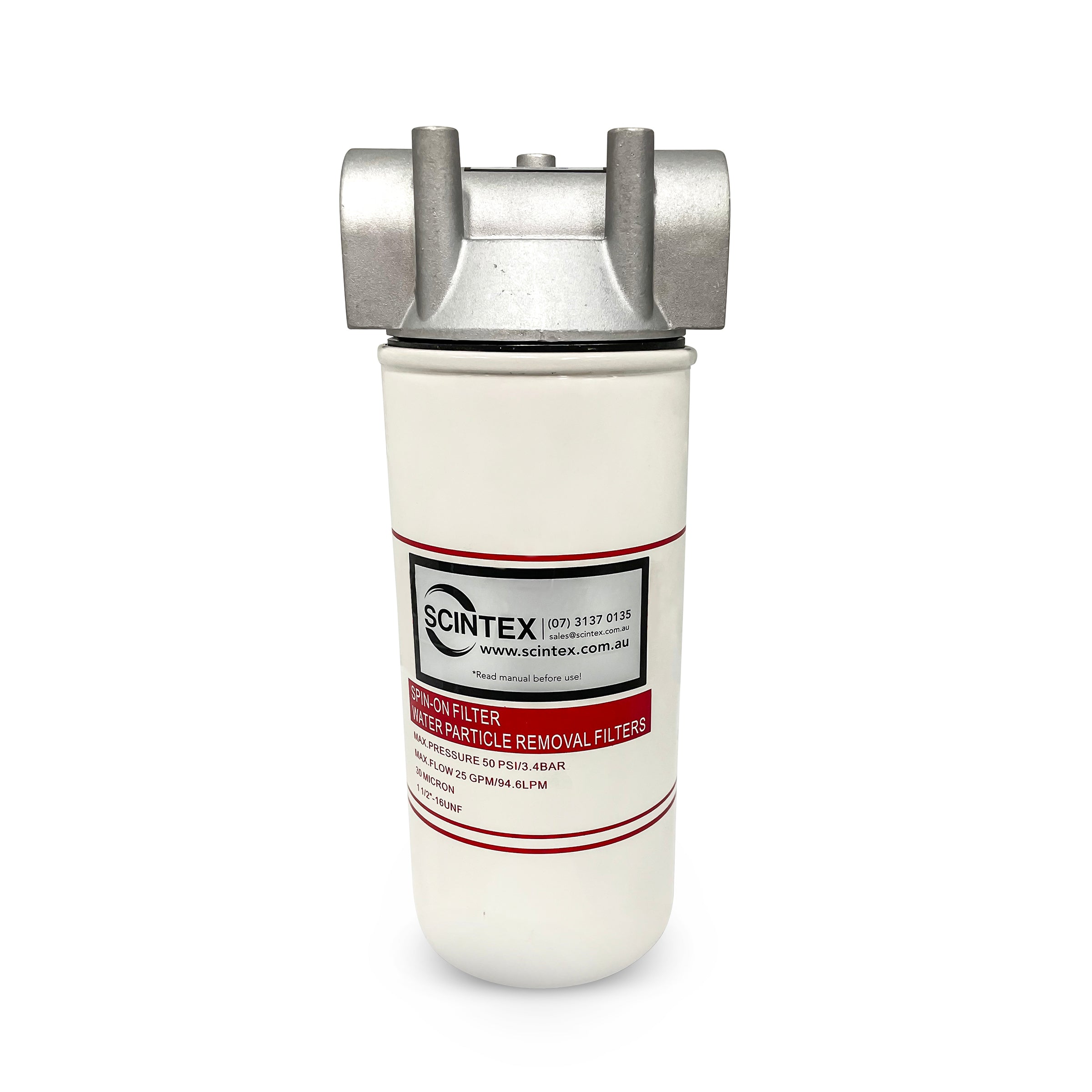

These inline filters are simple to retrofit to applications. Note, the mounting head to suit these elements is available separately.
Fuel Filter Specifications:
- Suited to Petrol and Diesel applications
- Includes - 1x fuel filter element. Mounting top sold separately.
| Specification | SPEVFLT3B | SPEVFLT30ST | SPEVFLT3A |
|---|---|---|---|
| Height | 5-1/2" |
8" |
5.6" |
| Diameter | 93mm | ||
| Micron |
30 |
30 |
30 |
| Flow Rates | up to 55L/hr | up to 95L/hr |
up to 55L/hr |
| Diameter | 7" | 7" | 4" |
| Inlet | 1-1/2"-16 UNF | 1-1/2"-16 UNF |
1-1/2" O-ring 71ID 87OD |
| Max. Pressure | 50 PSI / 3.4 BAR | 50 PSI / 3.4 BAR | 50 PSI / 3.4 BAR |
| Cross Reference | Gilbarco K82584 K82584-D SAKURA FC-7932 FC7932 WINPUMP PR 30010 PR30010 Item No.: ES14080 ES-14080 |
