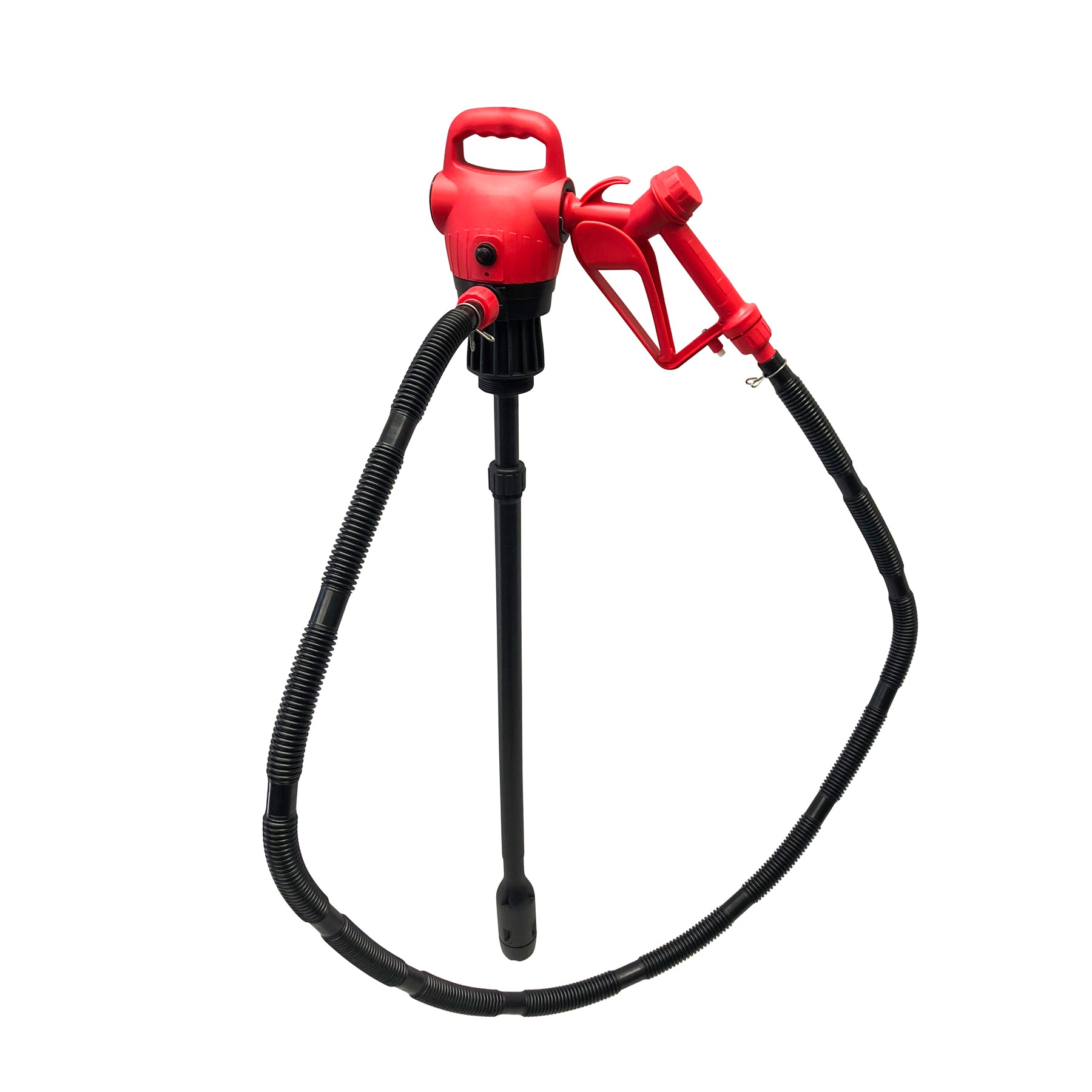

Dual Voltage Diesel Drum Pump – 12V / 240V, 20 L/min
Description
Portable dual-voltage diesel drum pump designed for convenient fuel transfer from 60L and 205L drums, IBCs and compatible storage tanks. The pump can operate from either a 12V battery supply or 240V mains power, making it a versatile solution for workshop, agricultural, construction and mobile refuelling applications.
Dual Voltage Diesel Drum Pump – 12V / 240V
This portable diesel transfer pump provides the flexibility of both 12V DC and 240V AC operation. Use the supplied battery connection when working remotely or connect to mains power when operating around the workshop or depot.
With a maximum rated flow of up to 20 L/min, the pump is suited to transferring diesel from drums and compatible fuel storage tanks into vehicles, machinery and equipment.
Diesel Drum Pump Features
- Dual-voltage operation – 12V DC or 240V AC
- Maximum rated flow up to 20 L/min
- Designed for diesel fuel transfer
- Self-priming pump design
- Suitable for 60L and 205L drums
- Can also be used with compatible IBCs and fuel tanks
- Adjustable suction tube from approximately 985mm to 1250mm
- Maximum pressure approximately 21 PSI
- 2m x 3/4" discharge hose
- Dispensing nozzle included
- Internal bypass for brief closed-nozzle operation
- Portable design for workshop and field use
- 12 month warranty
12V & 240V Operation
The dual-power design allows the pump to be operated from a suitable 12V battery supply when mains electricity is unavailable or from a 240V AC power supply when operating around workshops, sheds and other powered locations.
This makes the pump particularly useful for users who need one diesel transfer system for both fixed and mobile applications.
Up to 20 L/min Diesel Transfer
The pump provides a maximum rated flow of up to 20 L/min for transferring diesel into vehicles, tractors, generators, construction equipment and other diesel-powered machinery.
Actual transfer rate will vary depending on suction conditions, hose configuration, fuel level and overall system resistance.
Adjustable Drum Suction Tube
The adjustable suction tube extends from approximately 985mm to 1250mm, allowing the pump to be configured for different drum and tank installations.
The pump can be used with common 60L and 205L drums as well as compatible IBCs and storage tanks where the mounting and suction arrangement permits.
Internal Bypass
An internal bypass allows the pump to tolerate brief periods with the dispensing nozzle closed during normal refuelling operation.
The bypass is intended for temporary closed-nozzle operation only. The pump should not be left running continuously against a closed dispensing nozzle.
Diesel Drum Pump Specifications
| Specification | Value |
|---|---|
| Model | SDLDP20LPM |
| Compatible Fluid | Diesel |
| Power Supply | 12V DC battery or 240V AC mains |
| Maximum Flow Rate | 20 L/min |
| Maximum Pressure | 21 PSI |
| Suction Tube Length | Adjustable approximately 985–1250mm |
| Discharge Hose | 2m x 3/4" |
| Duty Cycle | Maximum 15 minutes |
| Bypass | Internal bypass for temporary closed-nozzle operation |
| Warranty | 12 Months |
What's Included
- Dual-voltage diesel transfer pump
- Adjustable suction tube
- 2m discharge hose
- Dispensing nozzle
- Required fittings and hose clamps
- 12V and 240V power connections
Important: This pump is designed for diesel transfer. It is not suitable for petrol or other highly flammable fuels. Do not exceed the specified 15-minute duty cycle and do not leave the pump operating continuously with the dispensing nozzle closed.
