Description
The range of diesel engine driven water transfer pumps by PADDOCK Machinery offer exceptional performance at a realistic price. These pump and engine combinations have been designed to move high volumes of water around your farm, property, business or construction site with ease.

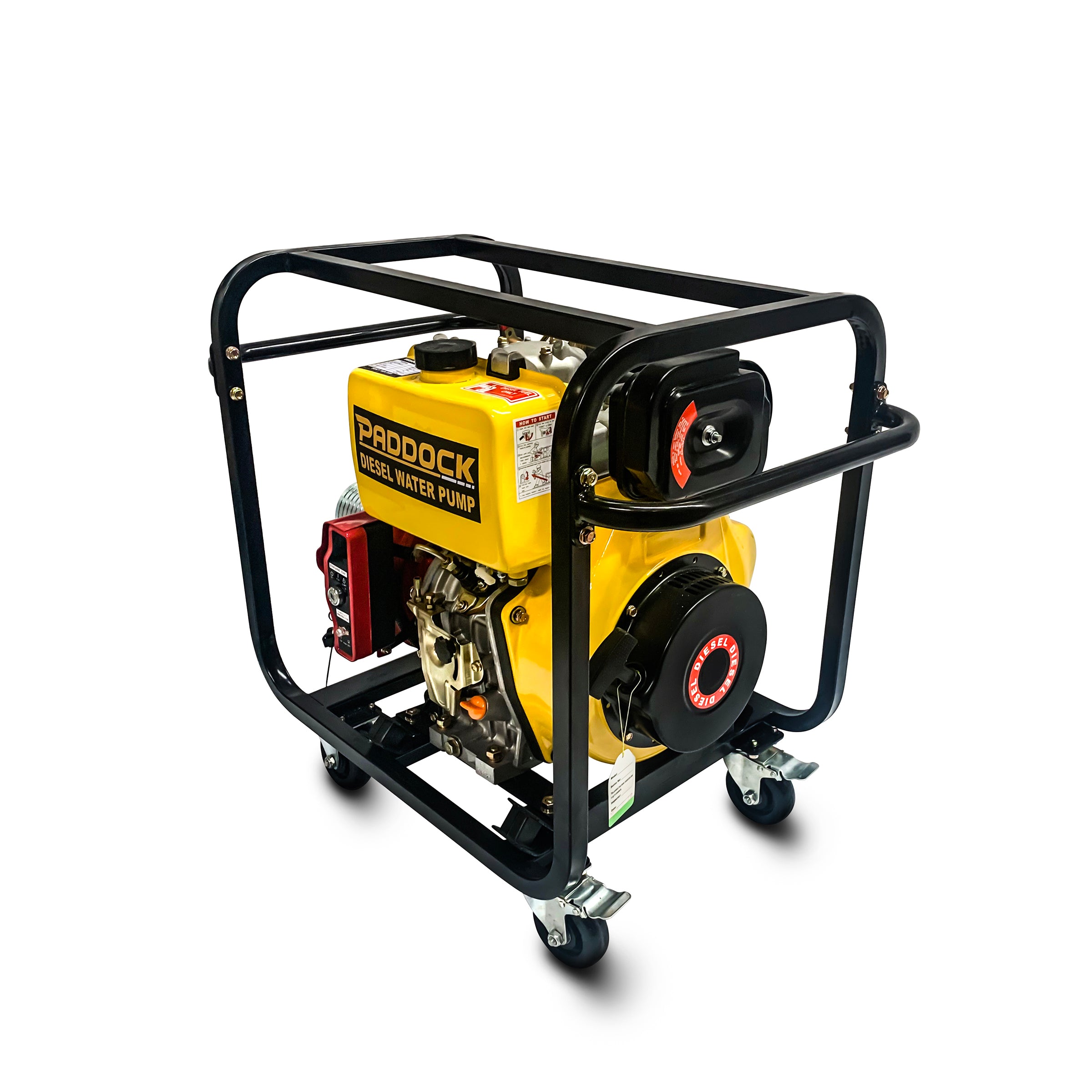

Electric Start Diesel Engine Driven Water Transfer Pumps
These pump packages are compact yet still pack a serious punch with massive transfer flow rates and high diesel engine efficiency and reliability.
The skids have wheels which are great for applications where the pump is regularly being relocated. If you have a permanent installation, they can quickly be removed allowing for the frame to be bolted in a single position.
All packages are electric key start with recoil backup meaning even if you haven't used your pump for a extended period and the onboard battery has run flat, you can still get the pump working via the reliable pull cord.
The packages are ideal for emergency situations where water needs to be moved fast.The high volume pumps have been carefully selected and coupled to the required horsepower diesel engine to optimise the packages output.
High Volume Water Transfer Series:
- Electric start diesel engine with recoil back up
- Higher transfer rates from engineered pump/engine solutions
- Steel roller over frame with removable transport wheels
- Simple air cooled and water cooled engine solutions
- Easy access to spare and consumable parts
- 2 yr warranty

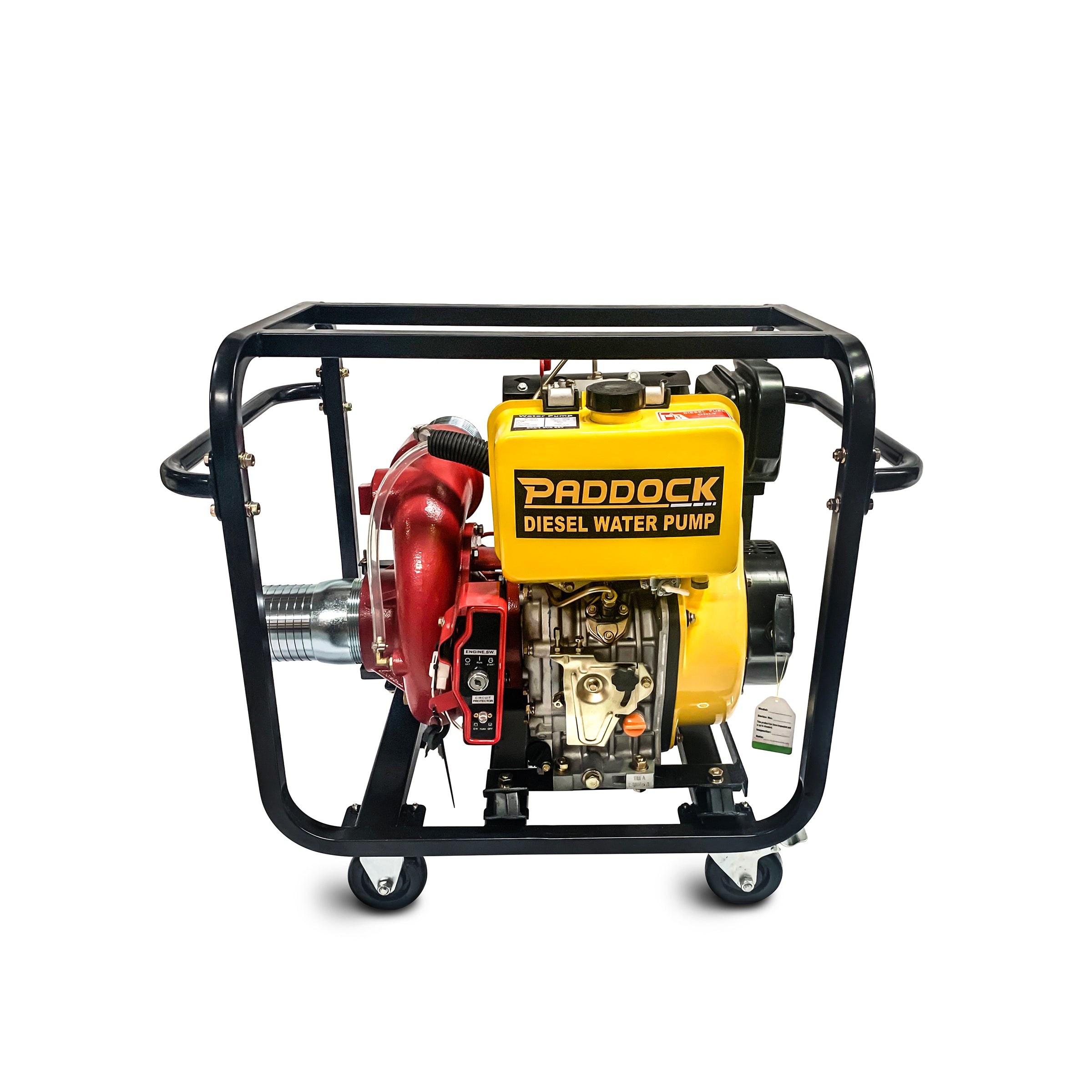

High Pressure Fire Fighter Series
- Discharge lift up to 80m
- Flow rates up to 80,000 L/hr
- Exceptional build quality and packed with features
- Suited to clean water applications such as irrigation and fire fighting
Trash Pump Series
- Refer to separate listing for Diesel Trash Pumps
Optional Extras: Hoses, Fittings & Camlocks
Scintex can supply a range of hose and fittings options to suit these pumps. Our range of suction, discharge and lay flat hoses are available here. For inlet strainers and check valves see here. For camlock fittings in aluminium and stainless steel see here. Scintex is happy to help advise with the set up of these pumps and supply any fittings, hose or clamps you may require.

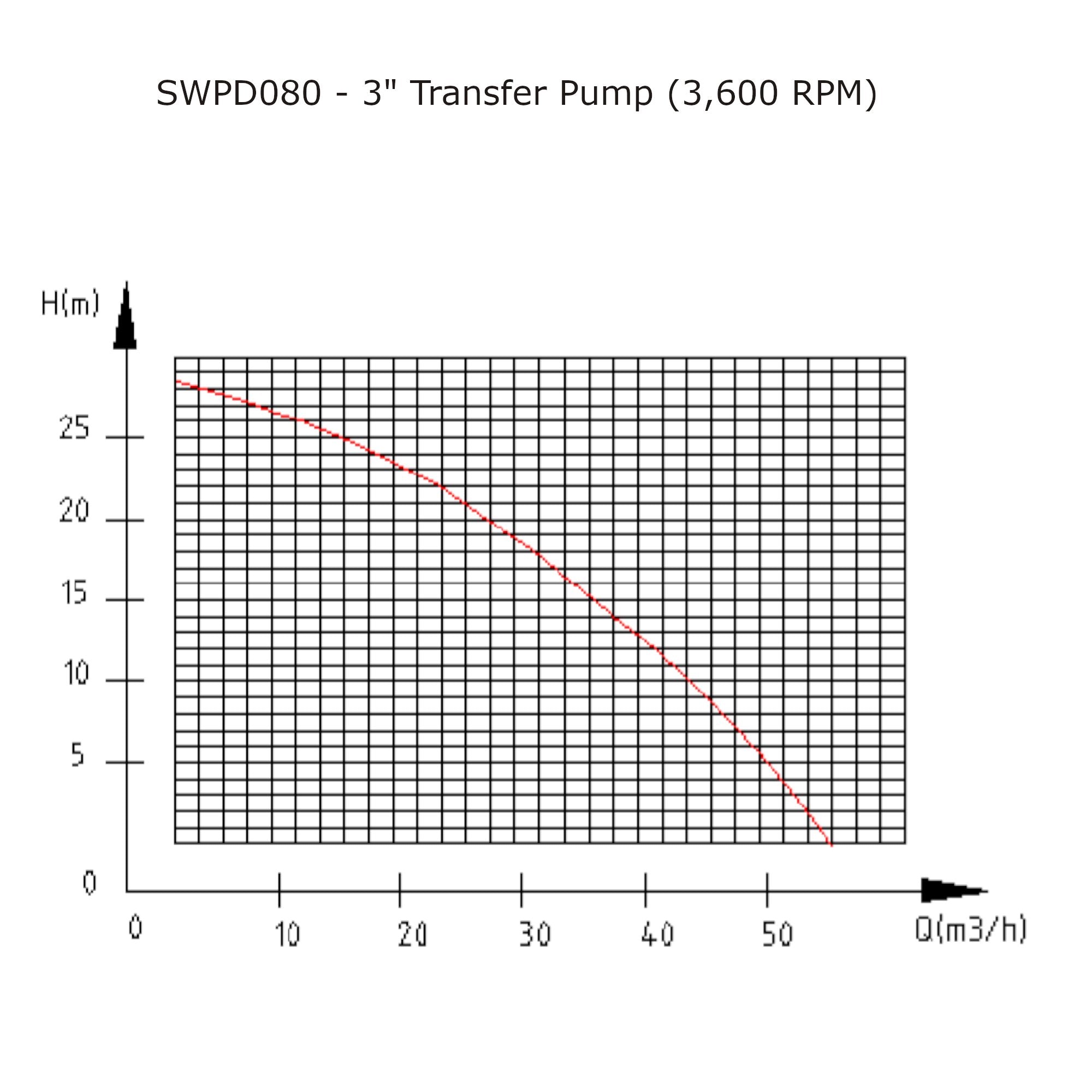

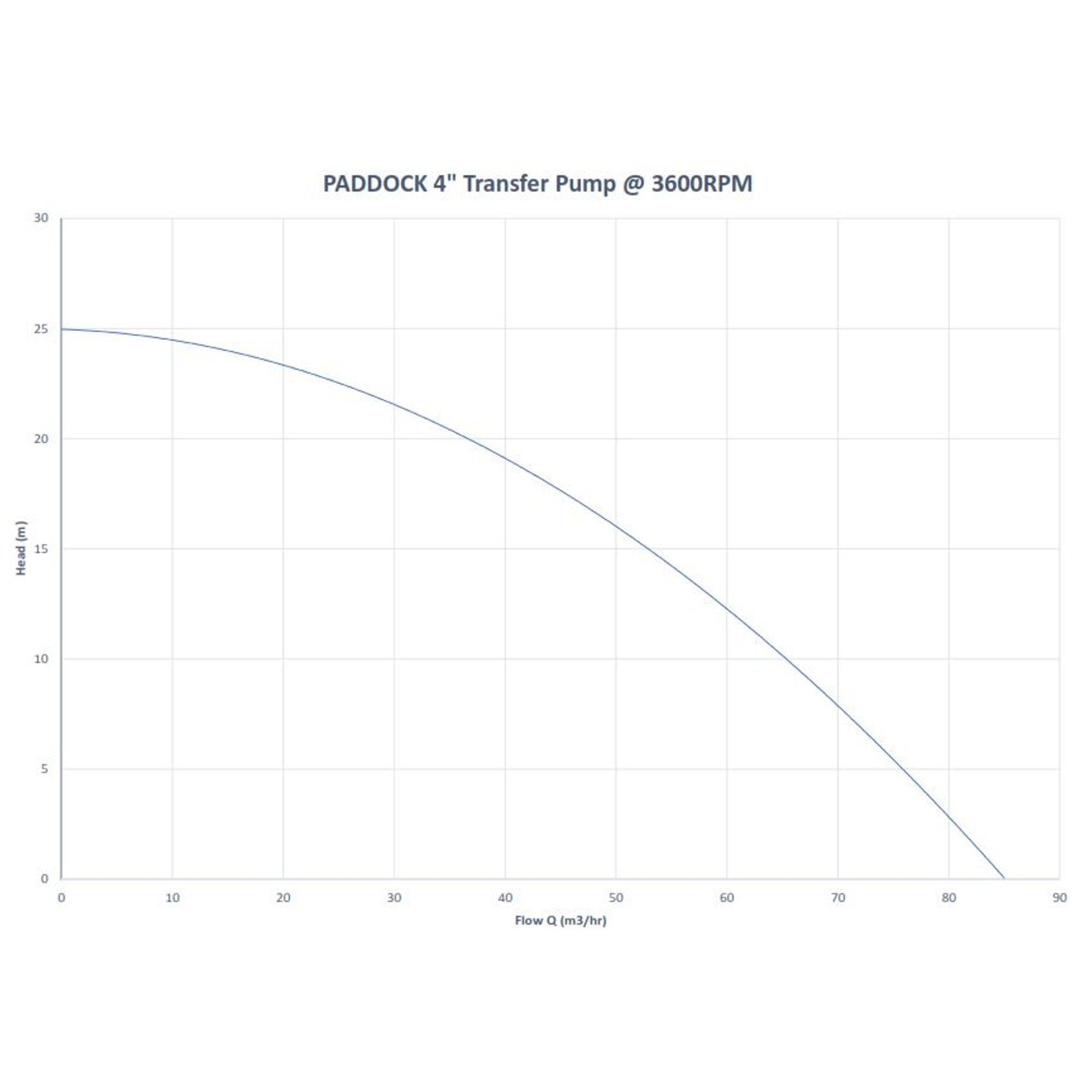

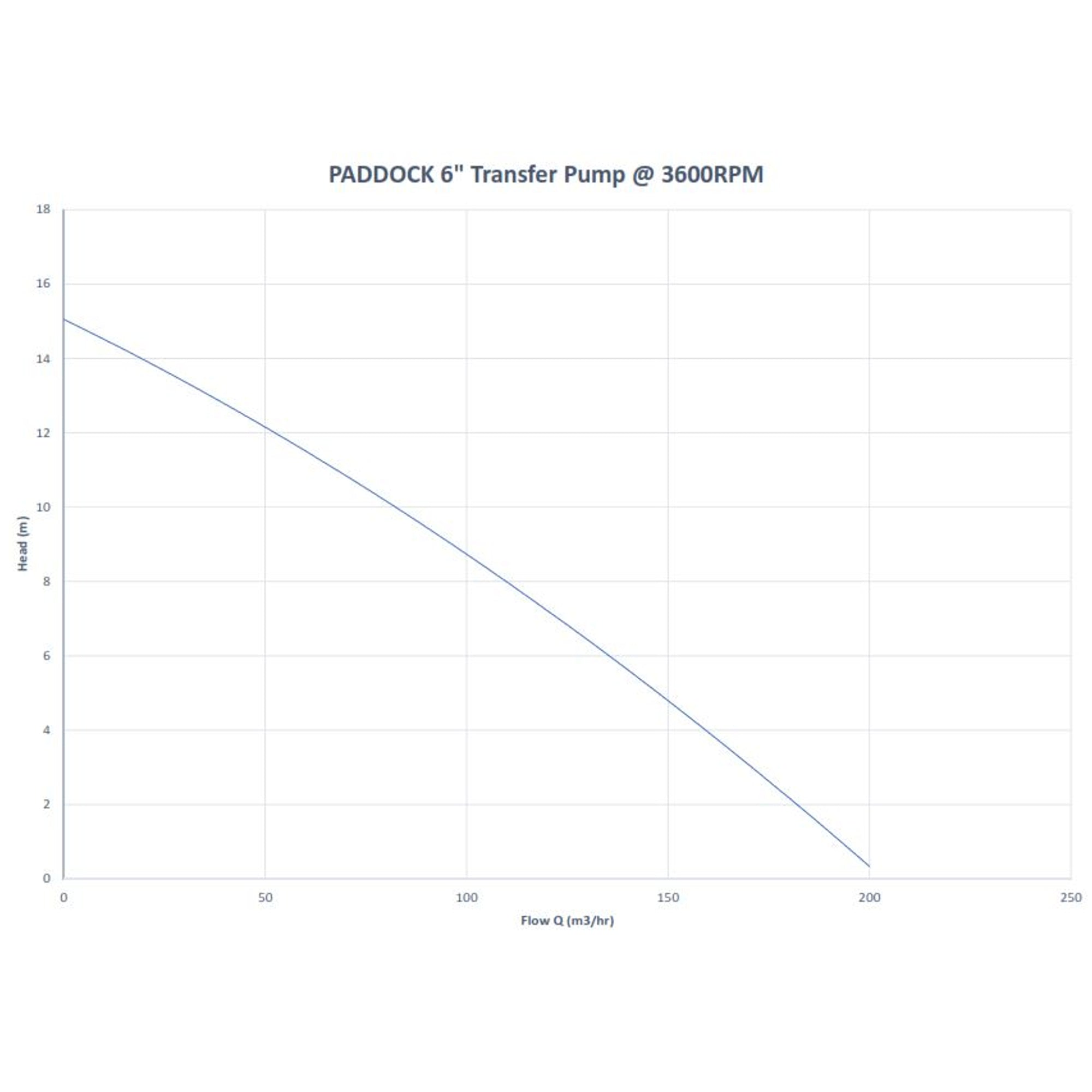

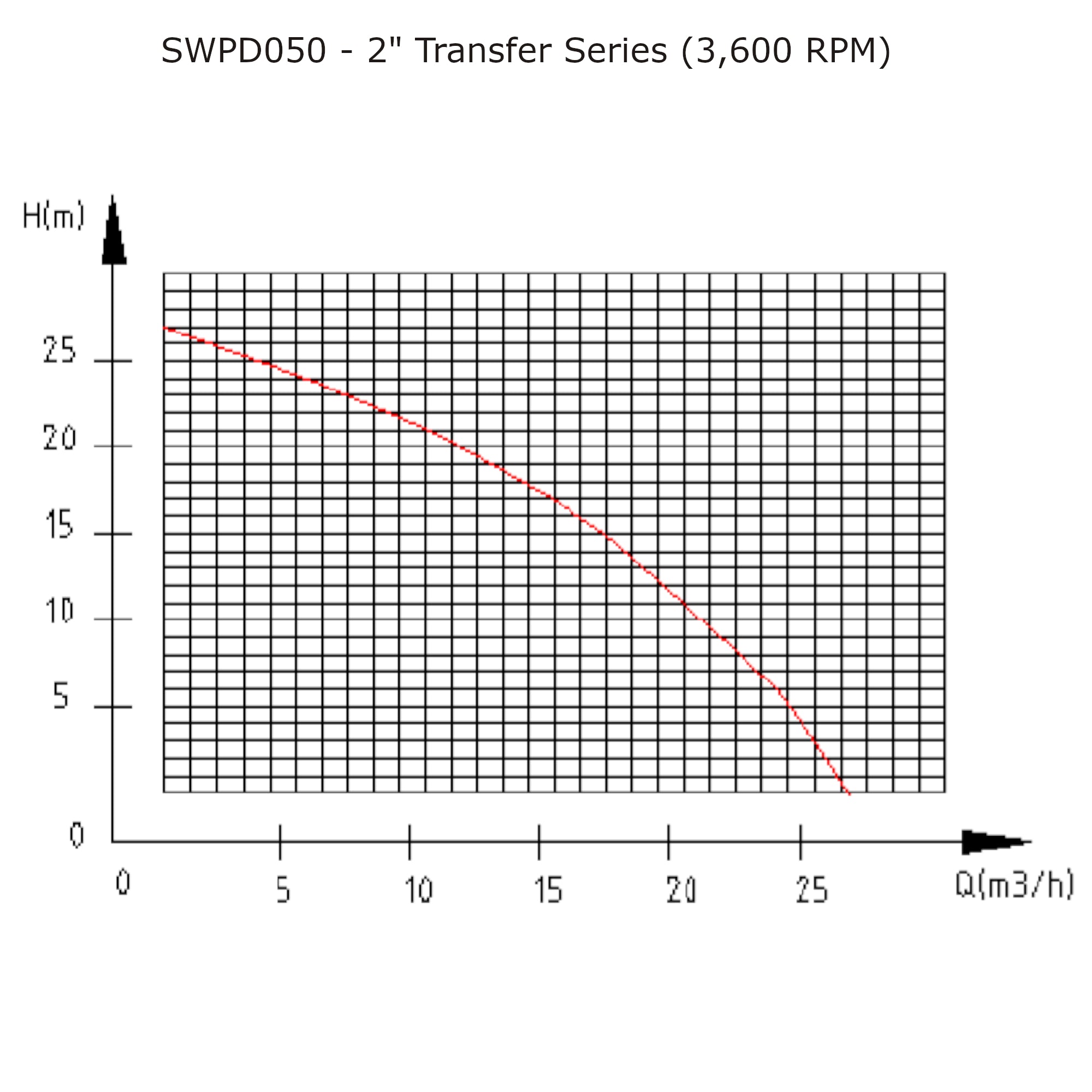

Water Transfer Series
| Specification | SWPD050 | SWPD080 | SWPD100 | SWPD150 |
|---|---|---|---|---|
| Inlet / Outlet | 50mm (2") | 80mm (3") | 100mm (4") | 150mm (6") |
| Max. Flow Rate | 30,000 L/hr | 60,000 L/hr | 85,000 L/hr | 200,000 L/hr |
| Max. Discharge Head |
25 m | 28 m | 25 m | 15 m |
| Max. Pressure |
245 kPa 35 PSI |
274 kPa 40 PSI |
245 kPa 35 PSI |
147 kPa 21 PSI |
| Suction Lift | 7 m | 7 m | 7 m | 6 m |
| Engine |
Diesel 4.5 hp 170 Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection |
Diesel 6.5 hp 178 Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection |
Diesel 10 hp 186 Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection |
Diesel 13 hp 192 Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection |
| Diesel tank capacity | 2.5 L | 3.5 L | 5.5 L | 15 L |
| Run time per tank | 2.5 hrs | 2.5 hrs | 2.5 hrs | 6 hrs |
| Starter | Electric key with recoil backup | Electric key with recoil backup | Electric key with recoil backup | Electric key with recoil backup |
| Additional Features | Includes transport wheels Includes 12v starter battery |
Includes transport wheels Includes 12v starter battery |
Includes transport wheels Includes 12v starter battery |
Includes transport wheels |
| Dimensions (LxWxH) | 550 x 470 x 545mm | 550 x 470 x 575mm | 645 x 500 x 620mm | 910 x 580 x 770mm |
| Weight | 48 kg | 56 kg | 69 kg | 98 kg |
| Warranty | 2 yrs | 2 yrs | 2 yrs | 2 yrs |

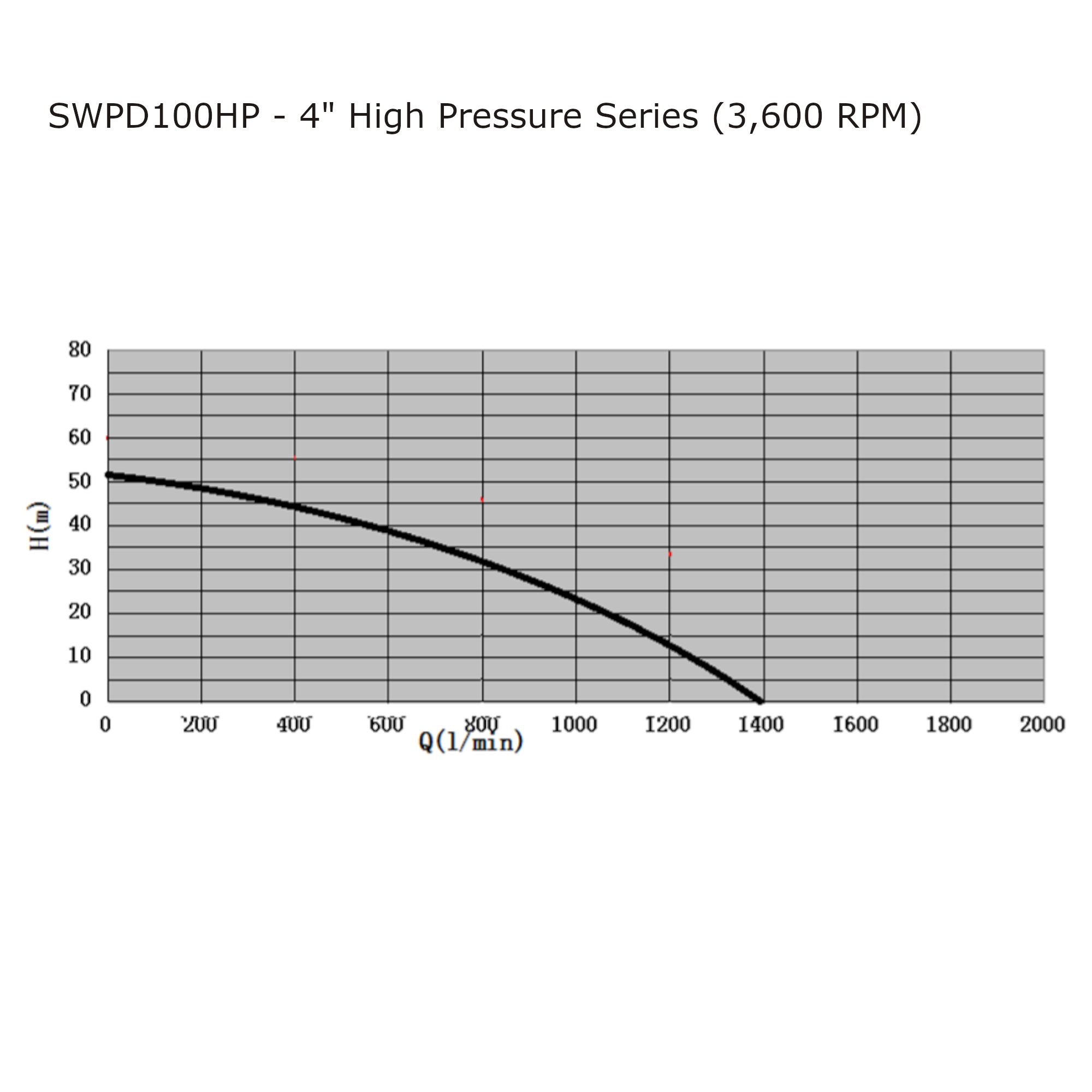

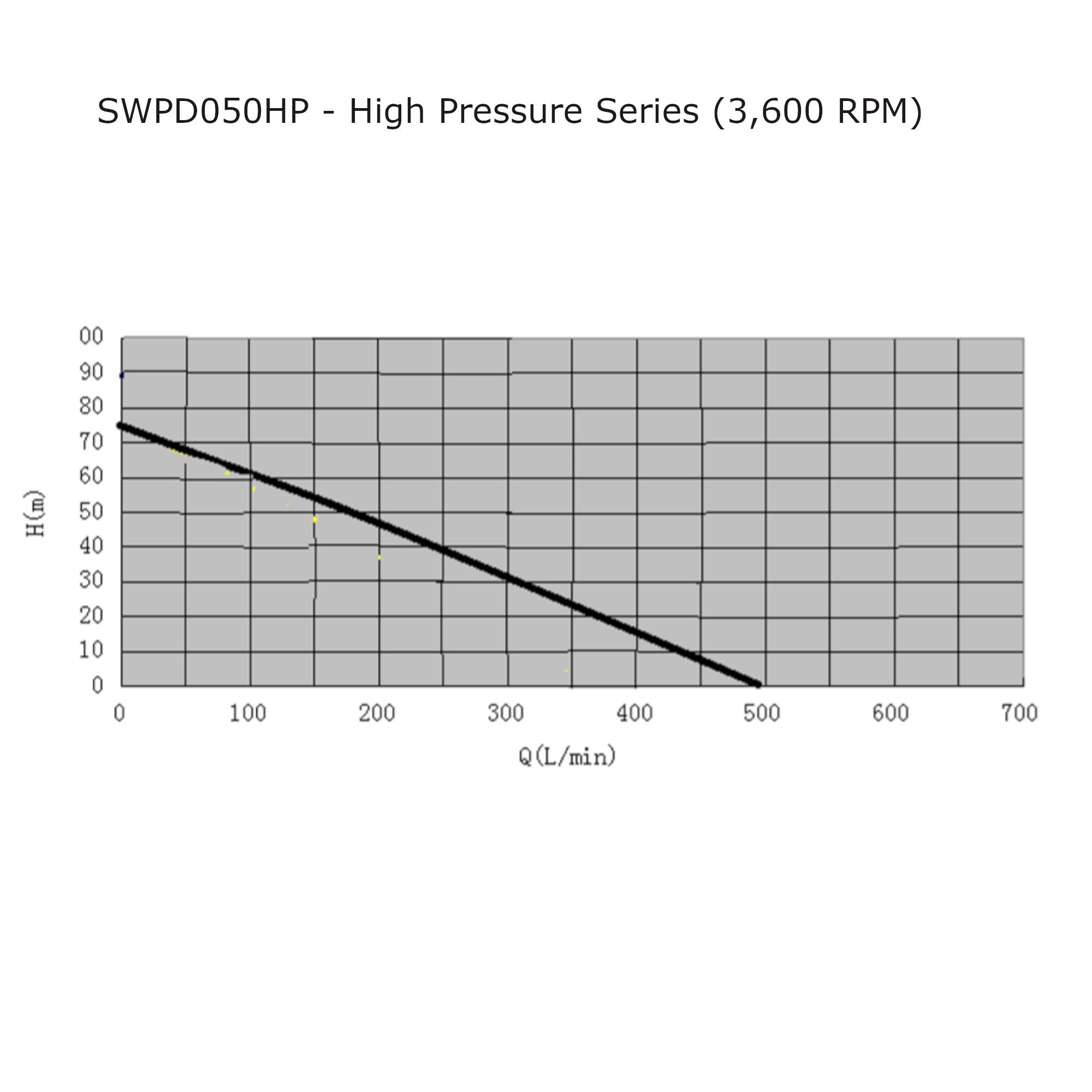

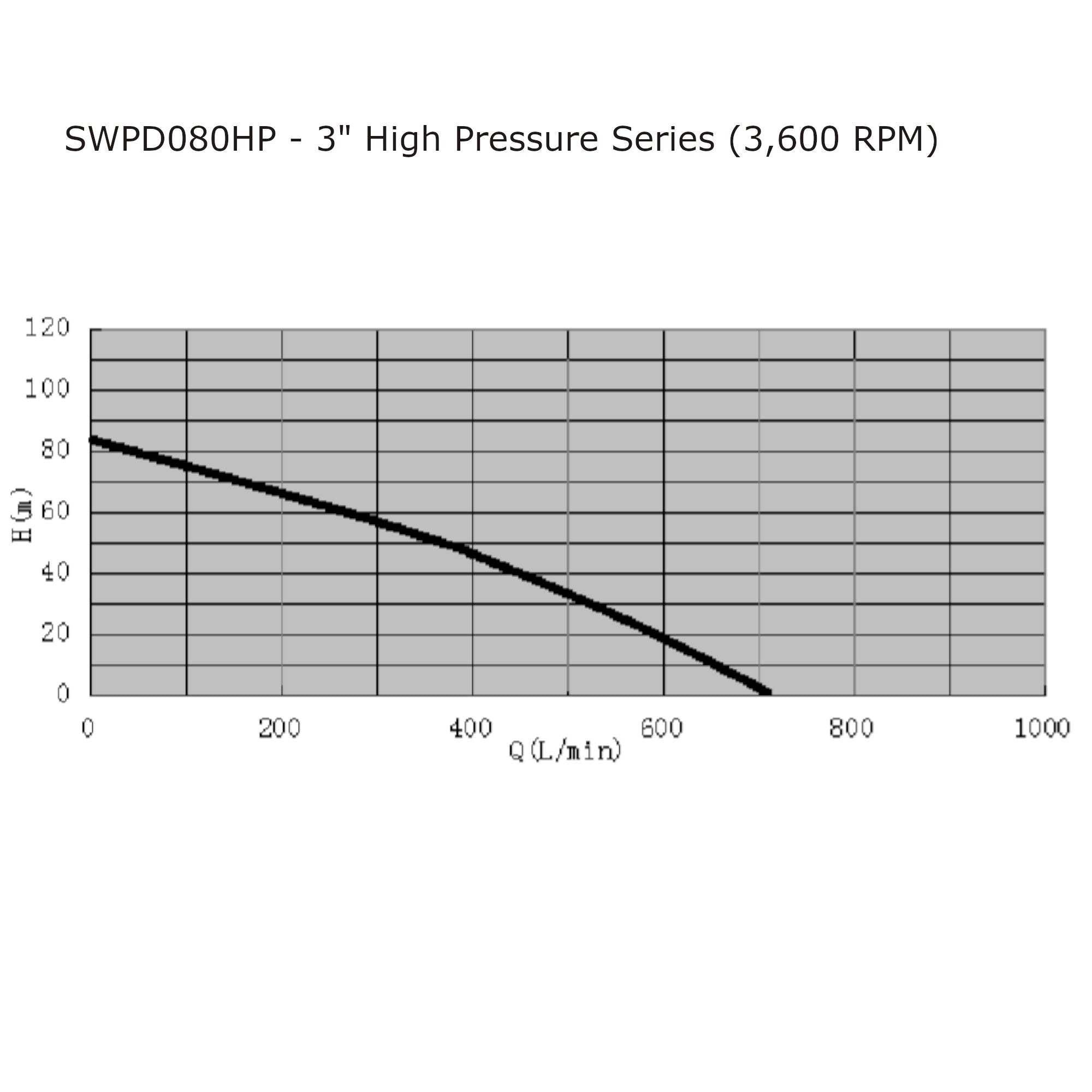

High Pressure Fire Fighter Series
| Specification | SWPD050HP | SWPD080HP | SWPD100HP |
|---|---|---|---|
| Inlet / Outlet | 50mm (2") | 80mm (3") | 100mm (4") |
| Max. Flow Rate | 30,000 L/hr | 42,000 L/hr | 80,000 L/hr |
| Max. Discharge Head |
75 m | 80 m | 50 m |
| Max. Discharge Pressure |
735 kPa 107 PSI |
784 kPa 114 PSI |
490 kPa 71 PSI |
| Suction Lift | 7 m | 7 m | 7 m |
| Engine |
Diesel 6.5 hp 178 Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection |
Diesel 10 hp 186 Single-cylinder, Vertical, 4-Stroke, air-cooled, Direct-injection |
Diesel 13 hp 188 Single-cylinder, Vertical, 4-Stroke, air cooled, Direct-injection |
| Diesel tank capacity | 3.5 L | 5.5 L | 5.5 L |
| Run time per tank | 1.8 hrs | 1.9 hrs | 1.7 hrs |
| Starter | Electric key with recoil backup | Electric key with recoil backup | Electric key with recoil backup |
| Additional Features | Includes transport wheels Includes 12v starter battery |
Includes transport wheels Includes 12v starter battery |
Includes transport wheels Includes 12v starter battery |
| Dimensions (LxWxH) | 550 x 470 x 575mm | 645 x 500 x 620mm | 645 x 500 x 620mm |
| Weight | 60 kg | 70 kg | 72 kg |
| Warranty | 2 yrs | 2 yrs | 2 yrs |
SHIPPING INFORMATION:
These pumps can be shipped Australia wide and are also available for pick up from our Brisbane warehouse. Due to the high weight for these products we advise contacting us for a accurate freight quote to your location as the shipping estimator can sometimes over or under estimate.
