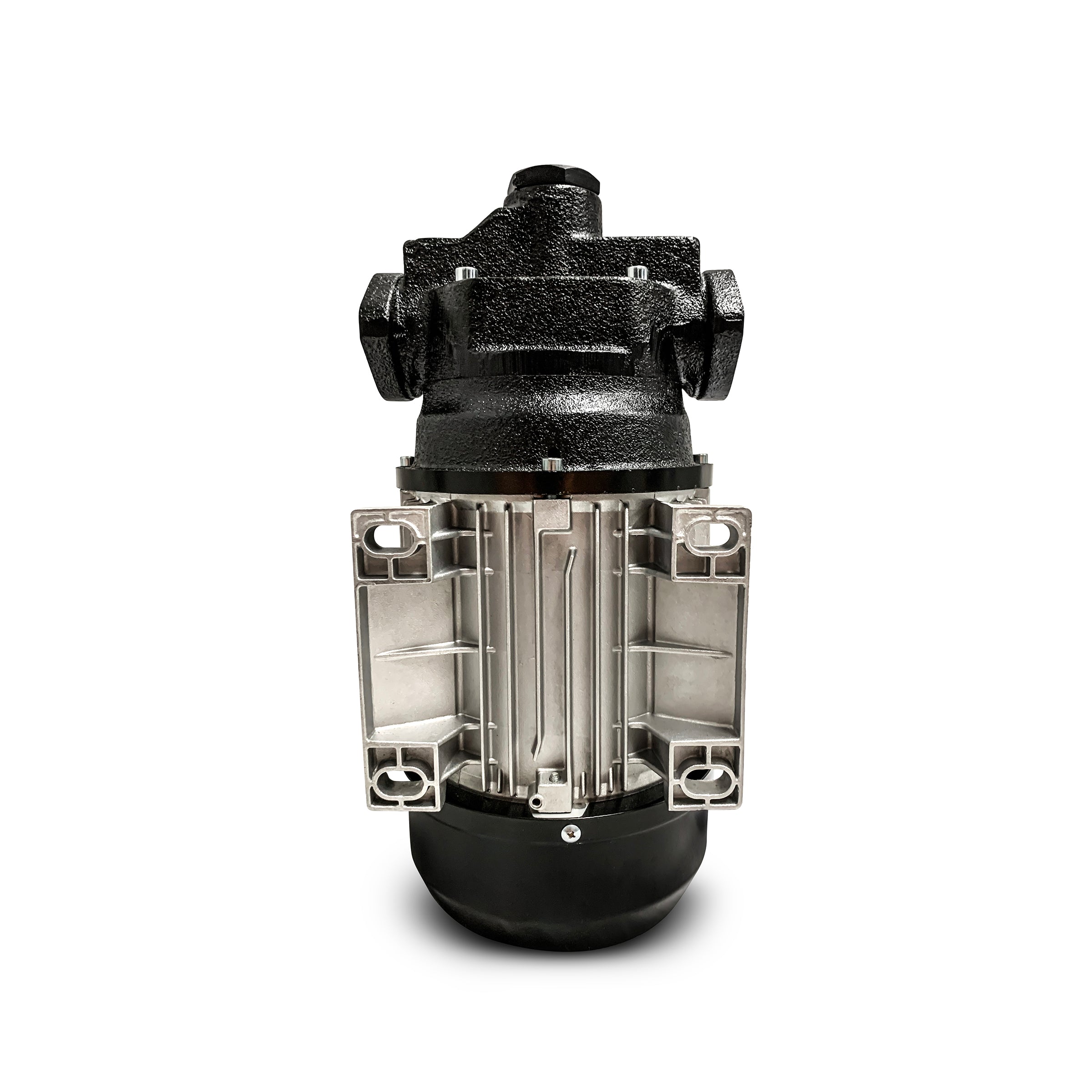

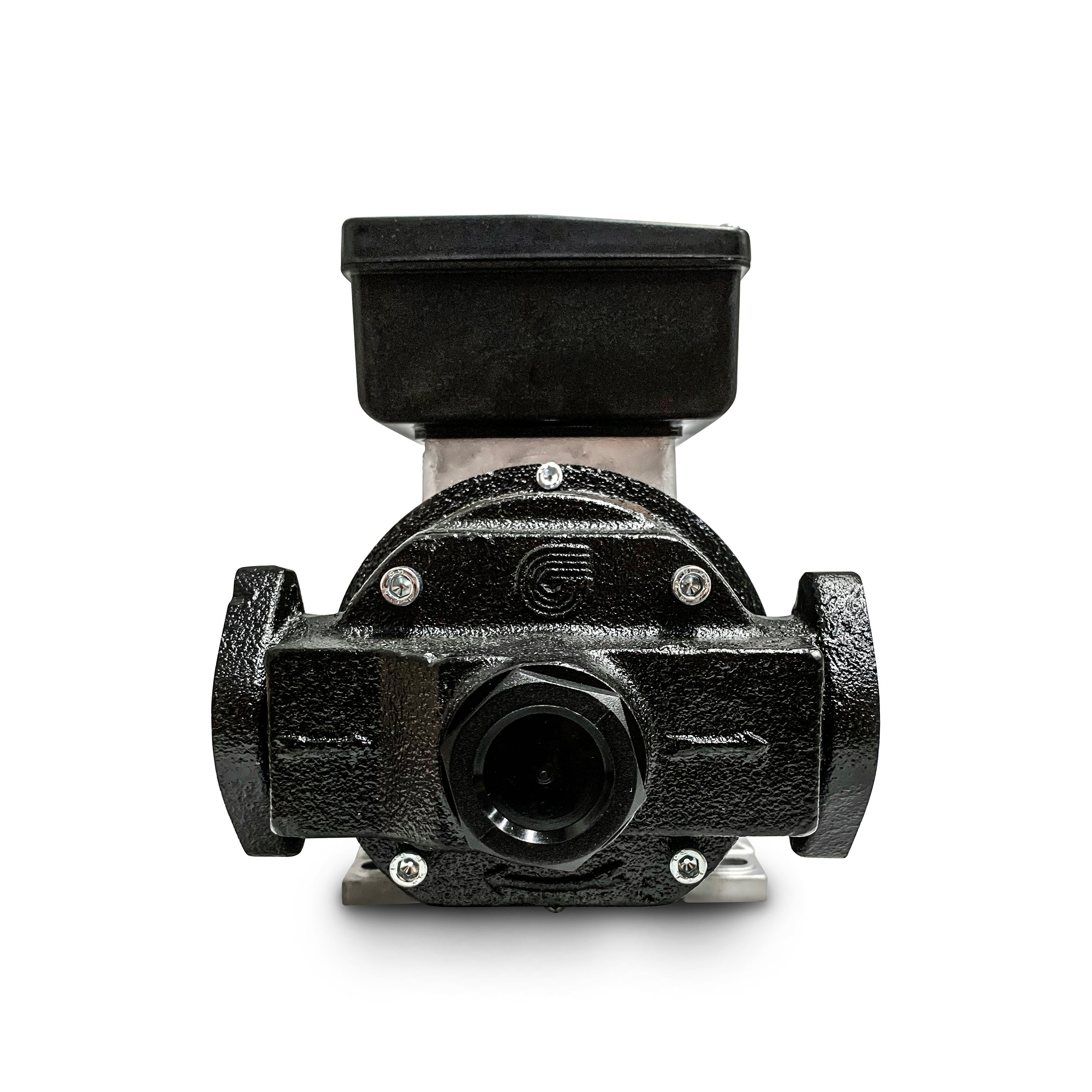

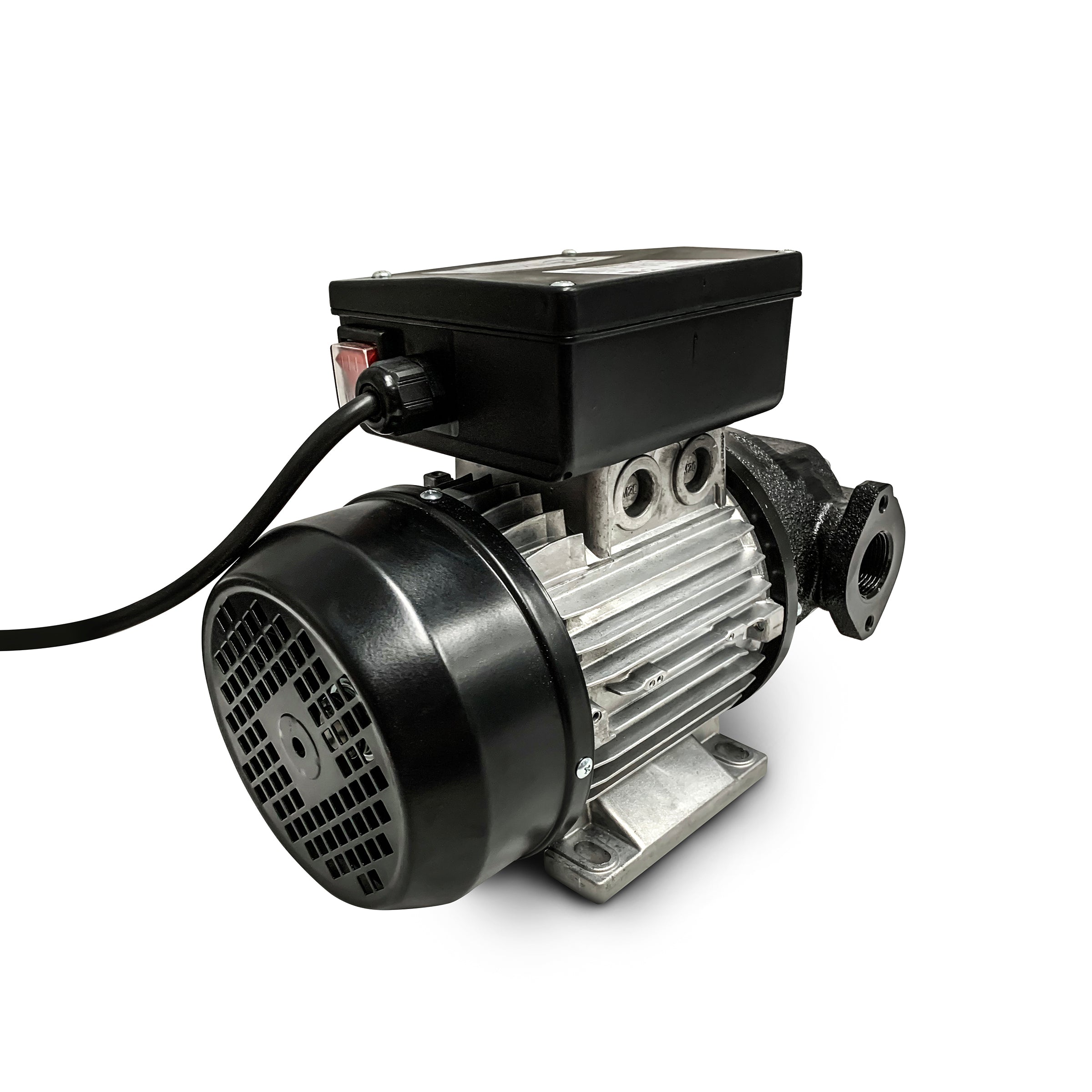

This is a genuine GESPASA brand transfer pump capable of 100L/min diesel transfer and runs 240V power. Ideal for fast filling machinery, equipment, boats, trucks and bulk storage tanks. Highest quality pumps on the market - built to last. Fully supported for parts and spares by Scintex Australia.
These are a rotary vane style of pump which not only transfer diesel at high rates but can also generate respectable suction and discharge pressures. These pumps will lift diesel up to 2.7m vertically from below ground tanks and discharge to an elevation of up to 30m.
Each pump features an internal bypass valve which allows short term 'dead heading' of the pump without causing damage. This feature is perfect for refueling operations where an automatic nozzle might be used or where there is a short walk from the on/off switch to the location you're actually filling. Allowing the pump to recirculate on its internal bypass means the pump is not stalled and the motor is not damaged. Note: it is not recommended to run the pump for extended periods on the internal bypass as the energy from the pump will eventually cause the diesel to heat which can damage pumps seals.
These pumps are ideally suited to large bulk transfer operations and are supplied with a large industrial 1 kW motor. Ideal for large machinery loading when ordinary pumps don't suffice.
|Model||AG-100 (replaces superseded AG-88 model)|
|Transfer capacity||100 L/min free flow|
|Inlet / Outlet||1" BSP female thread or flanges|
|240V single phase|
1 kW 230 VAC 50/60 Hz single-phase self-ventilated
1,500 rpm w/ thermal protector, S1 Continuous duty
|Construction||Cast steel pump with aluminium motor|
|Suction Lift||2.7 m|
|Discharge Head||30 m|
Internal re-circulation bypass

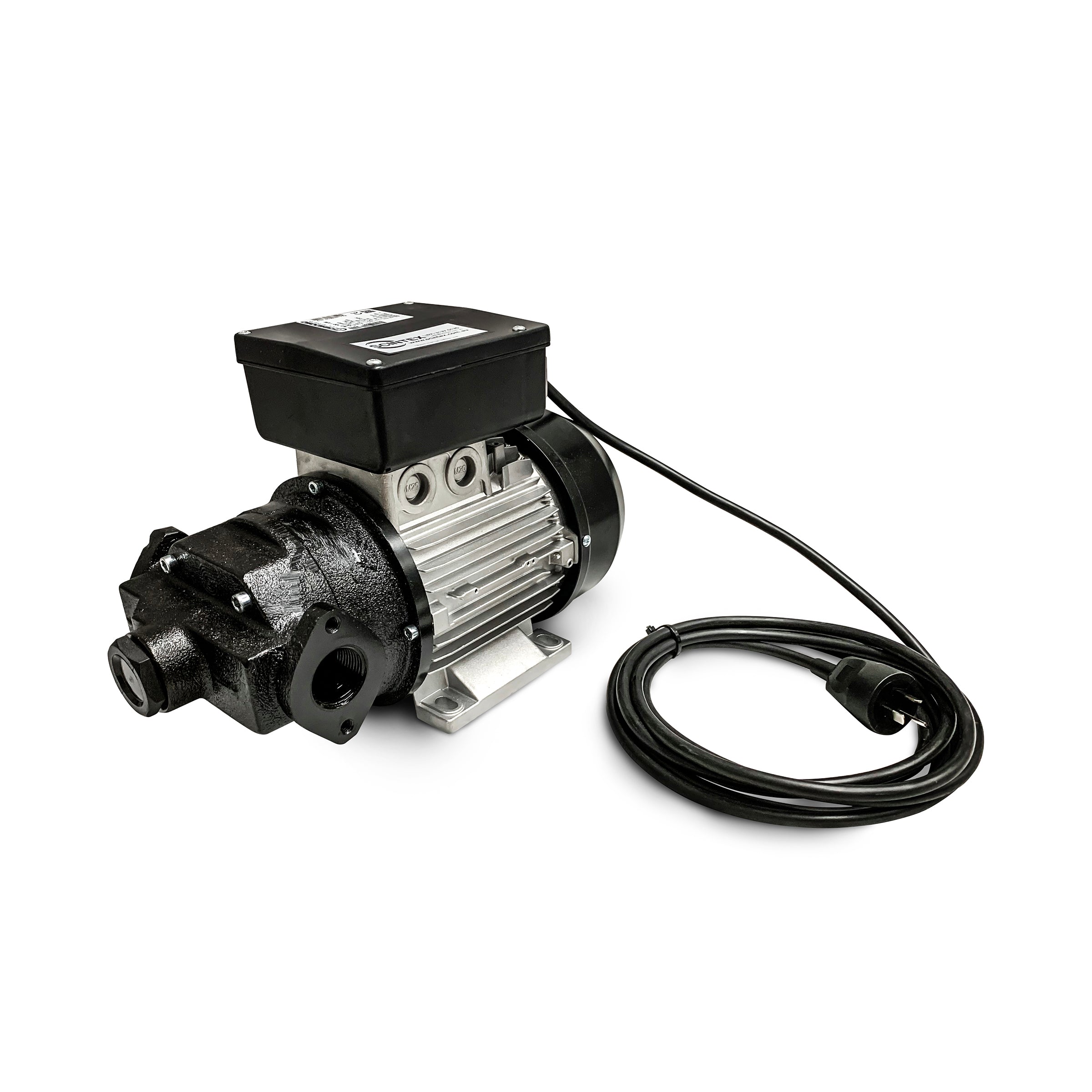

Includes 3m cable and plug
Rust protection treatment
Quality European construction
|Dimensions||365 x 165 x 245 mm (length x width x height)|
A bit pricey but get what you pay for. Used to pump thousands of gallons into bob cats and excavators. These last for years and simple to service.
