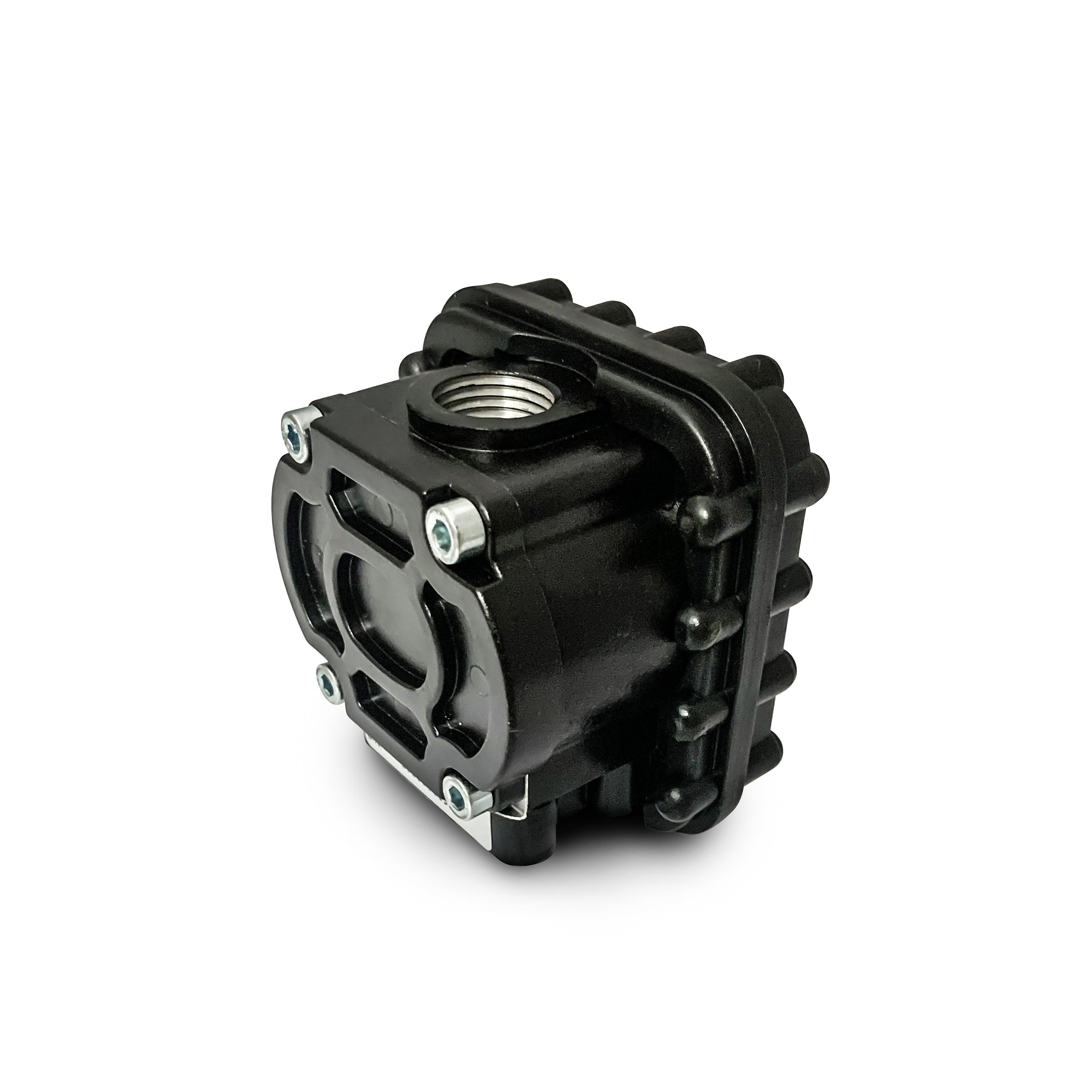

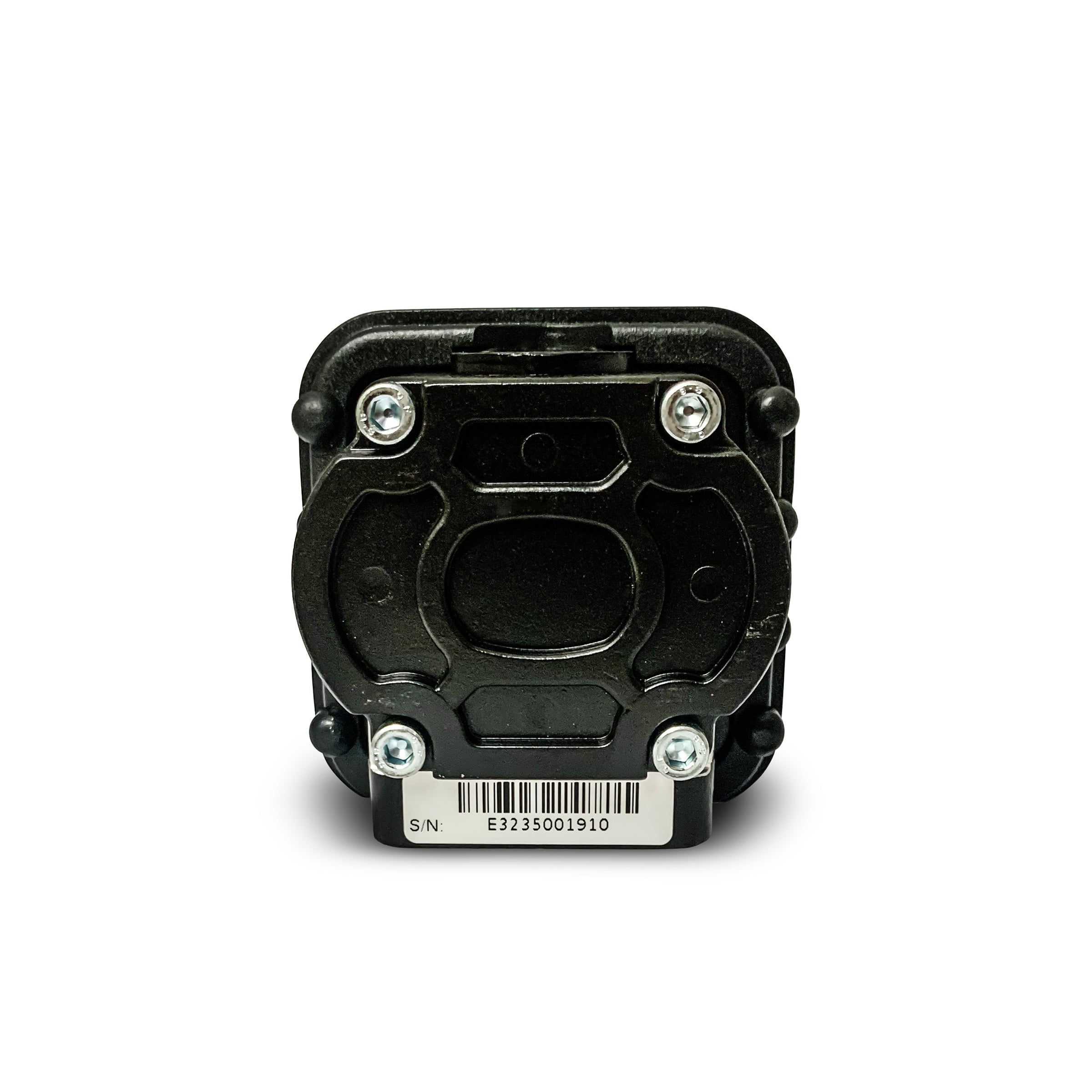

GESPASA MGE-40 Electronic Gear Flow Meter – 1/2" BSP
Description
The GESPASA MGE-40 Electronic Gear Flow Meter is a compact digital meter designed for measuring and totalising diesel and lubricant flow. Its positive displacement gear measuring system provides accurate measurement across a wide range of compatible fluid-transfer applications.
The MGE-40 handles flow rates from 2–50L/min with diesel and 2–40L/min with lubricants, with lubricant compatibility up to SAE 140. A removable rubberised outer case provides additional protection for industrial and workshop use.
GESPASA MGE-40 Electronic Gear Flow Meter
The GESPASA MGE-40 is a battery-powered electronic flow meter designed for diesel and lubricant transfer systems. Internal gears rotate as fluid passes through the meter, allowing the electronic display to measure the quantity dispensed and maintain a totalised flow reading.
With 1/2" BSP female connections, operating pressure up to 50 bar / 725 psi and stated accuracy of ±0.5%, the MGE-40 is suited to a range of workshop, industrial and fluid-transfer installations.
Key Features
- Genuine GESPASA MGE-40 electronic gear flow meter
- Suitable for diesel and compatible lubricants
- Diesel flow range: 2–50L/min
- Lubricant flow range: 2–40L/min
- Suitable for lubricants up to SAE 140
- Measures individual quantities dispensed
- Displays totalised flow up to 99,999
- Large digital LCD display
- Stated accuracy: ±0.5%
- Maximum operating pressure: 50 bar / 725 psi
- 1/2" BSP female inlet and outlet
- Removable rubberised protective outer case
- Battery powered with low battery warning
Diesel & Lubricant Measurement
The MGE-40 has different maximum flow rates depending on the fluid being measured:
- Diesel: 2–50L/min
- Lubricants: 2–40L/min
The meter is suitable for compatible lubricants with viscosity up to SAE 140.
Digital Display
The integrated electronic display provides both individual dispensing and cumulative total information:
- DISPLAY: Shows the quantity of fluid supplied
- TOTAL: Shows accumulated totalised flow up to 99,999
The meter is powered by a long-life button battery with a low battery level warning.
Heavy-Duty Protective Case
A removable rubberised outer case surrounds the meter, providing additional protection against knocks and impacts encountered in workshop and industrial environments.
Specifications
| Specification | Details |
|---|---|
| Make / Model | GESPASA MGE-40 |
| Meter Type | Electronic positive displacement gear flow meter |
| Diesel Flow Range | 2–50L/min |
| Lubricant Flow Range | 2–40L/min |
| Compatible Fluids | Diesel and compatible lubricants up to SAE 140 |
| Inlet / Outlet | 1/2" BSP female |
| Operating Pressure | Up to 50 bar / 725 psi |
| Operating Temperature | -10°C to 50°C |
| Accuracy | ±0.5% |
| Display | Dispensed quantity and totalised flow |
| Maximum Totalised Display | 99,999 |
| Outer Protection | Removable rubberised protective case |
| Battery | Long-life button type; up to 4 years stated battery life |
| Battery Warning | Low battery level indicator |
| Dimensions | 85 x 60 x 85mm (L x W x H) |
| Weight | 0.5kg |
| Warranty | 12 Months |
Typical Applications
- Diesel transfer systems
- Lubricant dispensing
- Workshop oil dispensing systems
- Pump and transfer installations
- Industrial fluid measurement
Important
Confirm that the fluid, flow rate, operating pressure and temperature are within the meter specifications before installation. The MGE-40 is specified for diesel and compatible lubricants up to SAE 140; suitability for other fluids should be confirmed before use.
