Electronic Gear Meters 1"-2"
SKU: MGE-250
FOR BULKY AND HEAVY ITEMS CONTACT US FOR A FREIGHT QUOTE.
For orders outside of Australia contact us for a freight quote.
Description

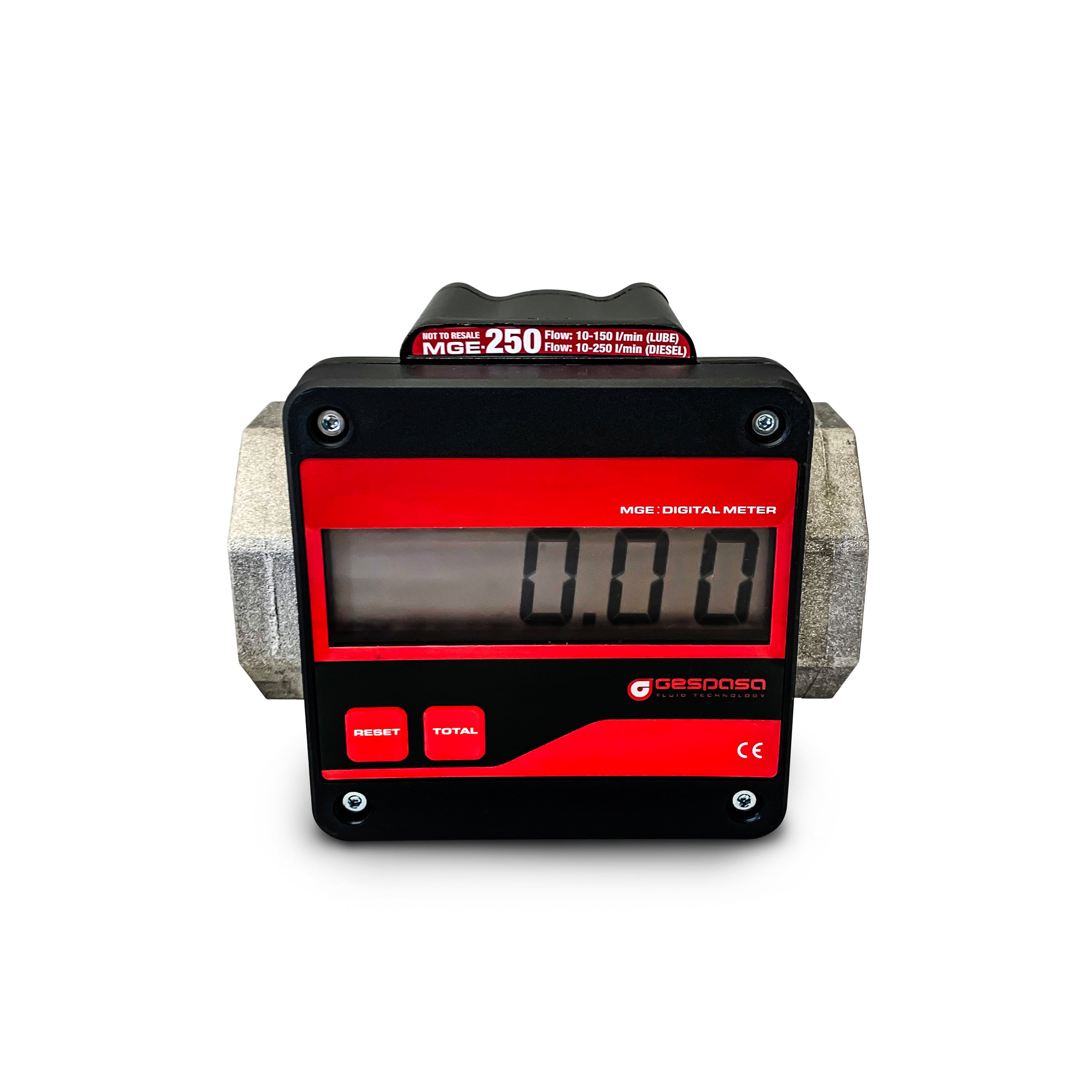

Genuine GESPASA digital flow meters. With high operating pressures and precision machining and construction quality, these electronic flow meters are perfect for a range of diesel and lubrication flow measurements. The long life battery combined with a high clarity digital LCD display means years of reliable operation without the need to run cables and permanent power.
GESPASA Diesel oil and Lubricant Flow Meter
- Measures and totalises flows
- Suitable for diesel and lubricant fluids
- Large, clear, digital LCD display
- Long battery life and low battery warning
- BSP Female connections

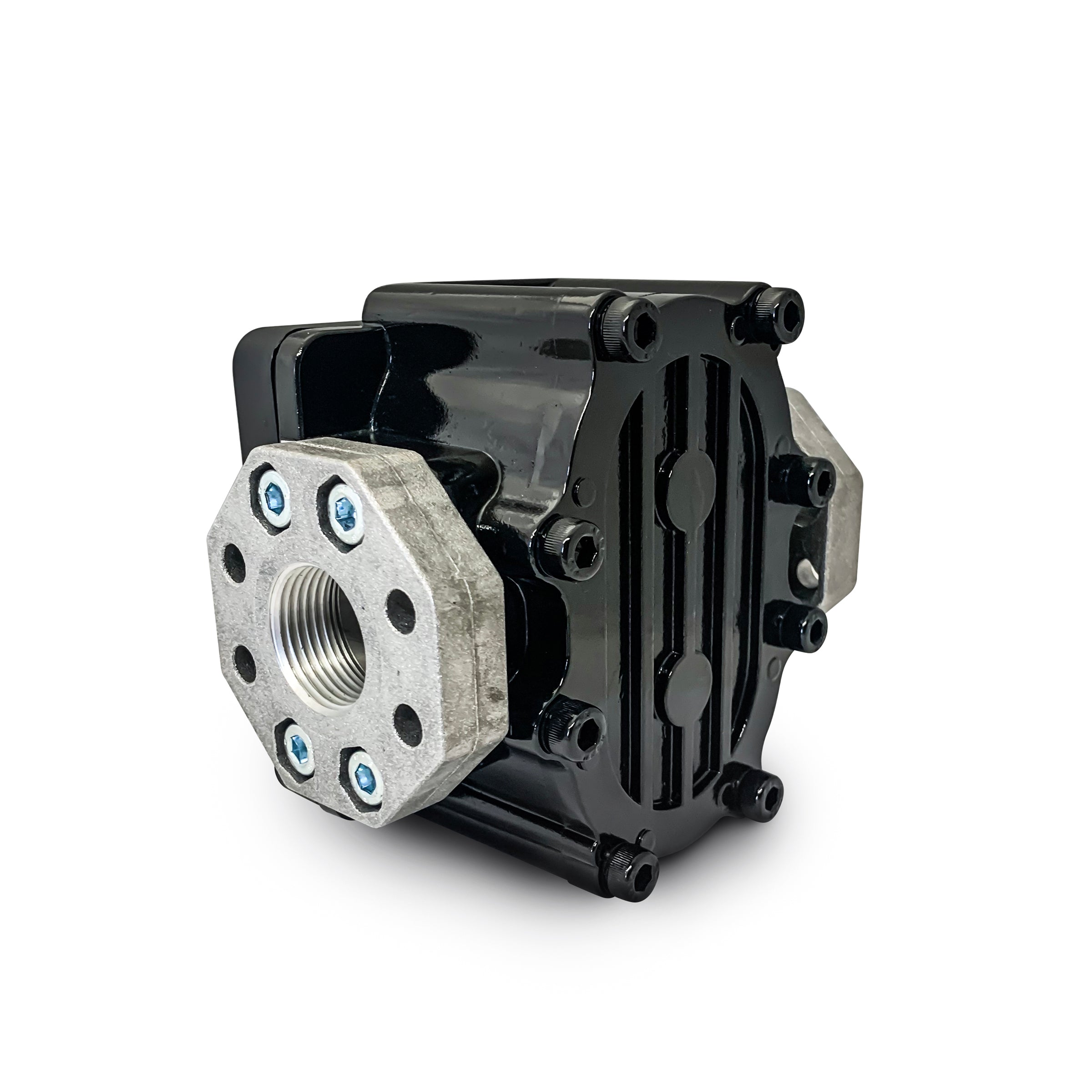

The aluminium measuring chamber combined with oval precision cut gears in these European built flow meters ensures a robust unit which will stand the test of time. These units are very accurate (+-0.5%) measurement and they are ideal for measuring diesel and lubricant oil flows. Commonly found in both large industrial facilities as well as small workshops, these are very handy meters with a range of uses across many industries.
| GESPASA MODEL | MGE-250 | MGE-250-15 | MGE-400 |
|---|---|---|---|
| Inlet | 1" BSP female threads | 1-1/2" flanged | 2" BSP female threads |
| Flow |
10-250 L/min (Diesel) 10-150L/min (Lubricant) |
10-250 L/min (Diesel) 10-150L/min (Lubricant) |
15-400 L/min (Diesel) 15-300L/min (Lubricant) |
|
Display |
DISPLAY - Display of the supplied litres TOTAL - Display of the totalised flow (max. 99,999) |
DISPLAY - Display of the supplied litres TOTAL - Display of the totalised flow (max. 99,999) |
DISPLAY - Display of the supplied litres TOTAL - Display of the totalised flow (max. 99,999) |
| Construction | Aluminium | Aluminium | Aluminium |
| Operating pressure | 45 Bar / 652 psi | 45 Bar / 652 psi | 45 Bar / 652 psi |
| Operating Temperature | -10C to 50C | -10C to 50C | -10C to 50C |
| Accuracy | +- 0.5% | +- 0.5% | +- 0.5% |
| Compatible Fluids |
Diesel and Lubricants (2-2000 cSt) Oils up to SAE-140 density |
Diesel and Lubricants (2-2000 cSt) Oils up to SAE-140 density |
Diesel and Lubricants (2-2000 cSt) Oils up to SAE-140 density |
| Battery |
Long life button type, up to 4yrs life Low battery level warning |
Long life button type, up to 4yrs life Low battery level warning |
Long life button type, up to 4yrs life Low battery level warning |
| Make / Model | Gespasa / MGE-250 | Gespasa / MGE-250 | Gespasa / MGE-400 |
| Warranty |
12 month |
12 month | 12 month |
| Weight | 2.3 kg | 2.5 kg | 4.3 kg |
| Dimensions |
159 x 100 x 141 mm (length x width x height) |
183 x 100 x 141 mm (length x width x height) | 193 x 145 x 141 mm (length x width x height) |
