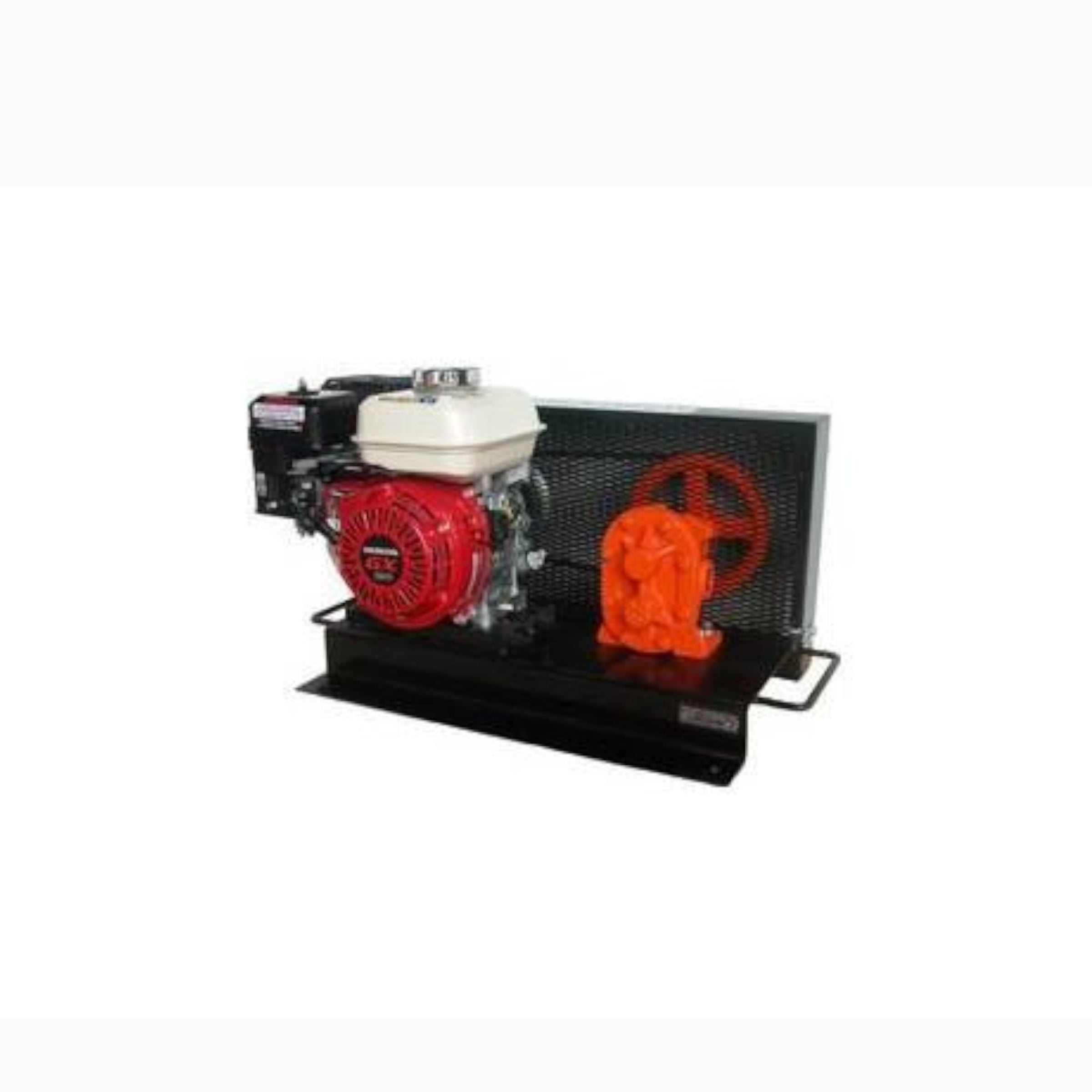

Petrol engine driven gear pumps come as a complete mounted unit. Please note these are assembled on demand and we advise you contact us to confirm pricing and availability before ordering.
These positive displacement low inertia pumps are excellent at pumping fluids at low to medium pressures. These pumps can be used to pump water and a large range of other non abrasive fluids including oils. Very useful for pressure boosting, liquid transfer, factory process pumping and lubrication duties.
|KC13H4||1/2||HONDA||4||Single - 1A||500|
|KC20H4||3/4||HONDA||4||Single - 1A||500|
|SPGPKT25||1||Clone||6.5||Single - 1A||400|
|KC25H4||1||HONDA||4||Single - 1A||375|
|KC25H5.5||1||HONDA||6||Single - 1A||375|
|KC35H5.5||1 1/4||HONDA||6||Double - 2A||330|
|KC35H9||1 1/4||HONDA||9||Double - 2A||330|
|KC35H9E||1 1/4||HONDA||9||Double - 2A||250|
|KC50H9||2||HONDA||9||Double - 2B||250|
|KC50H9E||2||HONDA||9||Double - 2B||320|
|KC50H11||2||HONDA||11||Double - 2B||320|
|KC50H11E||2||HONDA||11||Double - 2B||320|
|KC50H13||2||HONDA||13||Double - 2B||320|
|KC50H13E||2||HONDA||13||Double - 2B||320|
|KC13B3.5||1/2||B&S||4||Single - 1A||500|
|KC20B3.5||3/4||B&S||4||Single - 1A||500|
|KC25B3.5||1||B&S||4||Single - 1A||500|
|KC25B6.5||1||Vanguard||7||Single - 1A||500|
|KC35B6.5||1 1/4||Vanguard||7||Double - 2A||389|
|KC35V9||1 1/4||Vanguard||9||Double - 2A||278|
|KC50V9||2||Vanguard||9||Double - 2B||364|
|*B&S - Briggs & Stratton **All engines are petrol ***E denotes Electric Start, otherwise Recoil Start|
Performance curves are based on a kinematic viscosity of 1mm²/s and a density of 1000Kg/m³ at 20ºC.
For liquids with high viscosity, i.e. molasses the recommended speed is 200rpm. See separate listing for molasses pump solutions.
Securely bolt pump unit in location. The gear pump can be installed in any orientation except for engine driven units which must be installed in a horizontal position. However always ensure that pump is running in the right direction. Gear pumps can run in either direction by operating the power unit in reverse or alternatively by changing the delivery and suction pipes to opposite sides of the pump. If closed heads are to be encountered than a pressure relief or bypass valve must be installed and set to the required pressure. If full bypass is required ensure that vee belts are correctly aligned with the correct tension. Always prime the pump with the fluid to be pumped and start with a fully open discharge before throttling to pressure requirements.
Caution: Pumps will self-lubricate using the pumped fluid however avoid running the pump dry as this will create rapid wear.
