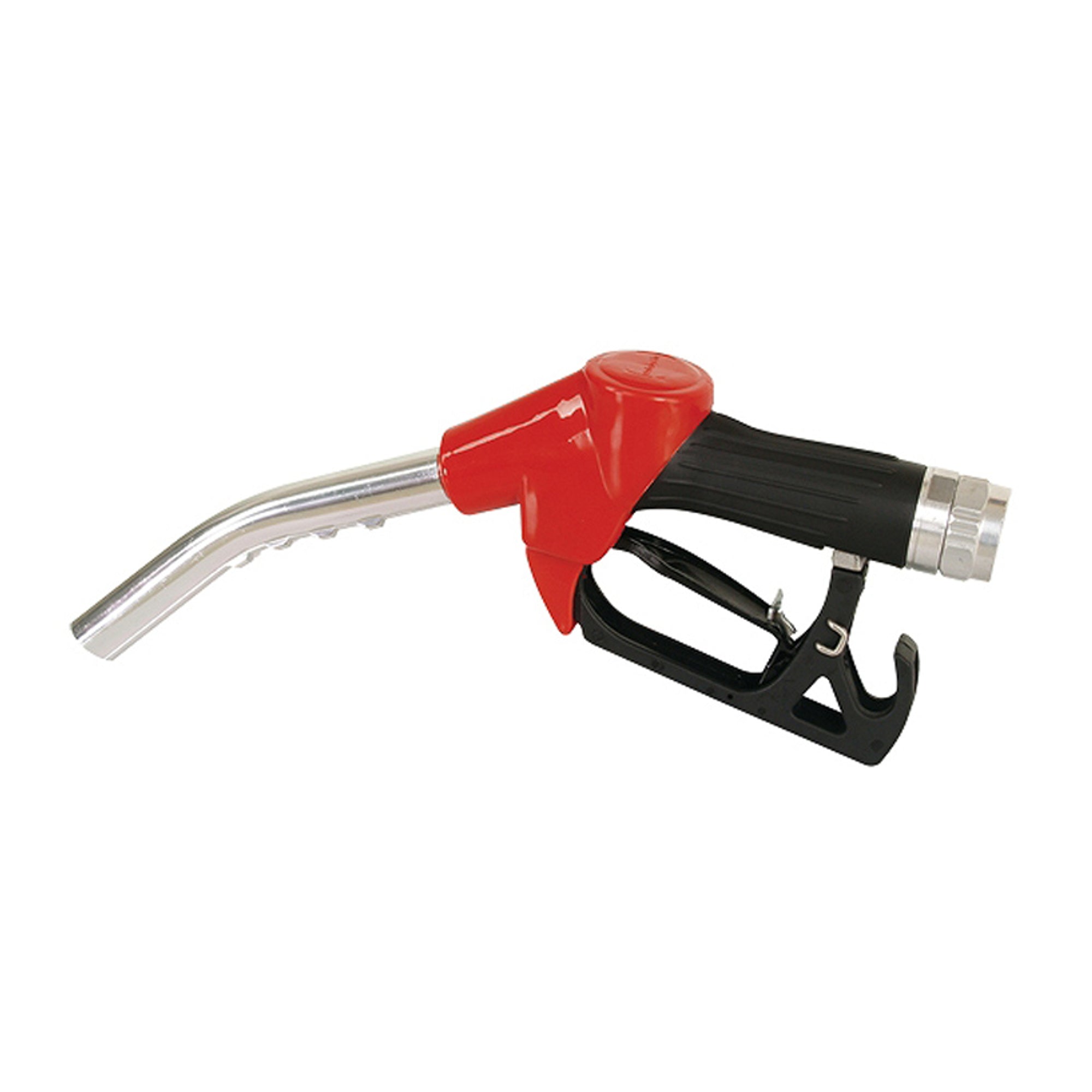

Gravity Flow Automatic Nozzle

Current Price $249.00
Original Price $299.00
(inc GST)
SKU SNGFATO

Notify me when back in stock

FREIGHT ESTIMATE: Add to cart for shipping costs.

Description

This nozzle has been specially engineered for people needing a automatic shut-off fuel nozzle however are using it with a overhead gravity feed tank without a pump. Suitable for farms, agriculture, camping, boating, marine, industrial and personal use for all fuel transfer applications.

Gravity Fed Automatic Shut-off Nozzle

Most automatic nozzles on the market will not work with gravity supply tanks. Normally a pumped service is required to ensure correct operation with automatic nozzles. This nozzle is different and has been specifically designed for use with gravity fed systems where no pump is present. The automatic shutoff function has been calibrated for lower system pressures such as gravity drained systems and will still perform ensuring your tank is not overfilled. Note: You will still need ~40kPa of pressure at the nozzle for it to function correctly. If you can not ensure this pressure you should select a manual nozzle.

Diesel Fuel Nozzle Features:
  • Compatible with most gravity fed systems or pumped systems
  • Suitable with diesel or kerosene
  • Quality aluminium construction
  • Variable flow control
  • Trigger lock
Specification Value
Flow

8-50 L/min

Inlet 1" BSP female threads

Outlet

 15/16" spout

Minimum operating pressure

0.4 Bar / 40 kPag

(~5m of tank elevation required when using with diesel)

Construction

Aluminium / plastic / rubber

Operating pressure

3.5 Bar / 50 psi

Weight 1.7 kg
Compatible Fluids

 Diesel / Kerosene

Warranty

 12 month

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
D
Dan
fuel gun

Very happy to have found this fuel gun. Tried several other self cutoff nozzles on farm diesel tanks but they all require to much pressure to work properly.

D
Dan
fuel gun

Very happy to have found this fuel gun. Tried several other self cutoff nozzles on farm diesel tanks but they all require to much pressure to work properly.
