High Flow Automatic Diesel Nozzle – 1-1/2" & 2" BSP, 200+ L/min
Description
Heavy-duty automatic diesel fuel nozzles designed for high-flow refuelling of trucks, agricultural equipment, earthmoving machinery and other large diesel-powered equipment. Available with 1-1/2" or 2" BSP female inlets and capable of flow rates exceeding 200 L/min when matched with a suitable high-flow pumping system.
High Flow Automatic Diesel Nozzle – 1-1/2" & 2" BSP
When refuelling large machinery and equipment, a conventional fuel nozzle can become a significant restriction. These heavy-duty automatic diesel nozzles feature large 1-1/2" or 2" inlet connections to accommodate high-flow diesel transfer systems.
With a suitably sized pump, hose, fittings and tank arrangement, flow rates exceeding 200 L/min are possible, helping reduce refuelling time for large fuel tanks.
High Flow Diesel Nozzle Features
- Automatic shut-off functionality
- Designed for high-flow diesel refuelling
- Available with 1-1/2" or 2" female BSP inlet
- Flow capability exceeding 200 L/min with a suitable pumping system
- Maximum pressure 4 bar / 58 PSI
- Trigger lock for convenient refuelling
- Aluminium, steel and brass construction
- Suitable for large diesel tanks and machinery
- 1-1/2" model supplied with swivel fitting
- 12 month warranty
Automatic Shut-Off
The automatic shut-off mechanism is designed to stop fuel delivery when the receiving tank reaches the appropriate fill level, helping reduce the risk of overfilling during normal refuelling.
As with any high-flow refuelling equipment, the operator should remain in attendance throughout the refuelling process and ensure the nozzle is correctly positioned in the tank filler.
High Flow Refuelling
These nozzles are intended for applications where large volumes of diesel need to be transferred quickly. Their large inlet connections help minimise restriction when used with appropriately sized pumps and plumbing.
Typical applications include:
- Earthmoving and construction machinery
- Agricultural machinery
- Trucks and heavy vehicles
- Generators and stationary engines
- Large diesel storage tanks
- Bulk diesel transfer systems
- Industrial and commercial refuelling
Actual flow rate will depend on the complete refuelling system, including pump performance, hose diameter and length, fittings, filters, suction conditions, discharge head and other restrictions.
1-1/2" & 2" BSP Options
Two inlet sizes are available to suit different high-flow fuel transfer systems:
| Nozzle | Connection |
|---|---|

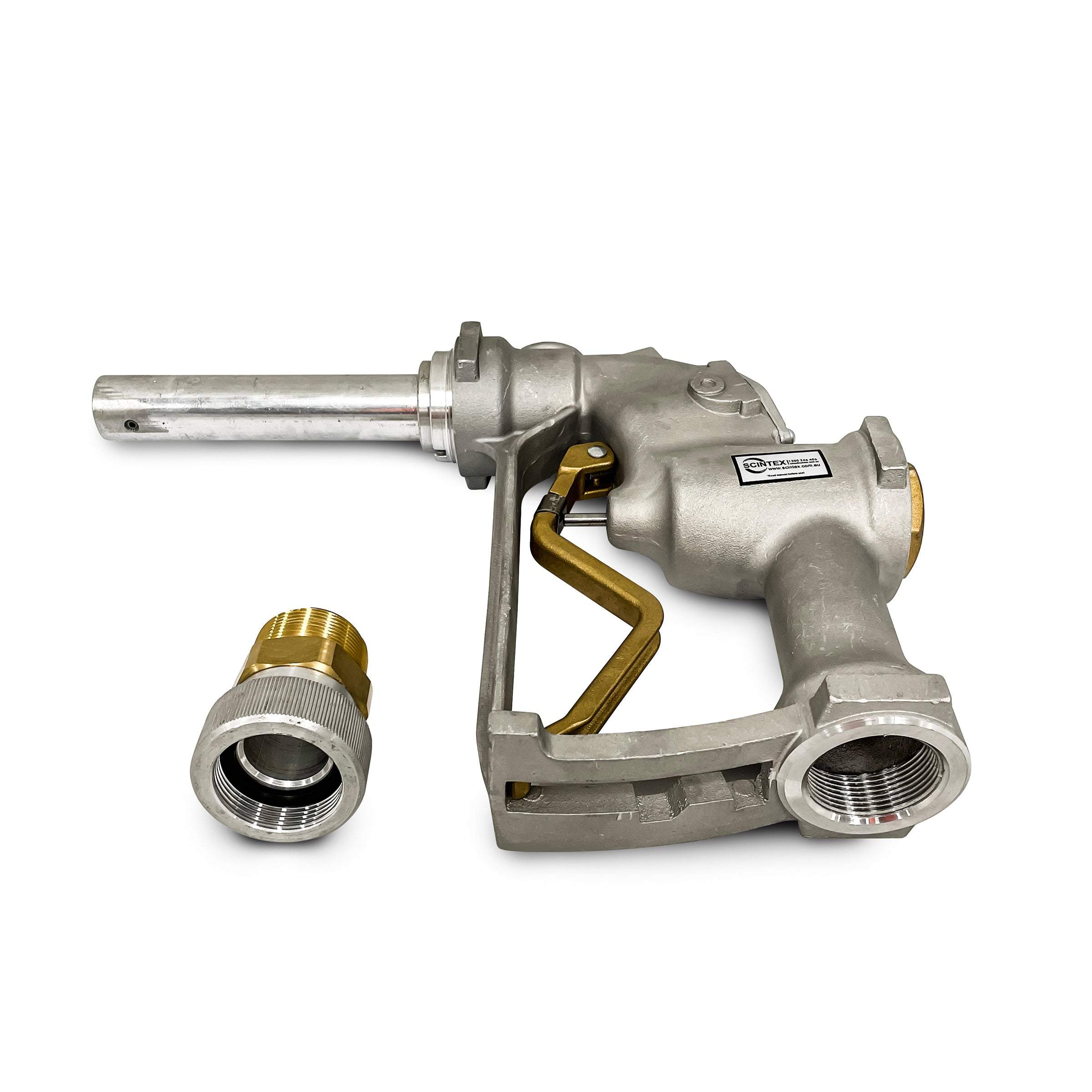

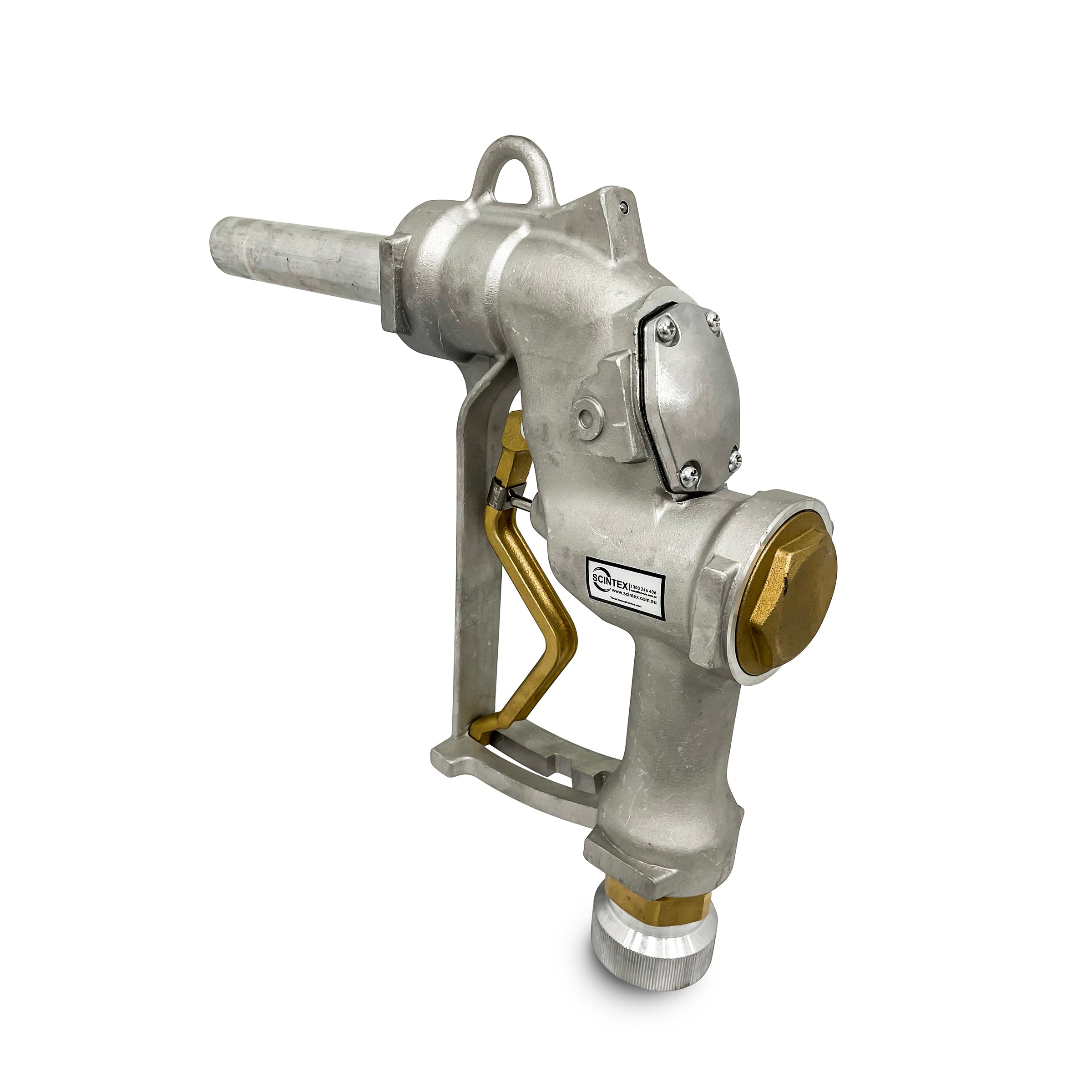

| 1-1/2" Model | 1-1/2" female BSP – swivel fitting included |

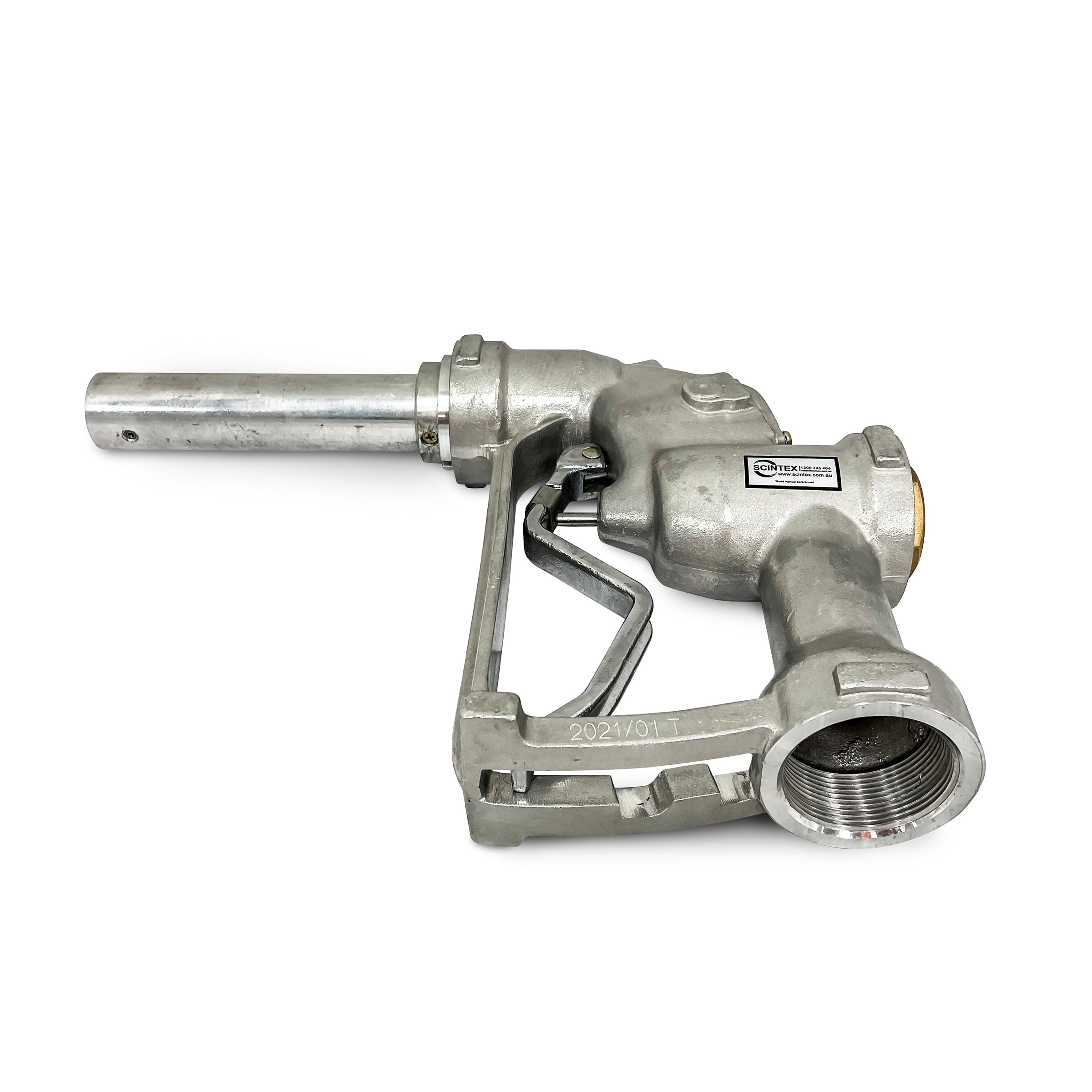

| 2" Model | 2" female BSP – swivel fitting not included |
Note: Only the 1-1/2" nozzle is supplied with a swivel fitting.
High Flow Automatic Diesel Nozzle Specifications
| Specification | Value |
|---|---|
| Fuel | Diesel |
| Nozzle Type | Automatic shut-off |
| Inlet Options | 1-1/2" or 2" female BSP |
| Flow Capability | 200+ L/min with a suitable high-flow system |
| Maximum Pressure | 4 bar / 58 PSI |
| Trigger Lock | Yes |
| Construction | Aluminium, steel and brass |
| Swivel – 1-1/2" Model | Included |
| Swivel – 2" Model | Not included |
| Warranty | 12 Months |
Pair with a High Flow Diesel Pump
For high-volume diesel transfer applications, consider pairing the nozzle with a suitably sized high-flow transfer pump. The pump, hose, fittings, filters and nozzle should all be selected to minimise unnecessary flow restriction.
View the 550 L/min High Flow Diesel Transfer Pump
Important Refuelling Information
Always remain with the nozzle while refuelling. Automatic shut-off is an important safety and convenience feature but should not be relied upon as the sole means of preventing spills or overfilling.
Before installation, confirm all pumps, hoses, fittings, filters and associated equipment are compatible with diesel fuel and suitable for the operating pressure and required flow rate.
