Paddock Concrete Scarifiers

Description

Paddock™ concrete scarifiers are heavy duty surface preparation machines designed for demanding construction, concreting and maintenance applications. Available with either a genuine Honda GX160 petrol engine or 240V electric motor, both models feature a 200mm working width and are supplied with a scarifying drum and 76 tungsten carbide tipped cutters.

Paddock™ Concrete Scarifiers – Petrol & Electric

• 200mm (8") scarifying width
• Choice of Honda GX160 petrol engine or 240V electric motor
• Supplied with drum and 76 tungsten carbide tipped cutters
• Simple cutting depth adjustment
• Heavy duty construction for trade and commercial applications
• Industrial gearbox
• Anti-vibration mounting system
• Dust extraction connection
• Safety shutoff switch
• Replacement drums and cutters available
• 2 year warranty

Heavy Duty Concrete Surface Preparation

Concrete scarifiers are designed to remove material by rotating a cutter-equipped drum at high speed across the working surface. This makes them ideal for surface preparation, removing coatings, reducing high spots and correcting uneven concrete surfaces.

Paddock™ scarifiers are designed for professional contractors, construction companies, hire businesses and other users requiring a robust machine capable of regular operation. Depending on the cutter and drum configuration, the machines can be used on concrete, asphalt and other suitable hard surfaces.

Petrol or 240V Electric Models

Two 200mm scarifier configurations are available:

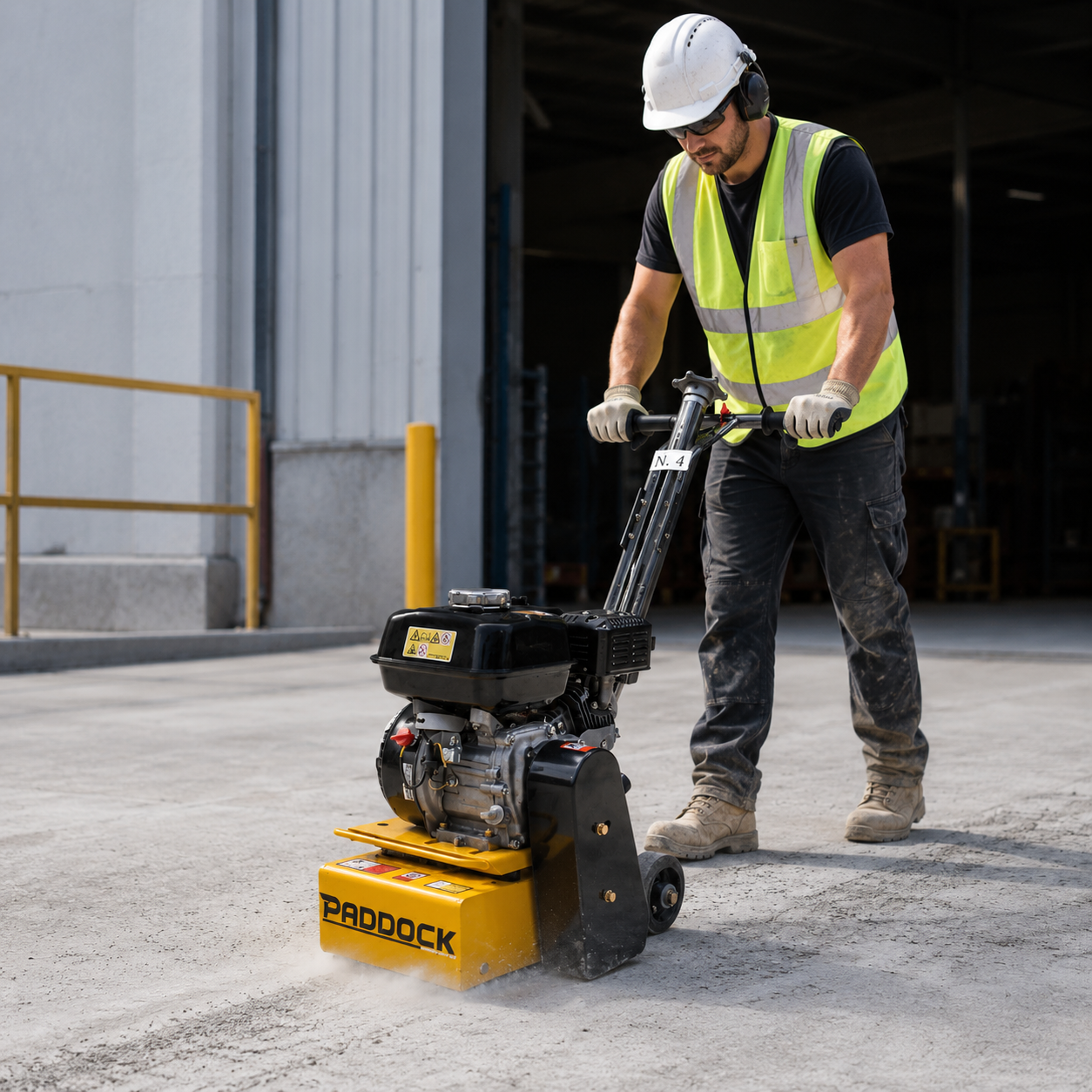

• SSM200/1P: Genuine Honda GX160 4-stroke commercial petrol engine

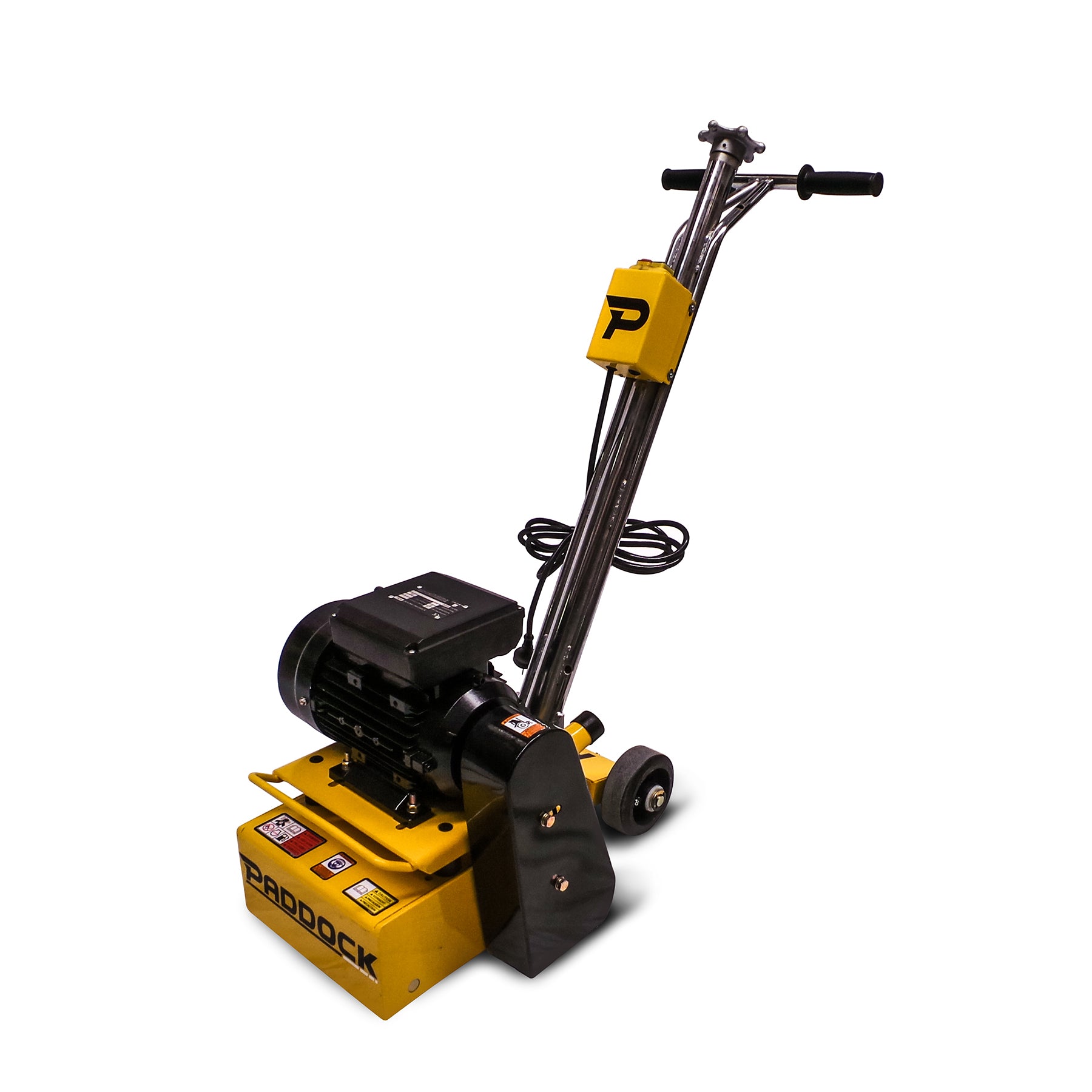

• SSM200/1E: 2.2kW 240V electric motor with 15A plug

The petrol model provides excellent portability for construction sites and outdoor applications where mains power may not be readily available. The electric model is well suited to locations where 240V 15A power is available and petrol engine exhaust emissions are undesirable.

How to Scarify Concrete Floors

For effective and consistent scarifying, multiple shallow passes are generally preferable to attempting to remove a large amount of material in a single pass.

With the petrol model, removal depths of up to approximately 6mm in a pass may be achievable depending on the material, surface hardness, cutter condition and operating conditions. With the single-phase electric model, approximately 2–4mm per pass can be more realistic due to the available motor power.

Maintaining drum speed is important for effective scarifying. If the machine is overloaded or the cutting depth is excessive, reducing the depth and completing additional passes can provide a more consistent result.

Dust Control

Scarifying concrete and similar materials can generate significant amounts of dust. Each Paddock™ scarifier incorporates a dust extraction outlet that can be connected to suitable dust collection equipment to help control airborne dust during operation.

Appropriate personal protective equipment and dust control procedures should always be used for the material being worked.

Paddock™ Scarifier Features

• Genuine Honda GX160 4-stroke commercial engine or heavy duty 240V electric motor
• Drum and cutters included ready for operation
• 76 tungsten carbide tipped cutters
• Simple cutting depth adjustment
• Heavy duty industrial gearbox
• Professional trade quality construction
• Front lifting handle
• Large anti-vibration mounts and rubber grips for improved operator comfort
• Dust extraction outlet
• Easy-access safety shutoff switch
• Durable powder coated finish

Concrete Scarifier Applications

• Concrete surface preparation
• Removing high spots and trip hazards
• Reducing uneven concrete surfaces
• Surface texturing and preparation
• Coating and line removal with suitable cutters
• Concrete contractors
• Construction sites
• Hire and rental businesses
• Councils and local authorities
• Paths and walkways
• Commercial and industrial flooring
• Concrete, asphalt and suitable steel surfaces

Scarifier Drums & Cutter Options

Different drum and cutter configurations are available to suit a variety of surface preparation applications, including:

• Replacement scarifying cutters and drums
• Concrete and asphalt line removal
• Removal of thick urethane, rubber, tar and heavy epoxy coatings
• Marine non-slip surface removal
• Asphalt surface preparation
• Surface grooving for agricultural buildings, boat ramps and other slip-resistant applications

Paddock™ Concrete Scarifier Specifications

Petrol Model Note: The Honda engine is stored and transported with only enough oil to keep internal components lubricated. Check and fill the engine with the correct oil to the required level before starting.

Assembly: Some minor assembly may be required for shipping purposes.
