Honda Surface Finishing Screed

Description

The Paddock Honda Surface Finishing Screed is a professional-grade vibrating concrete screed designed to improve productivity and finish quality on wet concrete pours. Powered by a genuine Honda GX35 4-stroke commercial engine, the unit combines reliable performance with a lightweight, ergonomic design suited to contractors, concreters and equipment hire fleets.

Available with screed blades from 1.2m through to 4.9m, the Paddock vibrating screed is ideal for paths, slabs, tilt panels, commercial construction and other concrete finishing applications.

Honda Petrol Vibrating Concrete Surface Screed

• Genuine Honda GX35 4-stroke commercial engine
• Professional trade-quality construction
• Available with 1.2m, 2.4m, 3.7m and 4.9m screed blades
• Hardened aluminium alloy blade design
• Rolled blade ends assist around corners and tight areas
• Low operator vibration through heavy-duty isolation mounts
• Tilt-up stand keeps the engine and drive assembly clear of wet concrete
• Simple blade mounting system for fast blade changes
• Lightweight and easy to transport
• 2 year warranty

Faster Concrete Levelling & Finishing

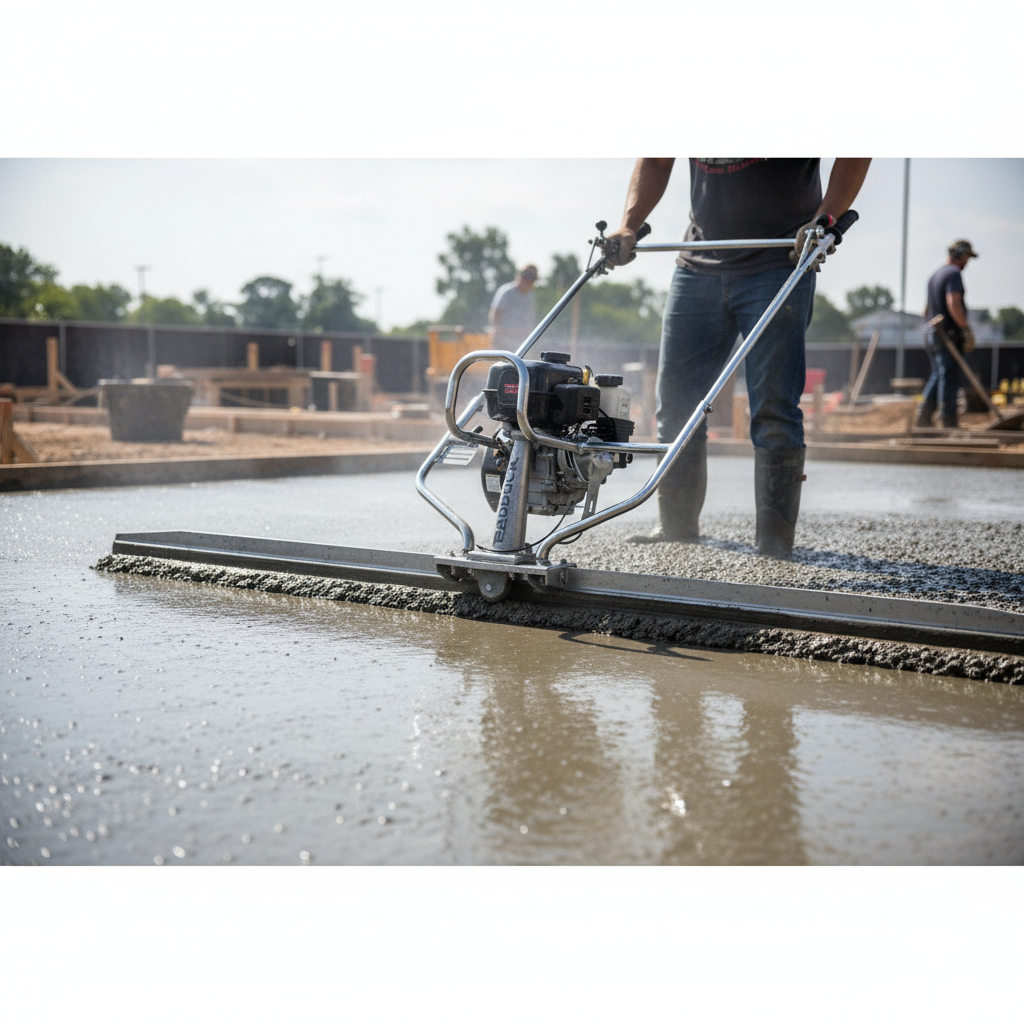

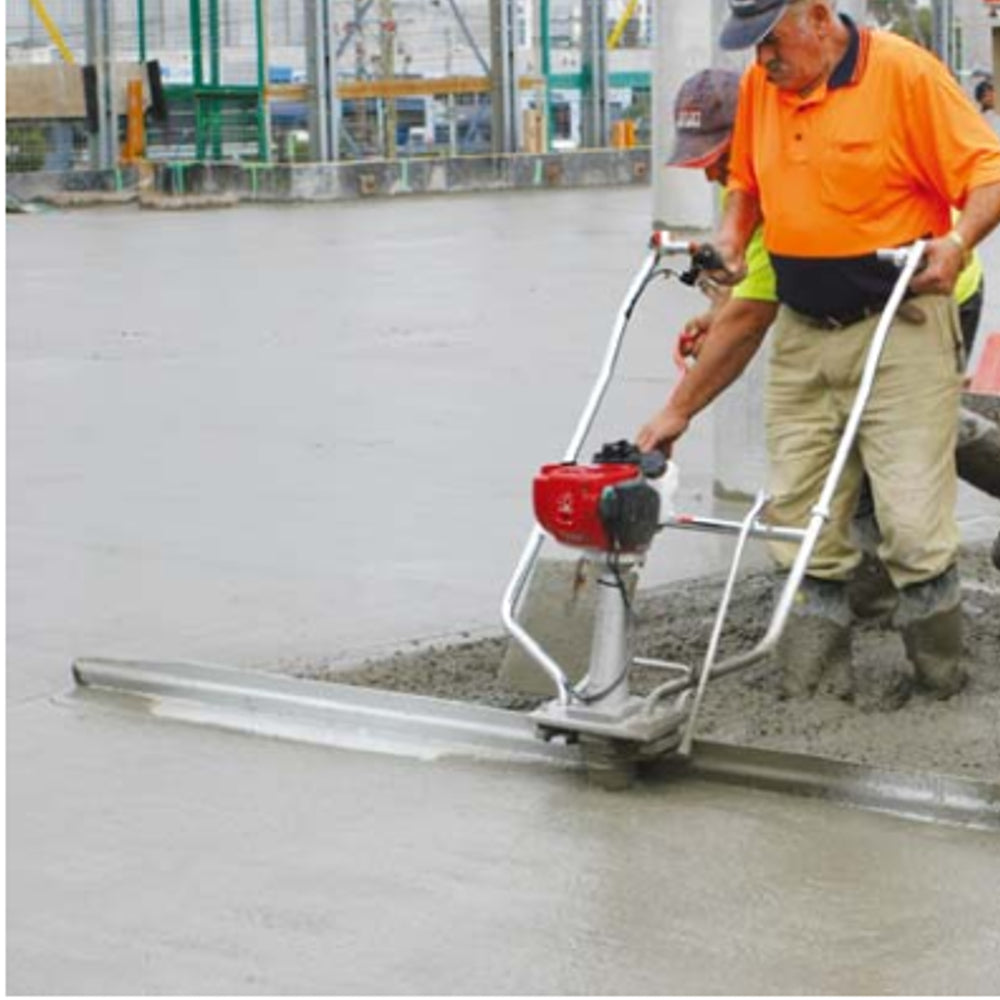

A vibrating screed helps level, consolidate and finish freshly poured concrete while allowing the operator to work from a more comfortable standing position.

Compared with manually screeding large pours, the powered vibration assists the concrete to settle while the blade levels the surface. This can improve productivity and reduce the physical strain associated with repeated manual screeding.

The Paddock screed is well suited to professional users who regularly work across larger slabs and pours where speed, consistency and equipment reliability are important.

Genuine Honda GX35 Engine

The screed is powered by a genuine Honda GX35 35cc 4-stroke commercial engine.

The GX35 is widely used in professional portable equipment due to its compact dimensions, smooth operation and reliable recoil starting.

The 4-stroke design also eliminates the need to premix petrol and 2-stroke oil, making daily operation and refuelling straightforward.

Low Operator Vibration

While vibration at the screed blade is essential to the finishing process, excessive vibration transferred into the handles can quickly cause operator fatigue.

The Paddock design uses heavy-duty rubber isolation mounts and a carefully engineered drive arrangement to reduce the amount of vibration transmitted to the operator.

This makes the screed more comfortable during extended use and particularly suitable for professional concreters and equipment hire applications.

Hardened Aluminium Screed Blades

The interchangeable screed blades are manufactured from hardened aluminium alloy, providing a combination of low weight, rigidity and corrosion resistance.

The blade profile is designed to glide across wet concrete and produce a smooth, consistent finish.

Rolled blade ends improve manoeuvrability around corners, formwork and tighter working areas while also reducing the tendency for the blade ends to dig into the concrete.

Fast Blade Change System

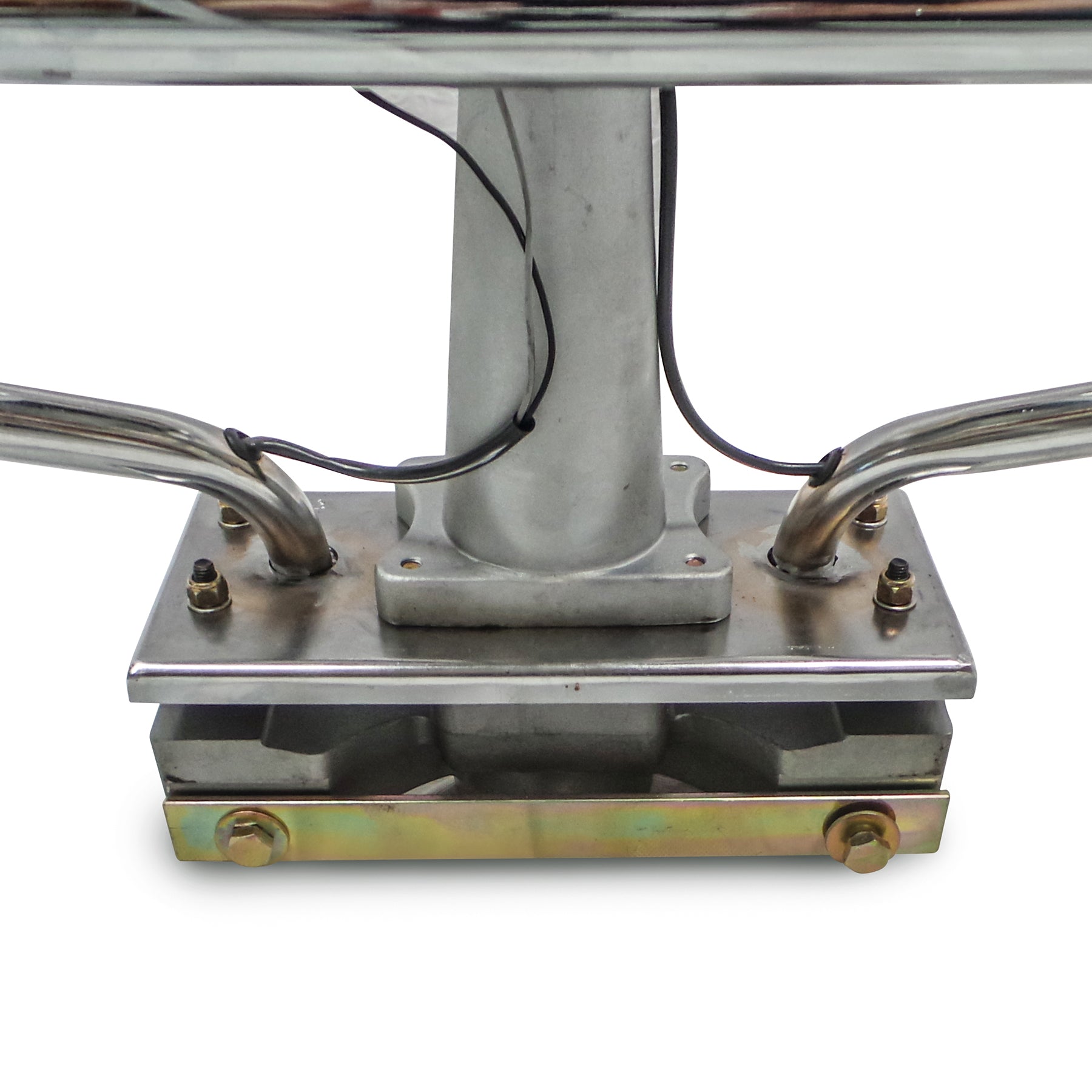

The single-piece cast alloy mounting body provides a strong connection between the drive unit and screed blade while keeping blade changes simple.

This allows operators to quickly change blade lengths to suit different slab widths and job requirements.

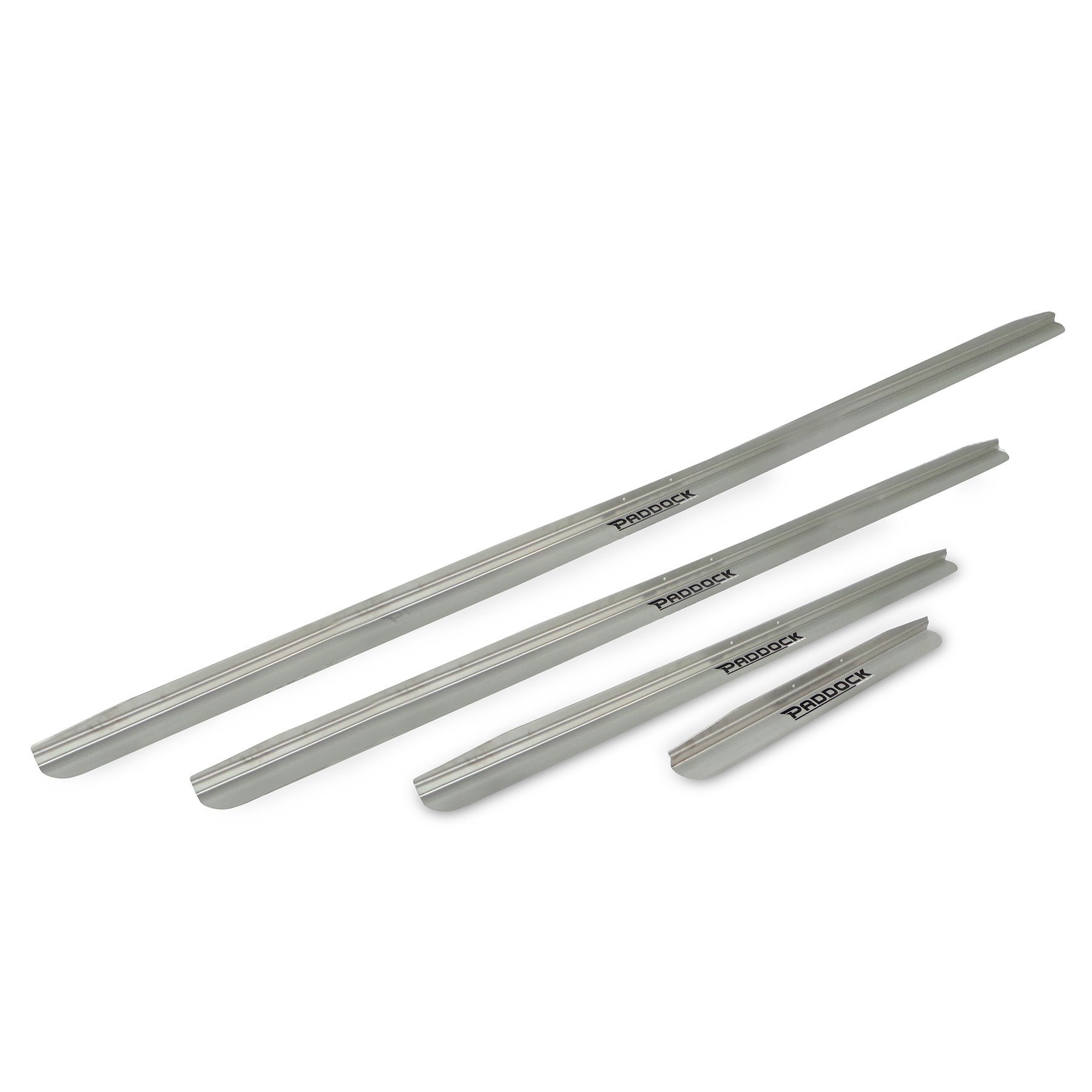

Available Screed Blade Lengths

• 1.2m
• 2.4m
• 3.7m
• 4.9m

Shorter blades are generally easier to control in smaller areas and tight spaces, while longer blades can increase productivity across wider pours.

Tilt-Up Stand

An integrated tilt-up stand allows the screed to be parked between passes without placing the engine or drive assembly directly into wet concrete.

This helps keep the machine cleaner and makes repositioning the unit during a pour easier.

Typical Applications

• Concrete contractors
• Equipment hire and rental businesses
• Commercial construction
• Residential slabs
• Concrete paths and laneways
• Tilt panel construction
• Industrial floors
• Council and shire works
• High-rise construction
• General slab finishing

Built for Professional Use

Paddock construction equipment is designed for demanding Australian working conditions. Heavy-duty components, simple servicing and genuine Honda engine reliability make this screed well suited to frequent trade and hire-fleet use.

The straightforward design also helps minimise maintenance requirements and makes cleaning easier after working around wet concrete.

Honda Vibrating Screed Specifications

Choosing a Screed Blade Length

Blade selection will depend on the width of the pour, access to the site and the number of operators involved.

1.2m: Compact and highly manoeuvrable for smaller jobs, narrow paths and tighter working areas.

2.4m: A versatile general-purpose size for many residential and commercial pours.

3.7m: Suitable for wider slabs where increased productivity is required.

4.9m: Designed for larger pours and experienced operators requiring maximum working width.

Operating & Maintenance Notes

After use, remove concrete residue from the blade before it cures. Keeping the blade clean helps maintain a smooth finishing surface and makes the machine easier to inspect.

Routine maintenance should include:

• Checking engine oil level
• Inspecting the air filter
• Checking blade mounting hardware
• Inspecting rubber vibration mounts
• Cleaning concrete from the blade and machine
• Checking fasteners before use

Important Initial Setup

Engine oil must be checked and topped up before first use. Engines are stored and transported with only enough oil for protection during shipping and should not be started until the correct oil level has been confirmed.

Minor assembly is required before operation due to the way the equipment is packed for transport.
