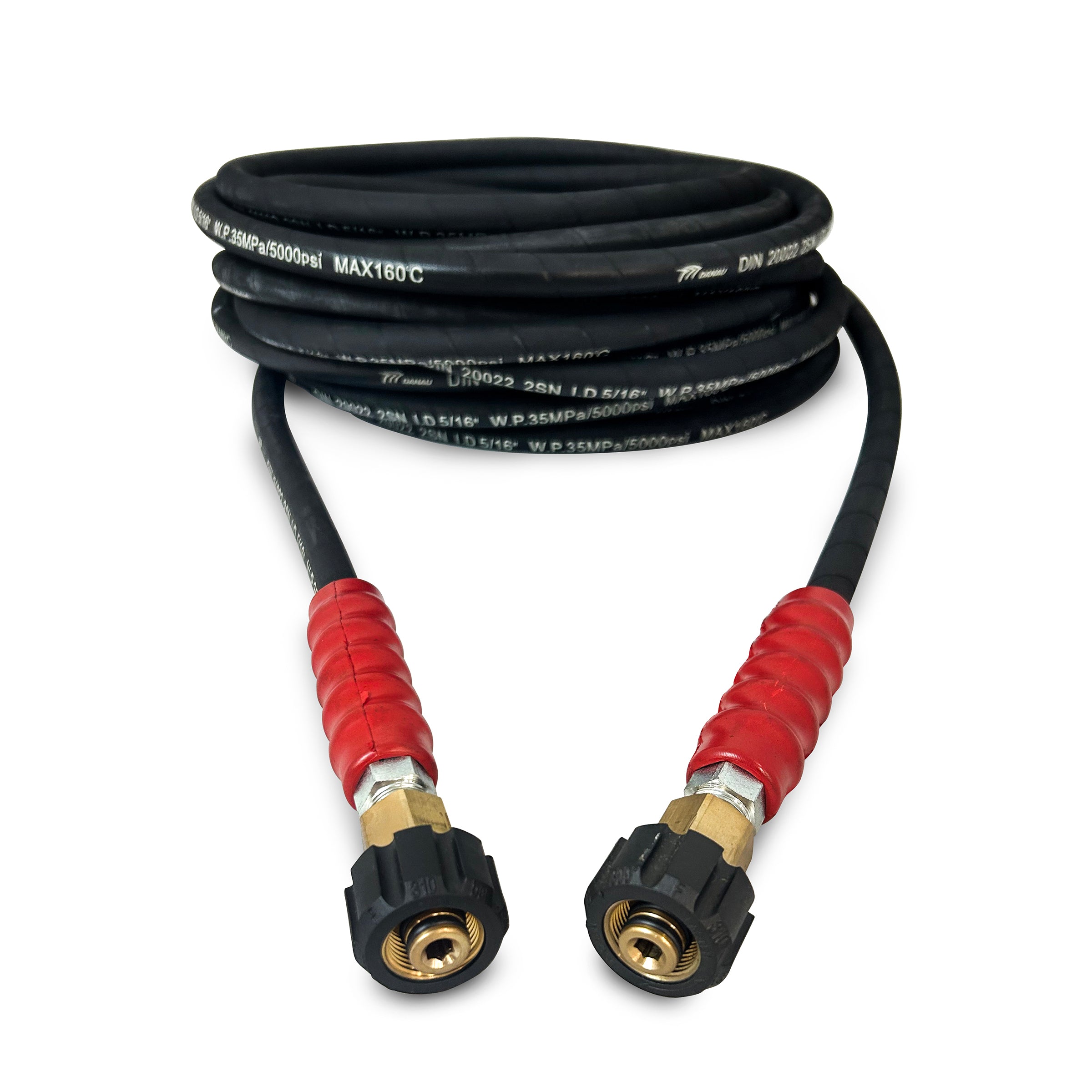

Paddock™ Hot Water Pressure Washer Hose – 5100 PSI, 150°C
Description
The Paddock™ Hot Water Pressure Washer Hose is a heavy-duty, double steel wire braided hose designed for high-pressure hot and cold water cleaning applications. Rated to 5,100 PSI (350 bar) and temperatures up to 150°C, it is suitable for commercial pressure washing, cleaning and maintenance applications.
Featuring a flexible rubberised outer covering and an 8mm (5/16") internal diameter, these hoses suit a range of Paddock™ and other compatible hot and cold water pressure washers.
Paddock™ Hot & Cold Water Pressure Washer Hose
Designed for demanding pressure-cleaning applications, this high-pressure hose combines double steel wire reinforcement with a rubberised outer covering for use with both hot and cold water pressure washers.
With a maximum working pressure of 5,100 PSI / 350 bar and maximum fluid temperature of 150°C, it is particularly well suited to commercial and industrial pressure washers where standard cold-water hoses may not be suitable.
Pressure Washer Hose Features
- Suitable for hot and cold water pressure washers
- Maximum working pressure of 5,100 PSI (350 bar)
- Maximum temperature of 150°C
- 4:1 burst-to-working-pressure ratio
- Double steel wire braided reinforcement
- Rubberised outer covering
- Non-marking hose construction
- 8mm (5/16") internal diameter
- Supplied with connection fittings
- Suits Paddock™ and other compatible pressure washer systems
Hot Water Rated to 150°C
Unlike general-purpose pressure washer hoses, this hose is designed for applications using water temperatures up to 150°C, making it suitable for compatible hot water pressure washers and commercial cleaning equipment.
Always ensure the pressure washer, spray gun, fittings and other components in the system are also rated for the operating temperature and pressure being used.
Double Steel Wire Braided Construction
The hose incorporates double steel wire braid reinforcement to withstand the high internal pressures generated by commercial pressure washing equipment.
The reinforced construction is combined with a flexible rubberised outer covering suitable for regular pressure-cleaning applications.
Pressure Washer Connections
Standard hose versions are supplied with M22 swivel nut fittings fitted to 3/8" male threaded connections, allowing connection to compatible pressure washers, spray guns, lances and accessories.
Connections can also be changed or adapted where required to suit other compatible pressure washer equipment.

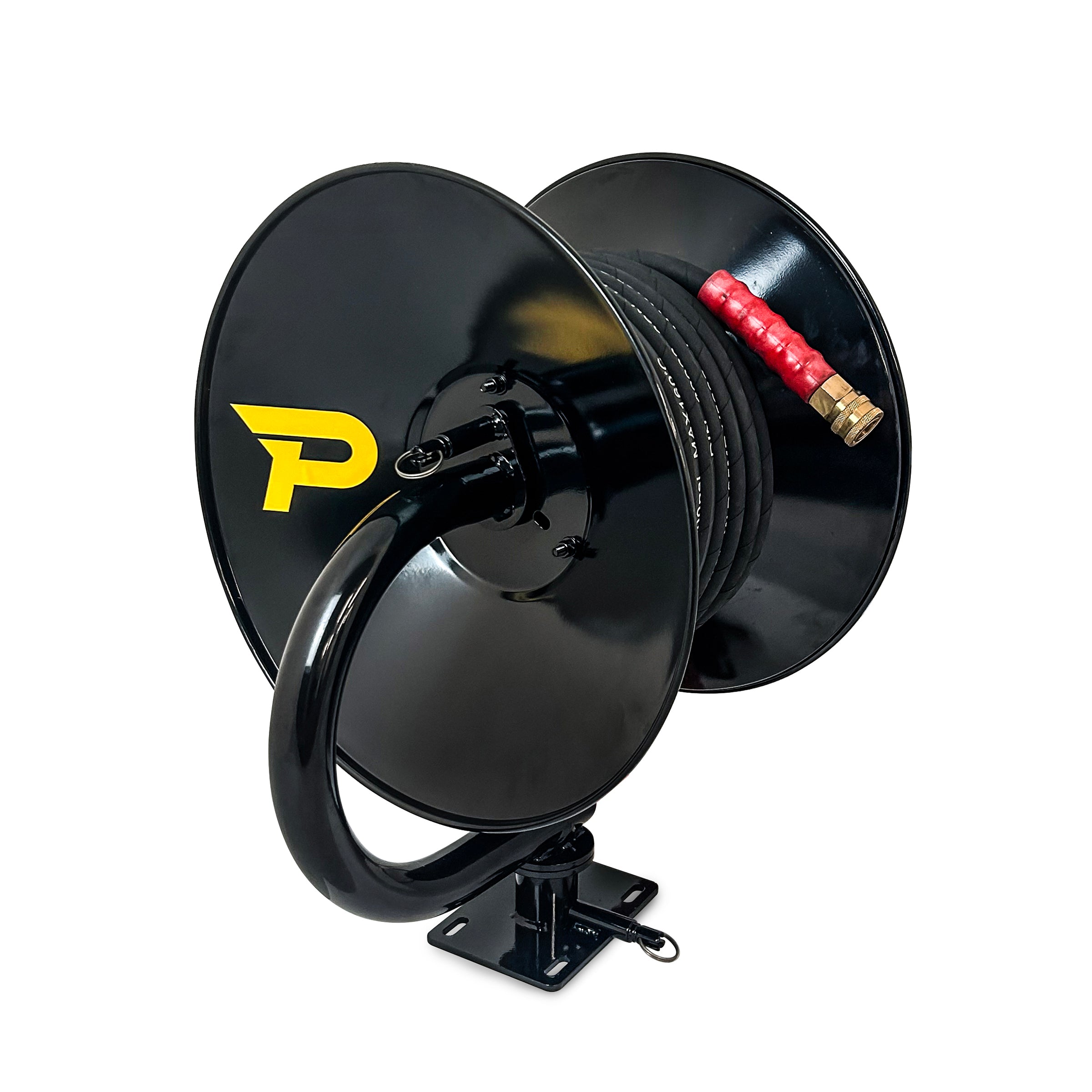

Note: The SPWHR20MH hose and reel version is supplied with quick-disconnect hose connection ends rather than the standard M22 configuration.
Typical Applications
- Hot water pressure washers
- Cold water pressure washers
- Commercial pressure cleaning
- Industrial cleaning equipment
- Workshop and machinery cleaning
- Property maintenance
- Professional cleaning equipment
Hot Water Pressure Washer Hose Specifications
| Specification | Details |
|---|---|
| Maximum Working Pressure | 5,100 PSI (350 bar) |
| Burst : Working Pressure Ratio | 4:1 |
| Internal Diameter | 8mm (5/16") |
| Maximum Temperature | 150°C |
| Standard Connections | M22 swivel nut fittings fitted to 3/8" male threaded connections |
| SPWHR20MH Connections | Quick-disconnect hose ends – supplied on hose reel |
| Hose Reinforcement | Double steel wire braid |
| Outer Construction | Non-marking rubberised covering |
| Colour | May vary; generally supplied in black |
Compatibility
Before ordering, confirm the hose length, connection type, working pressure and temperature rating required for your pressure washer.
When adapting the hose to different equipment, all fittings, couplings, spray guns and accessories must be rated for the maximum pressure and temperature of the intended application.
