Industrial Vacuum Cleaner Dust Extractor

Current Price $3,799.00
Original Price $3,999.00
(inc GST)
SKU PIV2200

Notify me when back in stock

Heavy & Bulky Item Information Info

Freight costs for heavy & bulky items may differ to the online freight calculator. Some items require a drop tail delivery service where a fork lift is not available to unload.

To order, checkout online and a customer service representative will then contact you to discuss the delivery options.

You can also contact us for a freight quote prior to ordering.

For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.



Description

This industrial dust extractor features twin AMETEK motors, Dual HEPA H13 dust filters and automatic pulse filter cleaning, meaning you no longer need to stop and clean the main filters at regular intervals. The continuous bag dust collection system ensures the unit is ideal for floor grinding, scarifying, core drilling and dry sawing of concrete.

Paddock Industrial Wet Dry Vacuum Cleaners

Paddock™ Industrial Vacuum Cleaner & Dust Extractor
  • Auto pulse self filter cleaning innovation!
  • Ideally suited to concrete grinding and sawing applications
  • Continuous bag dust collection and disposal system limits operator exposure
  • Multistage cyclonic and media filtration system including HEPA H13 filters
  • Incorporates quality AMETEK motors
  • Runs on a standard household single phase power socket
  • Simple to service and maintain
Auto-Pulsing Filtration System

This Paddock industrial vacuum has been designed for use in the hardest of applications such as with dry concrete grinders and saws. Concrete dust is extremely fine and hazardous if inhaled which makes a high quality vacuum solution vital.

This unit incorporates cyclonic separation and multi-stage filters with a innovative auto pulsing cleaning system not found in other brand vacuums.

The auto cleaning system allows the operator to continue working without having to constantly stop to pulse or manually clean the filters. The system has been designed to ensure suction is not lost during the pulse cleaning which maximises work efficiency. Cleaning happens regularly at time intervals to ensure the filters are working to their optimal performance without significant loss of air flow due to clogging.

Multi-Stage HEPA filteration System

Clean filtered air is achieved using cyclonic separation followed by Pre-HEPA H12 filters. This 1st stage filteration removes 99.95% of particles 0.3 micron size and larger and is continuously pulse cleaned. The 2nd stage filteration uses H13 HEPA filters to remove 99.99% of particles 0.3 micron size and larger.

Continuous Bag Disposal System

Having a continue bag disposal system minimises operator interaction to the collected fine dust particles. As the hopper fills with dust it is automatically dumped into the continuous bag which sits below. Zip ties are used to clamp off the bag as it fills so it can be disposed off safely.

Applications

These vacuums can be used for all types of dry dust vacuuming. They are not suited to wet vacuuming.

The PIV2200 model is best suited to floor grinders up to 600mm in diameter and will perform well for such high dust applications. These units are ideal for use with floor grinders, concrete scarifiers, concrete cutting saws.

Paddock™ supports this product with Australian based support and a full range of replacement parts and spares.

    Vacuum Model PIV2200
    Brand Paddock™ Machinery
    Function Dry vacuum suited to concrete grinding and sawing
    Power 2.4kW
    Voltage 240V 50Hz (Single Phase)
    Current Drawer 8 A
    Air Flow

    400 m3/hr

    256 cfm

    Vacuum Max.

    220 mbar

    90 inch water lift

    Main Hose 7.5m x 50mm
    Inlet 70mm

    Pre-Filter

    EN 1833-H12

    99.95% @ 0.3 micron

    (PIV2200#2-12)

    Pre-Filter Area
    2 m2

    HEPA Filter

    EN 1833-H13

    99.99% @ 0.3 micron

    (PIV2200#5-3)

    H13 HEPA Filter Area
    2.4 m2
    Dust Collection System

    Continuous bag

    (PIV2200#3-14)

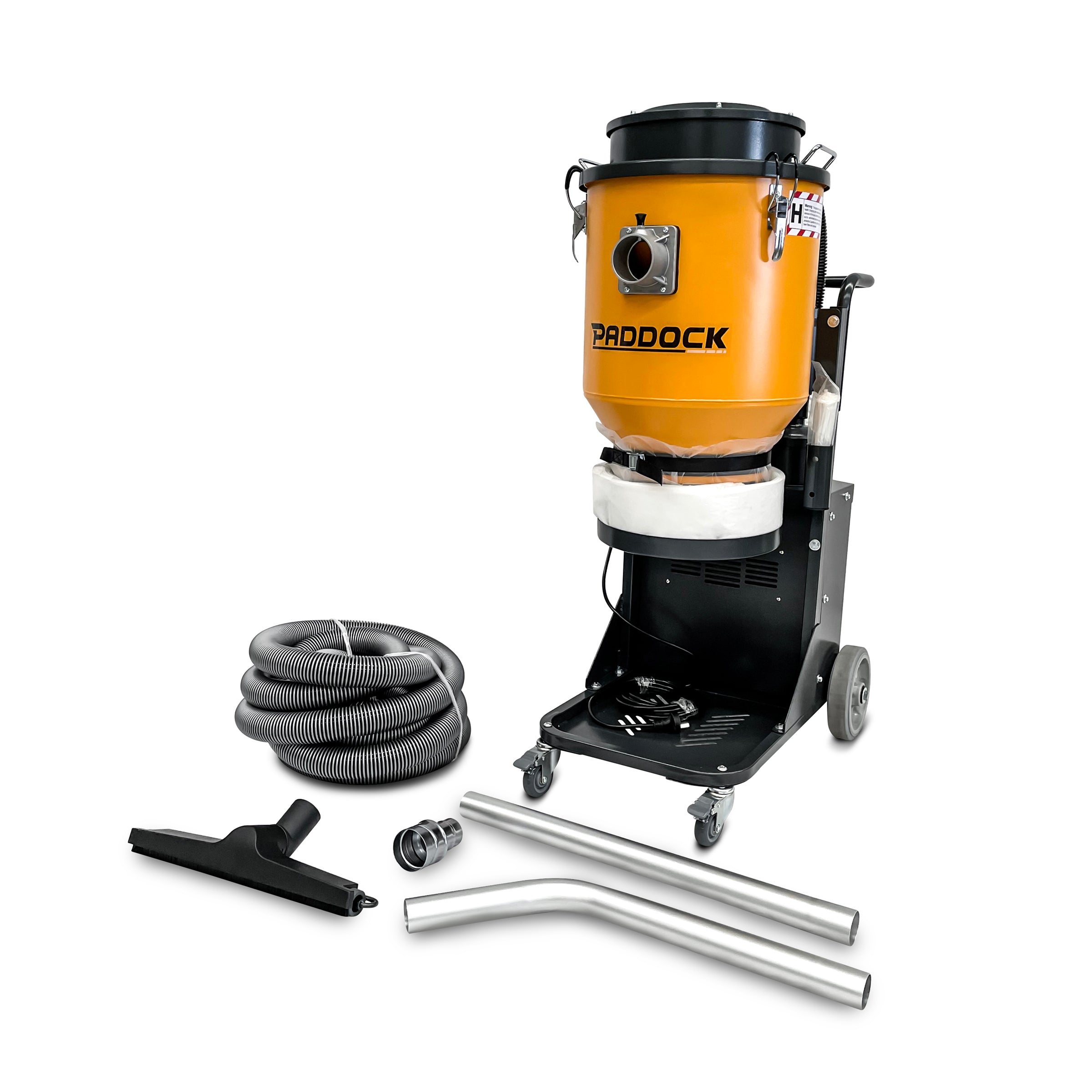

    Includes

    D50 S wand

    D70/50 reducer

    7.5m of D50 EVA double layered hose (PIV2200#1-4)

    D50 Hose cuff

    D50 floor brush (PIV2200#1-6)

    Dimensions
    570 x 710 x 1270 mm
    Weight 48 kg
    Warranty 2 Yrs


    SHIPPING INFORMATION:

    This item can be shipped Australia wide and is also available for pick up from our Brisbane warehouse. This item has a shipping weight of over 30kg. Contact us for a freight quote to your location before ordering online.
