Paddock Rock Breaker

Current Price $3,999.00
Original Price $7,999.00
(inc GST)

Notify me when back in stock

Heavy & Bulky Item Information Info

Freight costs for heavy & bulky items may differ to the online freight calculator. Some items require a drop tail delivery service where a fork lift is not available to unload.

To order, checkout online and a customer service representative will then contact you to discuss the delivery options.

You can also contact us for a freight quote prior to ordering.

For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.



Paddock Machinery offers extremely high quality equipment at affordable prices. Ideal for professional and trade applications, when buying Paddock brand you can rest assured you're getting a heavy duty proven design that won't let you down.

Paddock Machinery and Construction Equipment Australia

Suits a range of mini loaders - see further details below.

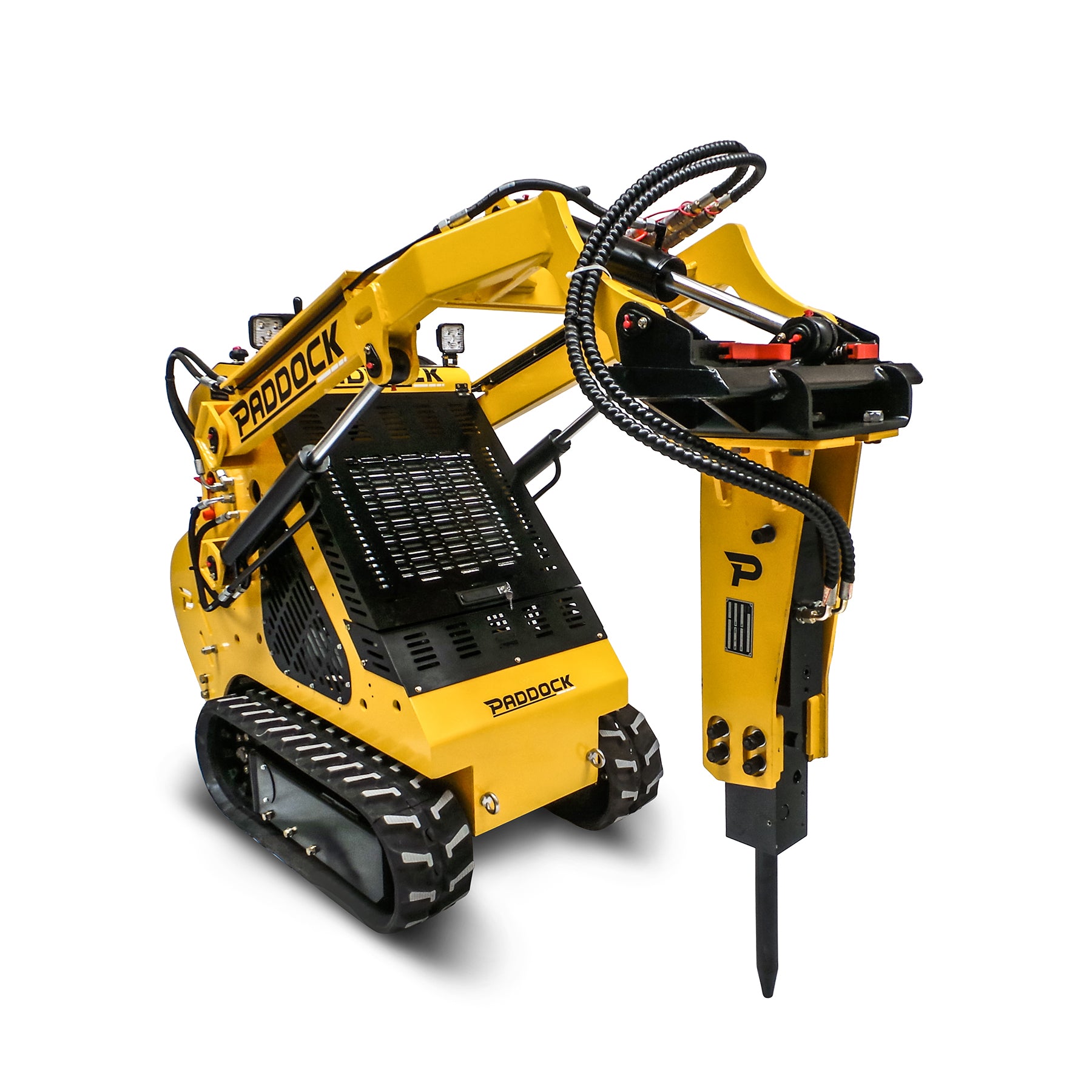

'Paddock' Hydraulic Rock Breaker Attachment

    The Paddock range of mini loaders are proving to be the most versatile mini loader on the market and the huge range of accessories and attachments allows more and more trades to take advantage of the full capabilities from a single machine.

    The mini loader rock breaker attachment allows your loader or skid steer to perform a range of demolition tasks such as breaking up concrete, cement, pathways, bitumen, roads and rocks to name a few. Easy to connect to your loader, the rock breaker or hydraulic hammer is simply activated with the auxiliary hydraulic lever.

    Paddock Rock Breakers are simple in design and made to be robust, reliable and simple in maintenance. The hydraulic power from the carrier is used to press the piston against a gas pressure. Then the gas pressure generates the impact power. This ensures the highest possible efficiency when it comes to impact energy.

    Whilst this is a Paddock branded attachment it is suitable for use on other brand machines, users should take care to ensure the machine has mass to accommodate this size an attachment before proceeding. The Paddock loaders are larger and heavier then many competing brands with higher hydraulic pump capacities making them suitable and compatible with such size attachments. This implement has a dry weight of over 130kg which gives an indication of the construction strength and quality.

    Rock Breaker Features

    • High power to weight ratio
    • Patented valve system - simple hydraulic circuit with large dimension oil passages
    • Reliable and simple maintenance
    • Fully closed frame with noise and vibration dampening system

    These units are palletised and can be shipped around Australia with ease. For further information or to view a demonstration of this attachment, call or email us.

    Rock Breaker Specifications
    Weight 130 kg
    Working Pressure 90 - 120 Bar (1300 - 1740 psi)
    Hydraulic Connections Compatible with DNP flat faced connections
    Hydraulic Flow Requirement 25 - 40 L/min
    Hose Diameter 1/2"
    Chisel Diameter 45mm
    Impact Rate 550 - 1000 bpm
    85dB(A) radius 3 - 5 m
    Dimensions 1300mm x 612mm x 318mm
    Receiver Hitch Plate Details Multifit / Universal Skid Steer

    595 x 220mm area

    Slotted 16mm pin holes to suit a range of mini loaders. Always check adaptor plate measurements in photos above before purchasing.
    Warranty 12 months

    Don't Compromise Quality

    When working with machinery, equipment quality should not be compromised, cheap copy machines breakdown costing you money. Paddock only use the highest quality materials making them a machine for life. Ensure you're getting genuine branded equipment, not some Chinese copy.


    This item can be shipped Australia wide and is also available for pick up from our Brisbane warehouse. We advise contacting us for a freight quote to your location. A fork lift will be required at the receiver's location for unloading otherwise we'll need to quote on a tail lift truck for delivery.
