Heavy Duty Retractable Oil Hose Reel – 15m, 1/2", 2320 PSI
Freight costs for heavy & bulky items includes a tailgate truck cost. If a forklift is available please contact our sales team to discuss.
You can also contact us for a freight quote prior to ordering.
For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.
Description

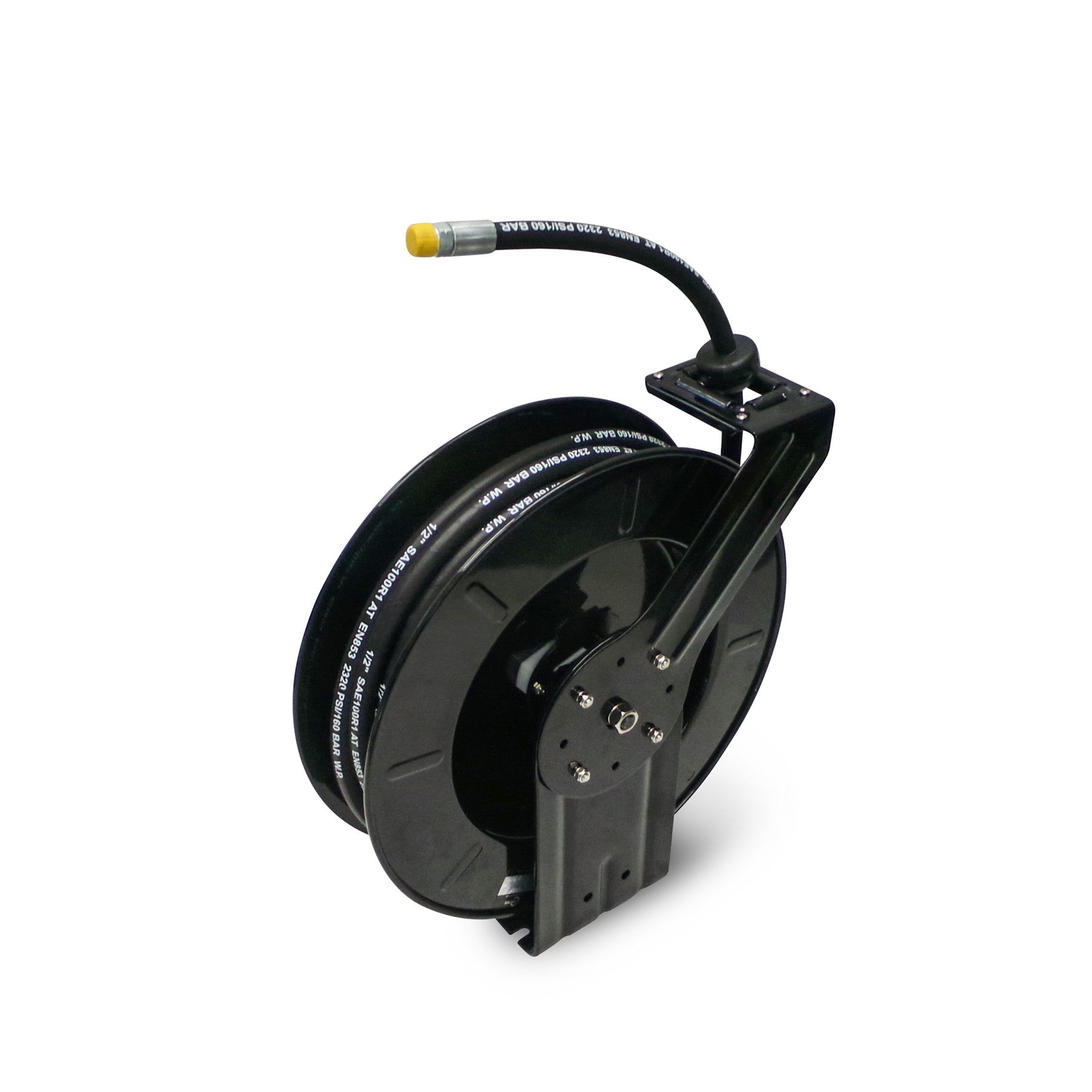

The Scintex Heavy Duty Oil Hose Reel is a spring-retractable 15m hose reel designed for workshops, service vehicles and industrial maintenance applications. Supplied with 15m of 1/2" hose and rated to 160 bar / 2320 PSI, it provides a practical way to keep lubricant dispensing hose organised and protected when not in use.
Heavy-duty steel construction, adjustable spring retraction and roller hose guides make the reel suitable for wall, floor or ceiling mounting in professional workshop environments.
Heavy Duty 15m Retractable Oil Hose Reel
Designed for lubricant dispensing and compatible fluid-transfer applications, this industrial hose reel keeps hose stored neatly away from workshop floors while still providing quick access when required.
The spring-driven mechanism automatically retracts the hose after use, while the heavy-duty roller guide allows the hose to feed smoothly when pulled at different angles.
Oil Hose Reel Features
- 15m retractable hose
- 1/2" hose diameter
- Maximum stated pressure of 160 bar / 2320 PSI
- Spring-driven automatic retraction
- Adjustable spring tension
- Heavy-duty powder-coated steel frame
- Reinforced steel reel drum
- Multi-directional roller hose guide
- Suitable for wall, floor or ceiling mounting
- 1/2" BSP inlet and outlet connections
- NBR hose construction
- Compatible with oil, diesel and petrol as specified
- Approx. 28kg reel weight
- 12 month warranty
Spring Retractable Hose Reel
The spring-driven retraction system allows the hose to be pulled out as required and returned neatly to the reel after use.
Spring tension can be adjusted to provide an appropriate retraction force for the installation, helping make the reel convenient for regular workshop use.
15m × 1/2" Hose
The reel is supplied with 15m of 1/2" hose, providing useful reach around vehicles, machinery and workshop service areas without requiring loose hose to remain on the floor.
The supplied hose uses an oil-resistant synthetic rubber inner tube with wire reinforcement and a protective synthetic rubber outer cover.
160 Bar / 2320 PSI Pressure Rating
The hose reel has a stated maximum pressure rating of 160 bar / 2320 PSI, making it suitable for compatible pressurised lubricant dispensing systems operating within this limit.
All pumps, meters, dispensing guns, fittings and other components connected to the reel must also be suitable for the operating pressure and transferred fluid.
Heavy Duty Steel Construction
The reel incorporates a heavy-gauge steel frame with reinforcing ribs and a reinforced drum. A powder-coated finish provides additional protection for workshop and industrial environments.
At approximately 28kg, the reel should be securely mounted to a structure capable of supporting both the reel and the loads generated as the hose is extended and retracted.
Multi-Directional Roller Guide
A heavy-duty roller guide supports the hose as it enters and leaves the reel, allowing it to be pulled at different angles while reducing direct rubbing against the reel frame.
This is particularly useful where the reel is mounted overhead, on a wall or in a service vehicle.
Flexible Mounting Options
The reel can be installed in a variety of positions depending on the workshop or service vehicle layout, including:
- Wall mounting
- Floor or bench mounting
- Ceiling or overhead mounting
- Service truck installations
Ensure the mounting structure and fasteners are suitable for the reel weight and operating loads.
Typical Applications
- Automotive workshops
- Mechanics and service centres
- Truck and heavy vehicle workshops
- Mining and equipment maintenance
- Agricultural workshops
- Industrial maintenance facilities
- Mobile service trucks
- Marine maintenance workshops
- Lubricant dispensing systems
Oil Hose Reel Specifications
| Specification | SOHR15M |
|---|---|
| Operation | Spring retractable |
| Discharge Hose Length | 15m |
| Hose Diameter | 1/2" |
| Maximum Stated Pressure | 160 bar / 2320 PSI |
| Inlet / Outlet | 1/2" BSP |
| Frame Material | Powder-coated steel |
| Hose Material | NBR / synthetic rubber with reinforcement |
| Compatible Fluids | Oil, diesel and petrol |
| Weight | Approx. 28kg |
| Warranty | 12 months |
Workshop Organisation
Keeping dispensing hose on a retractable reel helps protect it from being driven over, dragged across workshop floors or left where it can create a trip or entanglement hazard.
It also provides a cleaner and more organised fluid dispensing station, particularly where oil is regularly transferred to vehicles and machinery.
Installation & Compatibility
Before installation, confirm that the hose, reel, fittings and connected dispensing equipment are compatible with the fluid and operating pressure of the system.
Mount the reel securely and position it so the hose can extend and retract without excessive side loading, sharp bends or contact with abrasive surfaces.
Inspect the hose, fittings, reel mechanism and mounting points periodically and replace damaged or excessively worn components before further use.
