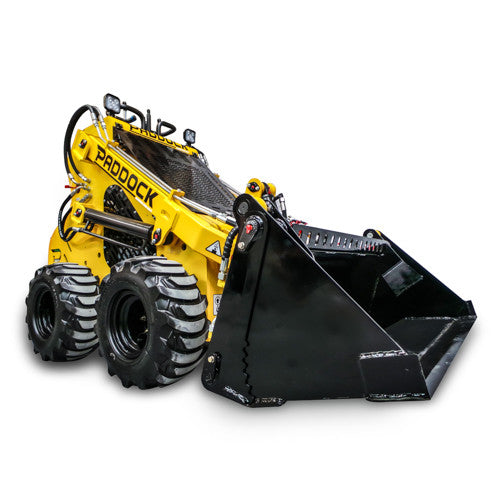

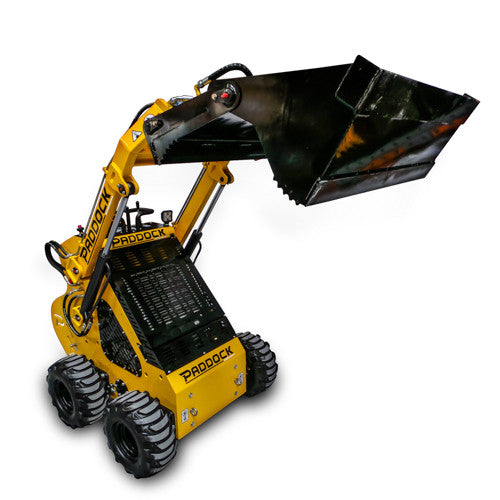

Paddock Machinery offers extremely high quality equipment at affordable prices. Ideal for professional and trade applications, when buying Paddock brand you can rest assured you're getting a heavy duty proven design that won't let you down. These are buckets to suit small skid steer loaders, also available are larger buckets for skid steer loaders.
The 4 in 1 bucket is one of the most useful tools you will ever own. Suited for grading, scraping, grappling, dozing dirt or material spreading, and most construction work. The quick connect hydraulic connections makes attachment fast and simple.
These buckets boast a range of features only seen in high end constructions such as grease nipples on the wear pivots, heavy wall hydraulic rams and heavy duty plate steel construction. The bucket is designed with teeth to aid in grabbing items such as timber and rocks. Extra plate thickness is added in high wear and abrasion areas to provide exceptional operating life.
Digging teeth can be bolted onto these buckets easily which for some applications is a great aid, especially when digging. Each plate thickness is provided to offer superior strength ensuring a long operating life from a quality product.
|4 in 1 Bucket||Specifications|
|Hydraulic Connections||Compatible with DNP flat faced connections|
1162mm wide - suits wheeled loader (accepts 5 teeth)
830mm wide - suits tracked loader (accepts 4 teeth)
PADDOCK Diesel Loader 4in1 Bucket (accepts 6 teeth)
Larger sizes for skid steer loaders also available.

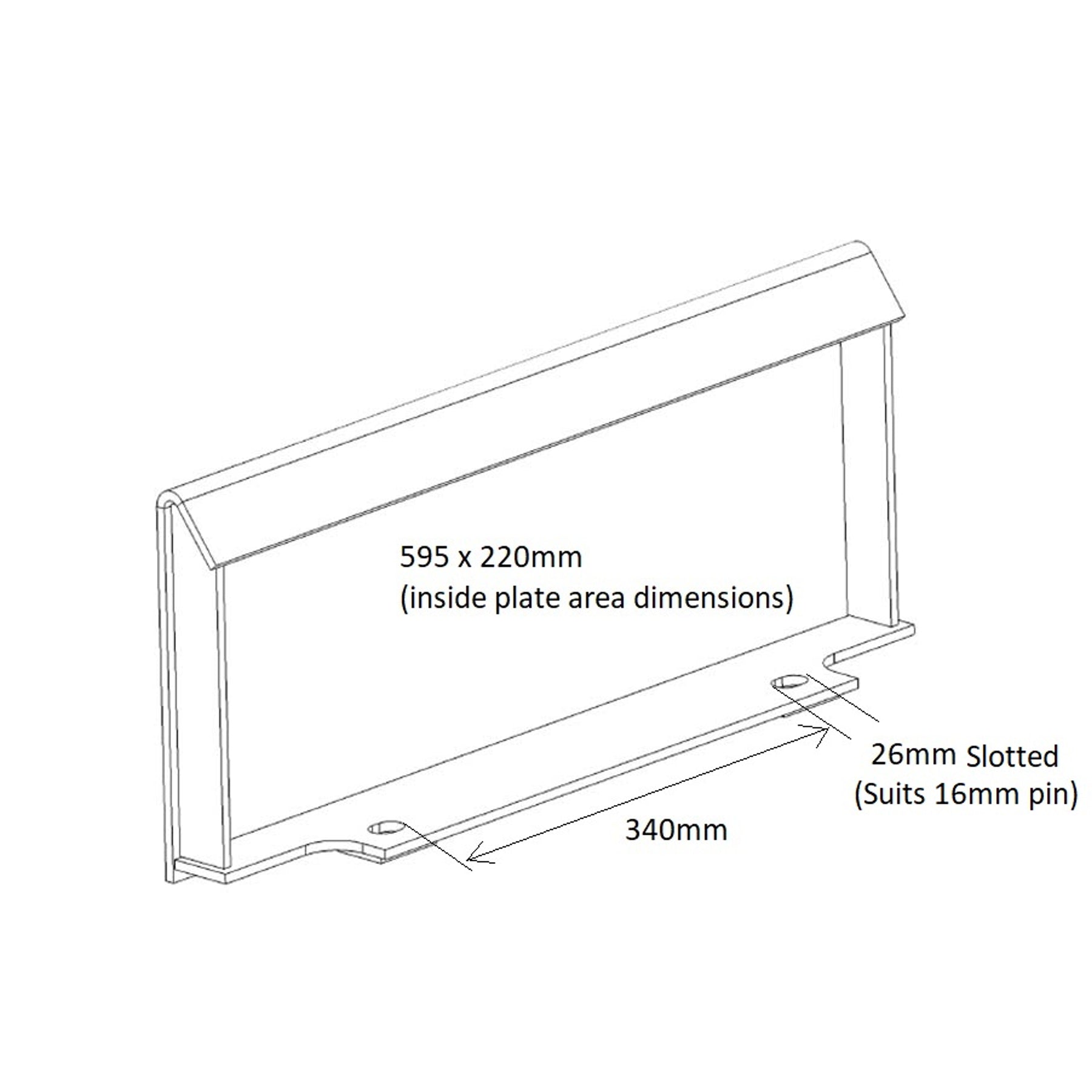

|Receiver Hitch Plate Details||
Multifit / Universal Skid Steer
595 x 220mm area (800mm and 1200mm bucket sizes)
Slotted 16mm pin holes to suit a range of mini loaders including Dingo (Not older K9-2), Kanga, Bobcat / Gehl - 1640 / Mustang - 2012, Toyota Hitch SDK 8, 9, 10, 11, ASV Positrack - PT30, RC30 and more. Always check adaptor plate measurements in photos above before purchasing.
STRKL20BK - Suits PADDOCK Diesel Engine Loader
607 x 235mm area with 40mm wide slots to suit 20mm pins
|Opening Angle||110 degrees|
Don't Compromise Quality
When working with machinery, equipment quality should not be compromised, cheap copy machines breakdown costing you money. Paddock only use the highest quality materials making them a machine for life. Ensure you're getting genuine branded equipment, not some Chinese copy.
This item can be shipped Australia wide and is also available for pick up from our Brisbane warehouse. We advise contacting us for a freight quote to your location. A fork lift will be required at the receiver's location for unloading otherwise we'll need to quote on a tail lift truck for delivery.
