Paddock Post Hole Digger Attachment
SKU: SMLAA0001
FOR BULKY AND HEAVY ITEMS CONTACT US FOR A FREIGHT QUOTE.
For orders outside of Australia contact us for a freight quote.
Description
Paddock Machinery offers extremely high quality equipment at affordable prices. Ideal for professional and trade applications, when buying Paddock brand you can rest assured you're getting a heavy duty proven design that won't let you down.
Suits a range of mini loaders including Dingo, Toro, Kanga, Bobcat, Toyota, Positrack and more - see further details below.
'Paddock' Post Hole Digger with Augers

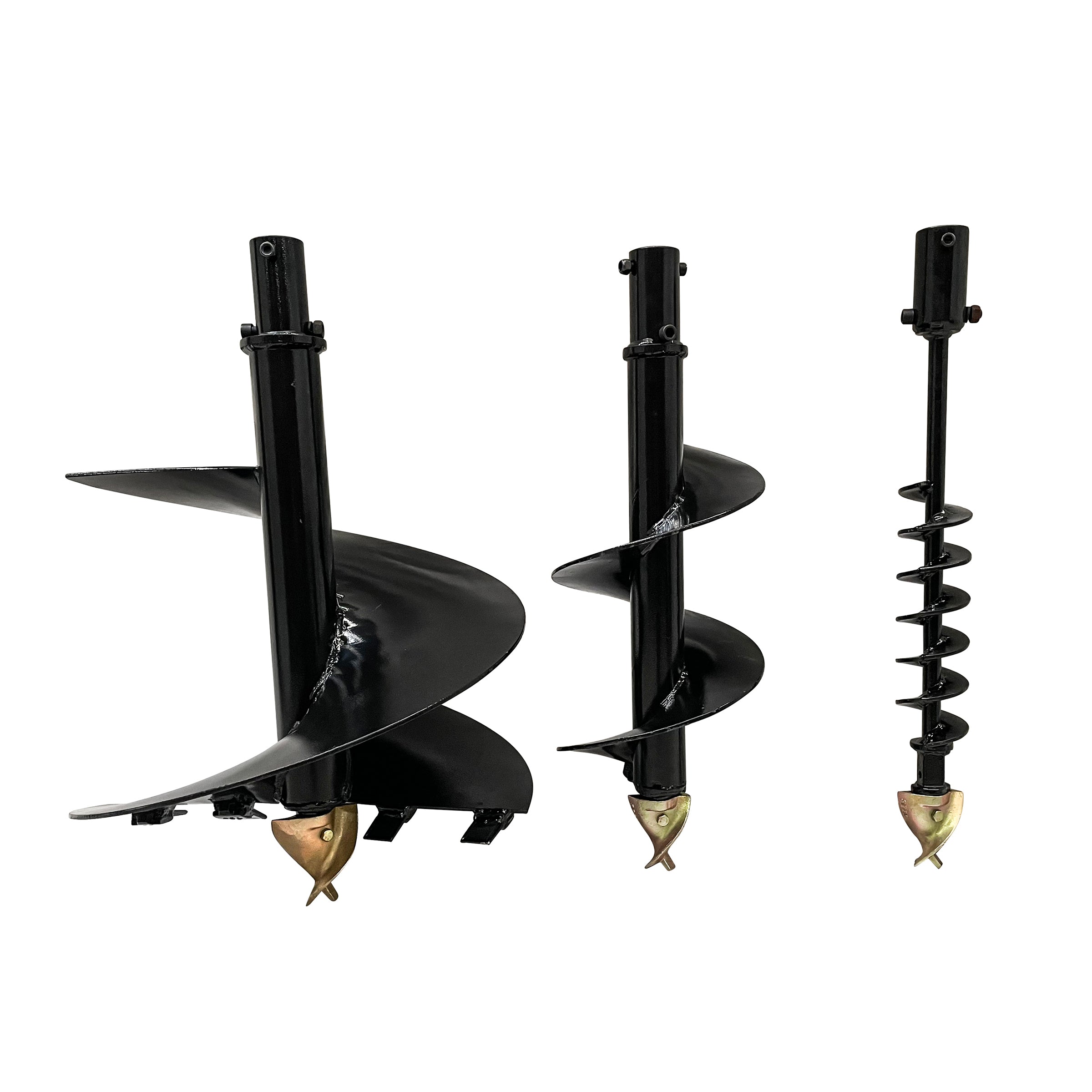

The Paddock mini loader post hole digger kit comes with everything you need to convert your mini loading into a hole boring machine. The kit includes the hydraulic drive head with hoses as well as 3 augers (100mm, 300mm and 600mm sizes). Like all Paddock equipment, this auger unit is extremely high quality suited to commercial and trade applications.

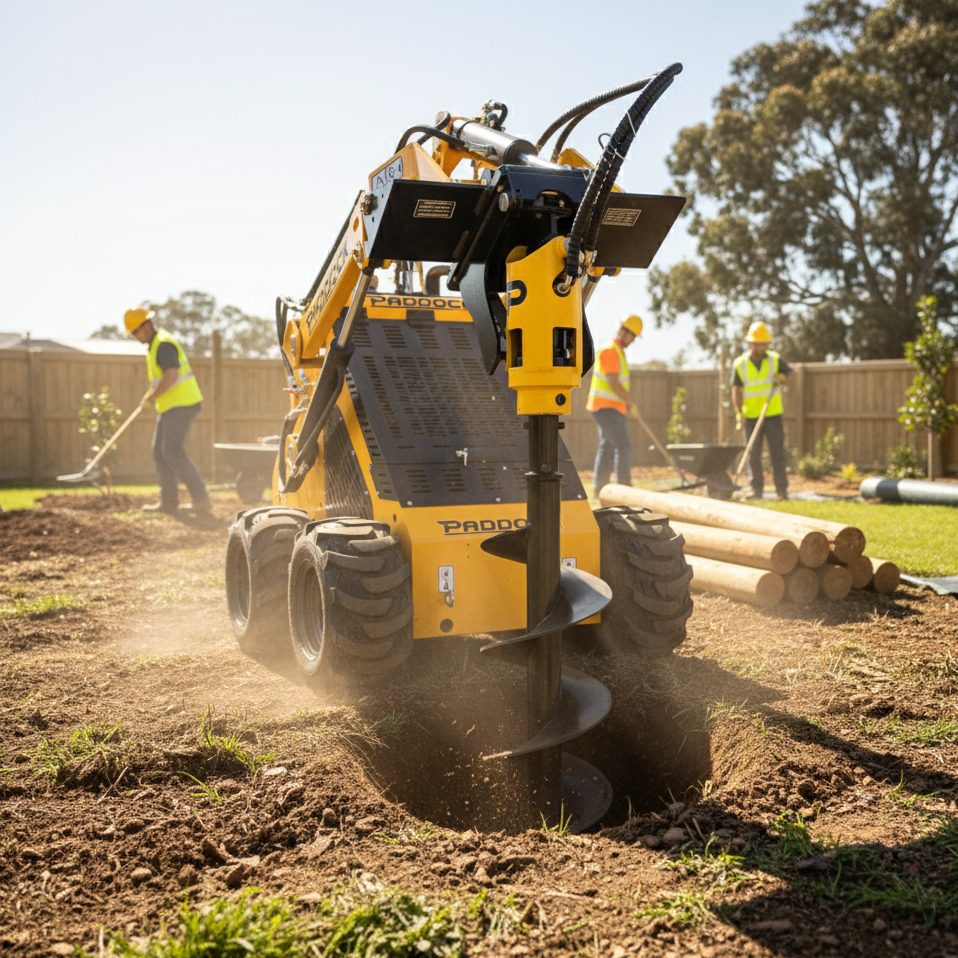

Ideal for people building fences, barns, installing posts and polls. This unit makes digging holes simple and fast. When coupled to the Paddock mini loader, you will easily dig through the toughest ground. If using this auger set with other machines, be sure to check your loaders hydraulic pressure and flows to save disappointment. Paddock machines come standard with a high performance hydraulic system which allows them to use larger, more demanding attachments.
| Auger Drive | Specifications |
|---|---|
| Weight | ~100 kg |
| Dimensions | 560 x 610 x 410mm |
| Attachment | Hitch Overall size: 1200mm W x 395mm H Pin centre to Pin centre: 830 mm Pin hole width: 120 mm |
| Hydraulic Connections | Compatible with DNP flat faced connections |
| Hydraulic Flow | 70-90L/min |
| Included Augers |
1m x 100mm, 1m x 300mm, 1m x 600mm Heavy duty solid construction with replaceable cutting teeth |
| Rotational Speed | 180 - 230 rpm |
| Torque | 900 - 1090 Nm |
| Receiver Hitch Plate Details | Multifit / Universal Skid Steer 595 x 220mm area Slotted 16mm pin holes to suit a range of mini loaders including Dingo (Not older K9-2), Kanga, Bobcat / Gehl - 1640 / Mustang - 2012, Toyota Hitch SDK 8, 9, 10, 11, ASV Positrack - PT30, RC30 and more. Always check adaptor plate measurements in photos above before purchasing. |
| Warranty | 12 months |
Don't Compromise Quality
When working with machinery, equipment quality should not be compromised, cheap copy machines breakdown costing you money. Paddock only use the highest quality materials making them a machine for life. Ensure you're getting genuine branded equipment, not some Chinese copy.
SHIPPING INFORMATION:
This item can be shipped Australia wide and is also available for pick up from our Brisbane warehouse. We advise contacting us for a freight quote to your location. A fork lift will be required at the receiver's location for unloading otherwise we'll need to quote on a tail lift truck for delivery.
