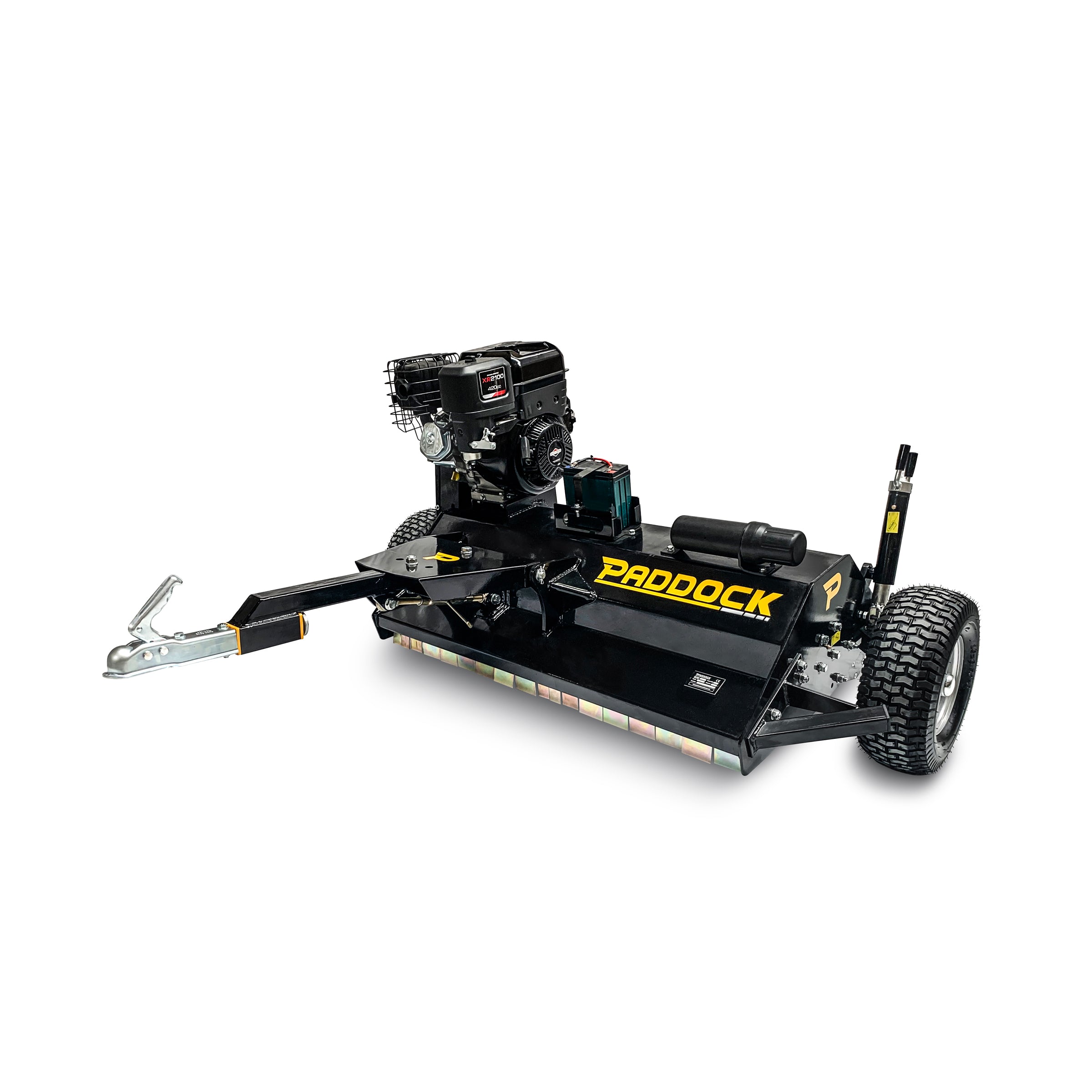

Paddock Tow Behind Flail Mower
Freight costs for heavy & bulky items may differ to the online freight calculator. Some items require a drop tail delivery service where a fork lift is not available to unload.
To order, checkout online and a customer service representative will then contact you to discuss the delivery options.
You can also contact us for a freight quote prior to ordering.
For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.
Description
Combine the reliability of a genuine Briggs and Stratton engine with the toughest engineering specifications and you have Australia's most heavy duty tow behind mower. Designed for Australian conditions this mower will eat through grass on rugged terrain and landscape.
Paddock Lawn Mower Slasher
- Suitable for use with Quad Bikes, Four Wheelers, ATVs, Tractors, Utilities
- Genuine Briggs and Stratton 4 Stroke Petrol Engine with electric key start and recoil backup start
- Heavy duty professional trade quality construction
- Reliable and simple pull start
- Extra Heavy Duty Hammer Blades
- Adjustable wheel design allows for fence line mowing
Beware of imitations. Poor welding and design, paint application and inferior Chinese engines will cause problems! You get what you pay for. PADDOCK units are exceptional quality with thousands of units in use around Australia. Come and compare to spot the differences.
Flail Mower Applications
Flail style mowers are generally used for maintaining more rugged areas where an polished clean finish is not required. The blades or flails are extremely durable and can handle thick & long grass, sticks, bark and debris. Ideal for grass cutting and mulching on farms, acreages, golf courses, parks, road sides, properties, horse and cattle studs to name a few.
What does the flail drum look like?
The Paddock tow behind flail mowers have a rotating drum with a series of 28 flail blades. The drum stretches the length of the mower. This design, when compared to your standard style mower with rotating horizontal blades, is much more robust and can tackle more rugged vegetation.
Mower Operation
This mower is powered by its own petrol engine, not a PTO shaft like many other flail mowers, meaning you simply tow the implement with a vehicle of your choice. The following are very popular for pulling the mowers; quad bikes, four wheelers, ride on mowers, tractors, utes, 4WDs and ATVs.

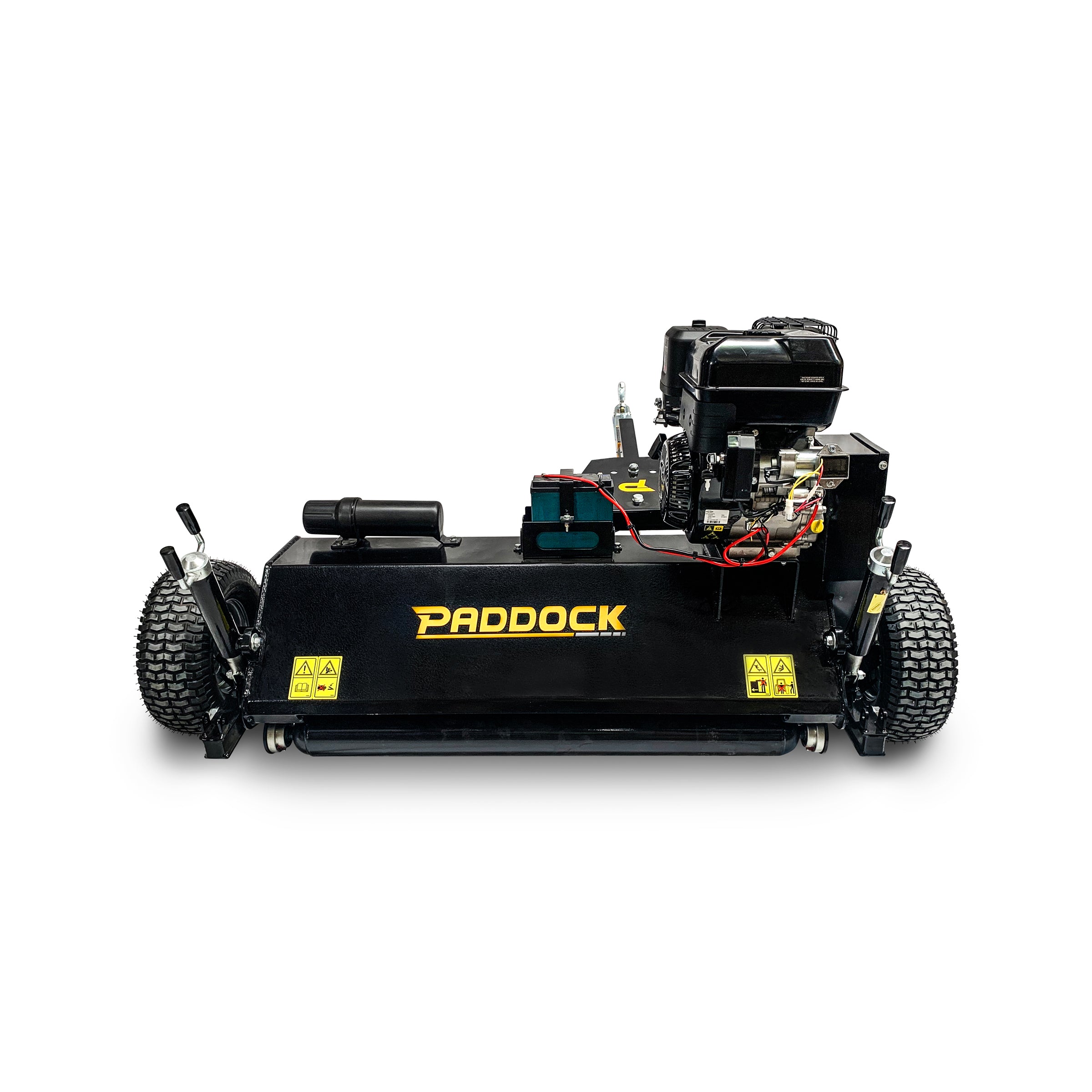

The large 2 ply wheels combined with skids on either side prevent damaged to the mower when wheels drop into pot holes or ruts, the side skids are also adjustable in height along with the roller.

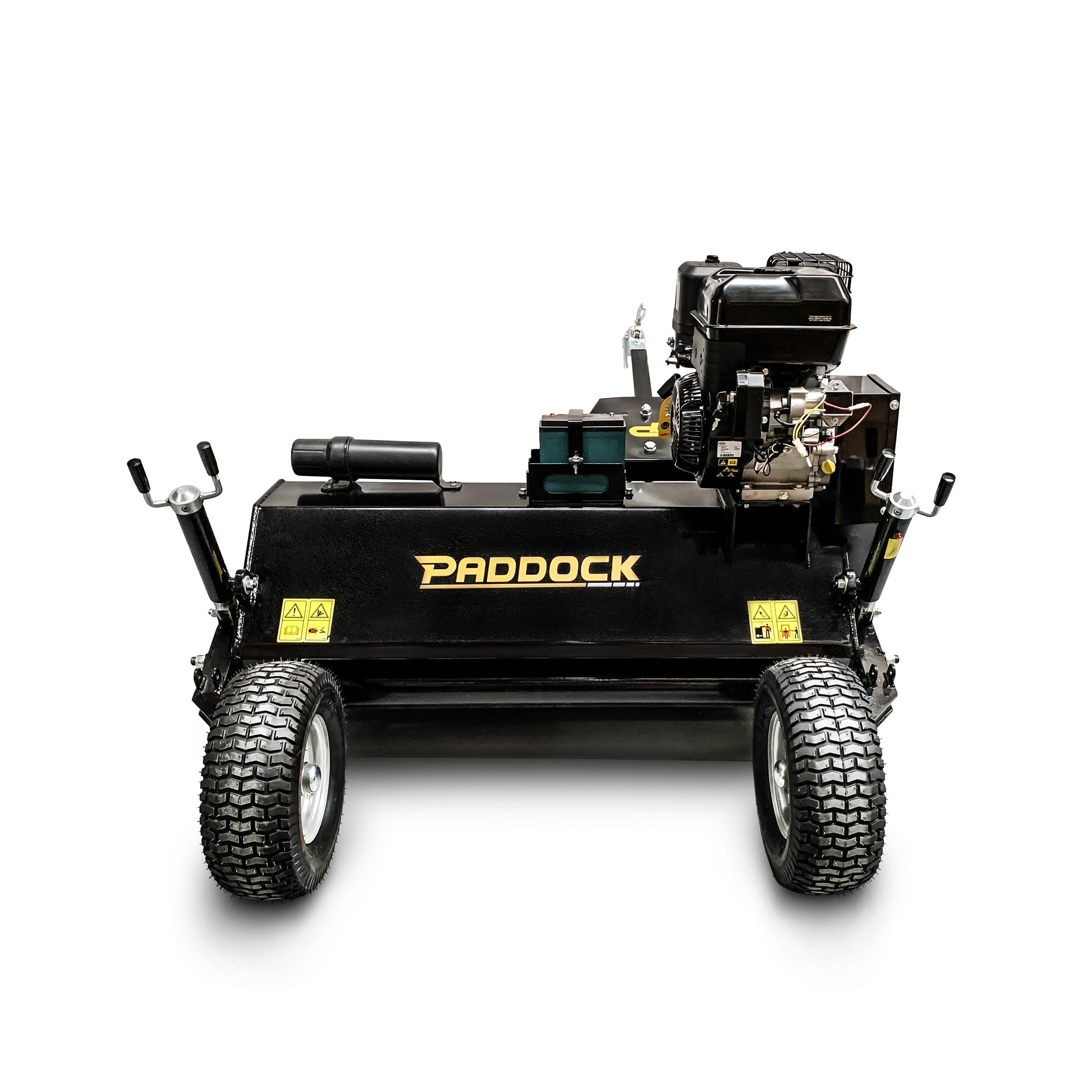

Mow fence lines with ease as the PADDOCK design allows for the wheels to be located at the rear of the mower meaning the cutting blades can run closer to the fence. Cheap knock off units don't have this feature.
To adjust the mowing height, there are simple height adjuster handles. This system is quick and reliable.
When connecting to your vehicle, the hitch height and offset can also be altered to suit. Grass is discharged from the rear of the mower and the rear roller provides a clean finish compared to other slashers. Incorporating steel stone guards at the front further protects the driver and surrounds from damage from flying debris. The blades are vertically mounted and rotate in the vertical plane mean there are far more contact points giving great durability and a finer cut. Lawns will respond better to a flail mower cut and overtime improve with the clippings returning as fine mulch.
Paddock Mower Construction
When designing and constructing these mowers they need to stand up to continual use in harsh environments. The Briggs and Stratton 4 stroke engine gives amazing reliability with limited maintenance. B&S have a fantastic dealer network which spans the country and the world wide warranty offers piece of mind. The mower frame and construction is heavy duty steel, laser cut to precision, making a higher quality overall unit compared to the imitations. Steel work is prepared and finished with a hard wearing powder coat to keep your mower looking great.
The units are fitted with high quality bearings and any wear areas are easily maintained with grease nipples. The tyres are 2 ply puncture resistant and offer an extended service life when compared to others. The units come fitted with heavy duty cutting hammer blades designed for prolonged use with limited wear.
Mower Linkage

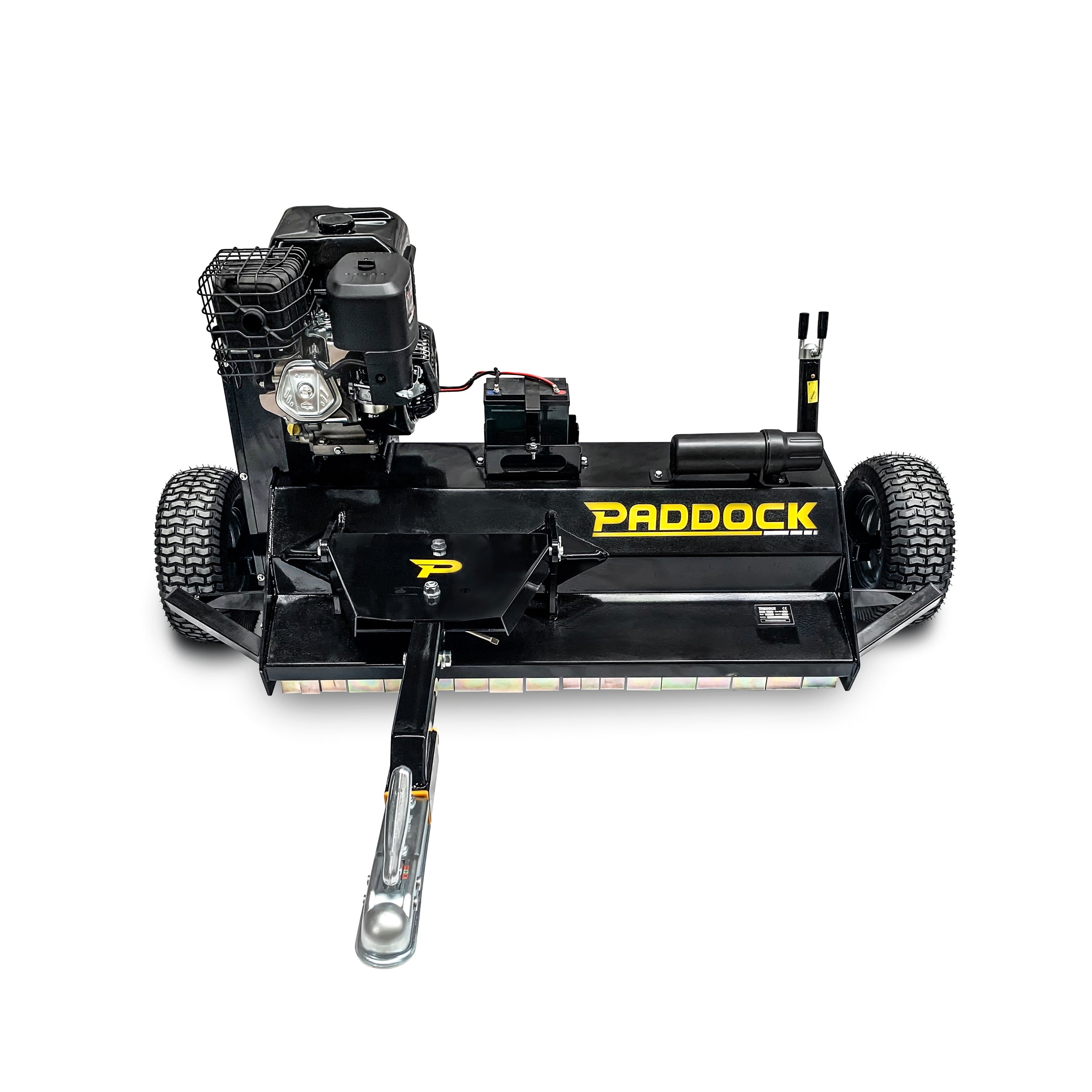

The mower comes with a 50mm (2") tow ball hitch and will fit standard tow balls. Given the weight of the unit we do not suggest modifying to a clevis pin hitch. This mower can be towed with a range of equipment such as quad bikes, ATVs and even utilities. The tow draw bar is able to pivot up and down so it can fit tow balls of varying height. Many customers have used with Toyota Landcruiser utes and the similar height vehicles.
Mower Configurations

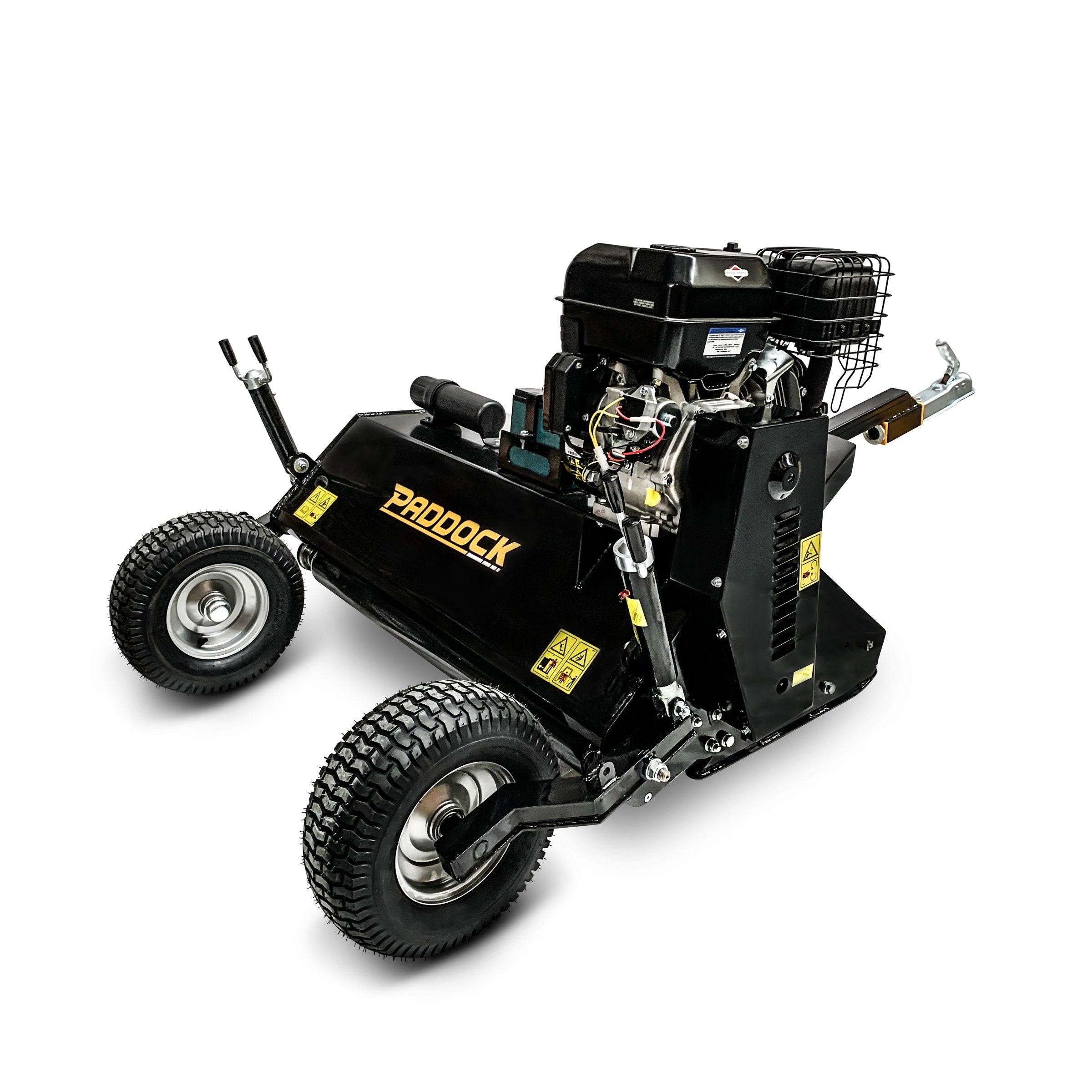

The original 13HP Paddock tow behind mower can be configured with the wheels side by side (this is how the mower is initially set up) or with the wheels trailing from the rear. To change between the two set ups takes approximately 20 minutes. With the wheels trailing from the rear and the side guards removed it allows the user to mow much closer to objects, sheds, tanks, posts, fences lines etc.
|
 |
 |
| Wheels trailing from the rear. | Wheels on the side. | Removable side guards. |

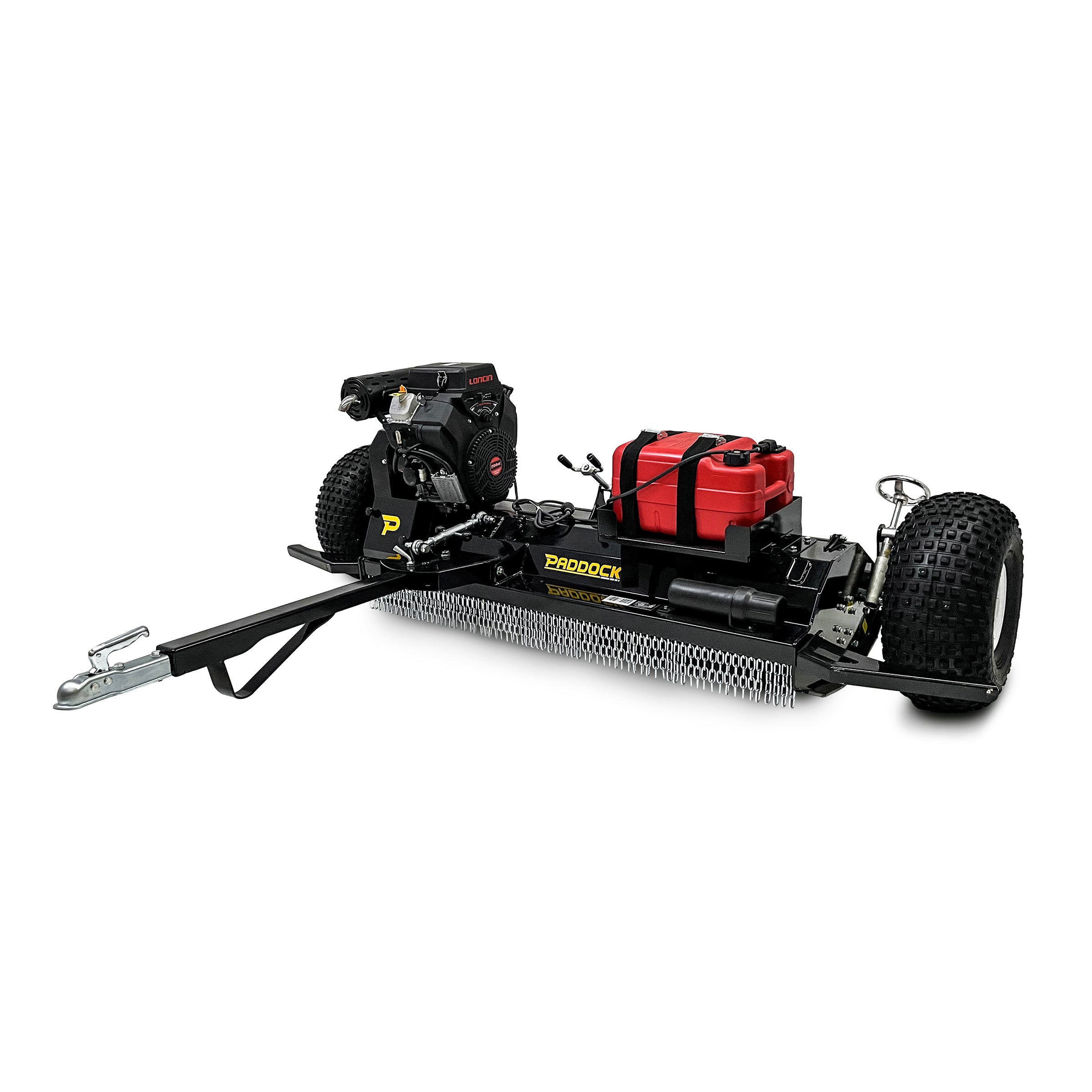

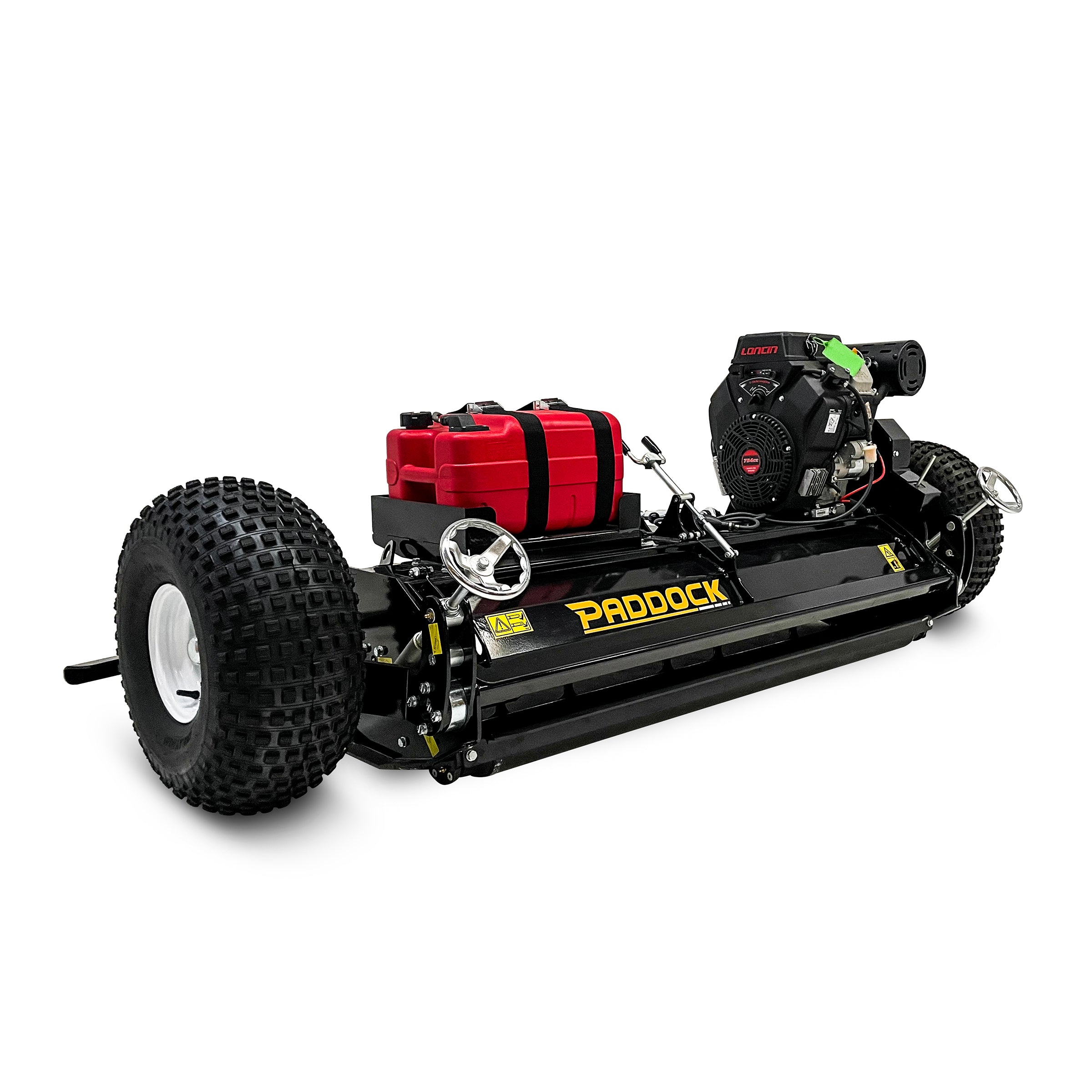

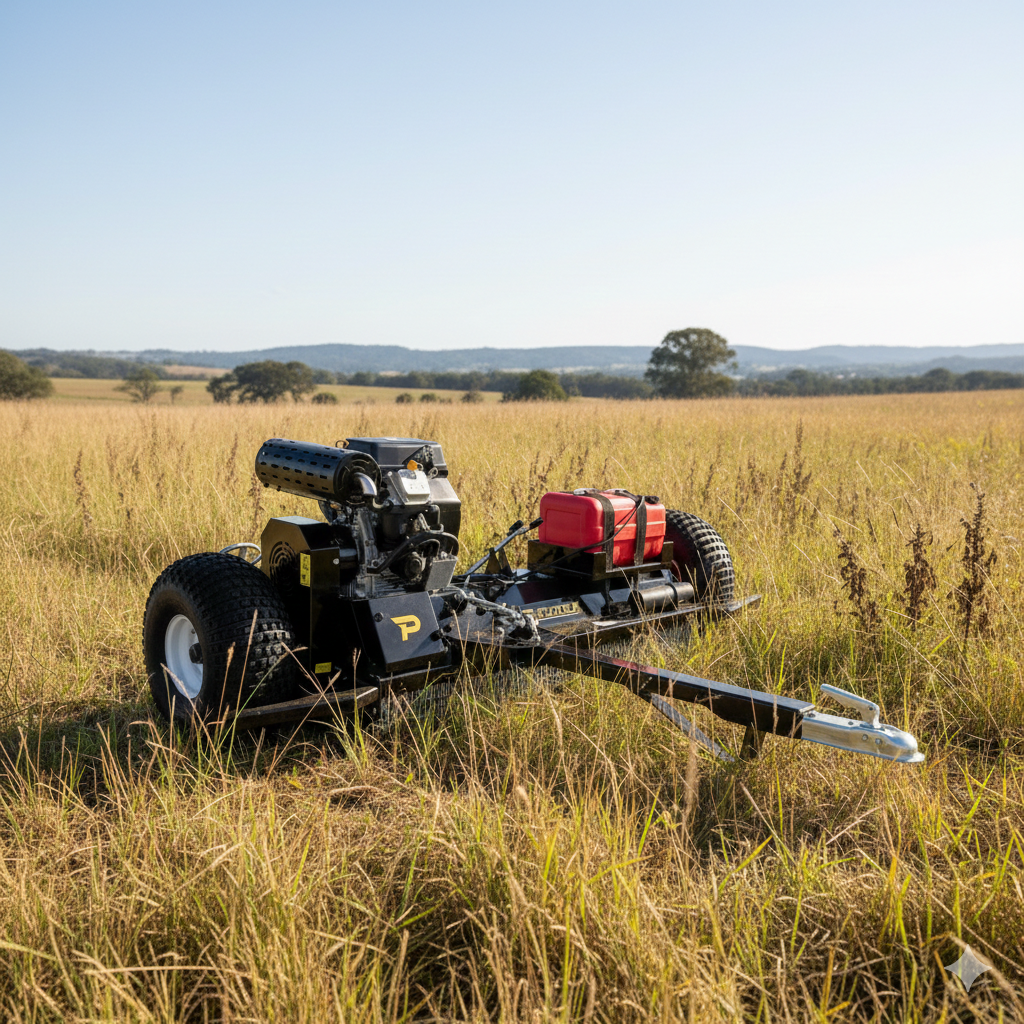

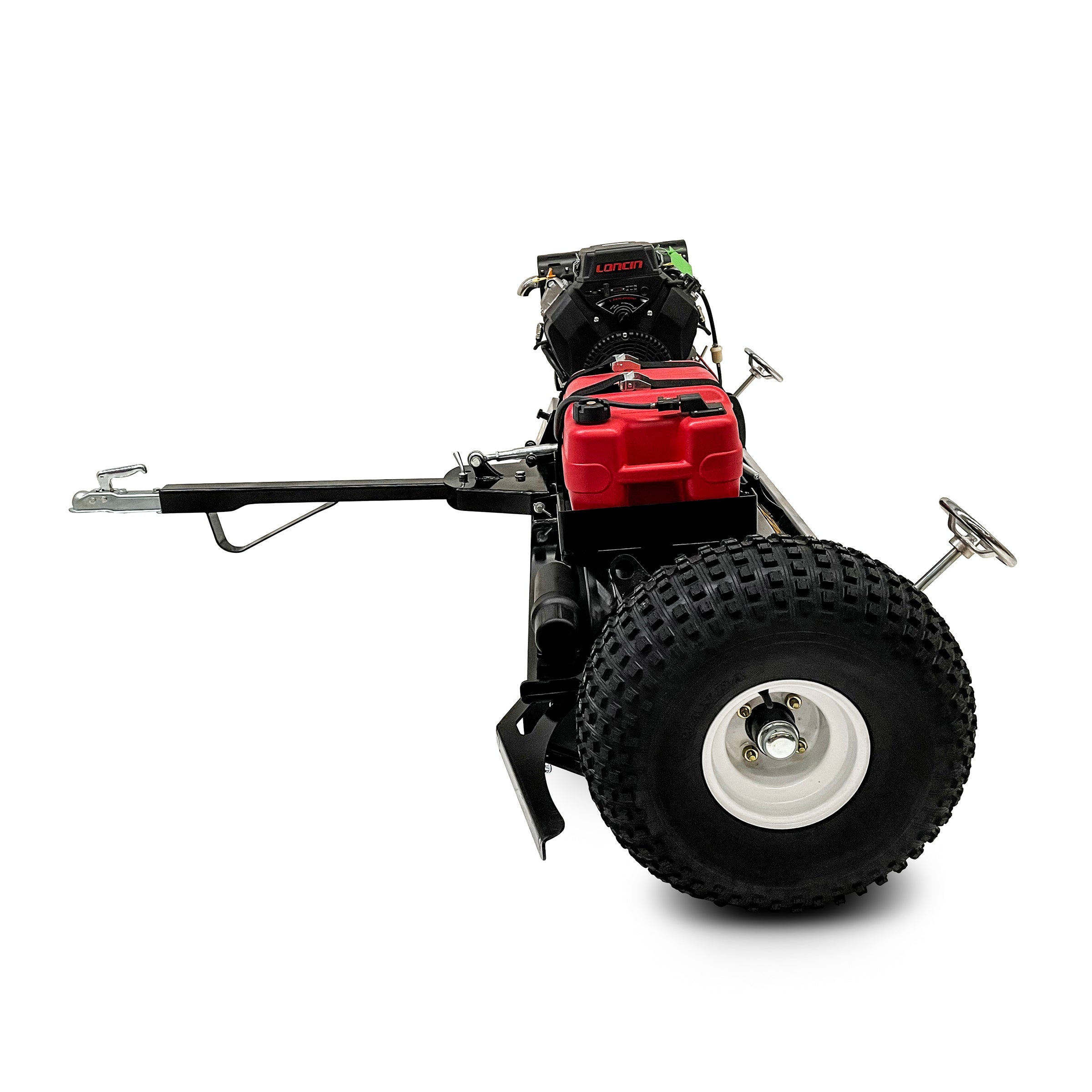

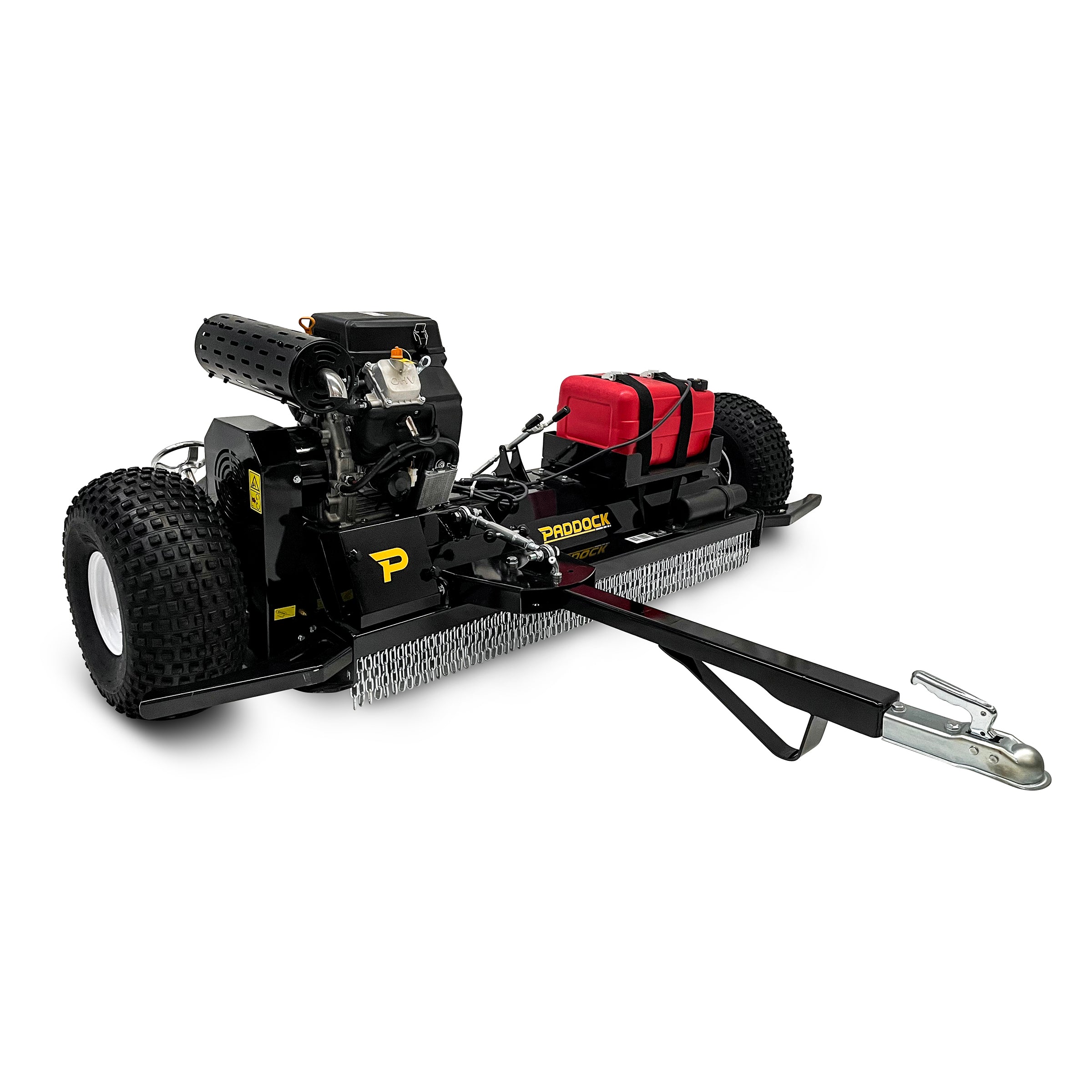

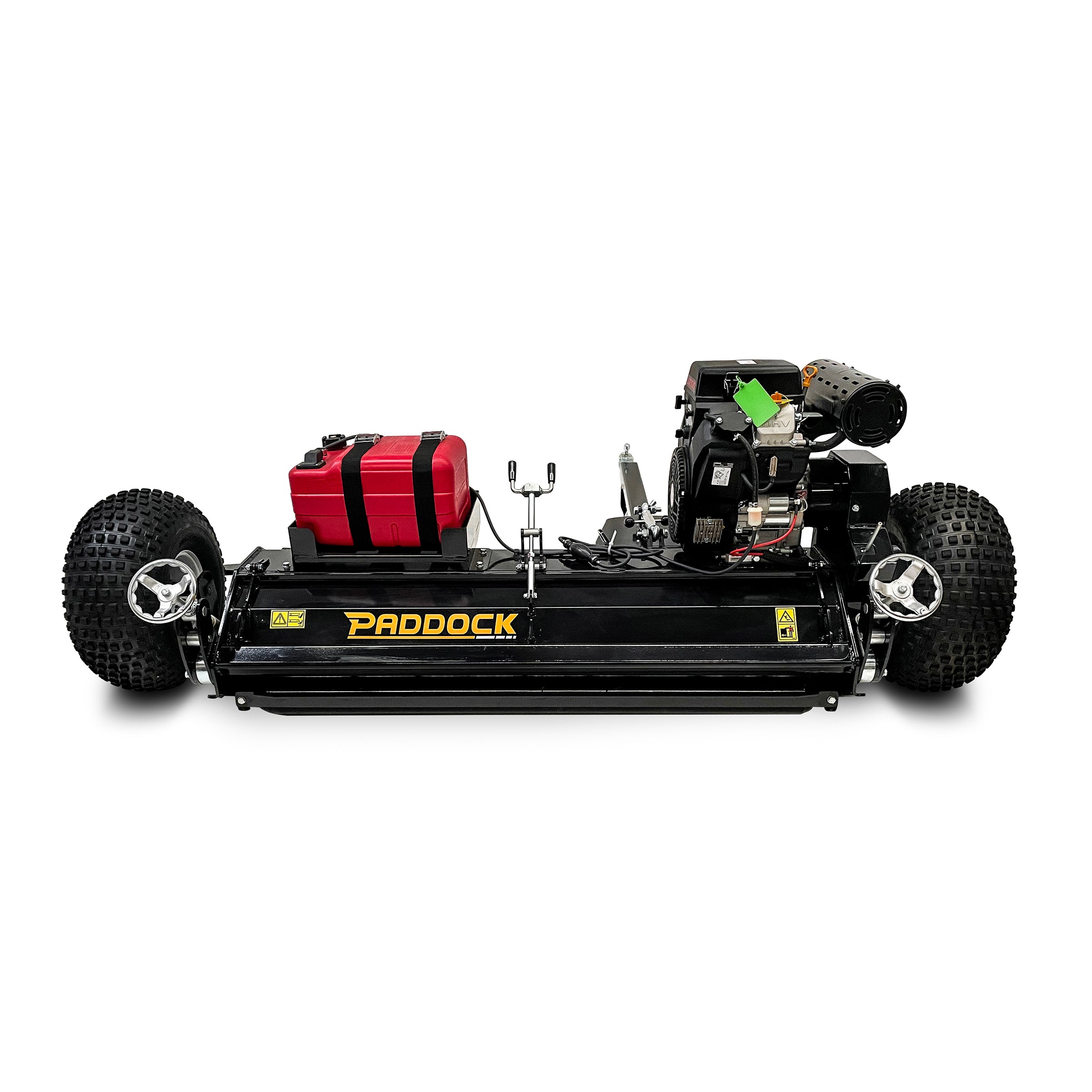

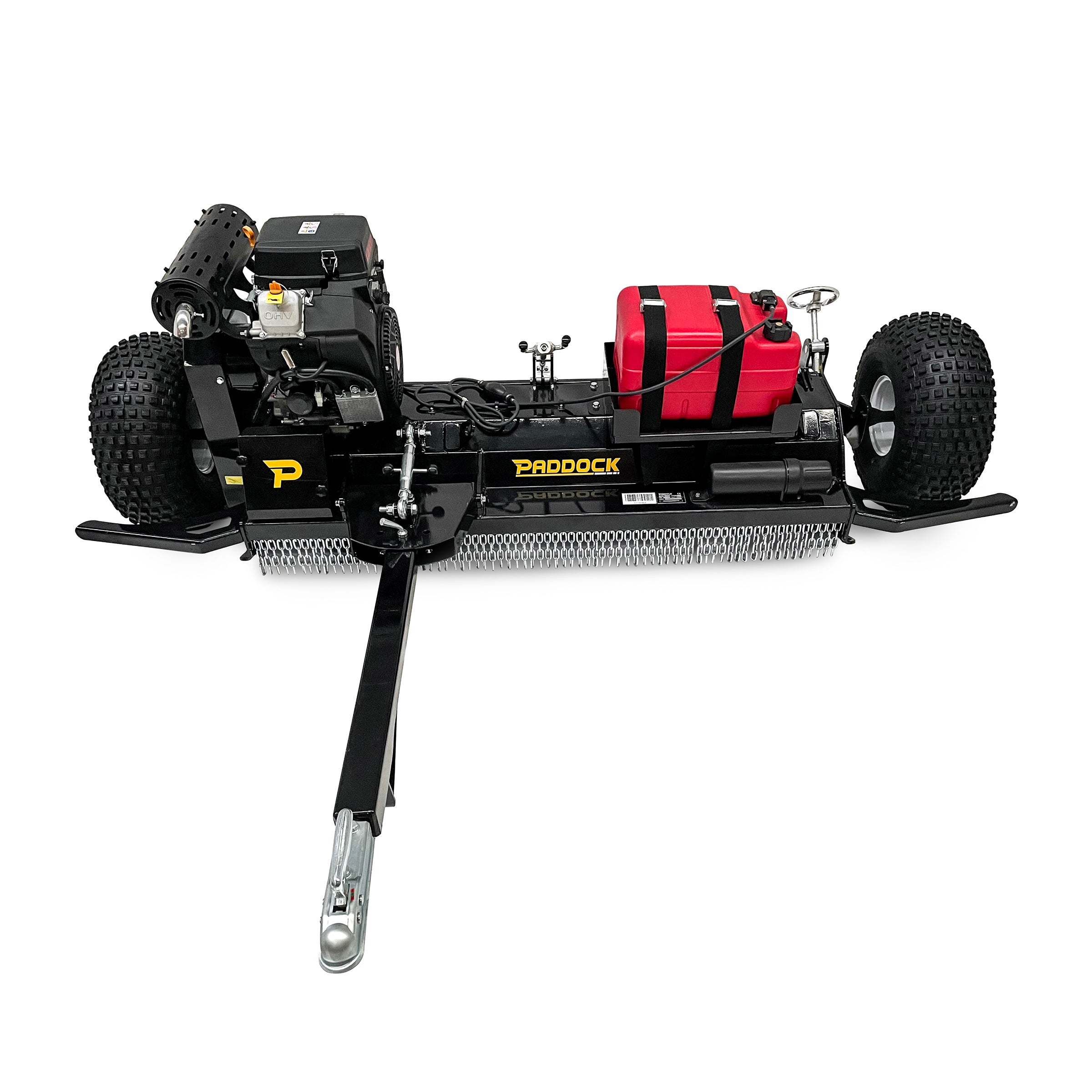

SSPTBFM04 - Extra Heavy Duty 23HP model
European design, this model of tow behind flail is much larger and suited to extreme duty.
This model is supplied with a powerful 23HP Loncin petrol 4-stroke commercial engine. It's built with a wider cut and with the additional engine power it can swing heavier duty flail blades. Jacking screws allow for accurate height adjustment and the large fuel tank makes this unit suitable for cutting larger paddocks. Note, this model can not be configured with the wheels trailing behind.
| Flail Mower | SPTBFM03 | SPTBFM04 |
|---|---|---|
| Cutting Width | 1150mm | 1530mm |
| Power | 13.5hp Briggs and Stratton Petrol 4 Stroke Engine | 23hp Loncin Petrol 4 Stroke Engine |
| Fuel Tank | 6.6 L | 24 L |
| Start | Dual Electric turn key with recoil backup |
Electric start |
| Hitch Type | Suits 50mm Tow Ball | Suits 50mm Tow Ball |
| Wheels | 2 Ply pneumatic 16" x 6.5" x 8" wheels | Extra Heavy Duty |
| Wheel Configuration | Inline or Rear Mount | Inline only |
| Construction | Heavy duty, powder coated steel | Extra Heavy Duty |
| Blades | 28 x Heavy Duty Hammer Blades (replaceable) | 24 x Extreme Duty Hammer Blades |
| Adjustment | Manual cut height, skid & roller height and hitch height | Manual cut height and hitch height |
| Mow Height | 23mm - 60mm adjustable cut height | 20 - 60mm |
| Weight | ~260kg | ~330kg |
| Dimensions | 1.8m x 1.7m x 1m | 2.1m x 2.5m x 1.1m |
| Includes | Optional offset, stone flaps | Stone chains |
| Warranty | 12 Months | 12 Months |
Note: The engines are stored and transported with only enough oil to keep the unit lubricated and oil will need to be added before starting. For ease of shipping the tow hitch and height adjuster will need to be assembled on arrival.
SHIPPING INFORMATION:
This item can be shipped Australia wide and is also available for pick up from our Brisbane warehouse. This item has a shipping weight of 300kg. We advise contacting us for a freight quote to your location. A fork lift will be required at the receiver's location for unloading.
