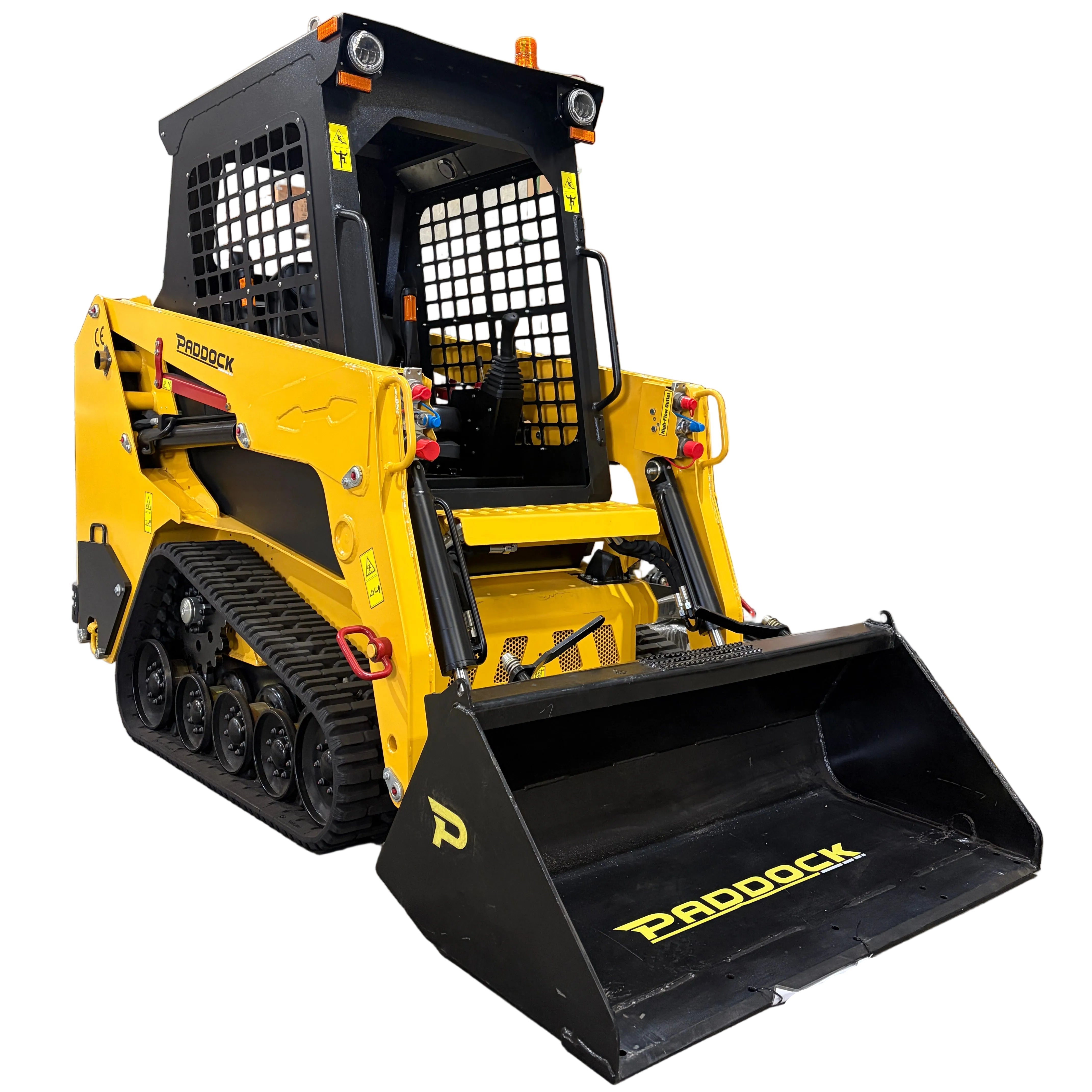

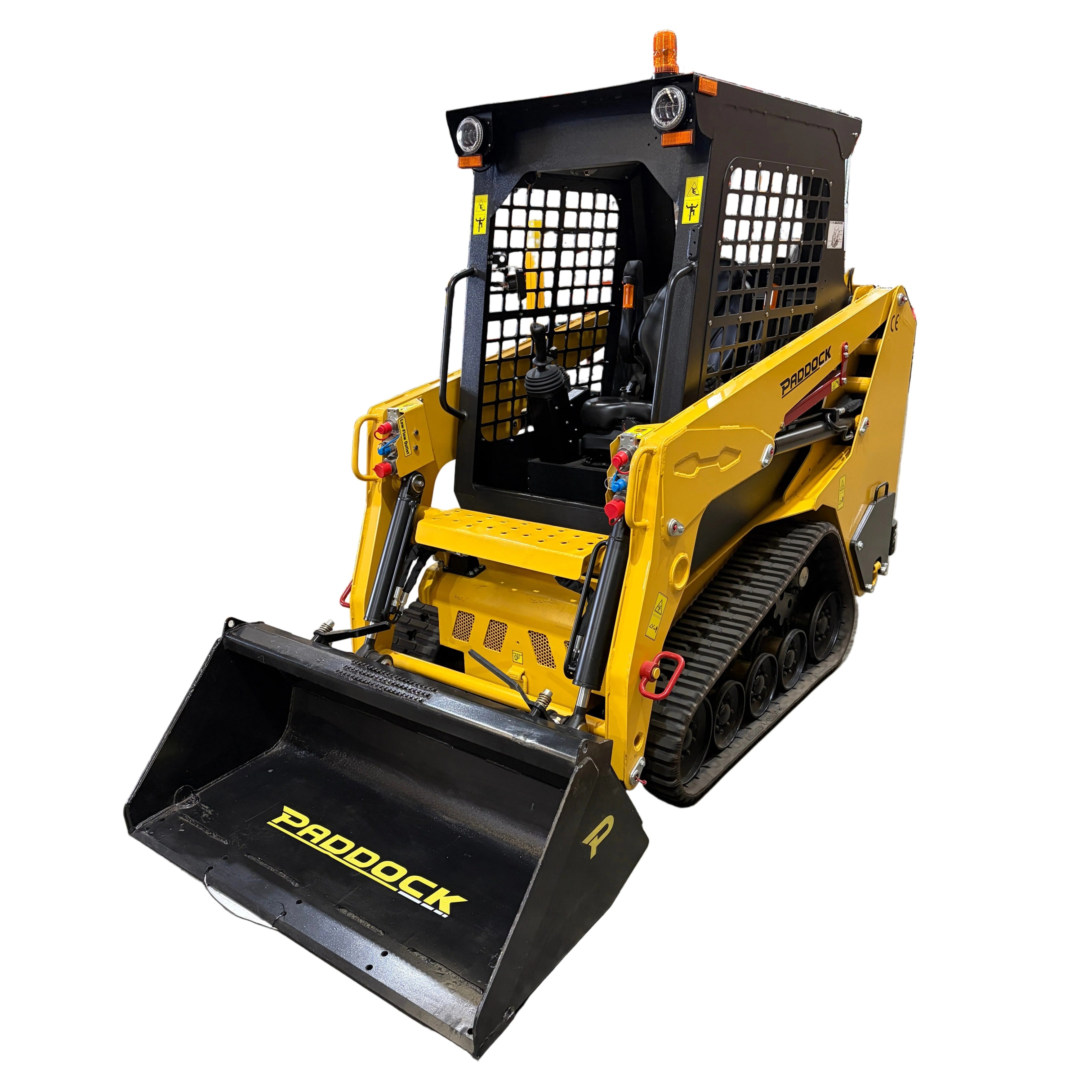

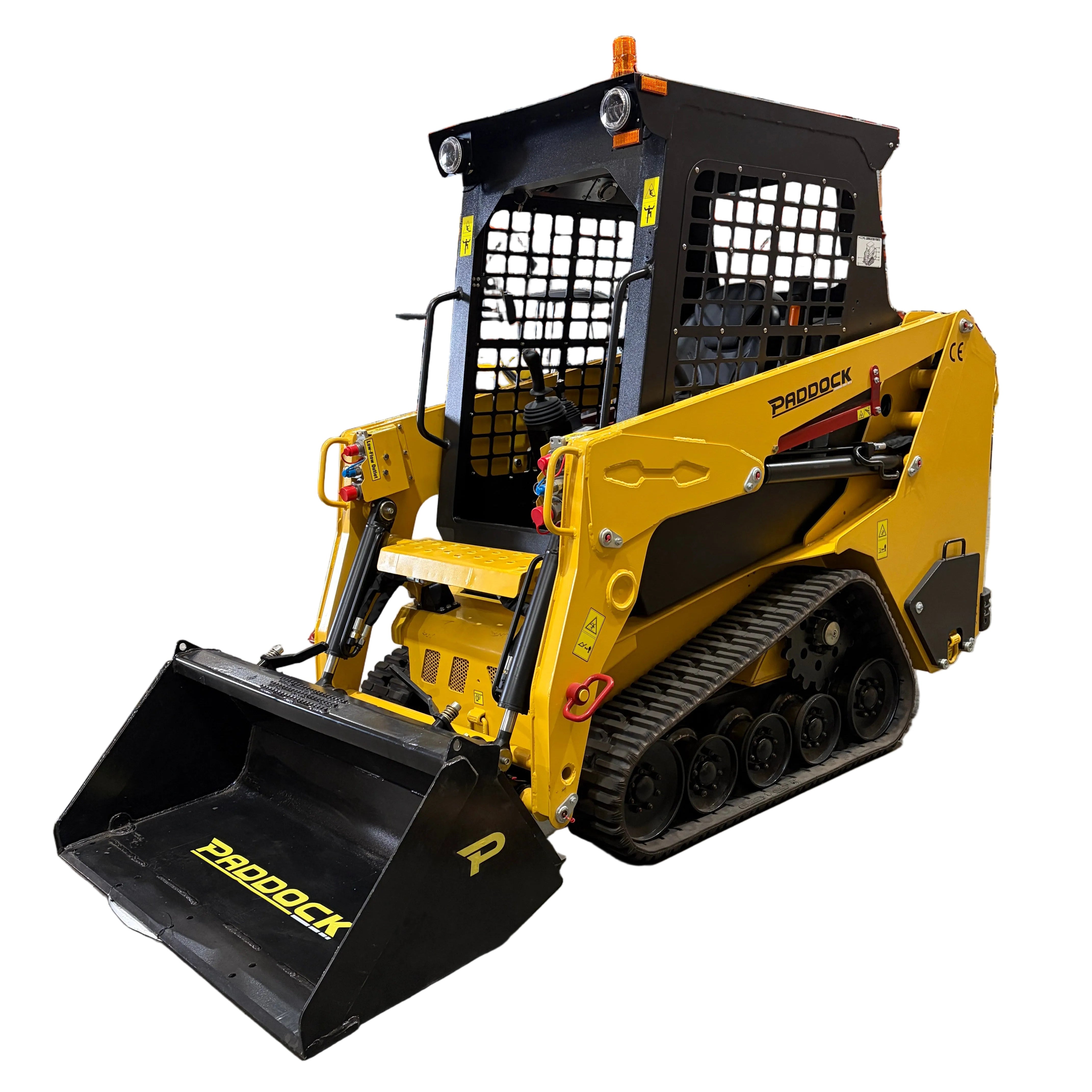

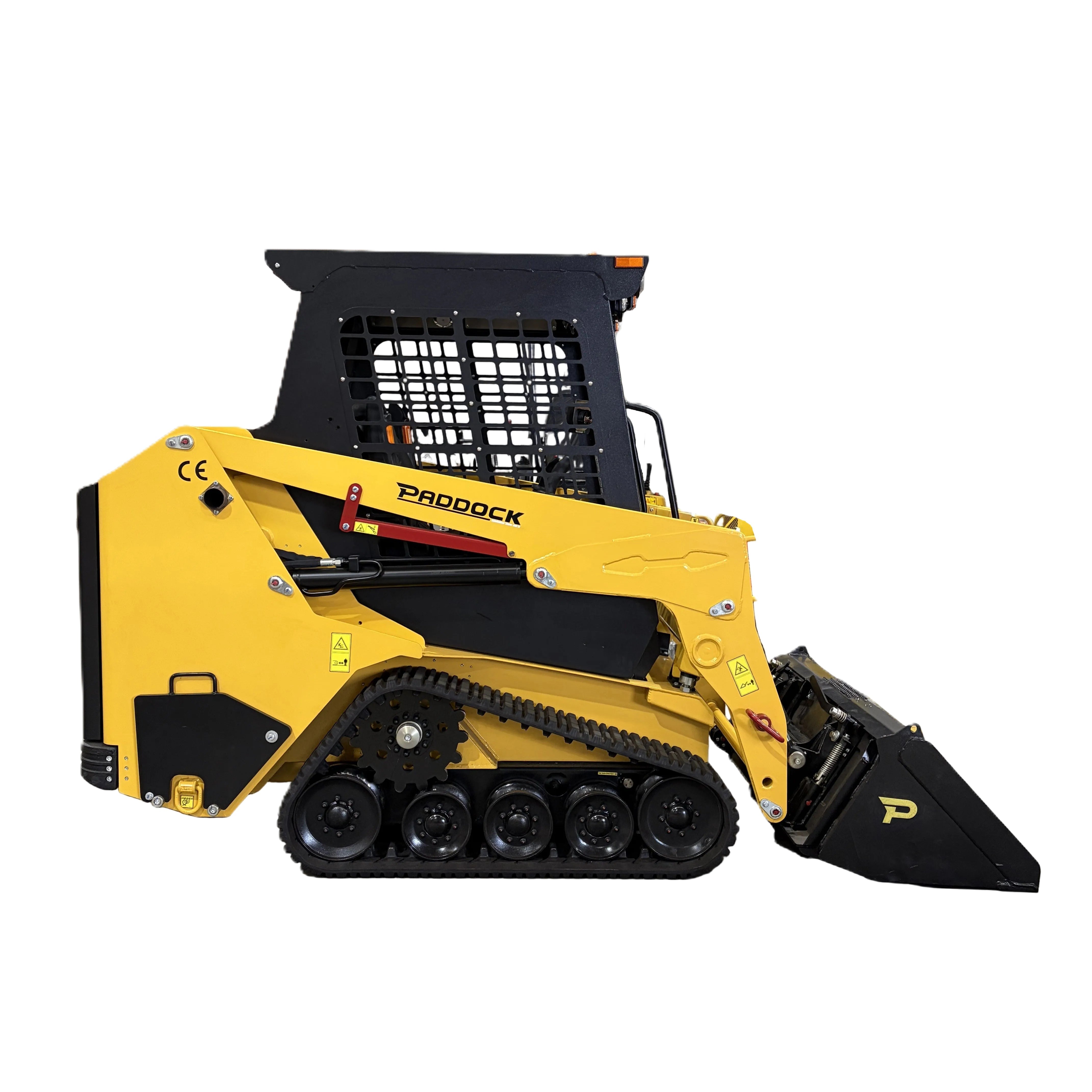

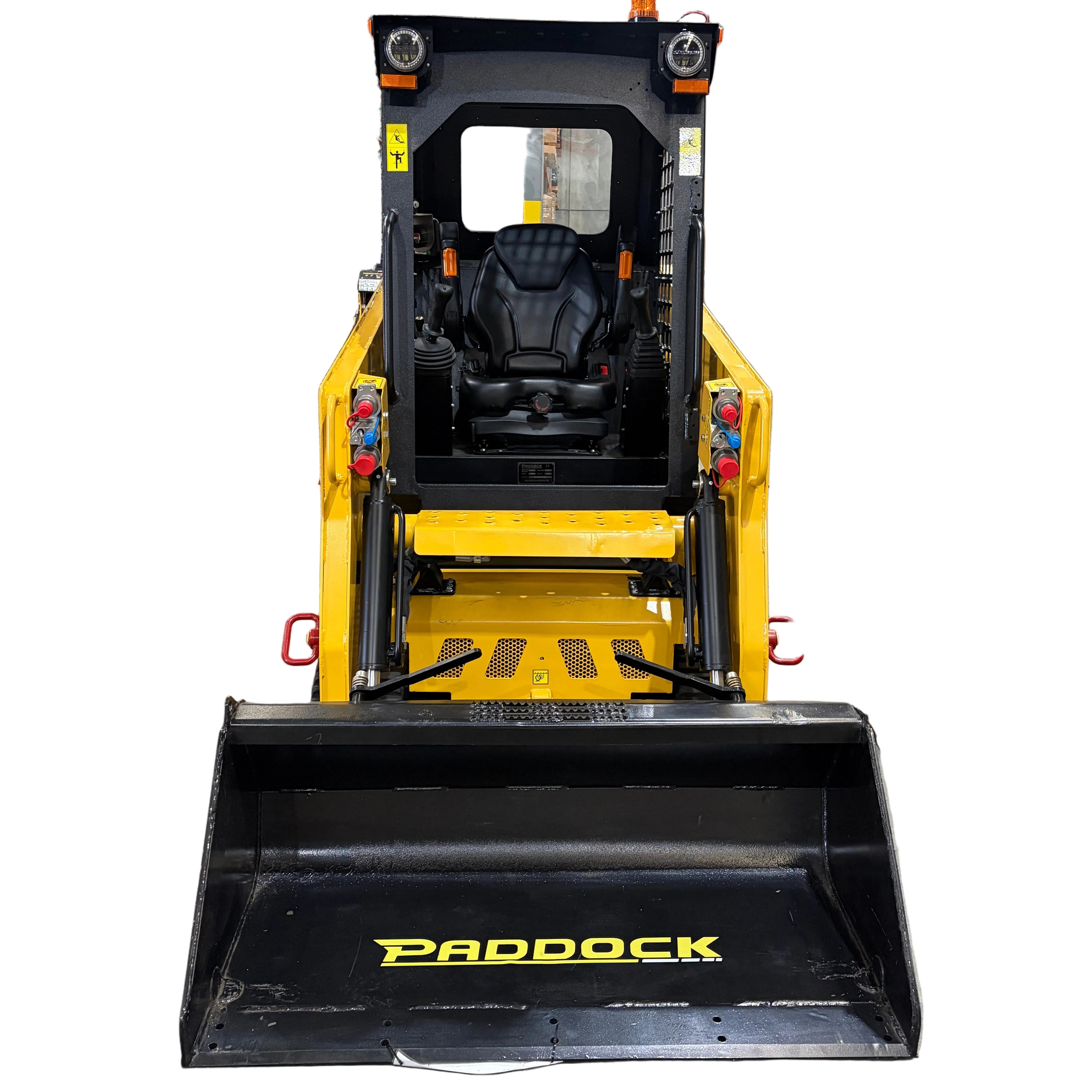

Paddock Tracked Cabin Loader Pro - 40hp Perkins Turbo Diesel Engine - Ex Demo
Freight costs for heavy & bulky items includes a tailgate truck cost. If a forklift is available please contact our sales team to discuss.
You can also contact us for a freight quote prior to ordering.
For orders outside of Australia contact us for a quote.
Scintex can ship worldwide.
Description

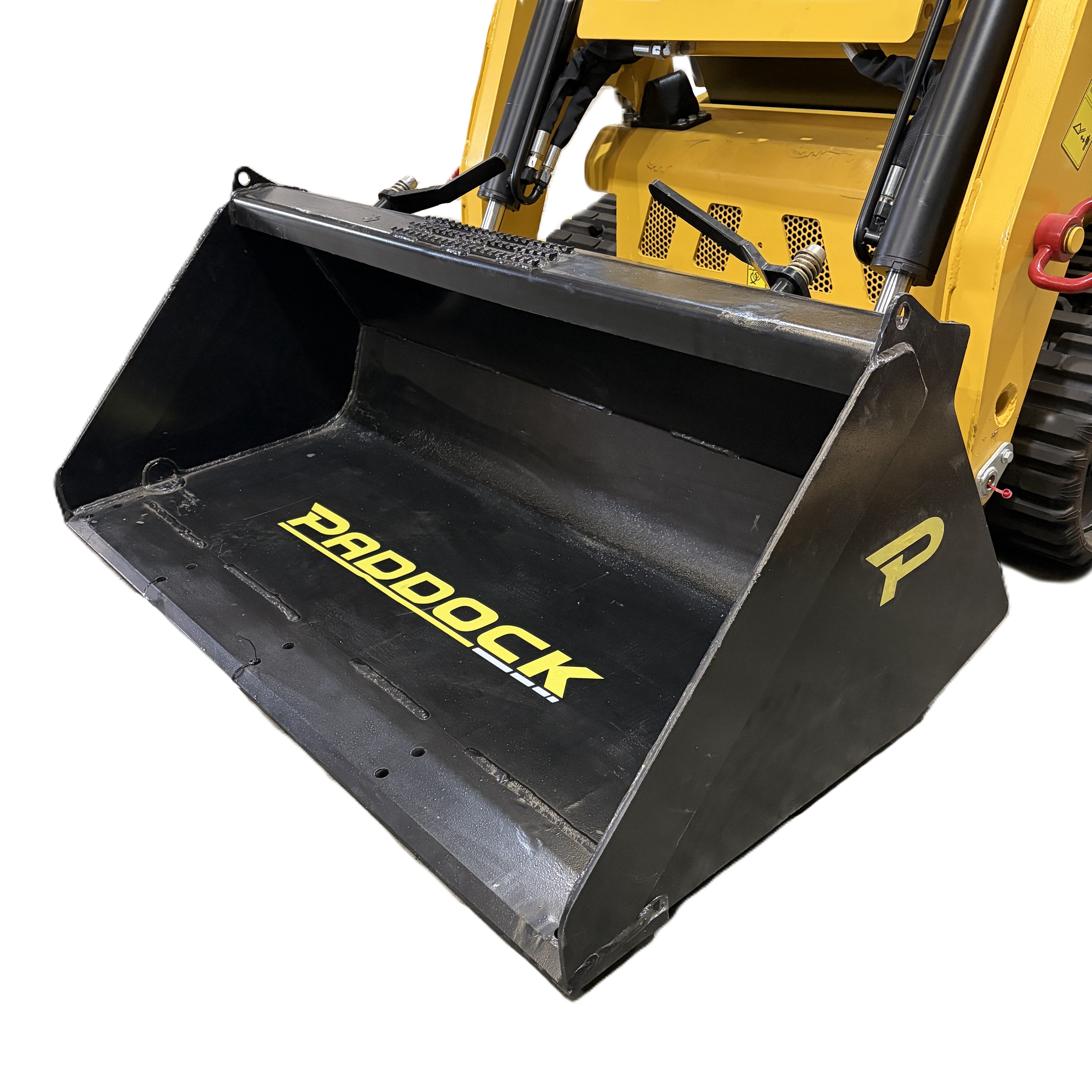

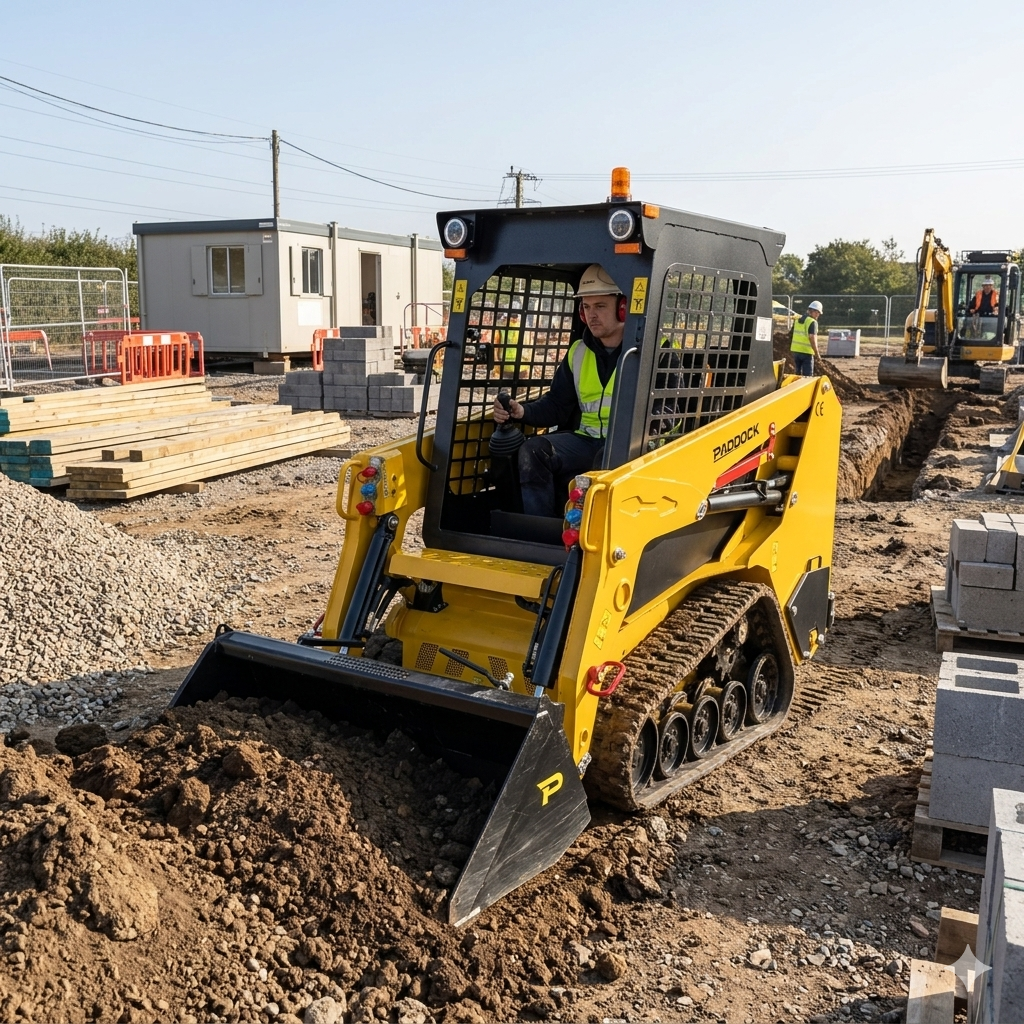

The Paddock™ diesel engine cabin loader makes light work of the toughest jobs. Built strong with quality components, this loader is compatible with a full range of attachments including trenchers, augers and 4 in 1 buckets. This is the ideal machine for small business operators through to large construction companies needing a smaller footprint unit for tight area access.
Call us today to book a demo 1300 246 406 (option 1)
ONE ONLY - Tracked Cabin Loader Pro - 40hp Perkins Diesel Engine - Ex Demo
These diesel engine loaders have greater power and capability than their smaller petrol engine equivalent. With the larger horsepower diesel engine, users can be faster and more efficient on a greater range of job sites.
- Quality diesel engine
- Large load carrying capacity

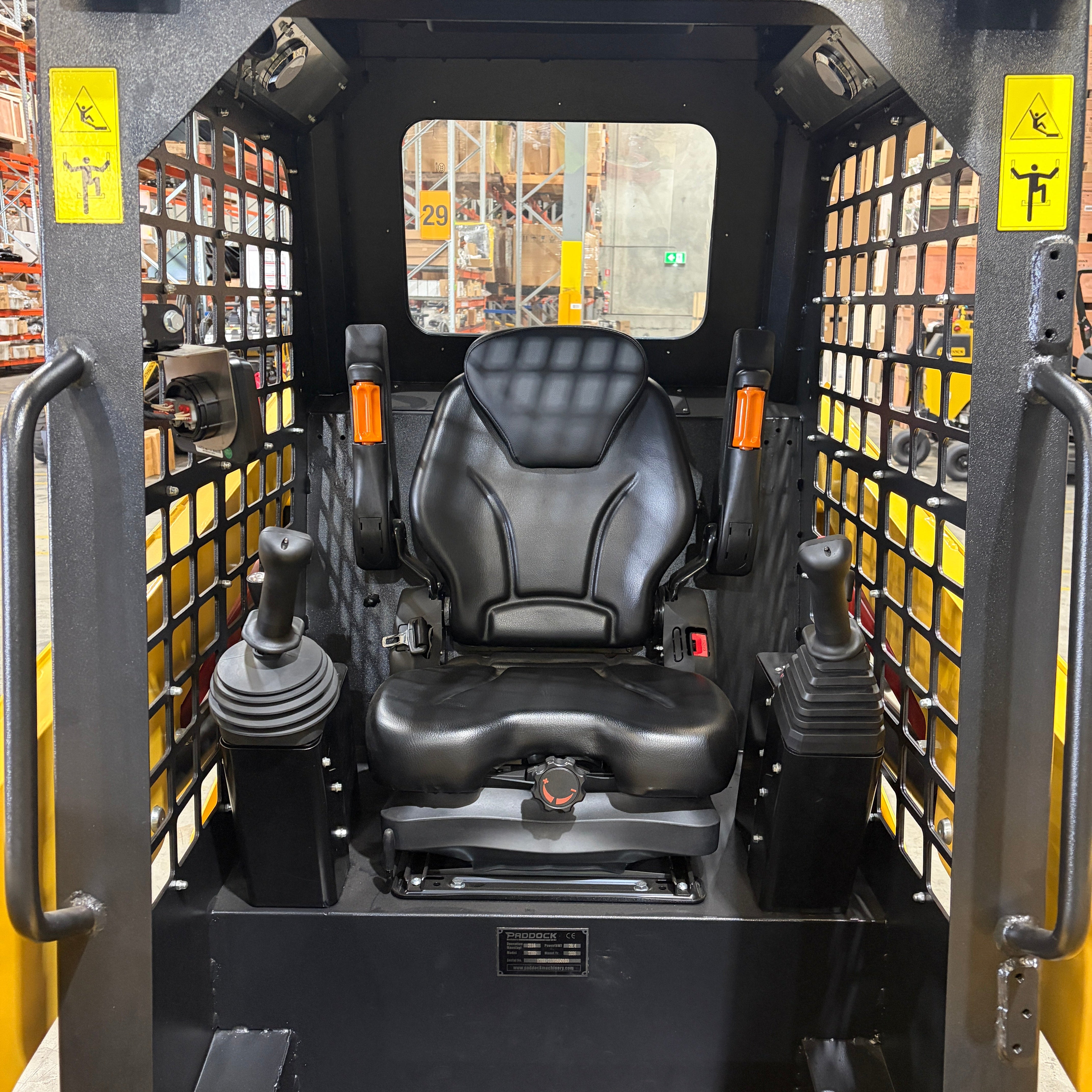

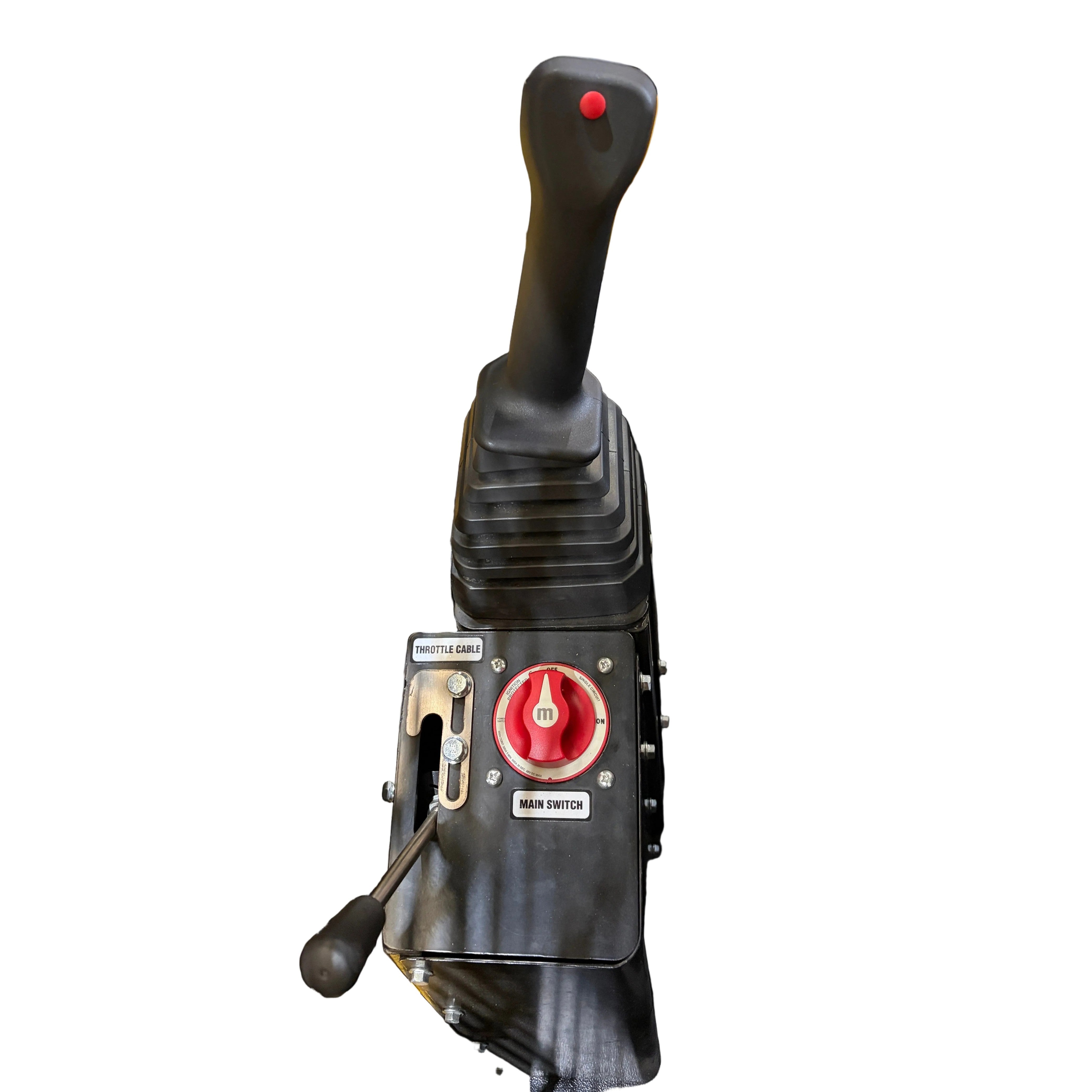

- Simple Joystick drive control
- Heavy duty steel construction with CNC laser cut build accuracy
- Well balanced for turning & traversing with loads
- Quality powder coating prevents corrosion

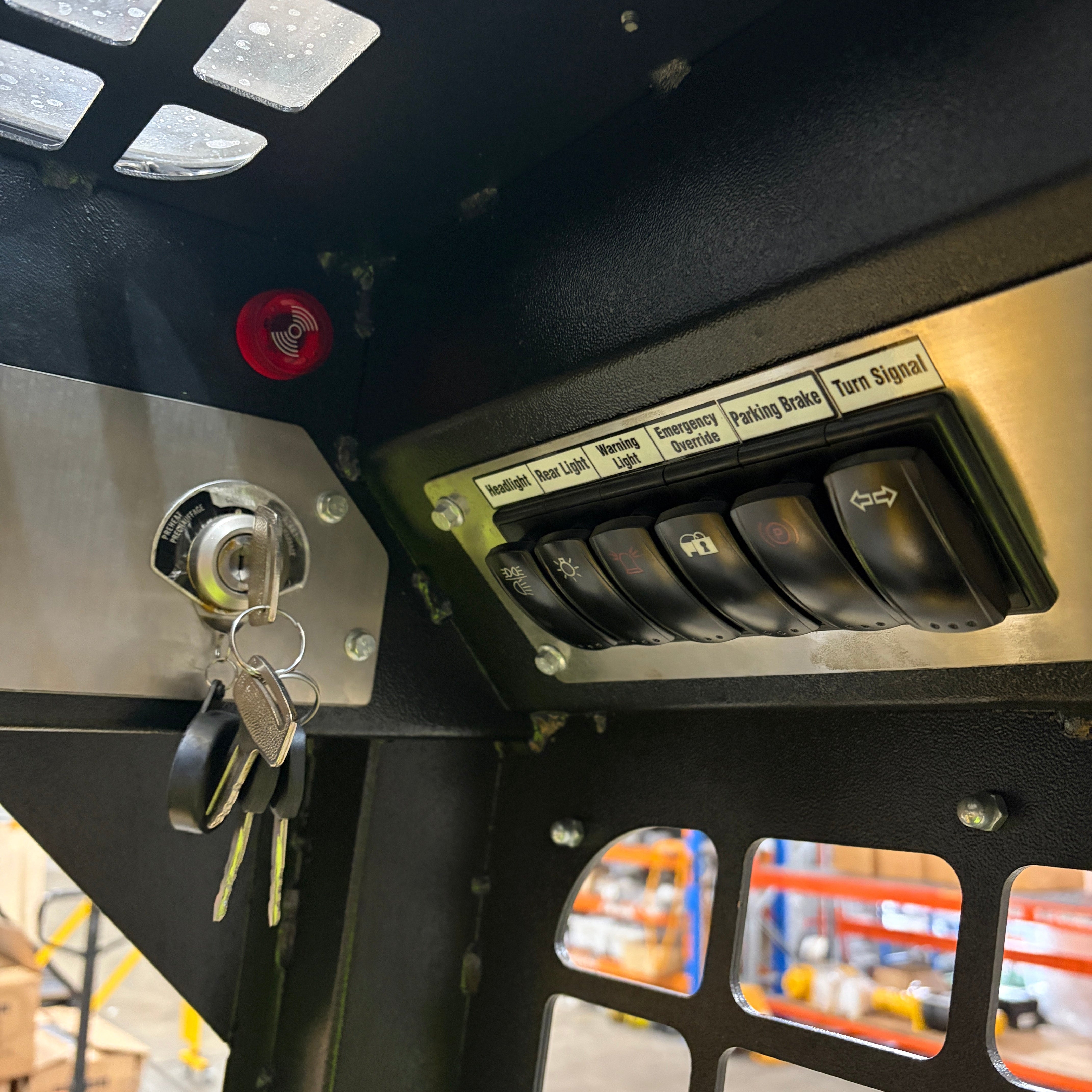

- Simple key start ignition
- Japanese NSK bearings throughout
- Triple hydraulic pumps offers increased flows and pressures for demanding applications
- Parker hydraulic hoses

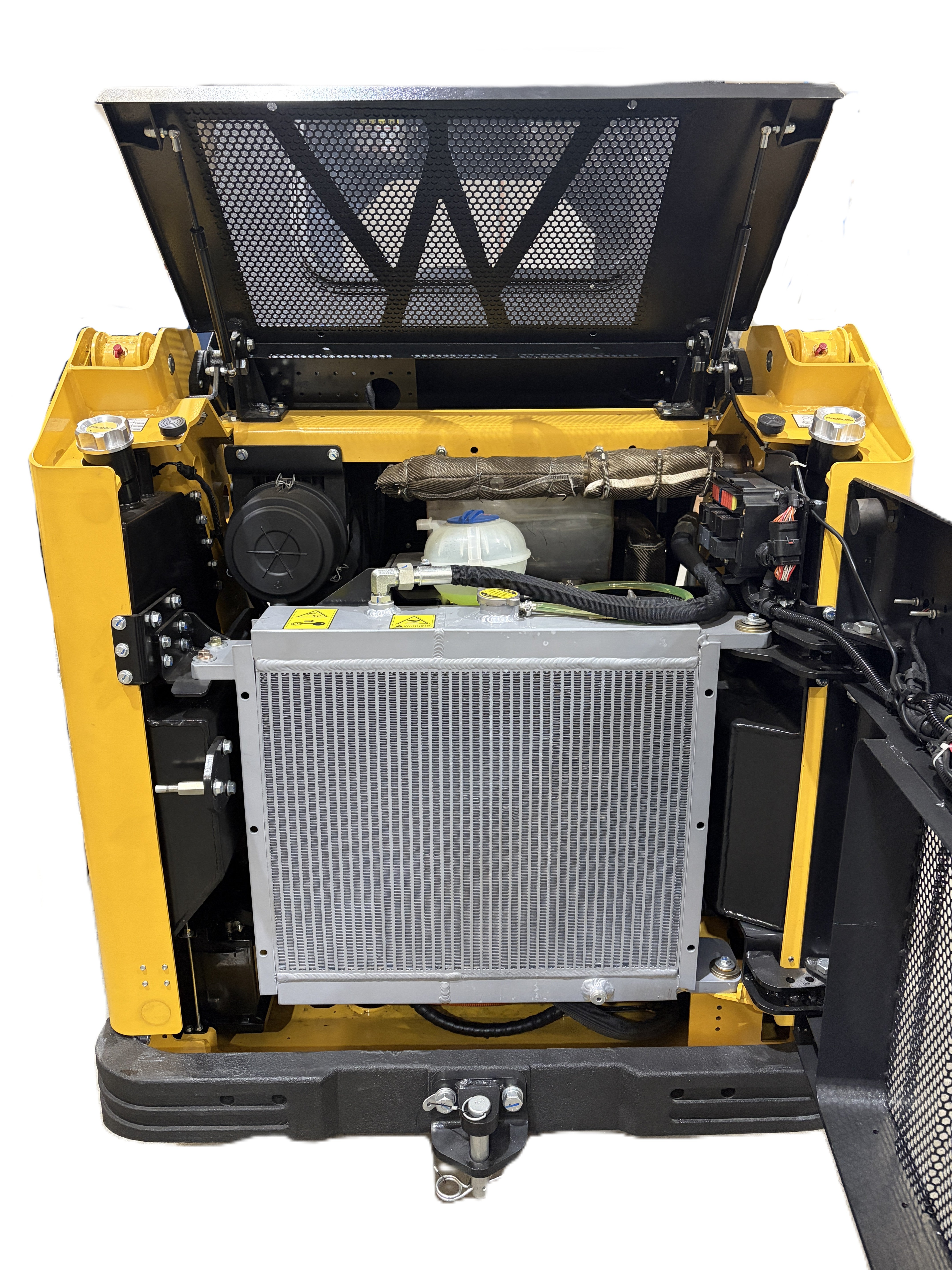

- Oil cooler and radiator upgraded for harsh Australian climate
-
Upgraded cyclonic air filtration system
Paddock Machinery
Exceptional quality at a realistic price, Paddock loaders are ideal for the commercial trade user. The Paddock difference is that quality components, sourced from all over the world, are used to deliver the perfect package. Bulk buying power savings are passed onto the consumer, to offer a turn key unit that competes with the bigger name players, at a realistic price. Scintex is proud to offer the Paddock brand to Australian customers offering local support and parts for the life of the machine.
Diesel Engine Loader
These models run a triple hydraulic pump system meaning the unit is optimised not only for driving, but also for use with attachments which might have high flow demands or increased pressure requirements. The pumps work together to providing 18-25Mpa of hydraulic pressure depending on the application. This design is perfect for all the common uses such as trenching, auguring, rock breaking, digging and general traversing. The machine is fast, capable and a pleasure to operate.
Perkins model - The diesel engine is made in England by Perkins, a known and trusted name for diesel engines. Perkins is a subsidiary of Caterpillar and are world renowned for building quality commercial diesel engines. The engine is fuel efficient, smooth and complements the package well. Perkins diesel engines are well supported all over Australia so users know they're buying quality.
Paddock Mini Loader Specifications
|
Mini Loader Model |
STRKCL100 |
|---|---|
| Machine Load Capacity | 900 kg |
| Speed |
0-7 km/hr |
| Engine |
Perkins 403D-15T 40hp 1.5-liter, 3-cylinder, turbocharged diesel engine |
| Fuel | Diesel |
| Fuel Tank Volume | 40L |
| Starter | Key start |
| Battery | 12v Maintenance Free |
| Air Filter | Donaldson |

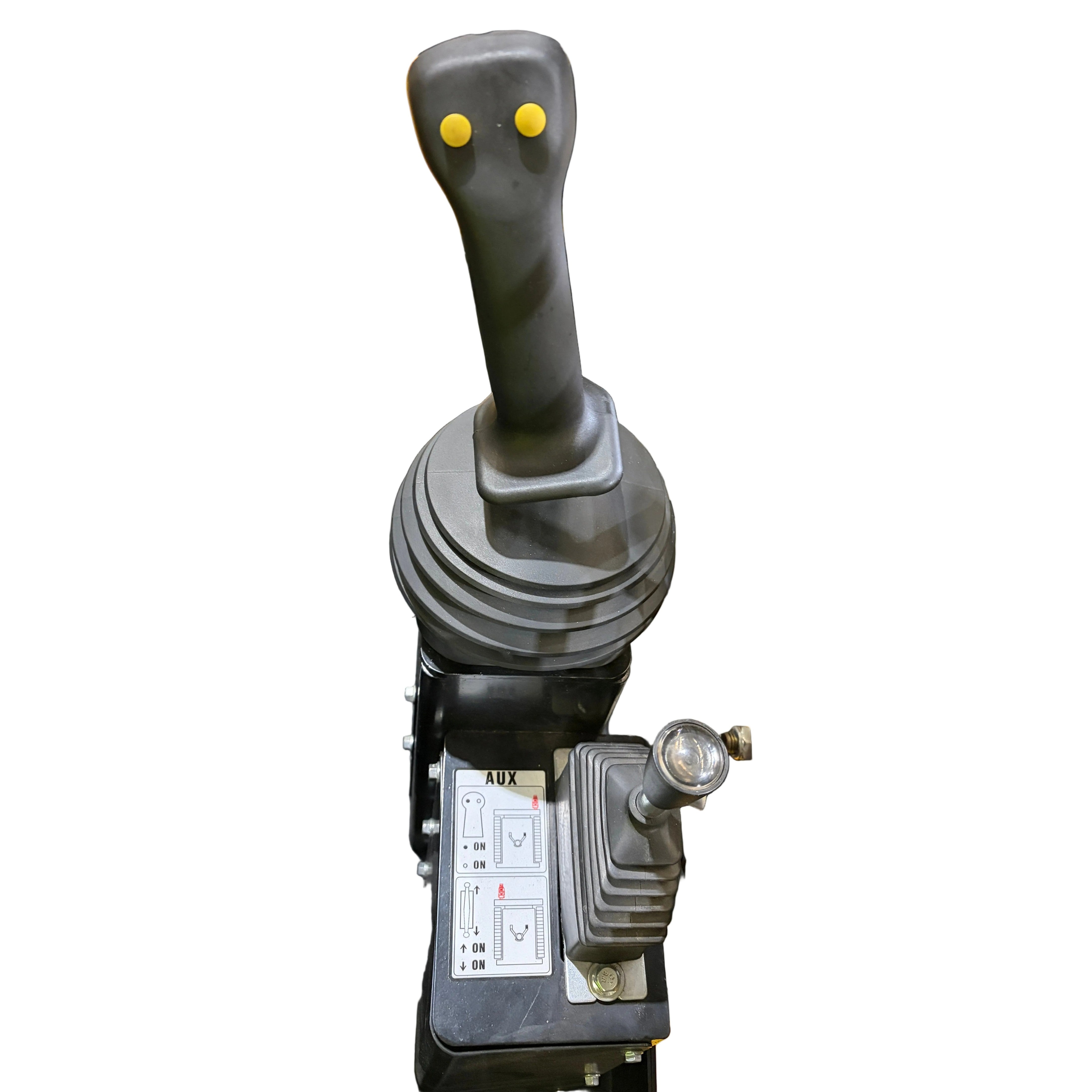

| Hydraulic Valve | Italian HC Hydraulic Servo Control Valve Joystick drive control |
| Hydraulic Pump | Italian BONDIOLI PAVESI 21cc |
| Auxiliary Hydraulic Flow | 43-48 L/min |
| Bucket Float Function | Standard |
| Hydraulic Oil Tank | 35 L |
| Hydraulic Oil Cooler | Standard |
| Hydraulic Connections | Italian DNP Flat Faced G1/2, G3/8 Quick Connects |
| Bearings | Japanese NSK throughout |

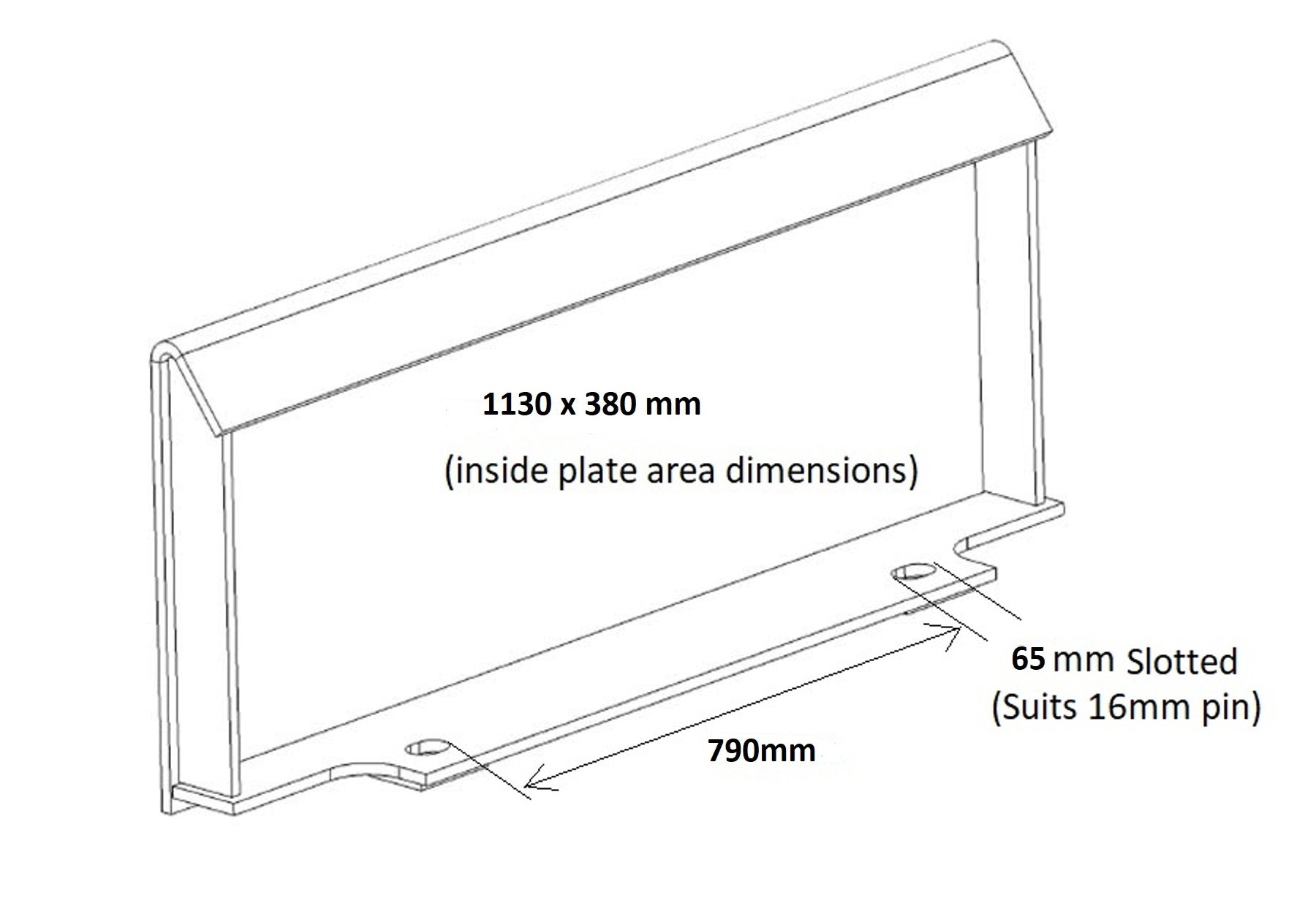

| Hitch Plate | TBC |
| Parking Brake | Standard |
| Drive Train | Tracks 200mm flat bar tracks KDF |
| Operating Weight | 2340 kg |
| Machine Weight | 1850 kg |
| Machine Dimensions | 2250 mm (L) x 1060 mm (W) x 1600 mm (H) |
| Tipping Pin Height | 2100 mm |
| Warranty | 24 Months Parts Supply Warranty 12 month Global Engine Warranty |
Mini Loader Service and Maintenance
The Paddock Mini Loader offered by Scintex is designed to have trouble free and easy maintenance. Like any small engine the oil will require changing at predetermined intervals. The hydraulic fluids will require monitoring and periodic replacement also. The machine with 4 in 1 bucket features over 20 easy to access grease nipples. Very limited mechanical knowledge is required to maintain these machines. A maintenance program is supplied with each Paddock Mini Loader.
Note: The engines are often stored and transported with only enough oil to keep the unit lubricated and additional oil may need to be added before started.
